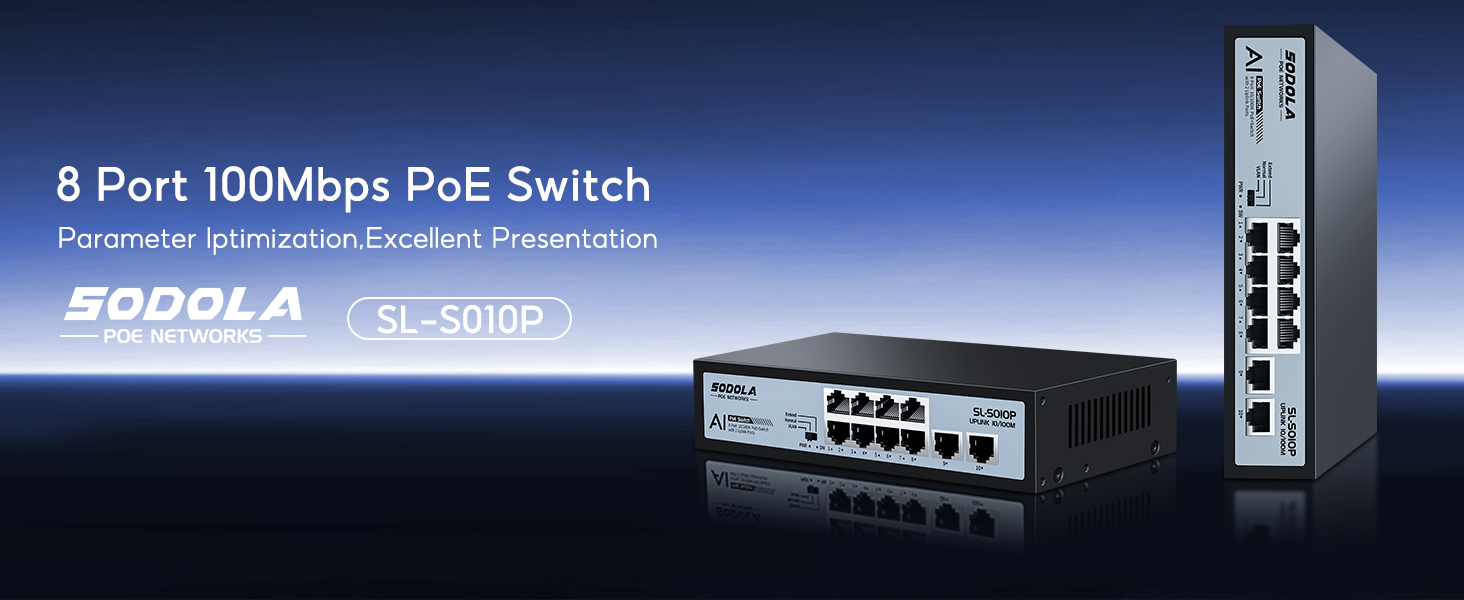

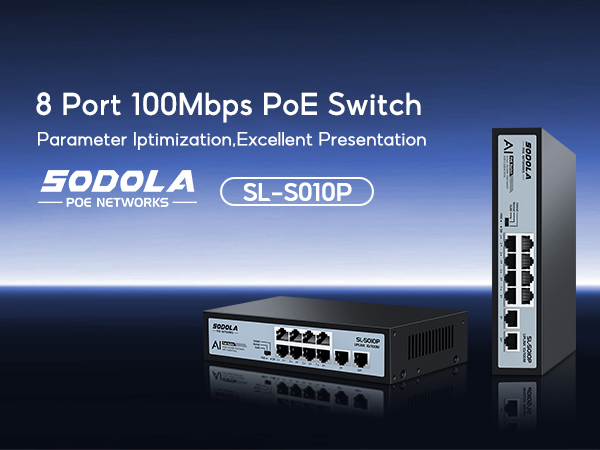

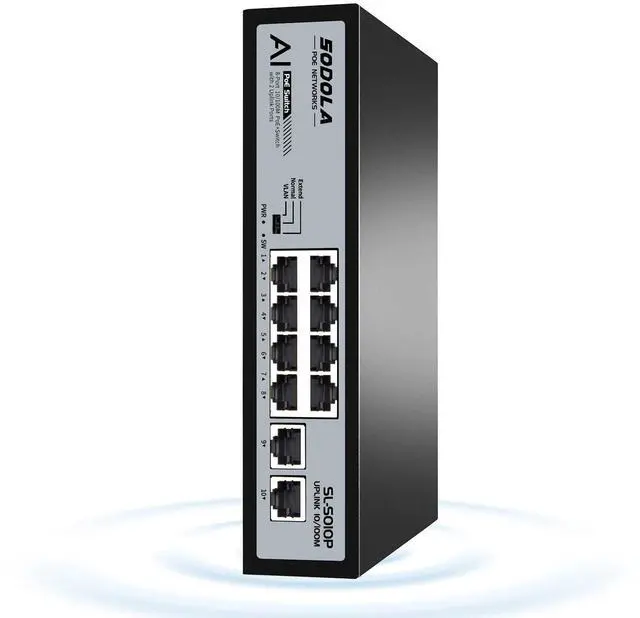

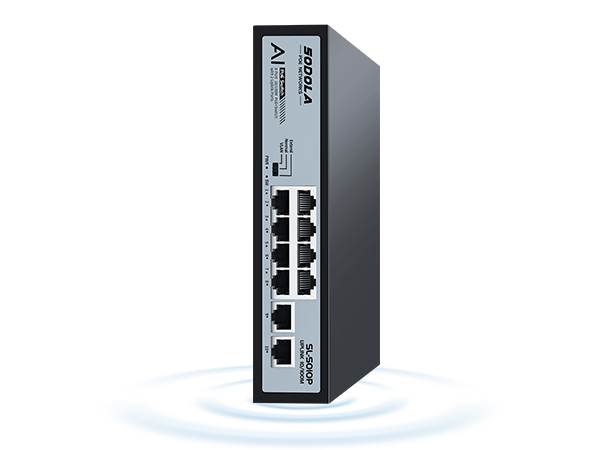

SODOLA 8 Port AI PoE Switch 100Mbps

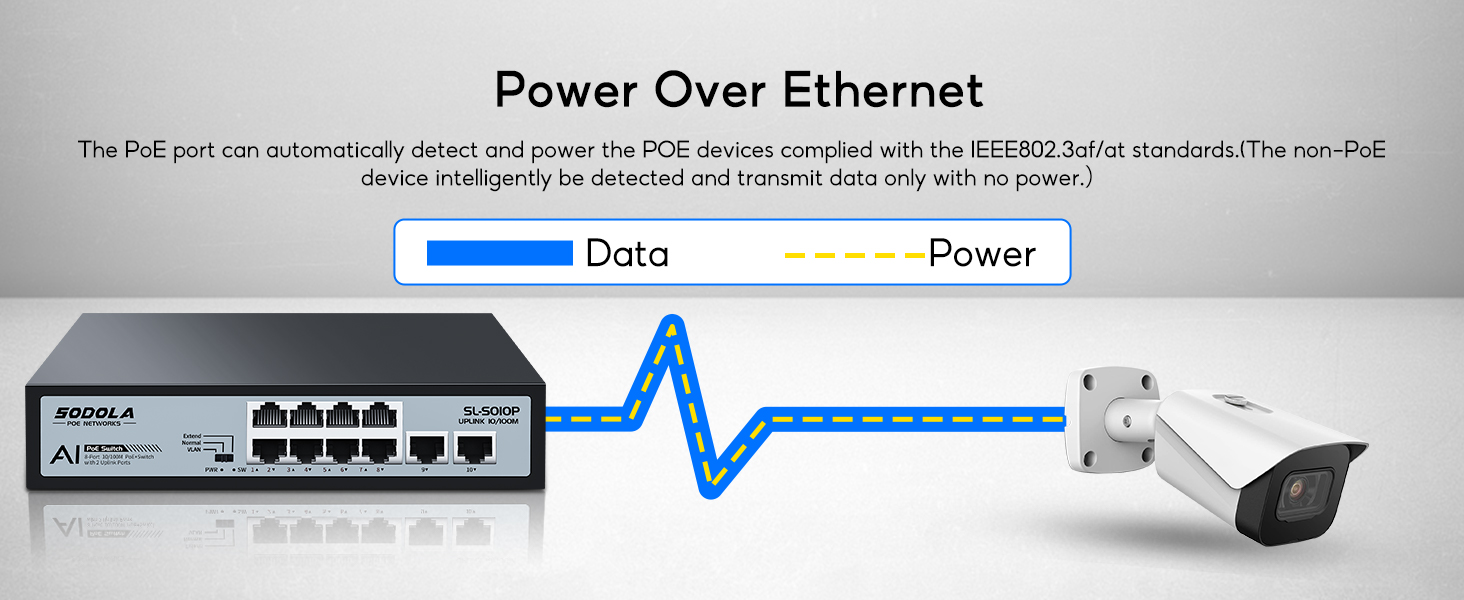

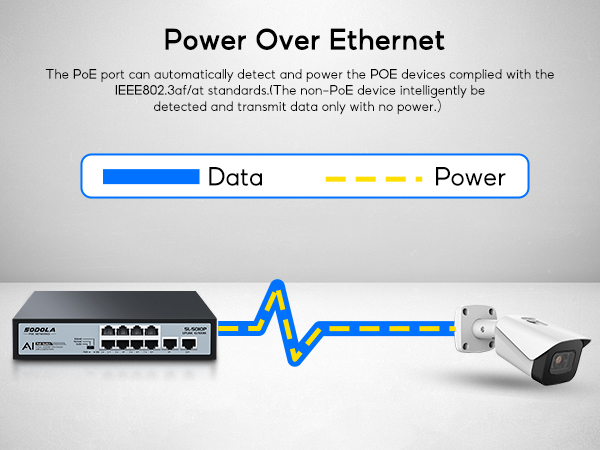

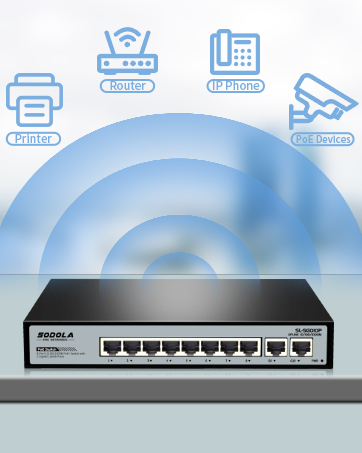

8-Ports 100M PoE Switch, using high-quality high-speed network IC and the most stable PoE chip, complies with 802.3af/at standard.It provides a seamless connection, and the PoE power port can automatically detect and power the PoE powered devices.The non-PoE device intelligently transmits data only.

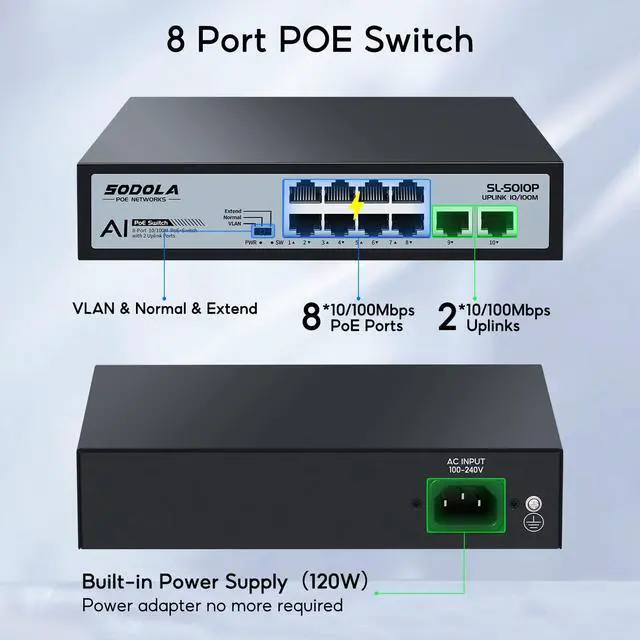

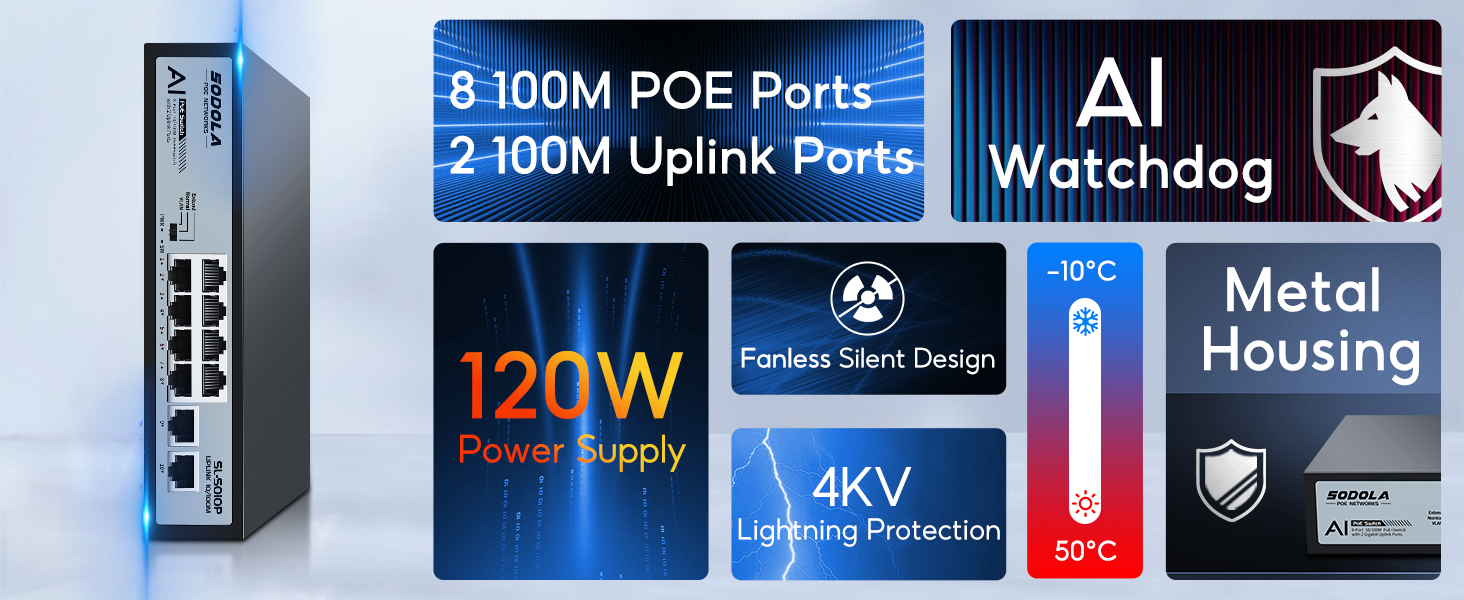

Main Features for 8 Port PoE Switch(SL-S010P)

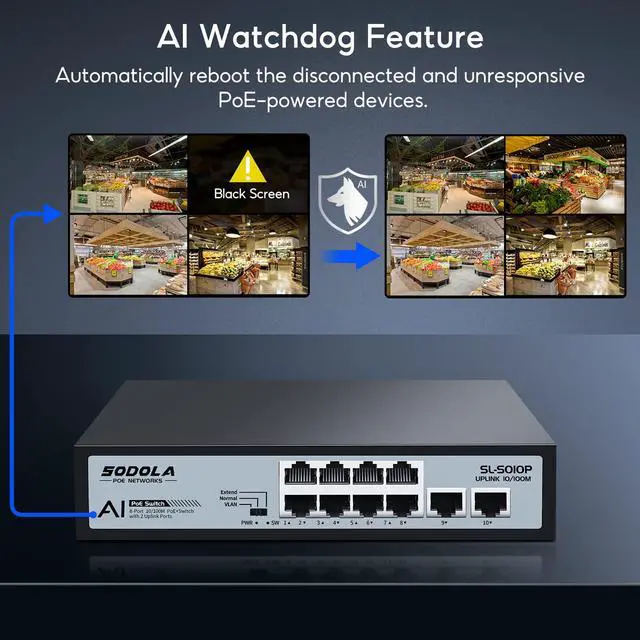

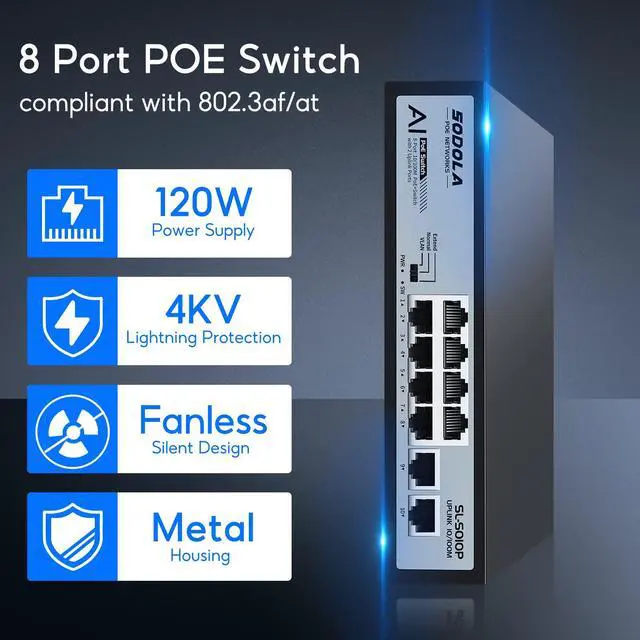

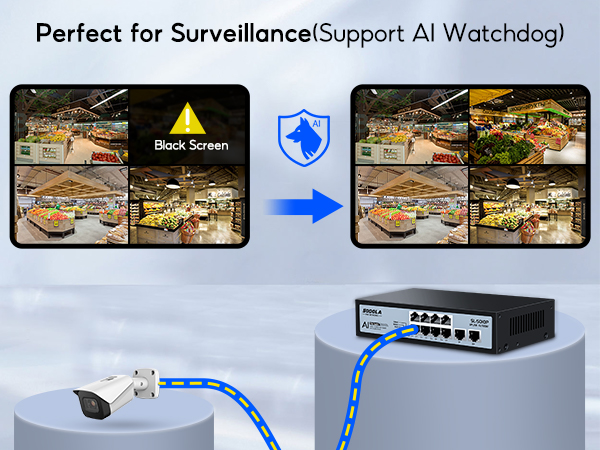

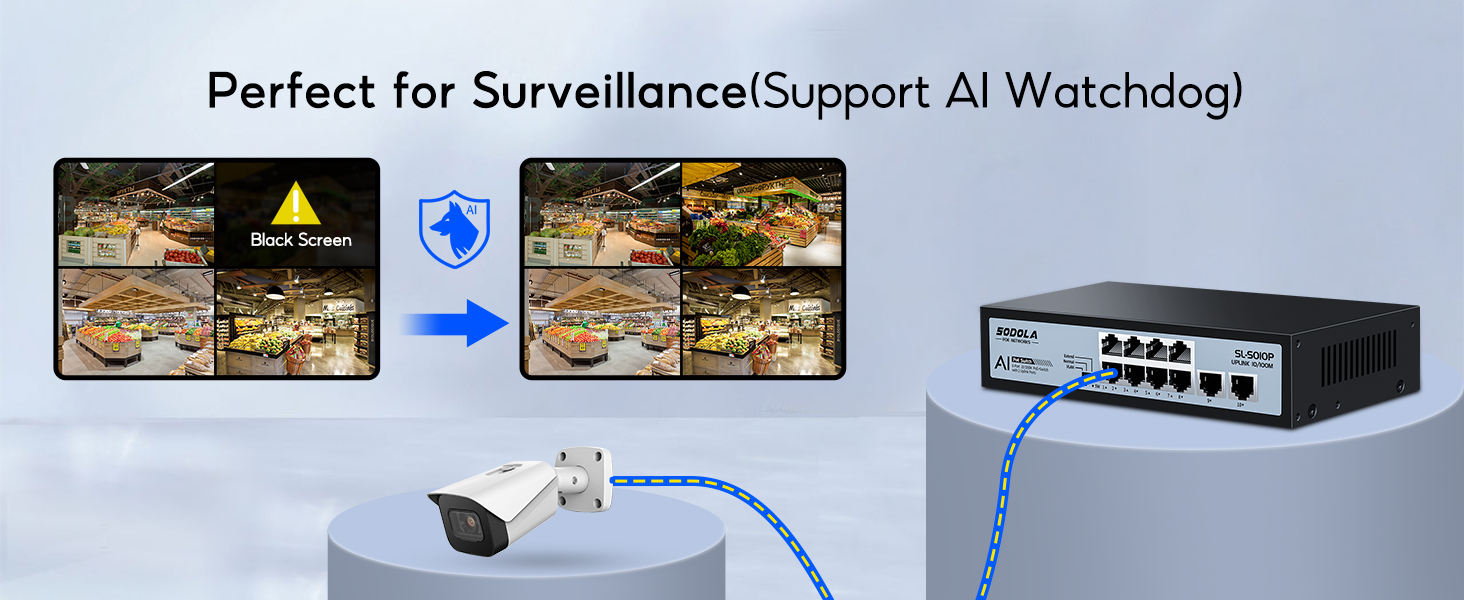

1.With IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards; 2.Full-duplex adopts IEEE 802.3x standard,half-duplex adopts Back pressure standard. 3.Support Auto MDI/MDIX, VLAN & Extend,AI Watchdog;4.Lightning Protection:General Mode 4KV, Differential Mode 2 KV, ESD 8KV(Air),6KV(Contact)

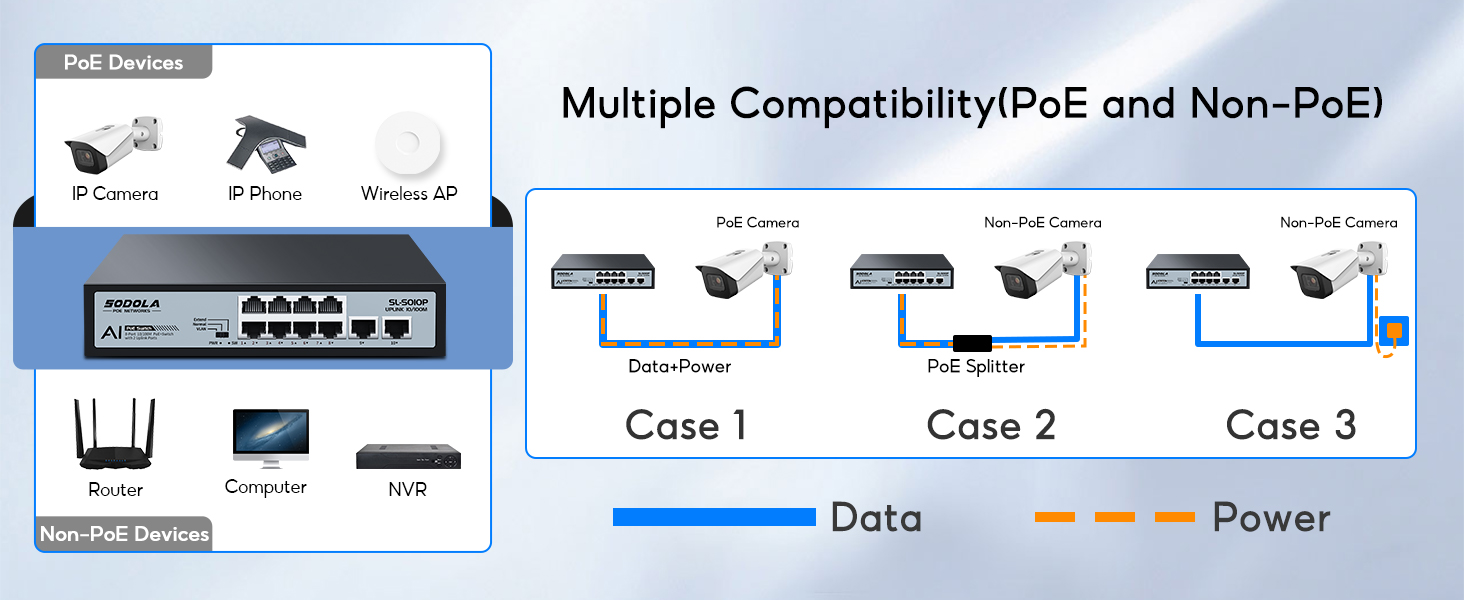

Multiple Compatibility
This switch supports passive PoE/non-POE devices. However, when the switch is directly connected to a passive/non PoE device,the switch transmit data only.Therefore, the device needs another power supply or,a PoE splitter so that the switch can transmit data and power supply at the same time.
SODOLA PoE Switch
8x10/100Mbps | PoE Port | 8x10/100/1000Mbps |
2x10/100Mbps | UpLink Port | 2x10/1000Mbps |
802.3at/af | PoE Standard | 802.3at/af |
120W | POE Power Budget | 120W |

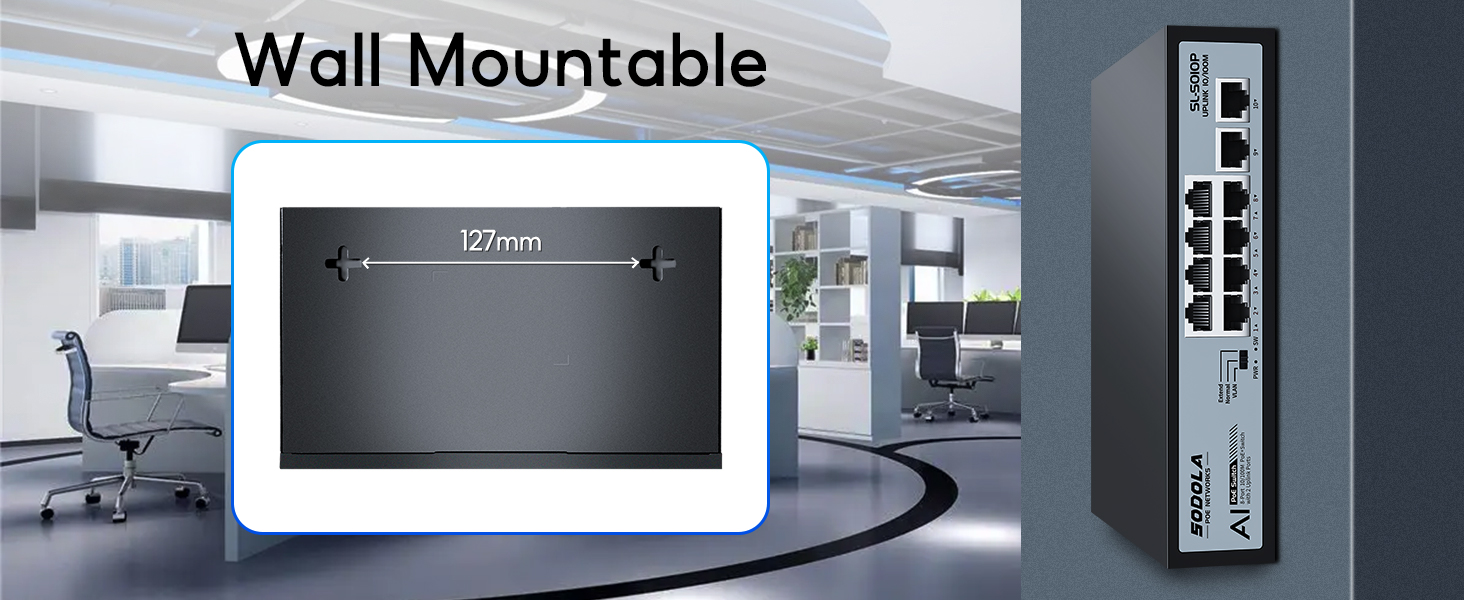

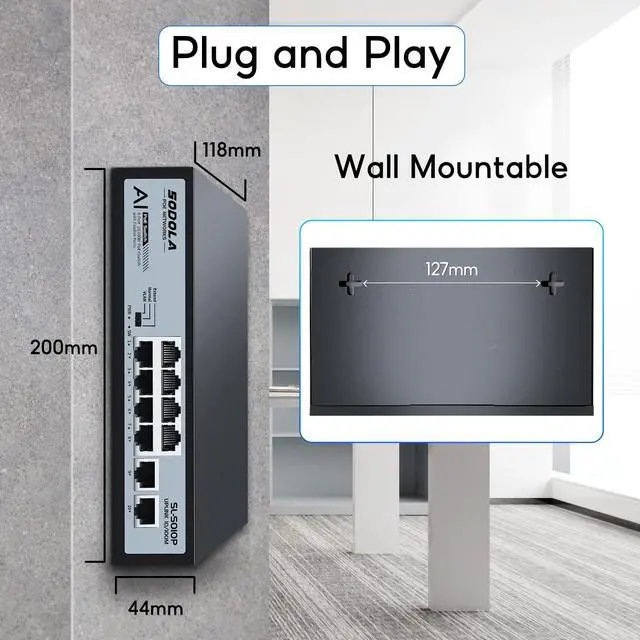

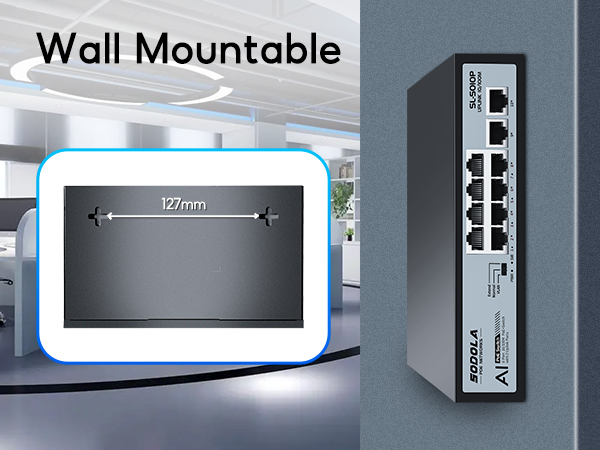

Desktop or Wall | Mounting Options | Desktop or Wall |
/ | SFP Fiber Port | / |
8x10/100Mbps | PoE Port | 8x10/100Mbps |
2x10/100Mbps | UpLink Port | 2x10/1000Mbps |
802.3at/af | PoE Standard | 802.3at/af |
120W | POE Power Budget | 120W |
Desktop or Wall | Mounting Options | Desktop or Wall |
/ | SFP Fiber Port | / |
8x10/100Mbps | PoE Port | 4x10/100/1000Mbps |
2x10/100Mbps | UpLink Port | 2*Gigabit Uplinks |
802.3at/af | PoE Standard | 802.3at/af |
120W | POE Power Budget | 65W |
Desktop or Wall | Mounting Options | Desktop or Wall |
/ | SFP Fiber Port | 1*SFP Slot |
8x10/100Mbps | PoE Port | 4x10/100Mbps |
2x10/100Mbps | UpLink Port | 2x10/100Mbps |
802.3at/af | PoE Standard | 802.3at/af |
120W | POE Power Budget | 65W |
Desktop or Wall | Mounting Options | Desktop or Wall |
/ | SFP Fiber Port | / |
PRODUCT PARAMETERS for SODOLA 8 PORT POE SWITCH
SODOLA 8 Port AI PoE Switch 100Mbps
8-Ports 100M PoE Switch, using high-quality high-speed network IC and the most stable PoE chip, complies with 802.3af/at standard.It provides a seamless connection, and the PoE power port can automatically detect and power the PoE powered devices.The non-PoE device intelligently transmits data only.

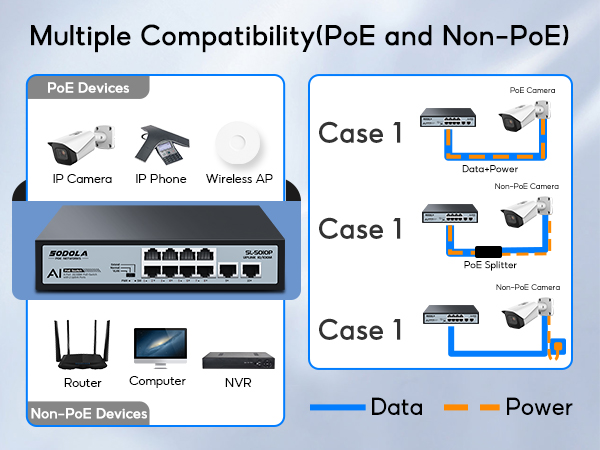

Multiple Compatibility
This switch supports passive PoE/non-POE devices. However, when the switch is directly connected to a passive/non PoE device,the switch transmit data only.Therefore, the device needs another power supply or,a PoE splitter so that the switch can transmit data and power supply at the same time.
SODOLA PoE Switch
SL-S010P
PoE Port
8x10/100Mbps
UpLink Port
2x10/100Mbps
PoE Standard
802.3at/af
POE Power Budget
120W
Mounting Options
Desktop or Wall
SFP Fiber Port
/

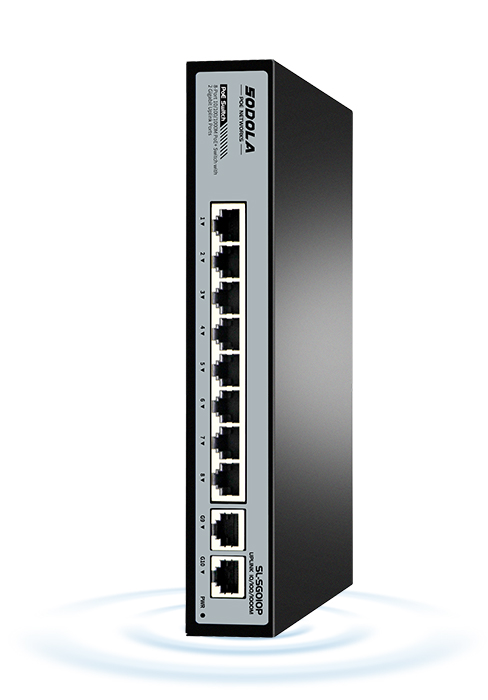

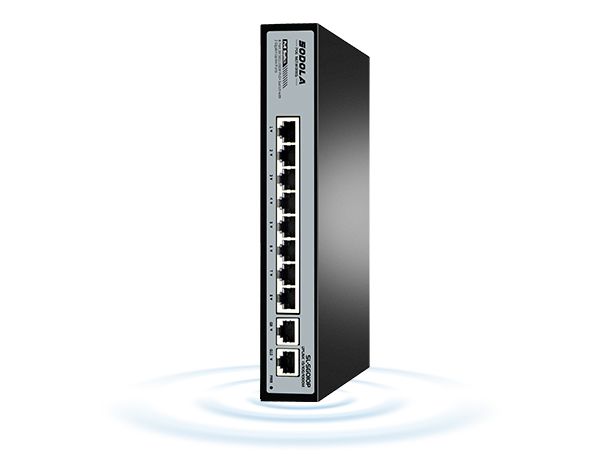

SL-SG010P
PoE Port
8x10/100/1000Mbps
UpLink Port
2x10/1000Mbps
PoE Standard
802.3at/af
POE Power Budget
120W
Mounting Options
Desktop or Wall
SFP Fiber Port
/

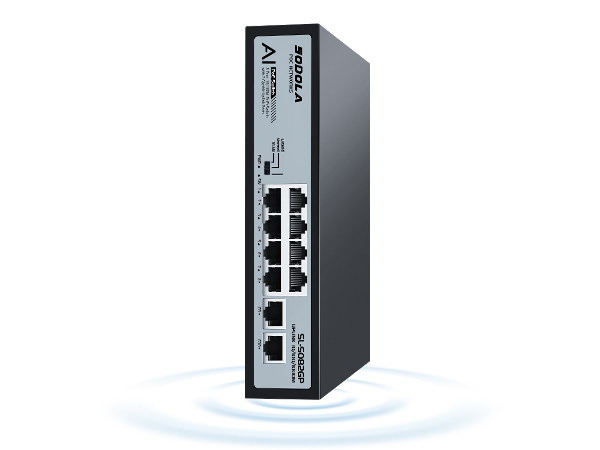

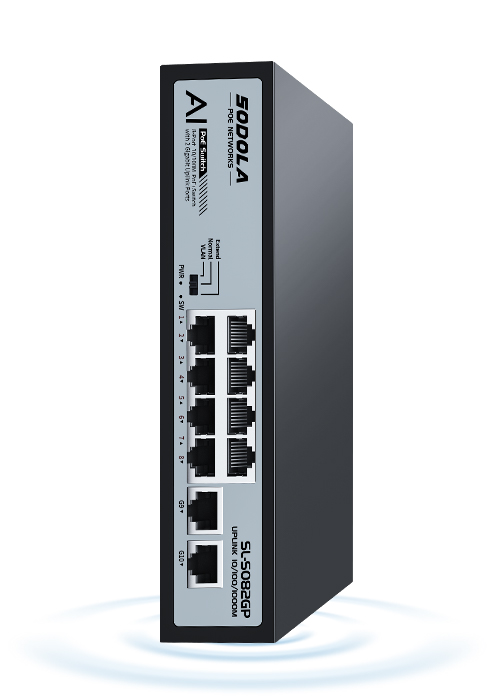

SL-S082GP
PoE Port
8x10/100Mbps
UpLink Port
2x10/1000Mbps
PoE Standard
802.3at/af
POE Power Budget
120W
Mounting Options
Desktop or Wall
SFP Fiber Port
/

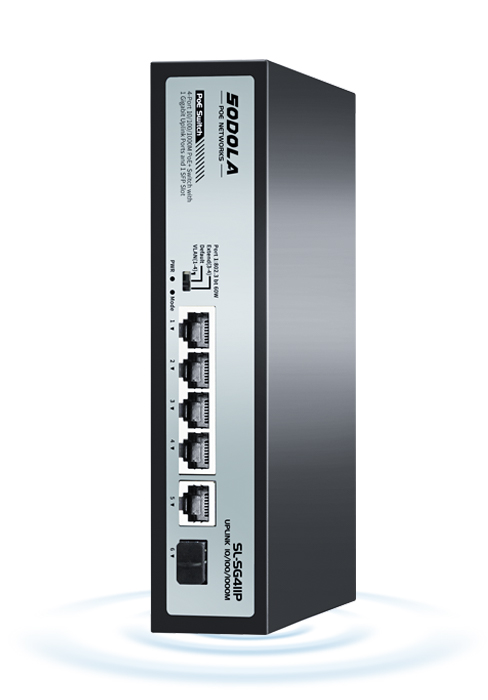

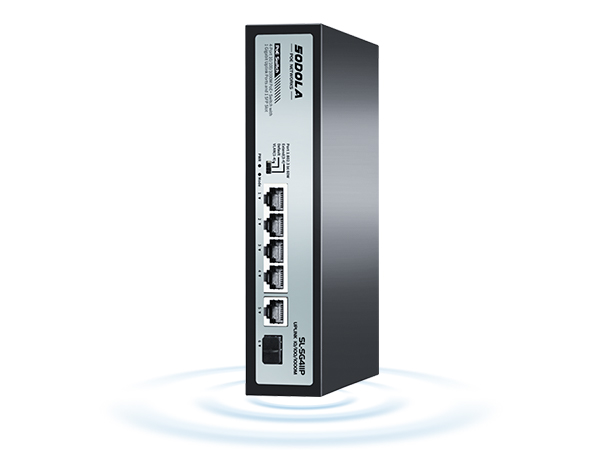

SL-SG411P
PoE Port
4x10/100/1000Mbps
UpLink Port
2*Gigabit Uplinks
PoE Standard
802.3at/af
POE Power Budget
65W
Mounting Options
Desktop or Wall
SFP Fiber Port
1*SFP Slot

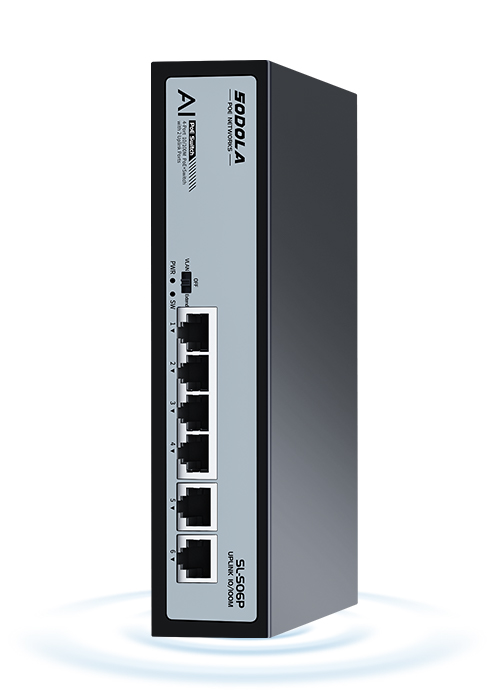

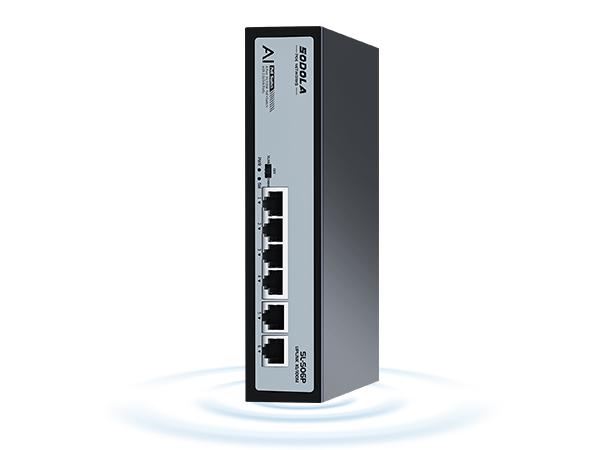

SL-S06P
PoE Port
4x10/100Mbps
UpLink Port
2x10/100Mbps
PoE Standard
802.3at/af
POE Power Budget
65W
Mounting Options
Desktop or Wall
SFP Fiber Port
/
PRODUCT PARAMETERS for SODOLA 8 PORT POE SWITCH
| Power | Input: AC 100-240V,50/60Hz |
|---|---|
| Ethernet | 8 Port 10/100M PoE+2 Port 100M Ethernet Uplink |
| Switching Capacity | 2Gbps |
| Throughput | 1.488Mps |
| Packet Buffer | 2448K |
| MAC Adress | 2K |
| Jumbo Frame | 2048bytes |
| Network protocol | IEEE802.3 (10Base-T); IEEE802.3u (100Base-TX); IEEE802.3x(Flow control) |
| POE Protocol | IEEE802.3af (15.4w); IEEE802.3at (30W) |
| Industry Standard | EMI: FCC Part 15 CISPR(ENS5032)class A; EMS: EN61000-4-2 (ESD); EN61000-4-4 (EFT)?EN6100-4-5 (Surge) |
| Network Medium | 10Base-T:Cat3?4?5or above UTP(=100m); 100Base-TX:Cat5 or above UTP(=100m) |
| Working Environment | Working Temperature:-20~50°C; Storage Temperature:-40~85°C; Working Humidity:10%~90%,non-condensing; Storage Temperature: 5%~90%,non-condensing; Working Height: Maximum 10,000 feet; Storage Height: Maximum 10,000 feet. |
| SW (DIP) | Lighting: Powered; Un-Light: No Power |
| 1-10 Green (Link&Data) | Lighting: Connecting; Flashing: Data Transmit; Un-Light: Disconnect. |

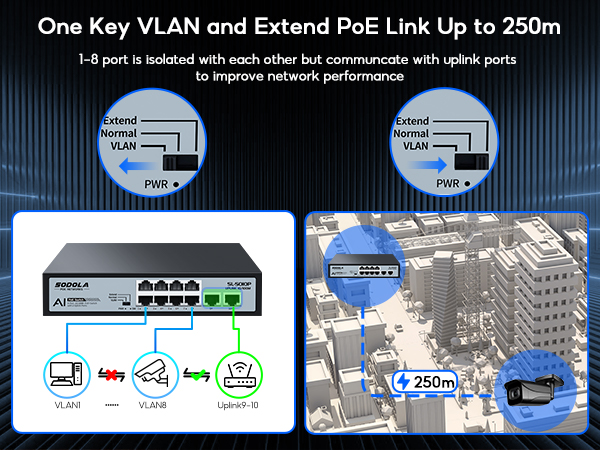

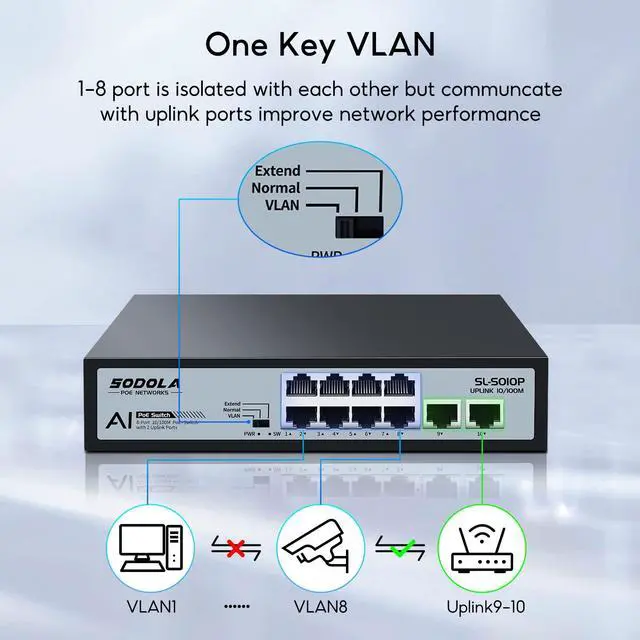

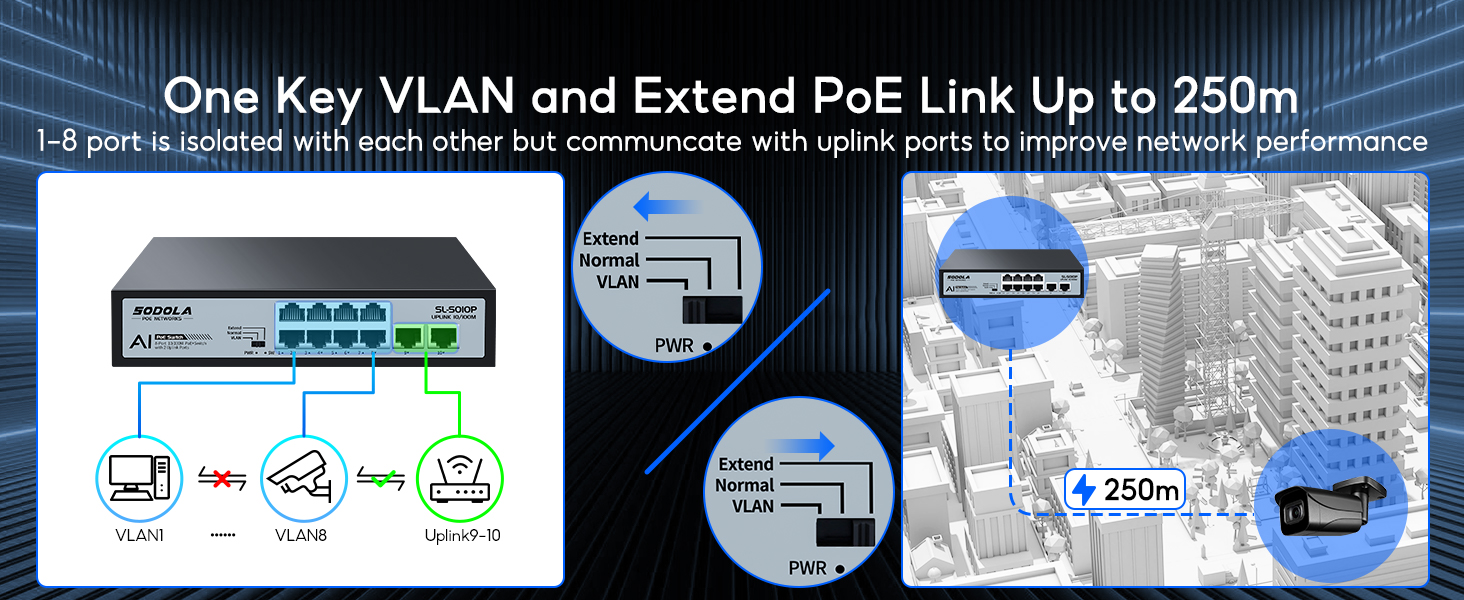

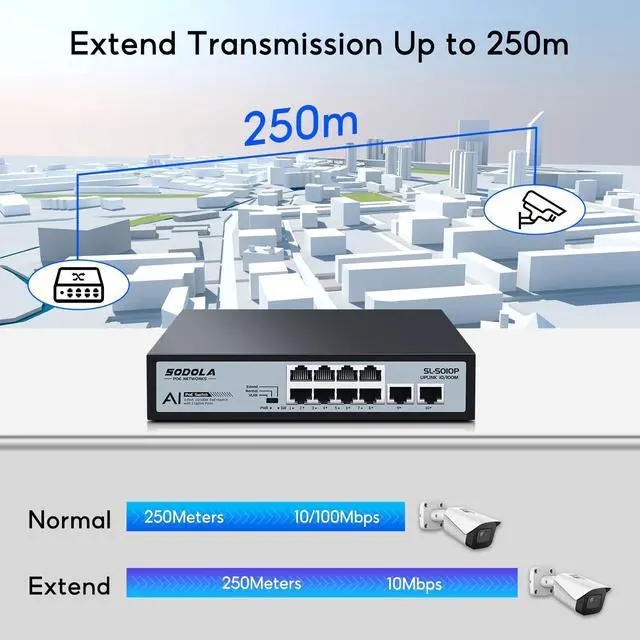

| DIP Switch | VLAN:Port isolation mode. The PoE ports (1-8) cant communicate with each other, but with the UP-link port only. The port Al mode is turned on. Normal mod:, all port can communicate with each other, the transmission distance is up to 100 meters, the transmission rate is 10M/10OM adaptive; The port AI mode is closed. Extend:Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate at 10M, and the port Al mode is on. |
| Power Voltage | AC 100-240 V Power supply: 52V 2.3A |
