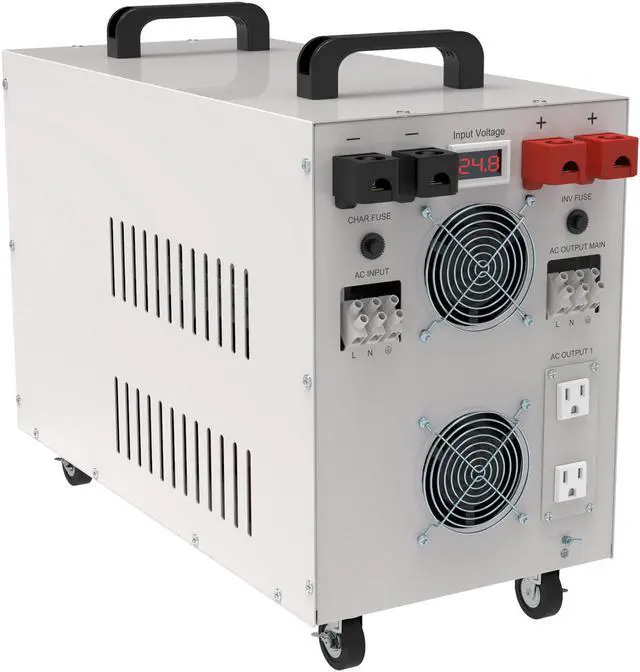

5000w Pure Sine Wave Peak 15000w DC24v to AC110v 60Hz Off Grid Power Inverter Converter Generator
- Inverter: pure sine wave power inverter, 3 times surge power, up to about 15000w. Low Idle Current. Power save model can be used when the inverter’s loading is less than 25w. it can restart automatic when it is over 25w.
- Battery Charge: 3-step intelligent battery charging, float and constant charge mode, 7 battery type selector, battery charger built in, 8 Battery types: Gel U.S.A, AGM1, AGM2, Sealed lead acid, Gel Euro, Open Lead Acid, Calcium, De-Sulphatio. Battery is not included.
- UPS Converter Function: inverter has function as UPS converter, with max transfer time of 7-13ms between battery and AC (AC to inverter<13ms, inverter to AC <7ms). 2 LCD display. show AC120v output specification and DC input voltage

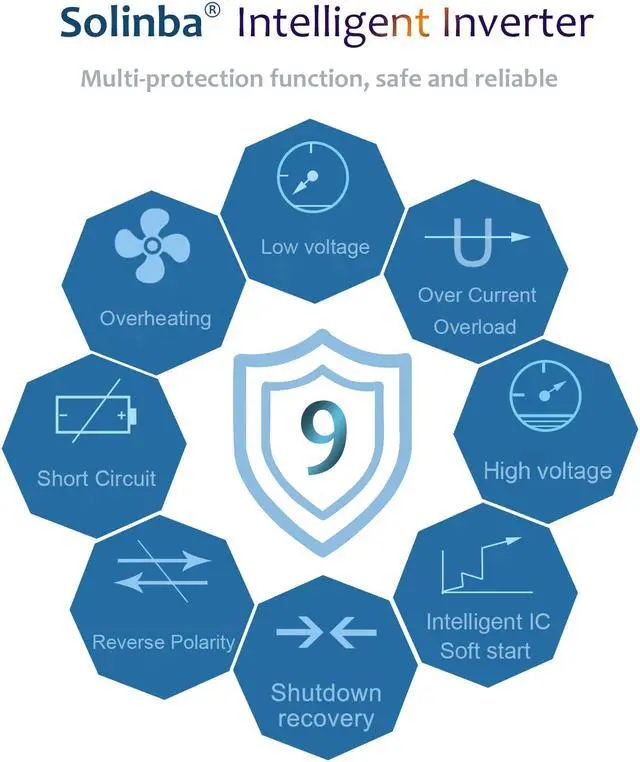

- Multi Protection Function: Inverter+battery charger fuse can protect inverter , just press on to reset. AC input over voltage & AC input low voltage & battery high voltage & battery low voltage & overheating & overloading & short circuit
- Suit for all kind of devices
Overview
Specs
Reviews
Feature
5KW/peak 15KW Pure Sine Wave Inverter with Battery Charger+UPS , DC24v AC110v 60Hz+DC+AC LCD display, 4pcs roller with breaker can handle 80kg max, buyer can move and lock it when you can't lift the Inverter
AC output Data
Model No.: LSW10
Rated power: 5000W
Continuous Power: 4800w
Peak Surge power: 15000W(keep several seconds)
Output Waveform: Pure sine wave
AC output voltage: 115v±5%
Nominal Inverter Efficiency:>88%(peak)
Low voltage trip: 90v±4%
High voltage trip: 140v±4%
Low re-engage: 100v±4%
High voltage re-engage:135v±4%
Power factor: 0.9-1.0
AC output frequency: 60Hz ± 0.3Hz
Low frequency trip: 57Hz
High frequency trip: 65Hz
Output voltage regulation: +/- 10% RMS
Short circuit protection: YES, fault after 7 seconds
Inverter DC input Data:
Normal input voltage: 24v
Min start voltage: 20v
Low voltage alarm: 21v
Low voltage trip: 20v
High voltage alarm: 32v
Power save model: YES, when output power less than 25w
AC battery charge Data:
Rate AC input total power: max 4000w
AC input voltage range: 95-127v
Max AC input voltage: 150v
DC Output voltage: depend on battery type
AC charge input amps: 30a, max 35a
DC input max amps: 200a
Battery initial voltage for starting up: 0-31.4v
Over charge protection shutdown: 31.4v
Bypass and protection:
Rate bypass power: max 4000w
AC input waveform: pure sine wave
Max AC input voltage: 150v
AC input voltage range: 94-134v
AC input frequency: 60Hz
AC input voltage frequency range: 58-60± 0.3Hz
Overload protection: Fuse trip
Short circuit protection: Fuse trip
Bypass current: 30a
Max bypass current: 35a
Bypass over current:YES,35a
Packing Data
weight: 37kg
Product Size: 53 x 25 x 33.5 cm
Packing Size: 67 x 33 x 46 cm
Display of product: LED light+LCD display
Accessories:a pair of cable (suit the inverter)+user manual
5KW/peak 15KW Pure Sine Wave Inverter with Battery Charger+UPS , DC24v AC110v 60Hz+DC+AC LCD display, 4pcs roller with breaker can handle 80kg max, buyer can move and lock it when you can't lift the Inverter
AC output Data
Model No.: LSW10
Rated power: 5000W
Continuous Power: 4800w
Peak Surge power: 15000W(keep several seconds)
Output Waveform: Pure sine wave
AC output voltage: 115v±5%
Nominal Inverter Efficiency:>88%(peak)
Low voltage trip: 90v±4%
High voltage trip: 140v±4%
Low re-engage: 100v±4%
High voltage re-engage:135v±4%
Power factor: 0.9-1.0
AC output frequency: 60Hz ± 0.3Hz
Low frequency trip: 57Hz
High frequency trip: 65Hz
Output voltage regulation: +/- 10% RMS
Short circuit protection: YES, fault after 7 seconds
Inverter DC input Data:
Normal input voltage: 24v
Min start voltage: 20v
Low voltage alarm: 21v
Low voltage trip: 20v
High voltage alarm: 32v
Power save model: YES, when output power less than 25w
AC battery charge Data:
Rate AC input total power: max 4000w
AC input voltage range: 95-127v
Max AC input voltage: 150v
DC Output voltage: depend on battery type
AC charge input amps: 30a, max 35a
DC input max amps: 200a
Battery initial voltage for starting up: 0-31.4v
Over charge protection shutdown: 31.4v
Bypass and protection:
Rate bypass power: max 4000w
AC input waveform: pure sine wave
Max AC input voltage: 150v
AC input voltage range: 94-134v
AC input frequency: 60Hz
AC input voltage frequency range: 58-60± 0.3Hz
Overload protection: Fuse trip
Short circuit protection: Fuse trip
Bypass current: 30a
Max bypass current: 35a
Bypass over current:YES,35a
Packing Data
weight: 37kg
Product Size: 53 x 25 x 33.5 cm
Packing Size: 67 x 33 x 46 cm
Display of product: LED light+LCD display
Accessories:a pair of cable (suit the inverter)+user manual
