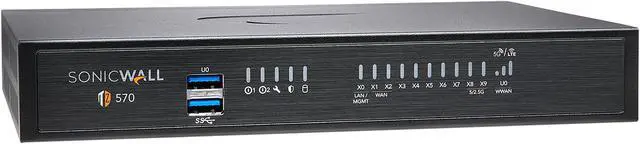

SonicWall TZ570 High Availability appliance | 02-SSC-5694

Be the first to review this product...
  • TZ 270
  • TZ 270W
  • TZ 370
  • TZ 370W
  • TZ 470
  • TZ 470W
  • TZ 570
  • TZ 570W
  • TZ 670
  • Hardware Only
  • High Availability
  • Secure Upgrade Plus (Appliance + 2Y APSS)
  • Secure Upgrade Plus (Appliance + 3Y APSS) +1Y CSE
  • Total Secure (Appliance + 1Y APSS)
  • High Availability (HA) allows two identical SonicWALL appliances running SonicOS to be configured to provide a reliable, continuous connection. One SonicWALL device is configured as the Primary unit, and an identical SonicWALL device is configured as the Secondary unit. If the Primary SonicWALL fails, the Secondary SonicWALL takes over to secure a reliable connection between the protected network and the Internet. Two appliances configured in this way function as a High Availability Pair.
  • Maximum Connections (SPI): 1,250,000
  • VPN Throughput: 1.8 Gbps
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the SonicWall TZ 570 HA

Model
Brand SONICWALL
Series TZ 570
Model TZ 570 HA
Part Number 02-SSC-5694
Details
Type Wired
Form Factor Desktop
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
Security Security Services
Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Ports 8x1GbE, 2x5GbE, 2 USB 3.0
Simultaneous Sessions 1,250,000
Maximum Users 2500
VPN Site-to-site VPN tunnels: 200
IPSec VPN clients (maximum:) 10 (500)
SSL VPN licenses (maximum): 2 (200)
Encryption/authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange: Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN: RIP, OSPF, BGP
Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported: Microsoft®, Windows 10
NetExtender: Microsoft®, Windows 10, Linux
Mobile Connect: Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10

Firewall/VPN Performances
Firewall inspection throughput: 4 Gbps
Threat prevention throughput: 2 Gbps
Application inspection throughput: 2.5 Gbps
IPS throughput: 2.5 Gbps
Anti-malware inspection throughput: 2 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL): 750 Mbps
IPSec VPN throughput: 1.8 Gbps
Connections per second: 16,000
Maximum connections (SPI): 1,250,000
Maximum connections (DPI): 400,000
Maximum connections (DPI SSL): 50,000
Certifications FIPS 140-2 Level 2 (with Suite B), IPv6/USGv6, ICSA Network Firewall, ICSA Firewall Enterprise, ISCA Network Antivirus / AntiMalware
Compliance FCC Class B, FCC, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Power Input 100-240 VAC,
50-60 Hz
Max Power Consumption 13.4W
Features
Features High availability: Active/Standby with stateful synchronization
Additional Information
Date First Available April 12, 2021
