$10,005.00

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Main image of SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Alt view image 2 of 8 - SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Alt view image 3 of 8 - SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Alt view image 4 of 8 - SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Alt view image 5 of 8 - SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Alt view image 6 of 8 - SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Alt view image 7 of 8 - SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Alt view image 8 of 8 - SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Shop All SonicWall Products

SonicWall NSa 5700, High Availability Security Appliance | 02-SSC-1715

Be the first to review this product...

1 RU – Form Factor
Support for 10G/5G/2.5G/1G ports
Multi-gigabit Threat and Malware Analysis Throughput
Superior TLS performance (sessions and throughput)
Expandable storage up to 1TB
DNS security
Reputation-based Content Filtering
Service (CFS 5.0)
Wi-Fi 6 firewall management
Network access control integration with Aruba ClearPass
Enterprise Internet Edge Ready
Latest Generation 7 SonicOS support
Secure SD-WAN capability
Intuitive user interface with central management
TLS 1.3 support
High port density for easy networking
Redundant power
Cloud Secure Edge Connector Support

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

NSA 5700 H/A

Model
Brand	SonicWall
Model	NSa 5700
Part Number	02-SSC-1715

Details
Firewall Type	Firewalls / Security Appliances
Type	Wired
Standard	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3

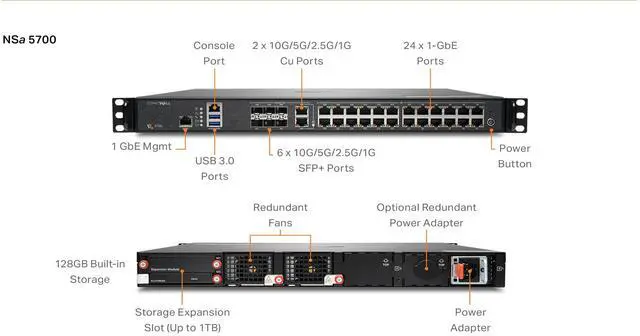

Ports	6 x 10G/5G/2.5G/1G (SFP+); 2x 10G/5G/2.5G/1G (Cu); 24 x 1GbE Cu2 USB 3.0, 1 Console, 1 Mgmt. port
Security	Security services Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists

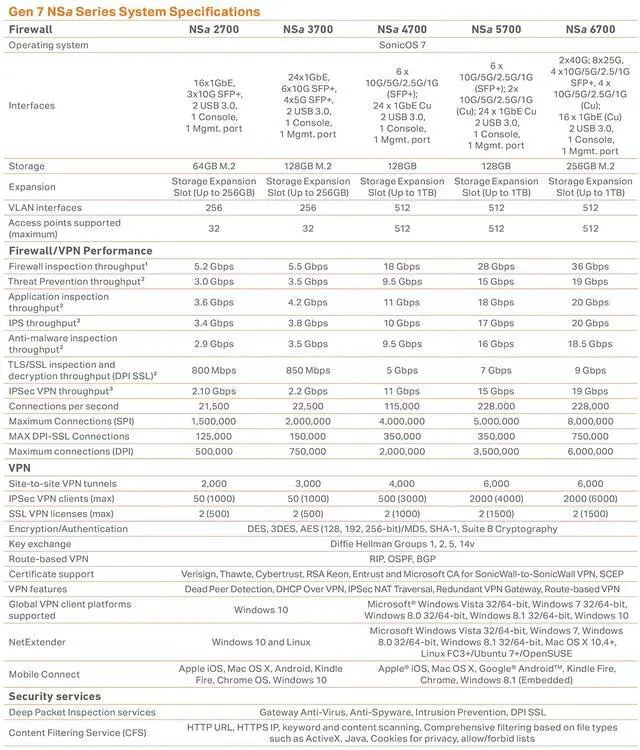

VPN	VPN Site-to-site VPN tunnels: 6,000 IPSec VPN clients: 2000 (4000) SSL VPN licenses (max): 2 (1500) Encryption/Authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange Diffie Hellman Groups: 1, 2, 5, 14v Route-based: VPN RIP, OSPF, BGP Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10 NetExtender: Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE Mobile Connect: Apple® iOS, Mac OS X, Google® Android™, Kind Firewall/VPN Performance Firewall inspection throughput: 28 Gbps Threat Prevention throughput: 15 Gbps Application inspection throughput: 18 Gbps IPS throughput: 17 Gbps Anti-malware inspection throughput: 16 Gbps TLS/SSL inspection and decryption throughput (DPI SSL): 7 Gbps IPSec VPN throughput: 15 Gbps Connections per second: 228,000 Maximum Connections (SPI): 5,000,000 MAX DPI-SSL Connections: 350,000 Maximum connections (DPI): 3,500,000
OS Support	SonicOS 7

Features
Features	Firewall Storage: 128GB Expansion Storage Expansion:Storage Expansion Slot (Up to 1TB) Logical VLAN and tunnel interfaces (maximum): 512 SSO Users: 50,000 Access points supported (maximum): 512 Networking IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode Routing protocols: BGP4, OSPF, RIPv1/v2, static routes, policy-based routing QoS: Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) Authentication: LDAP (multiple domains), XAUTH/RADIUS, TACACS+, SSO, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC) Local user database: 2500 VoIP: Full H323-v1-5, SIP Standards: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 FIPS 140-2 Compliant: Pending Certifications: ICSA Enterprise Firewall, ICSA Antivirus, IPv6/USGv6 Certifications (in process): Common Criteria NDPP Firewall with VPN and IPS Common Access Card (CAC): Supported High availability: Active/Passive with stateful synchronization

Dimensions & Weight
Dimensions	3 x 46.5 x 4.5 (cm) 16.9 x 18.1 x 1.8 in
Weight	Weight: 7.8 Kg WEE Weight: 9.6 Kg

Disclaimer
Disclaimer	Regulatory Regulatory model numbers: 1RK53-116 Major regulatory compliance: FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI

Additional Information
First Listed on Newegg	September 05, 2024

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
