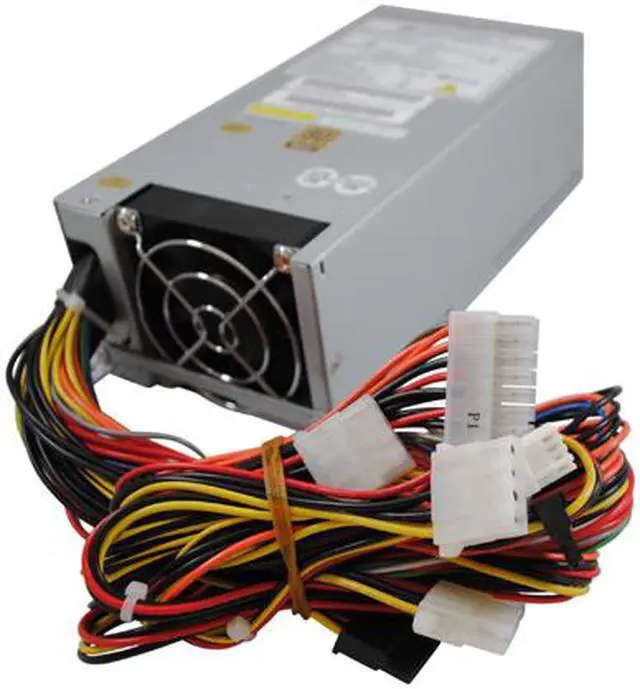

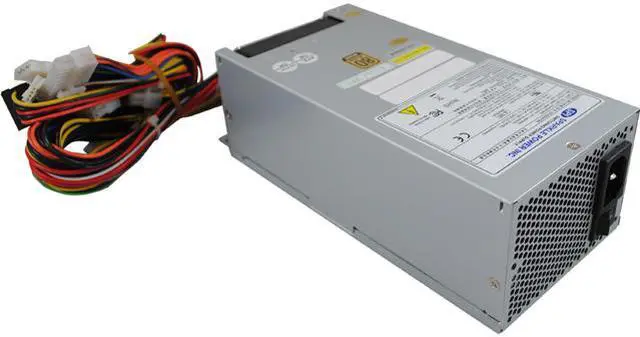

Sparkle Power SPI400W7BB 400W Single 2U Server Power Supply - 80 Plus Bronze
- 400W Single
- Complied with ATX12V/ EPS12V standard
- Internal 12V DC Fan
+
+
Learn more about the Sparkle Power Inc. SPI400W7BB
| Brand | Sparkle Power |
|---|---|
| Model | SPI400W7BB |
| Type | Complied with ATX12V/ EPS12V standard |
|---|---|
| Single/Redundant | Single |
| Maximum Power | 400W |

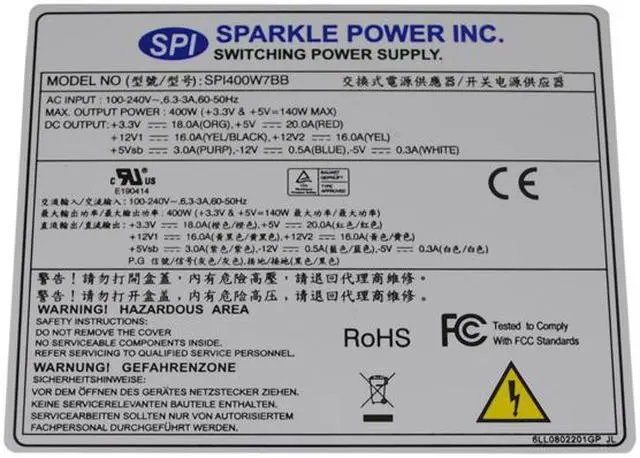

| Output Current | +3.3V@18A, +5V@20A, +12V1@16A, +12V2@16A, [email protected], [email protected]; +5 & +3.3V Max. Power@140W |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | Max 6.3A @ 115Vac, 3.0A @ 230Vac |
| Fans | Internal 12V DC Fan |
| MTBF | 100,000 hours on maximum load at +25 degree C |
| Efficiency | > 85% |
| Hold-up Time | 16 ms minimum at nominal input voltage |
| Features | Rise time: Less than 20ms Leakage Current: Less than 3.5mA at 264Vac, 50Hz Active Power Factor Correction (PFC) meet EN61000-3-2 High efficiency and reliability Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances). Remote ON/OFF function Low noise and ripple Output over voltage, short circuit, and over current protection 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down |
|---|
| Dimensions | 200x100x70mm /7.87" x3.9" x 2.7" |
|---|
| Humidity | 85% |
|---|---|
| Temperature | 0° C - 50° C |
| First Listed on Newegg | May 21, 2013 |
|---|
