StarTech 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines - ethernet extender - lan extender - ethernet over phone -network extender -short haul modem
(5)
Write a Review
Extend your 10/100 Mbps network by up to 1km over Ethernet or RJ11 phone lines
Network Extender
Ethernet Extender
LAN Extender
Ethernet over Phone
Short Haul Modem

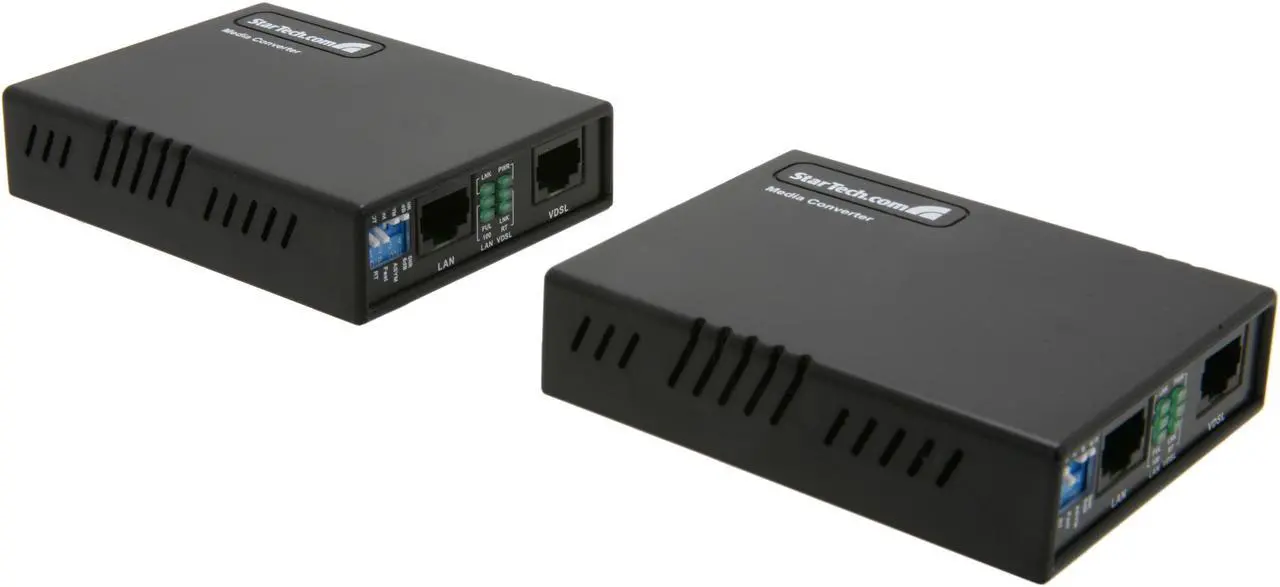

10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1km
Overview
Specs
Reviews
(5)
Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines -
See More
Learn more about the STARTECH 110VDSLEXT
Model
Brand
StarTech.com
Model
110VDSLEXT
Details
Standards
IEEE 802.3 / 802.3u / 802.3x 10 / 100 Base-T Auto-Negotiation, Auto-MDI / MDI-X
On-board surge protection
VDSL2 ITU-T G.993.2, VDSL ITU-T G.993.1, and VDSL2 / VDSL ITU-T G.997.1 compliant
Interface

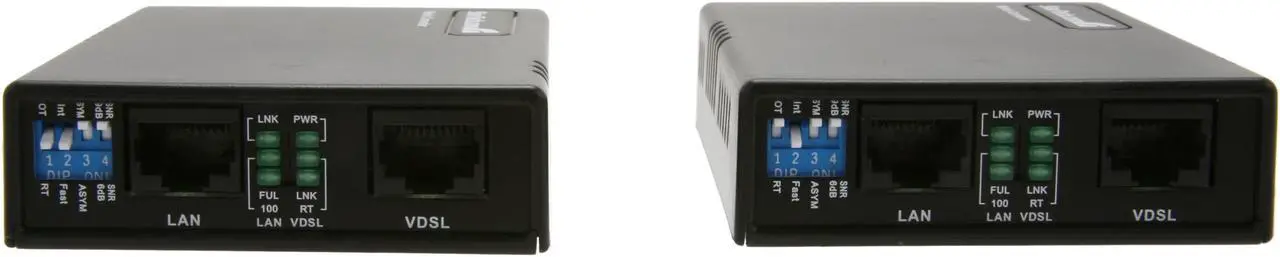

Local Unit Connectors: 2 - RJ-45 Female
Remote Unit Connectors: 2 - RJ-45 Female
LED
3 - LAN: ACT / LNK, 10/100 Mbps, Half / Full Duplex
3 - VDSL: Power On / Off, CO / CPE, Idle / Trained / Link
Power
Output Voltage: 12 DC
Power Source: 2 AC Adapters Included
Feature
Features
IEEE 802.1Q VLAN tag transparent
Selectable CPE and CO mode via DIP switch
Supports flow control for Fast Ethernet (pause frame or Back Pressure)
Allows you the ability to select fixed SNR margin (9 dB) or fixed target data rate
Light in weight and a very compact design
Supports both symmetric and asymmetric transmission
Environmental
Operating Temperature
0 ~ 50 degree Celsius (32 ~ 122 degree Fahrenheit)
Storage Temperature
0 ~ 70 degree Celsius (32 ~ 158 degree Fahrenheit)
Package Contents
Package Contents
1 x Ethernet VDSL Extender
1 x Ethernet VDSL Receiver
2 x RJ-45 to VDSL Cable
2 x Power Adapter
1 x Instruction Manual
Additional Information
Date First Available
October 26, 2010
