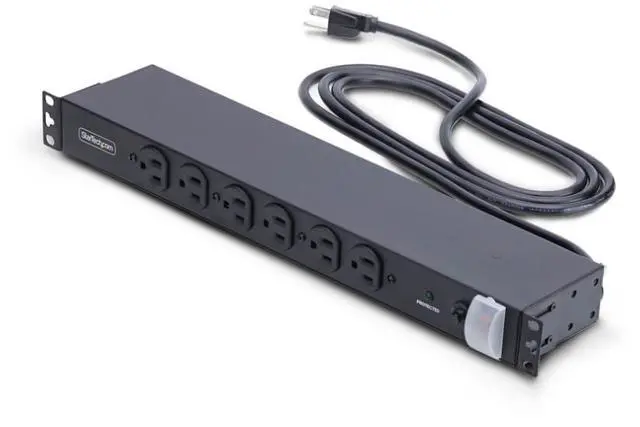

StarTech.com 1415B8H-RACK-PDU-SP 14-Outlet Rackmount 1U Power Distribution Units
- 16-OUTLET 1U RACK MOUNTED METERED PDU: 16x NEMA 5-15R power outlets; 125V max and 15A circuit breaker; Built-in 8ft (2.4m) NEMA 5-15P power cord; Ideal power supply strip for 19" racks in server rooms/closets, data center, and testing labs
- METERED POWER DISTRIBUTION UNIT: Large-font display with optional backlight for real-time monitoring of key power parameters: voltage (V), current (A), wattage (W), and power factor (PF), which indicates the efficiency of the connected devices
- SURGE PROTECTOR: Self-tripping MOV design with mechanical trigger instantly cuts power during surges to protect connected devices; Includes LED status indicator, resettable 15A circuit breaker, and safety cover to prevent accidental resets

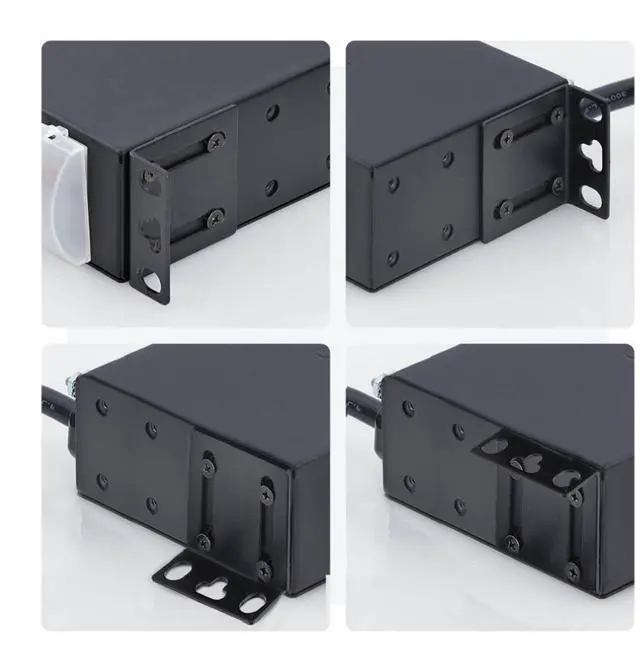

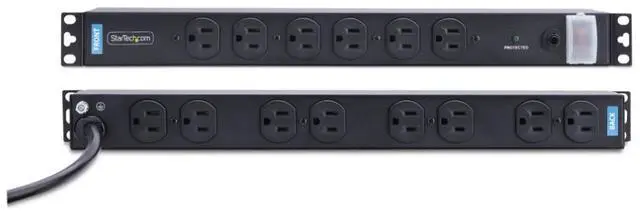

- RACK MOUNTABLE: 1U horizontal rackmount PDU for EIA-310-compliant 19-inch server racks/cabinets that are 4in (10.1cm) or deeper; Made of cold-rolled steel w/textured finish for sturdiness & long-lasting durability; 12x rear and 4x front electrical outlets
+
+
Learn more about the STARTECH 1415B8H-RACK-PDU-SP
| Brand | StarTech.com |
|---|---|
| Model | 1415B8H-RACK-PDU-SP |
| Type | Power Distribution Units |
|---|---|
| Rack Size | 1U |
| Style | Horizontal |
| Input Voltage | 120V |
|---|---|
| Maximum Input Current | 15A |
| Regulatory Derated Input Current | 12A |
| Input Connector(s) | 1 - NEMA 5-15 Power (North America) |
| Cord Length | 7.9 ft |
| Output Voltage | Nominal Output Voltage: 120V Maximum Output Voltage: 125V |
|---|---|
| Output Connector(s) | 14 - NEMA 5-15 Power (North America) |
| Features | Industry Standards: UL 1363 EIA/ECA-310-E Number of Power Outlets: 14 Rack-Mountable: Yes Load Capacity: 1500 VA Color: Black Material: Steel |
|---|
| Dimensions | 1.7'' x 18.2'' x 3.7'' |
|---|---|
| Weight | 3.57 lbs. |

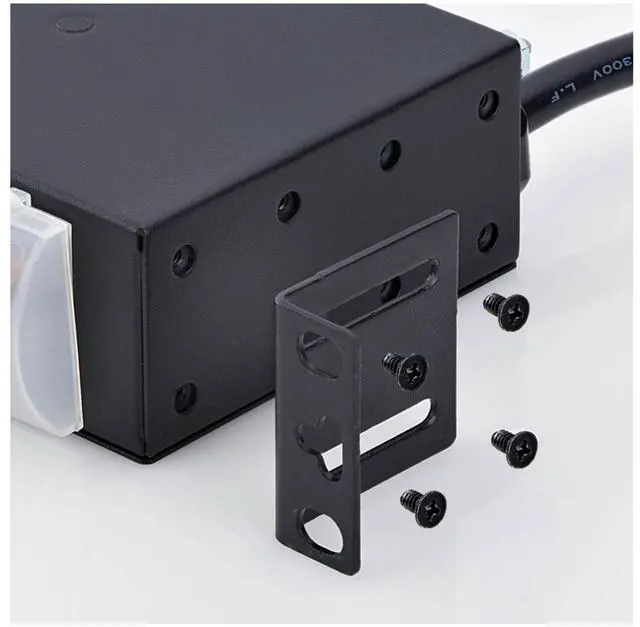

| Package Includes | 1 - Rack-Mount PDU 2 - Mounting Brackets (Pre-Installed) 4 - M5 Cage Nuts 4 - M5x12mm Rack Screws 1 - Product Documentation |
|---|
| First Listed on Newegg | March 24, 2026 |
|---|
