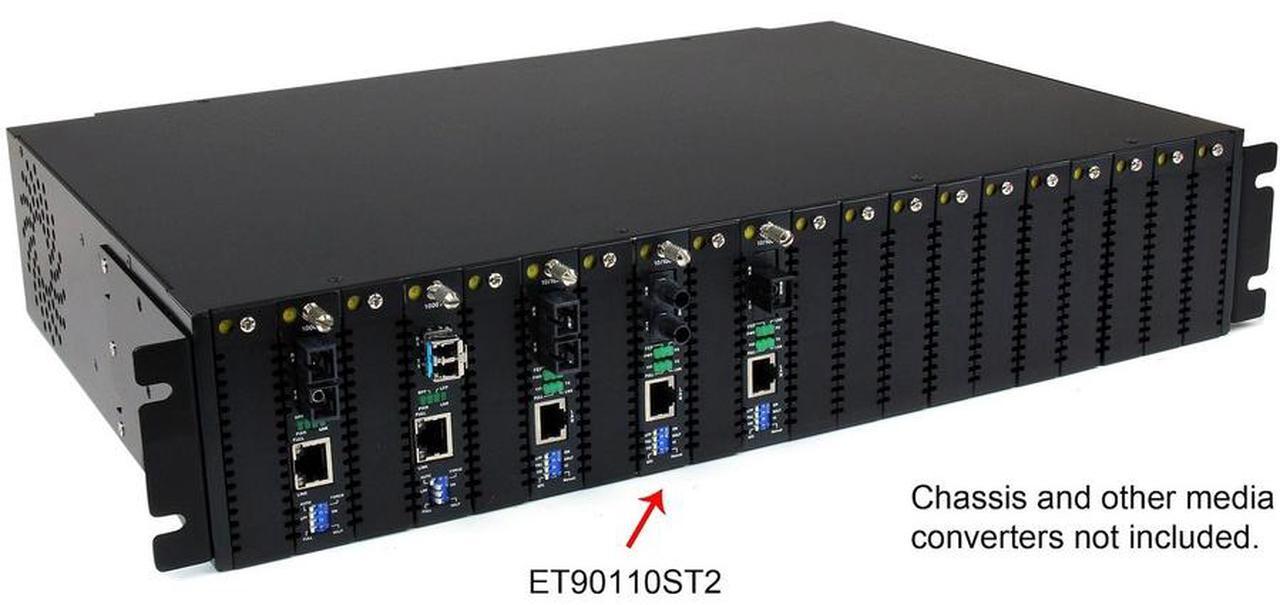

Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
Cost-effective way to extend/bridge networks using fiber cabling
Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
Supports a maximum fiber cable length of 2 km
Supports full or half-duplex operation
Quick and simple installation, easy to use
+
+
Overview
Specs
Reviews
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Mu
Learn more about the Detailed Specifications
Model
Brand
StarTech.com
Part Number
ET90110ST2
Details
Type
10/100 Mbps Multi Mode Fiber Media Converter ST 2km
Color
Black
Specifications
Interfaces/Ports Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of ST Ports: 1
ST Port Type: Duplex
Media & Performance Media Type Supported: Twisted Pair Optical Fiber Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 0.1 mil
Maximum Distance Supported: 2 km
Network & Communication Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX 100Base-FX Power Description Power Source: AC Adapter
Input Voltage: 12 V DC
Power Consumption: 19.20 W
Plug/Connector Type: Type M
Physical Characteristics Color Family: Black
Product Color: Black
Form Factor: Desktop Rack-mountable Height: 0.9"
Width: 3.4"
Depth: 6.1"
Weight (Approximate): 13.70 oz
Miscellaneous Package Contents: 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km 1 x Universal Power Adapter (NA/EU/UK/AU) 1 x Grounding Screw 1 x Instruction Manual Compatibility: ETCHS2U Rackmount Chassis
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Country of Origin: Taiwan
TAA Compliant: Yes
Additional Information
Date First Available
August 02, 2024
