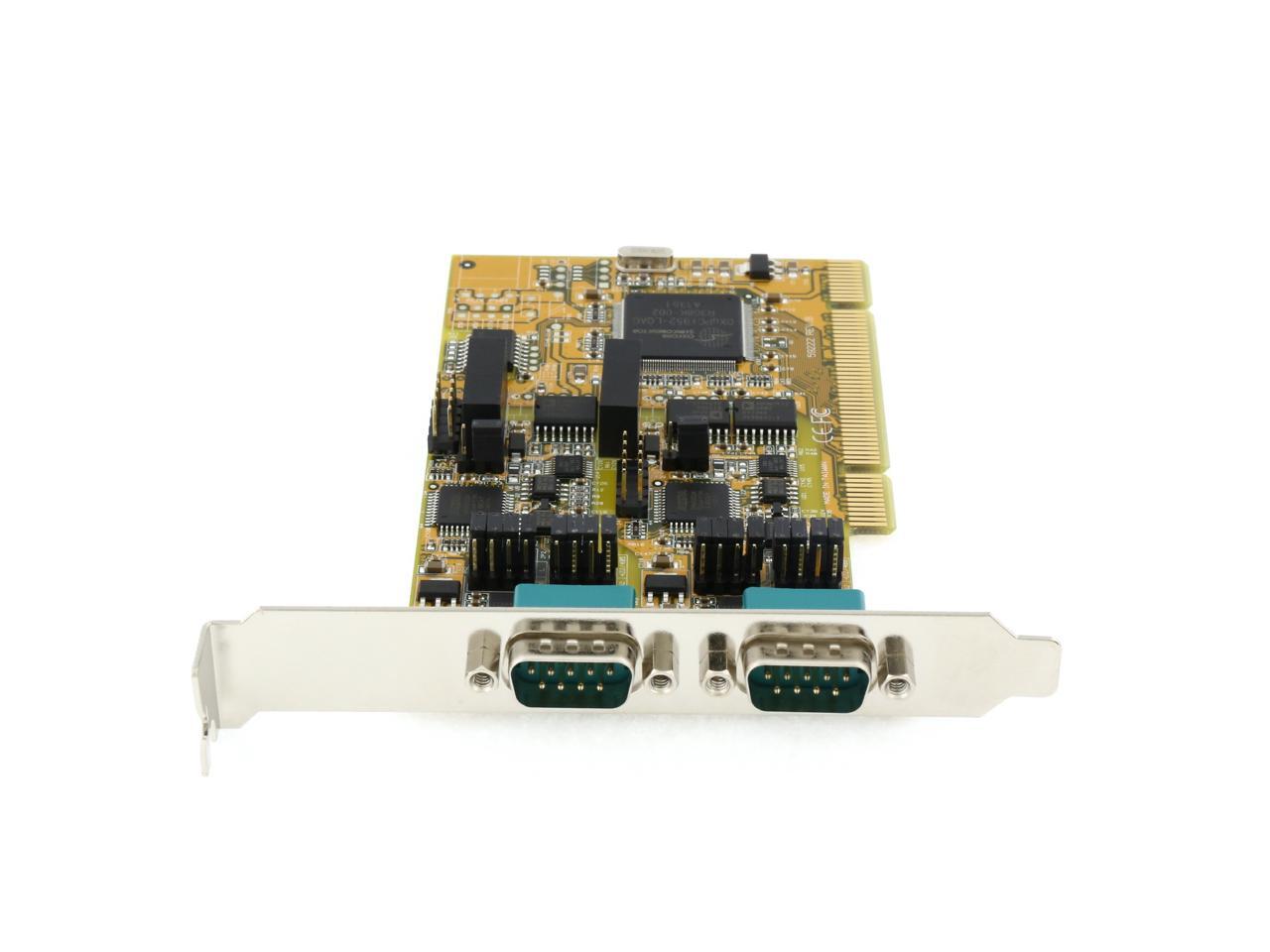

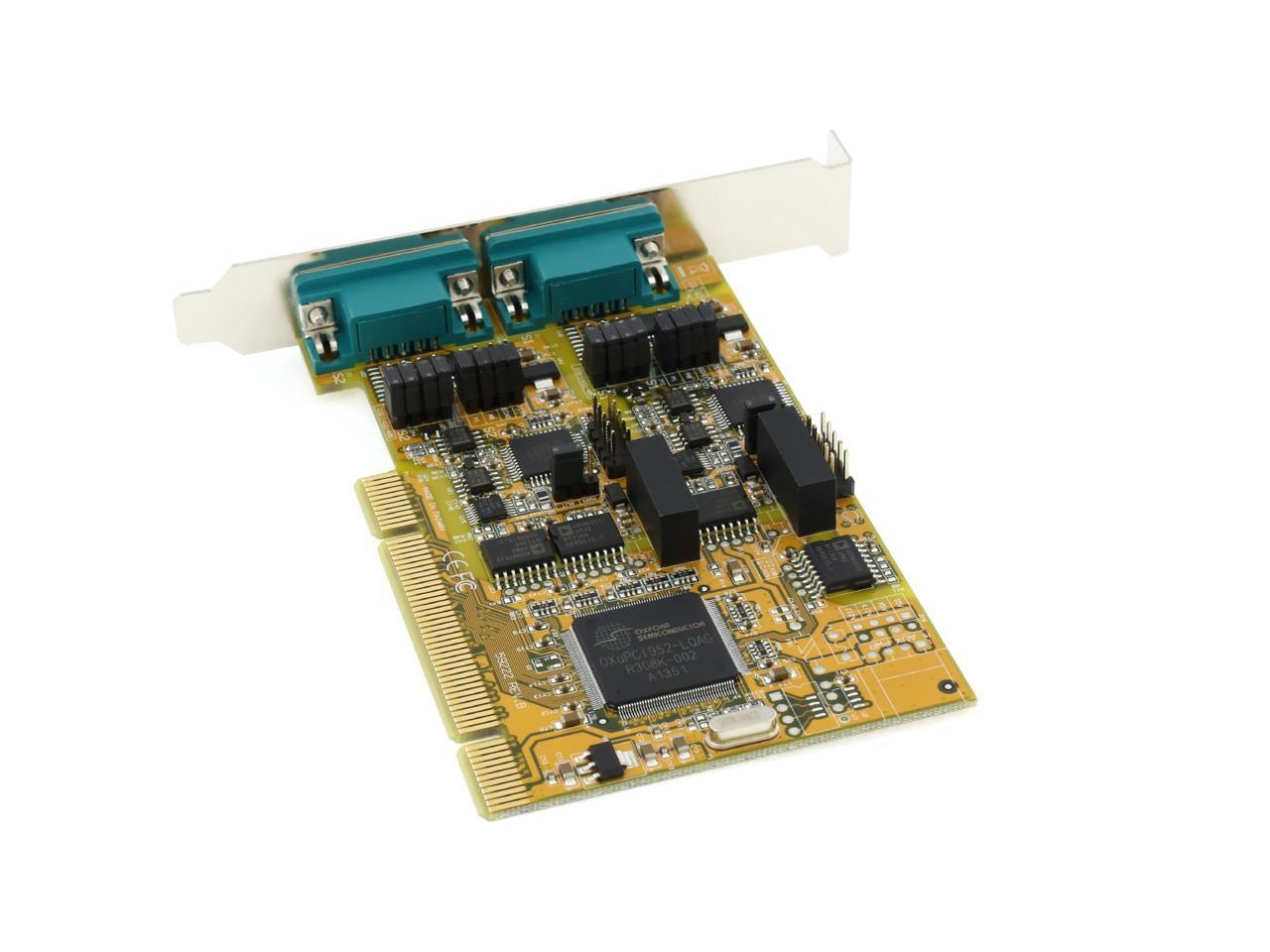

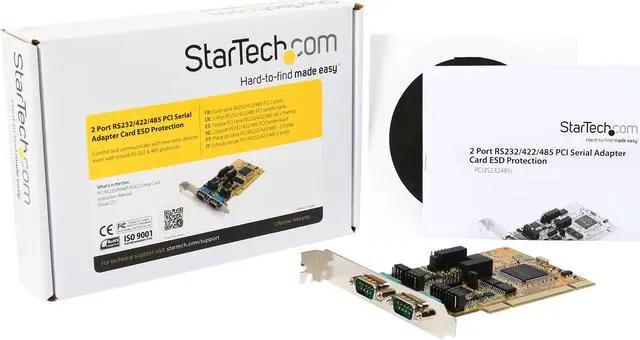

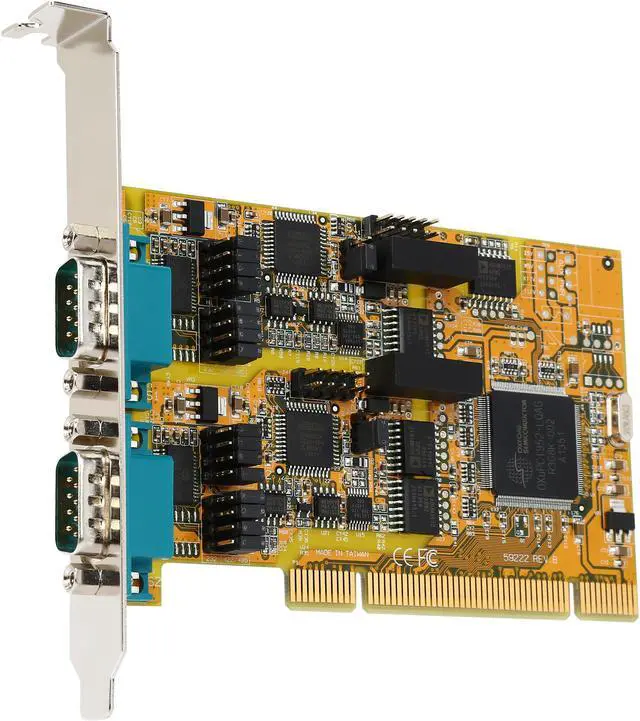

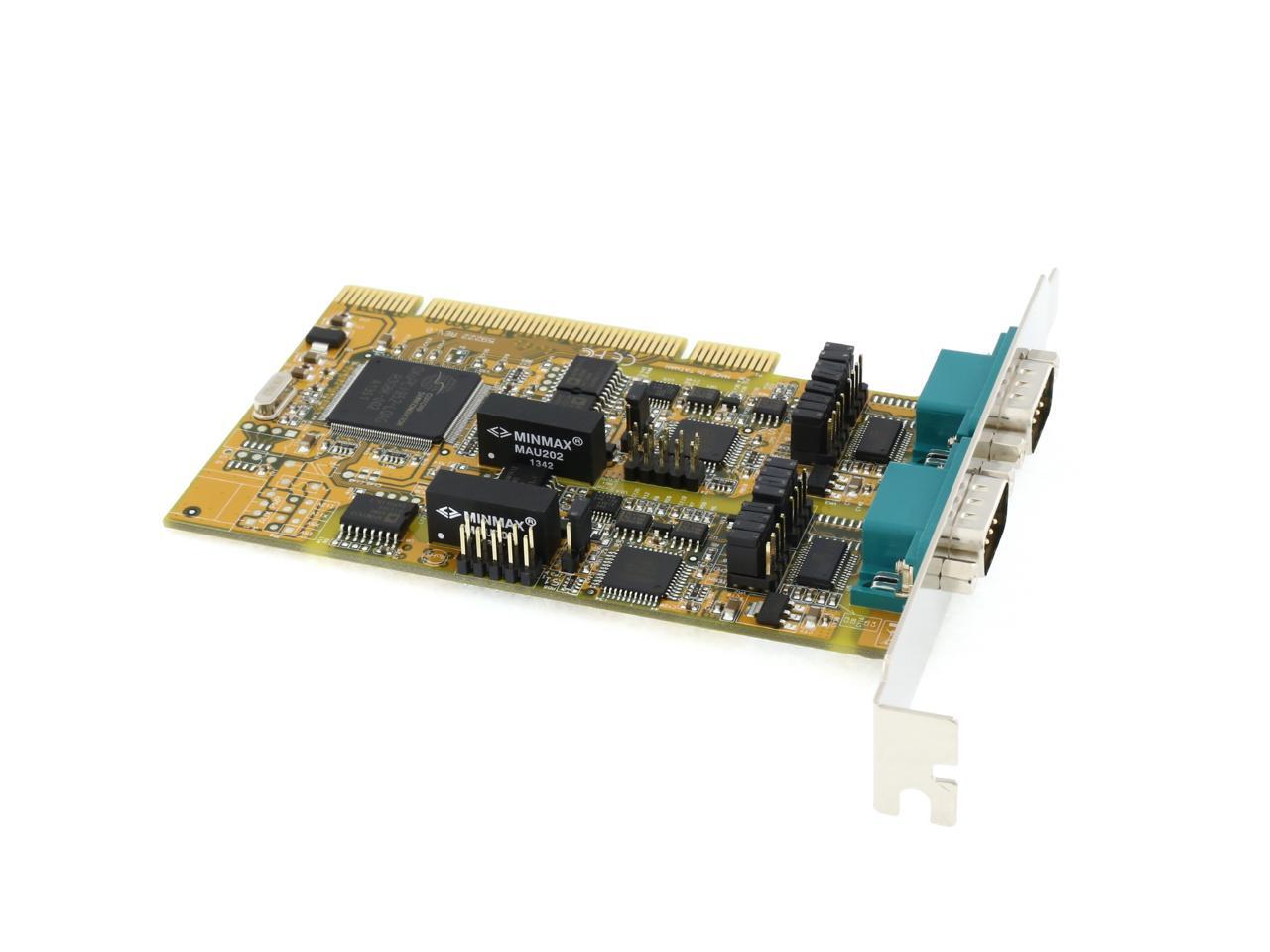

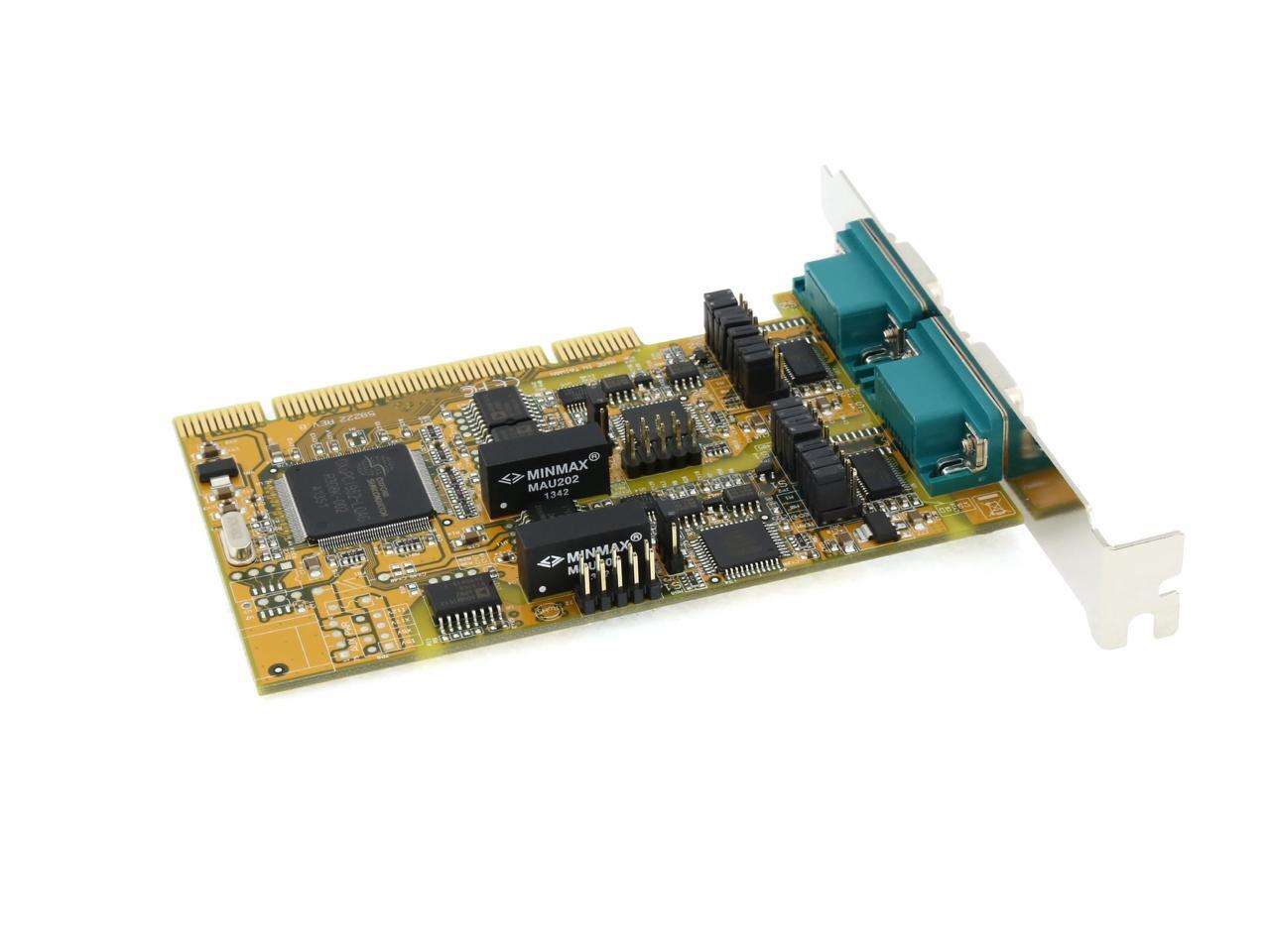

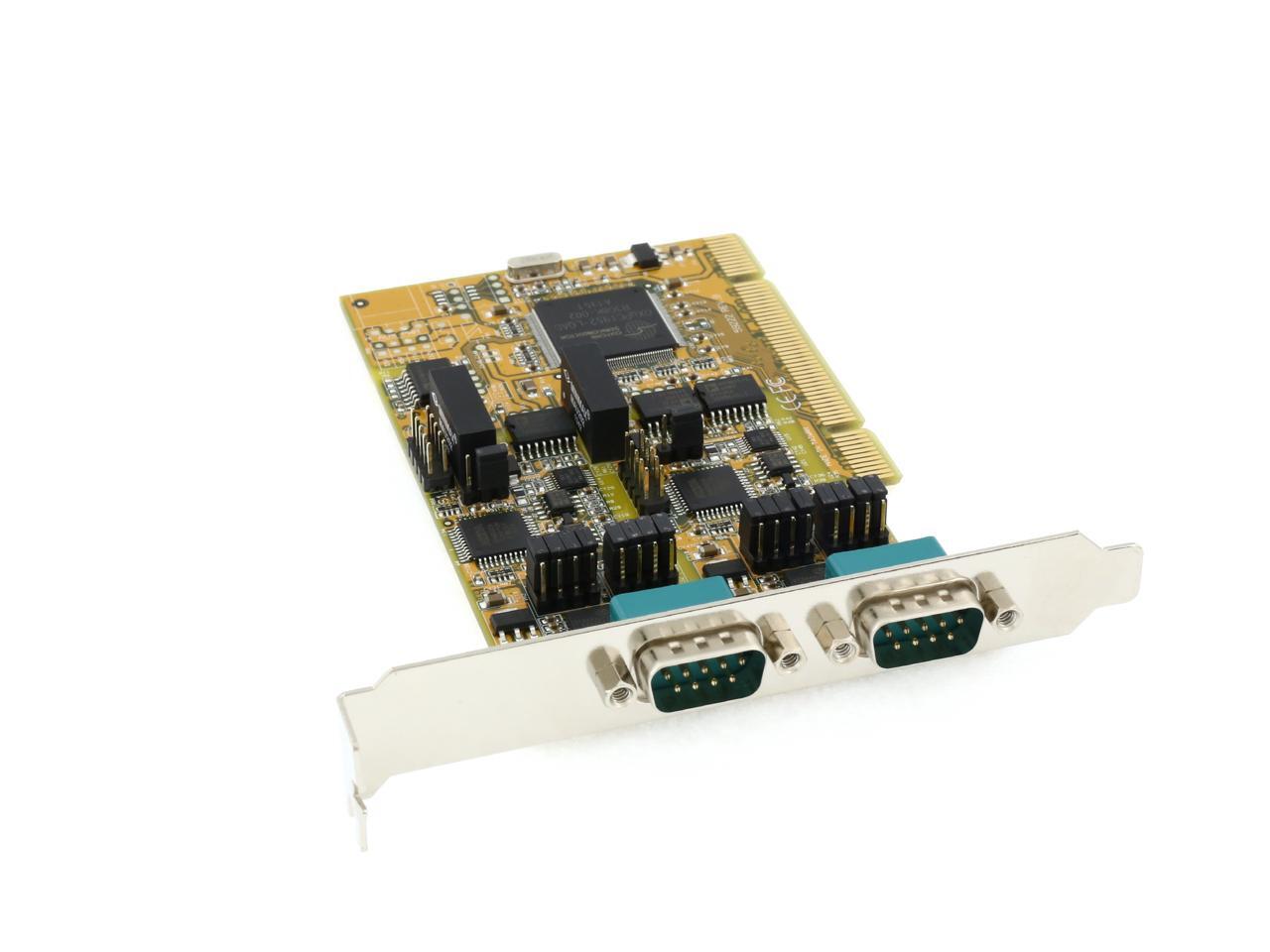

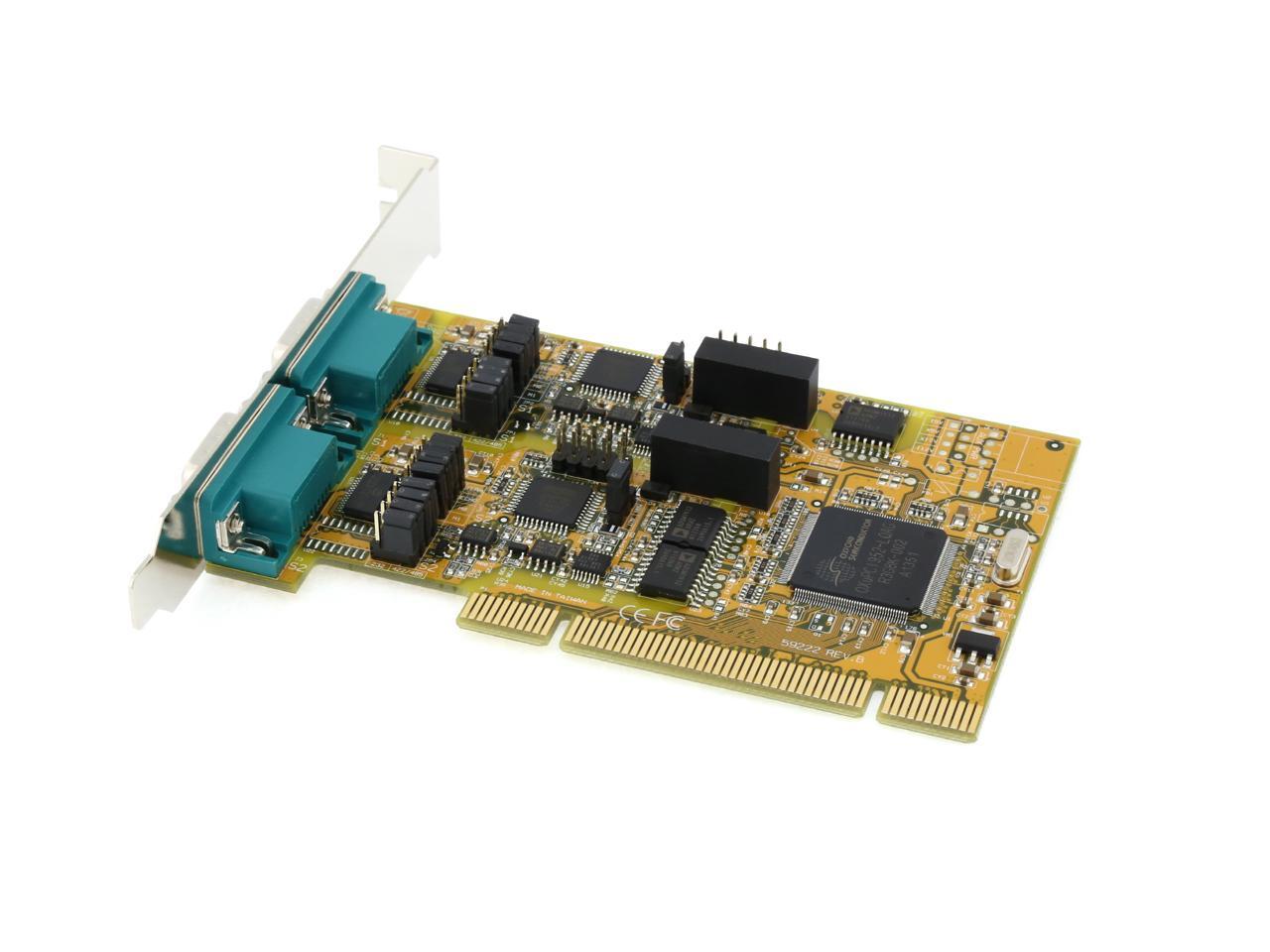

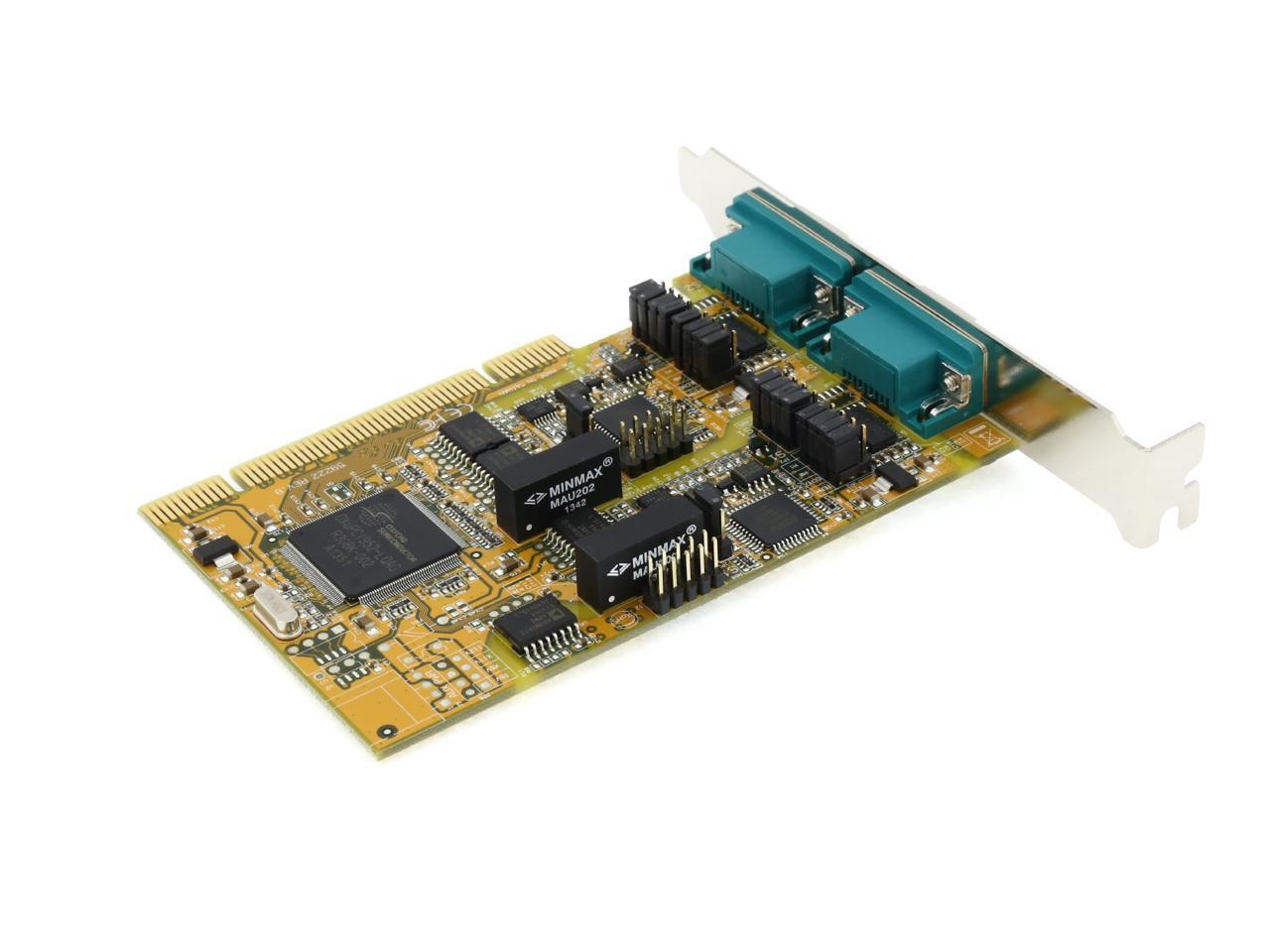

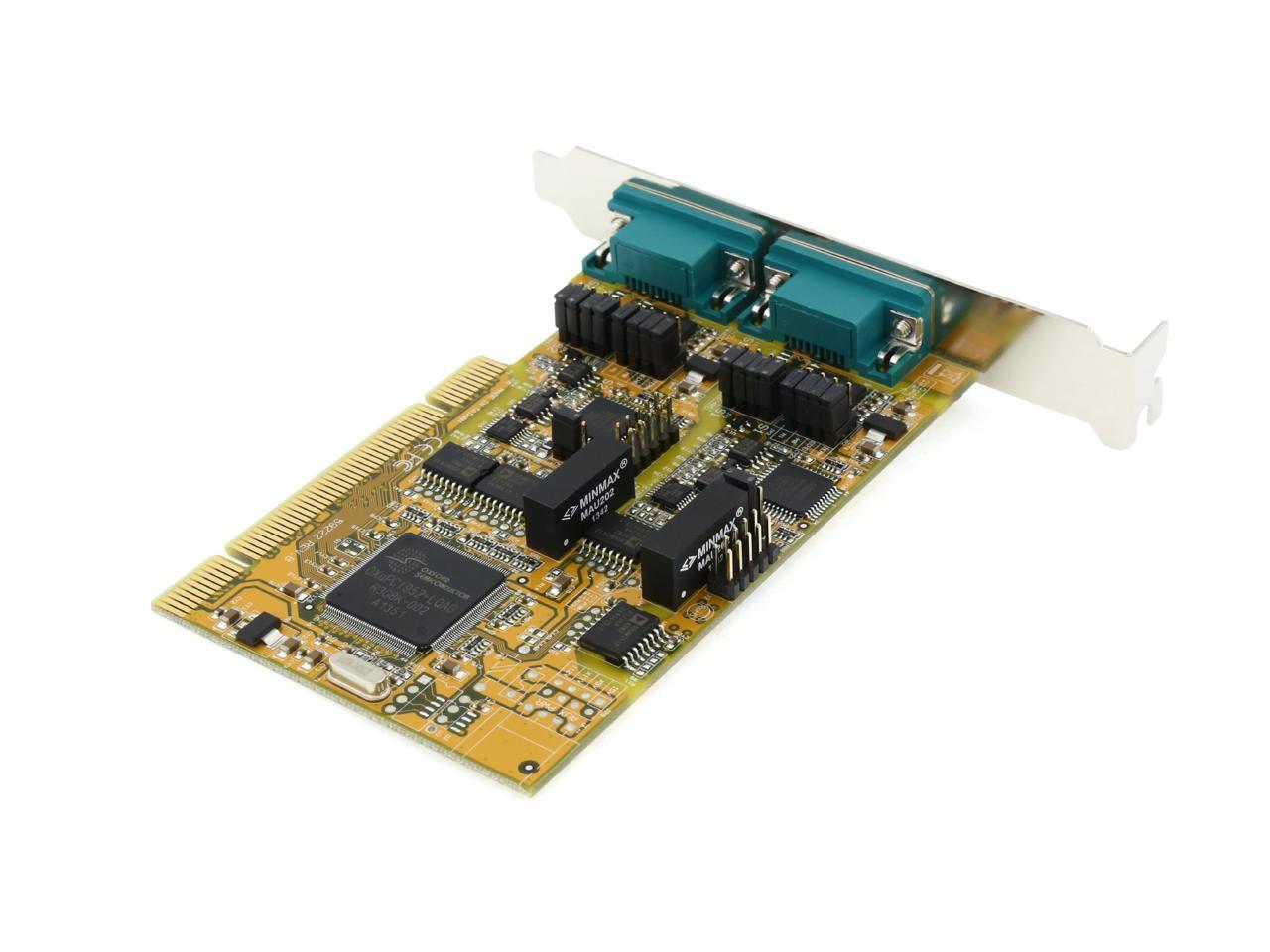

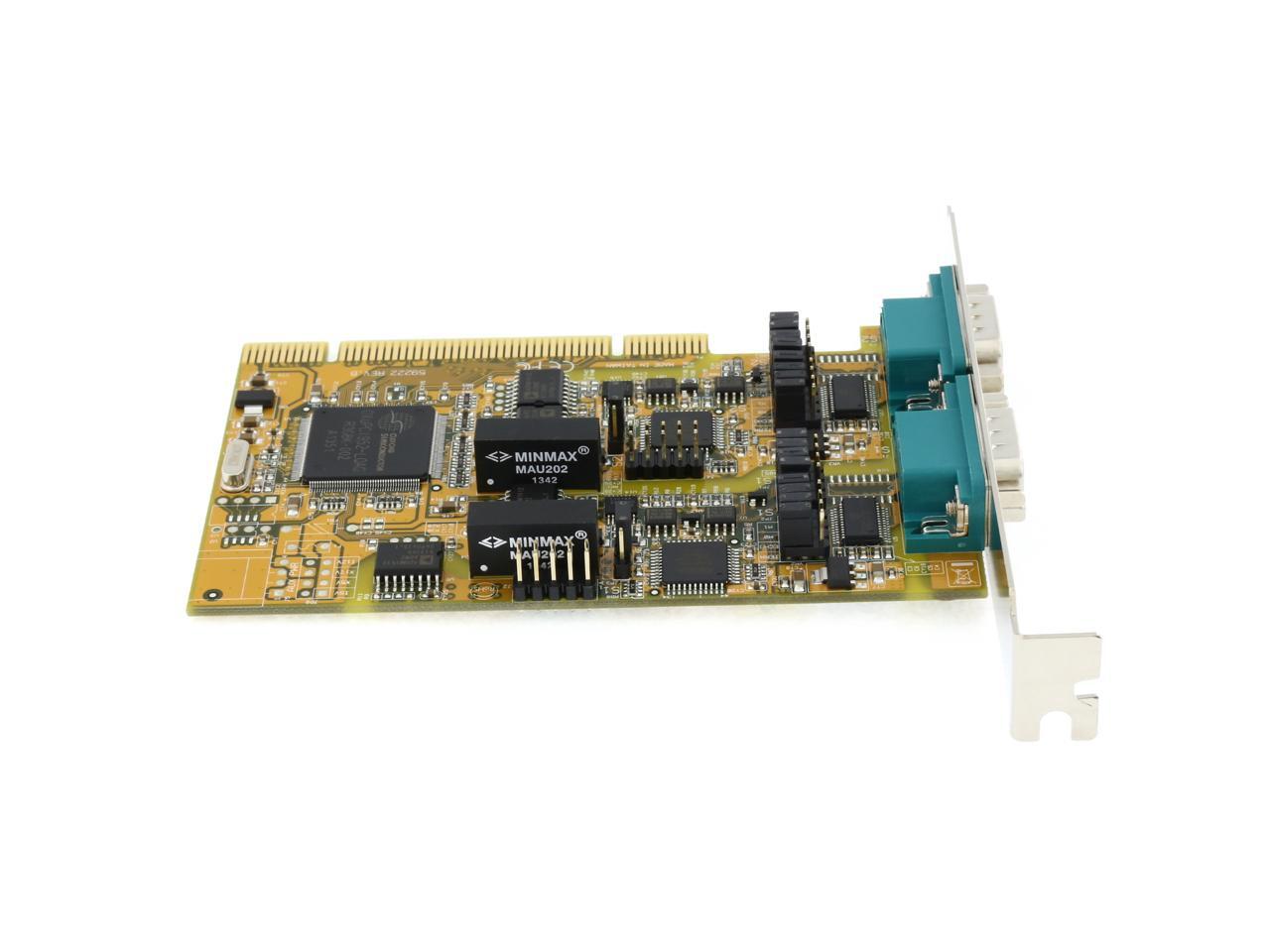

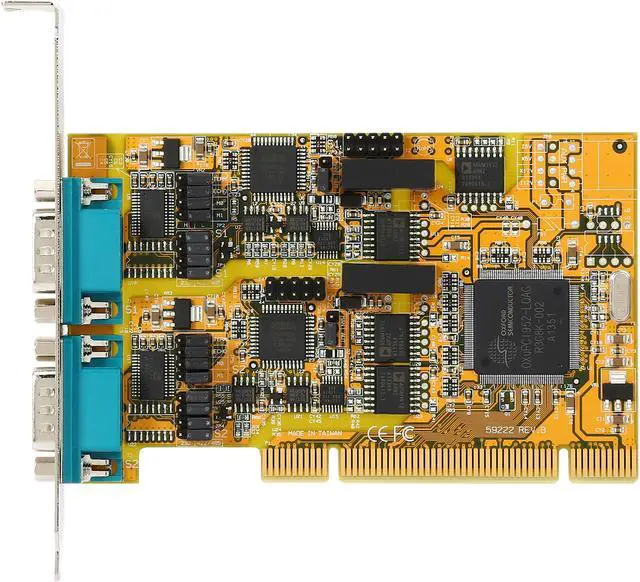

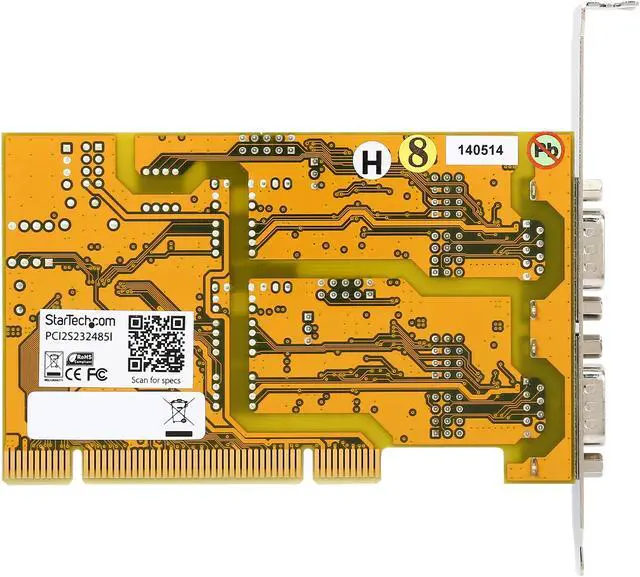

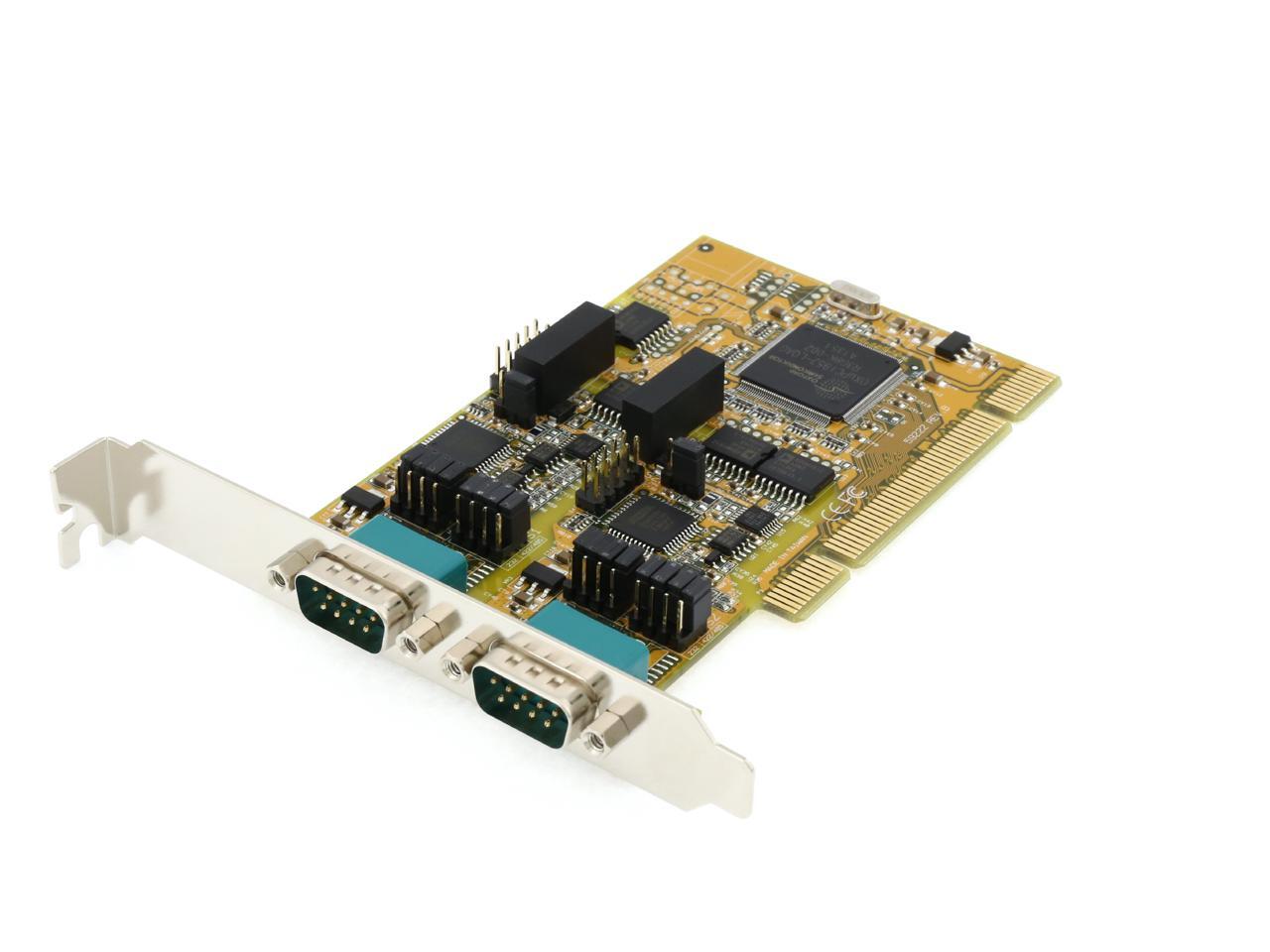

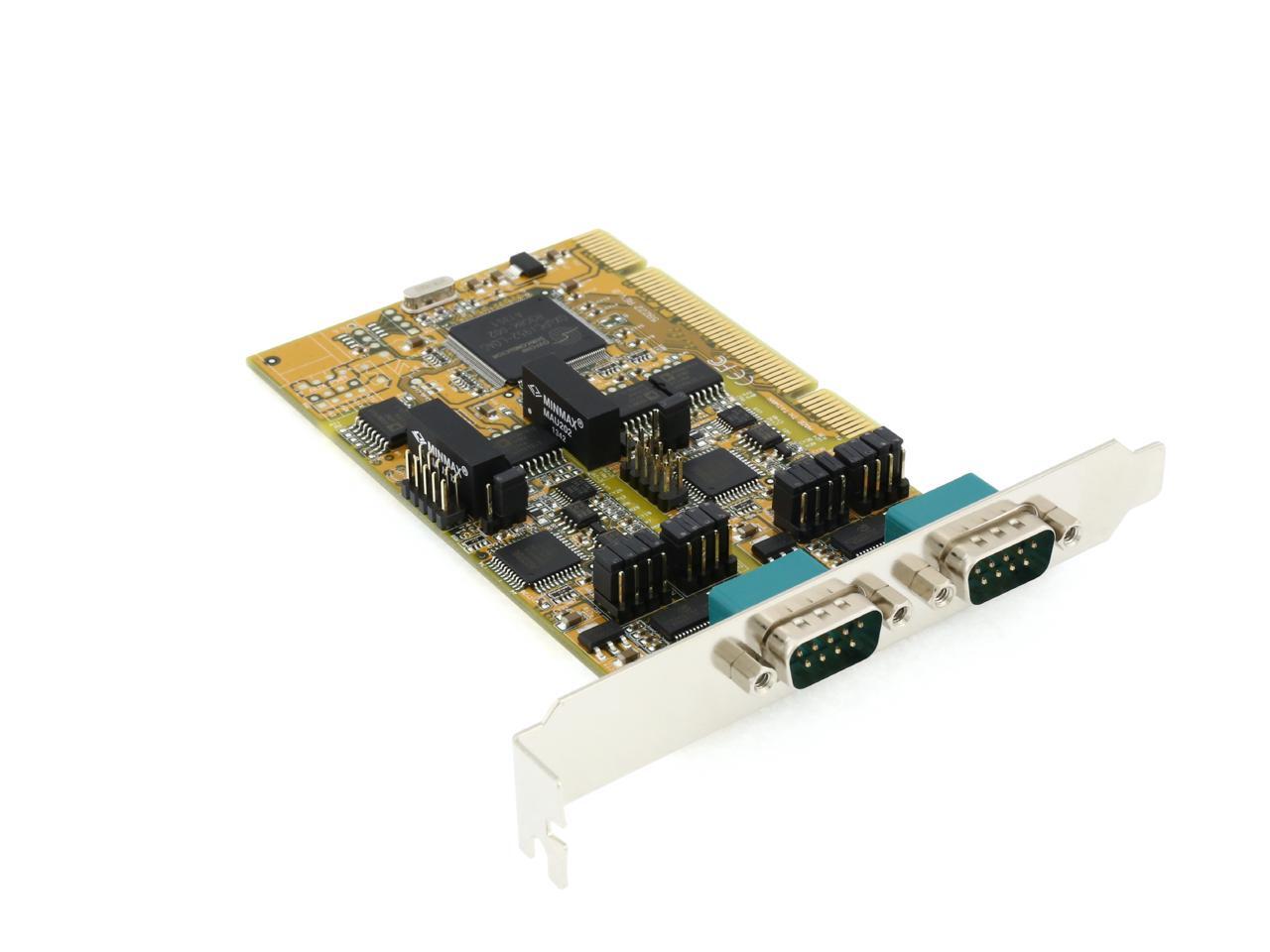

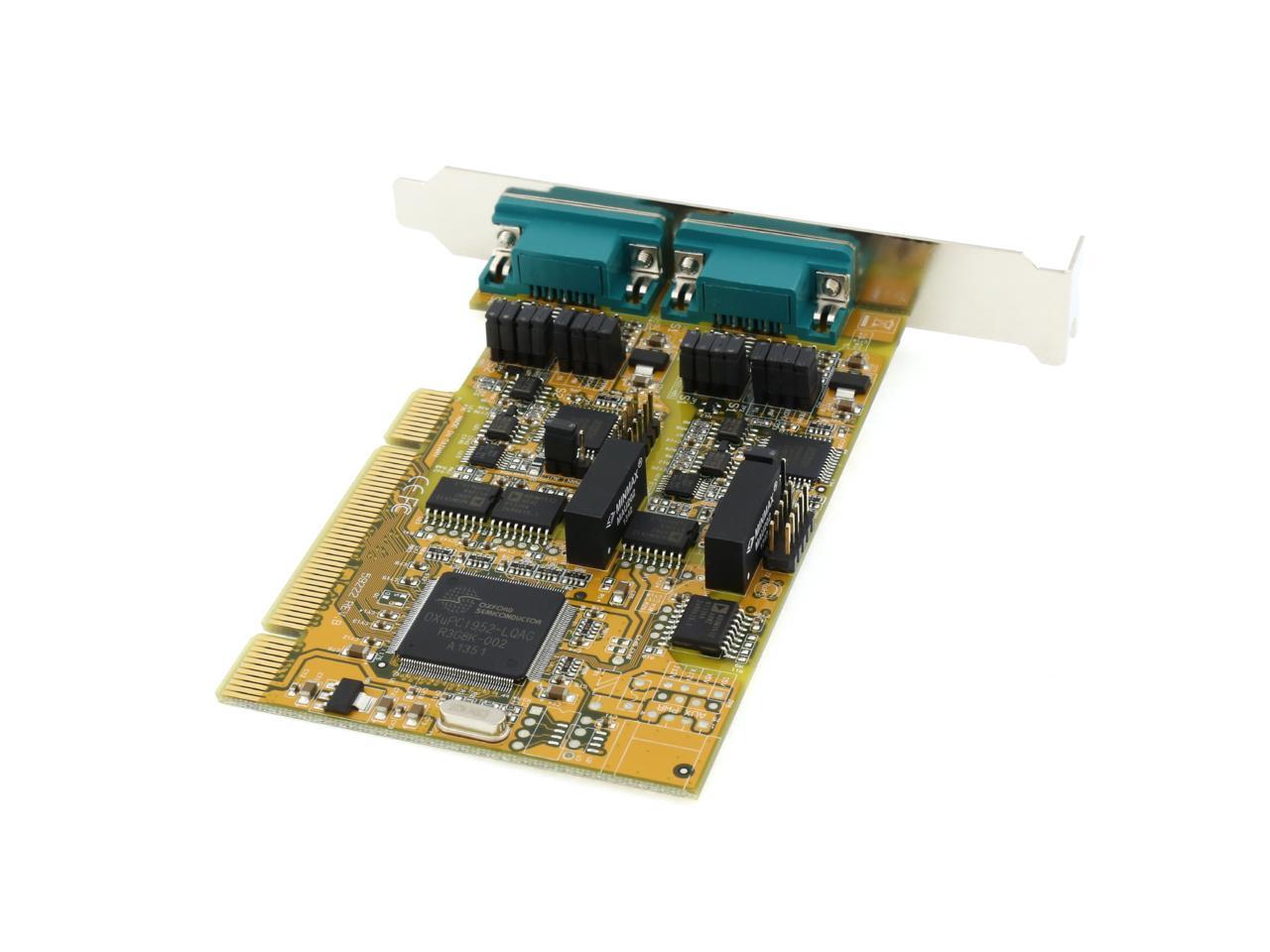

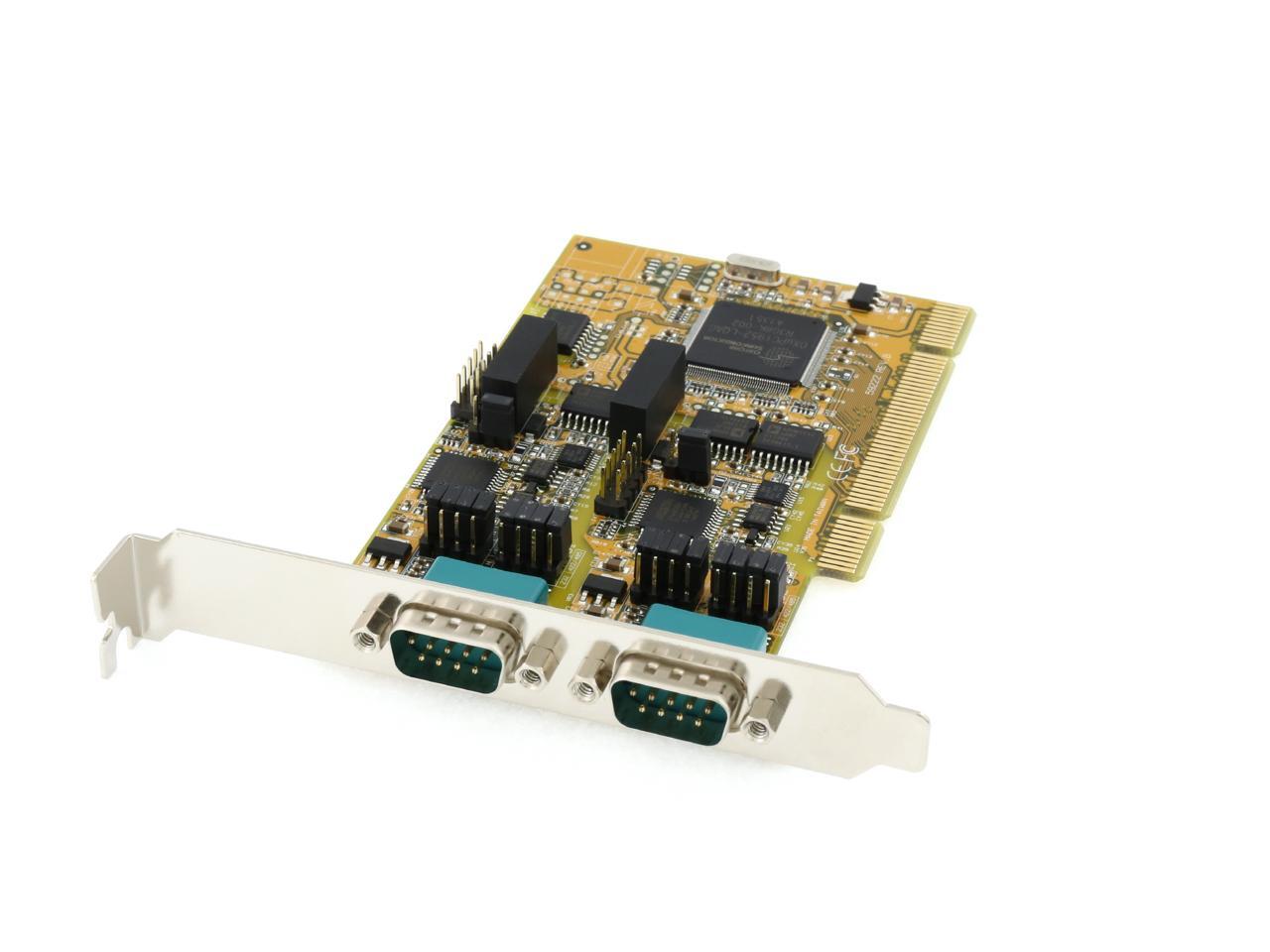

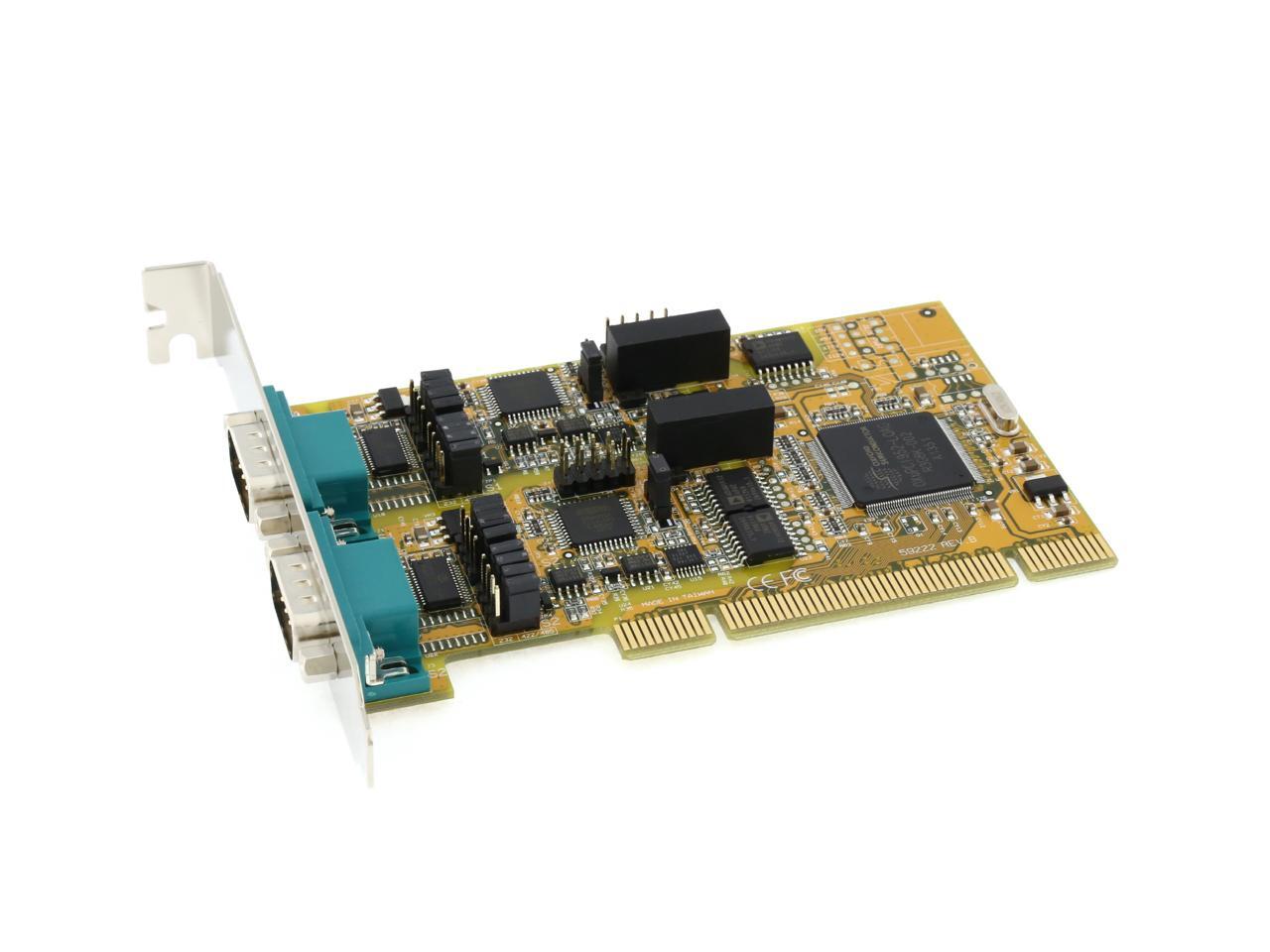

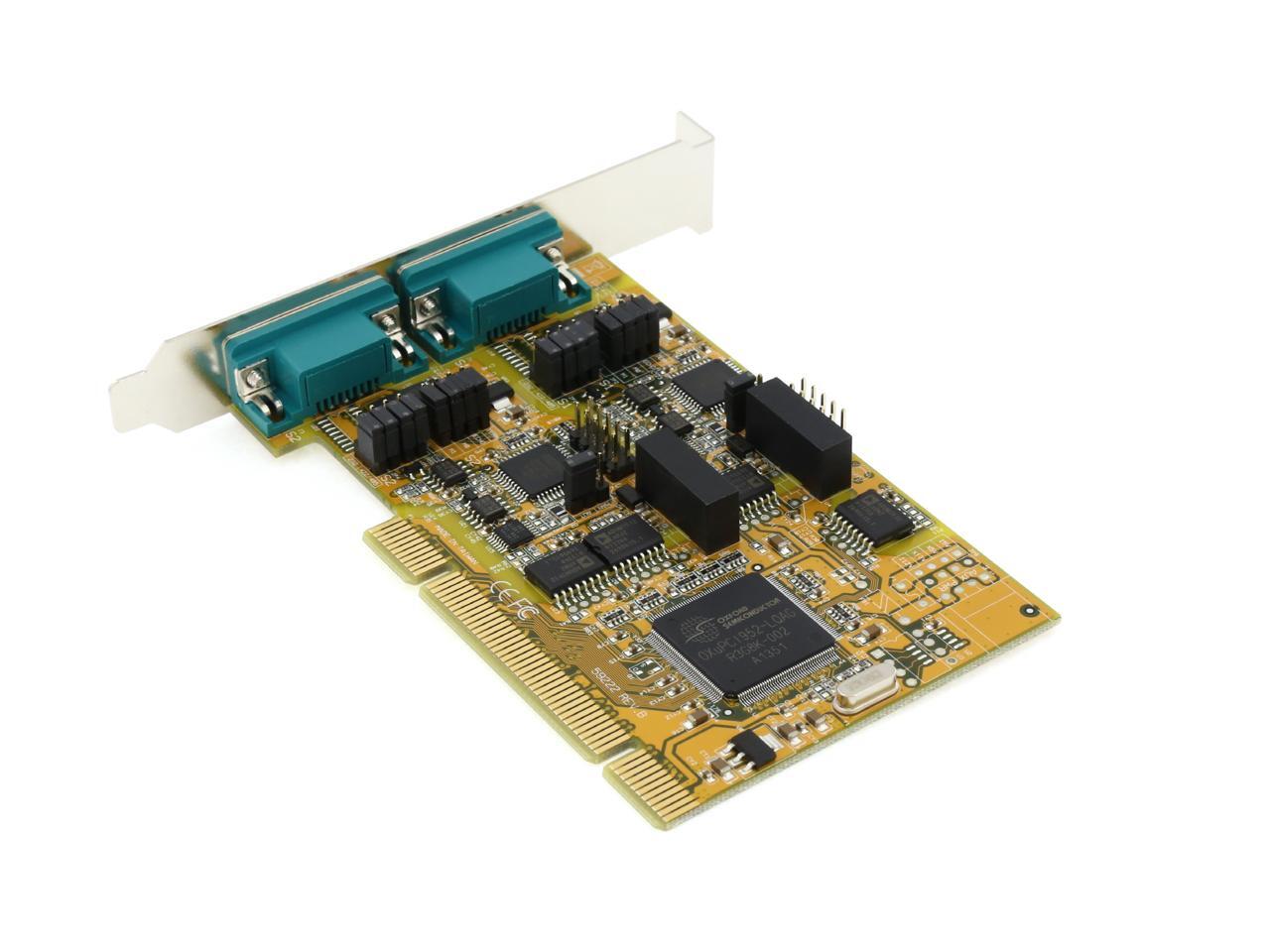

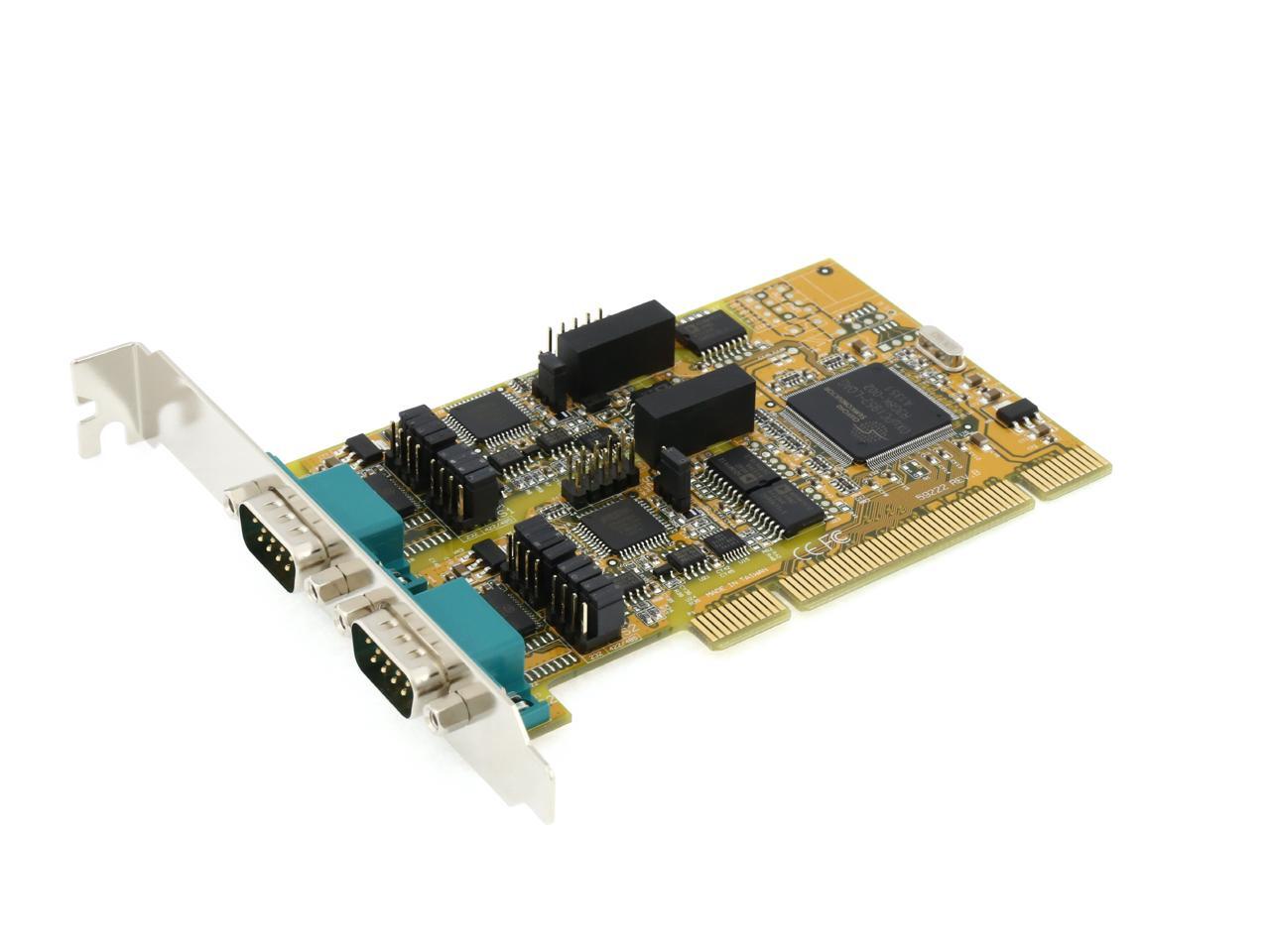

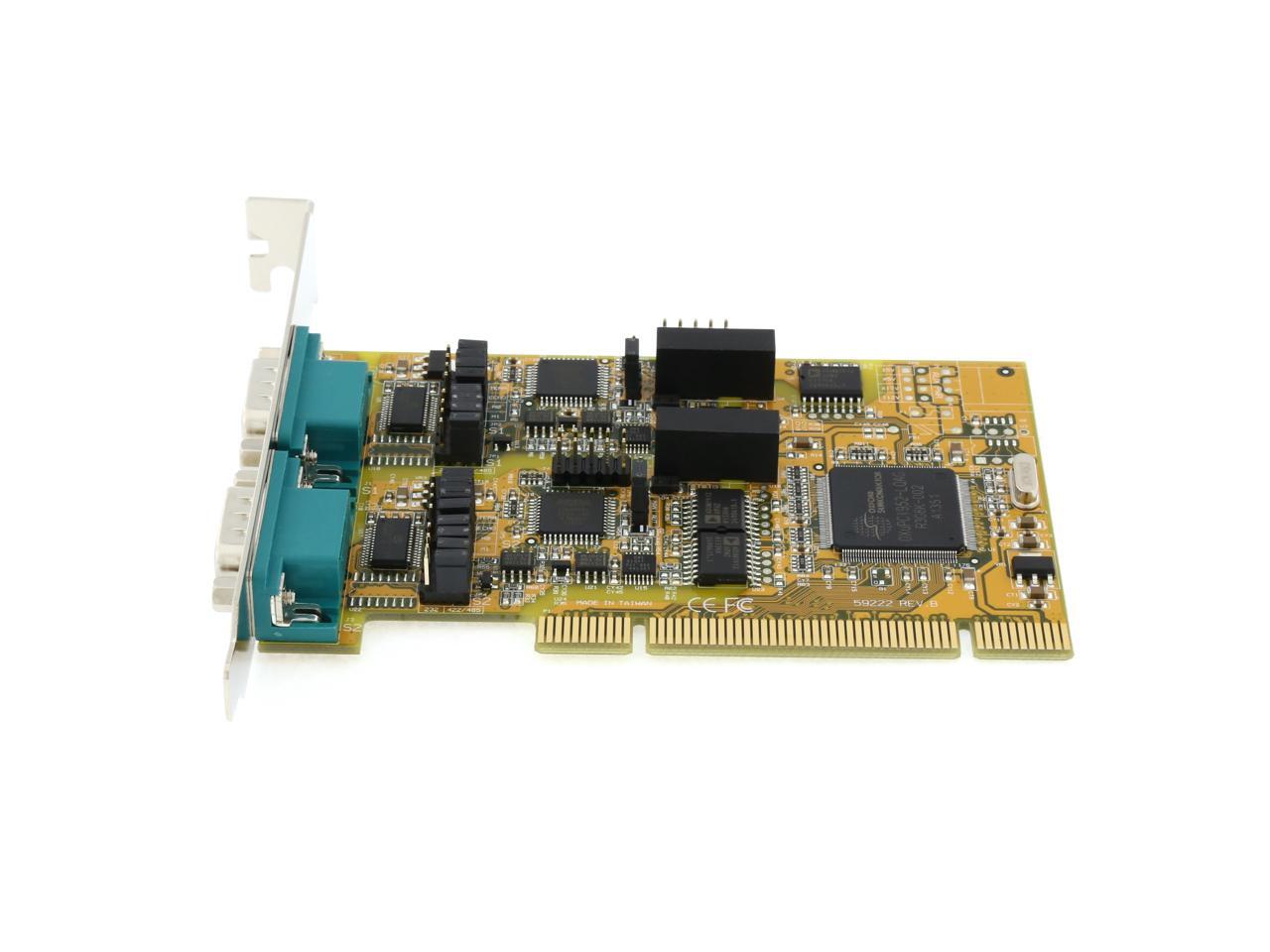

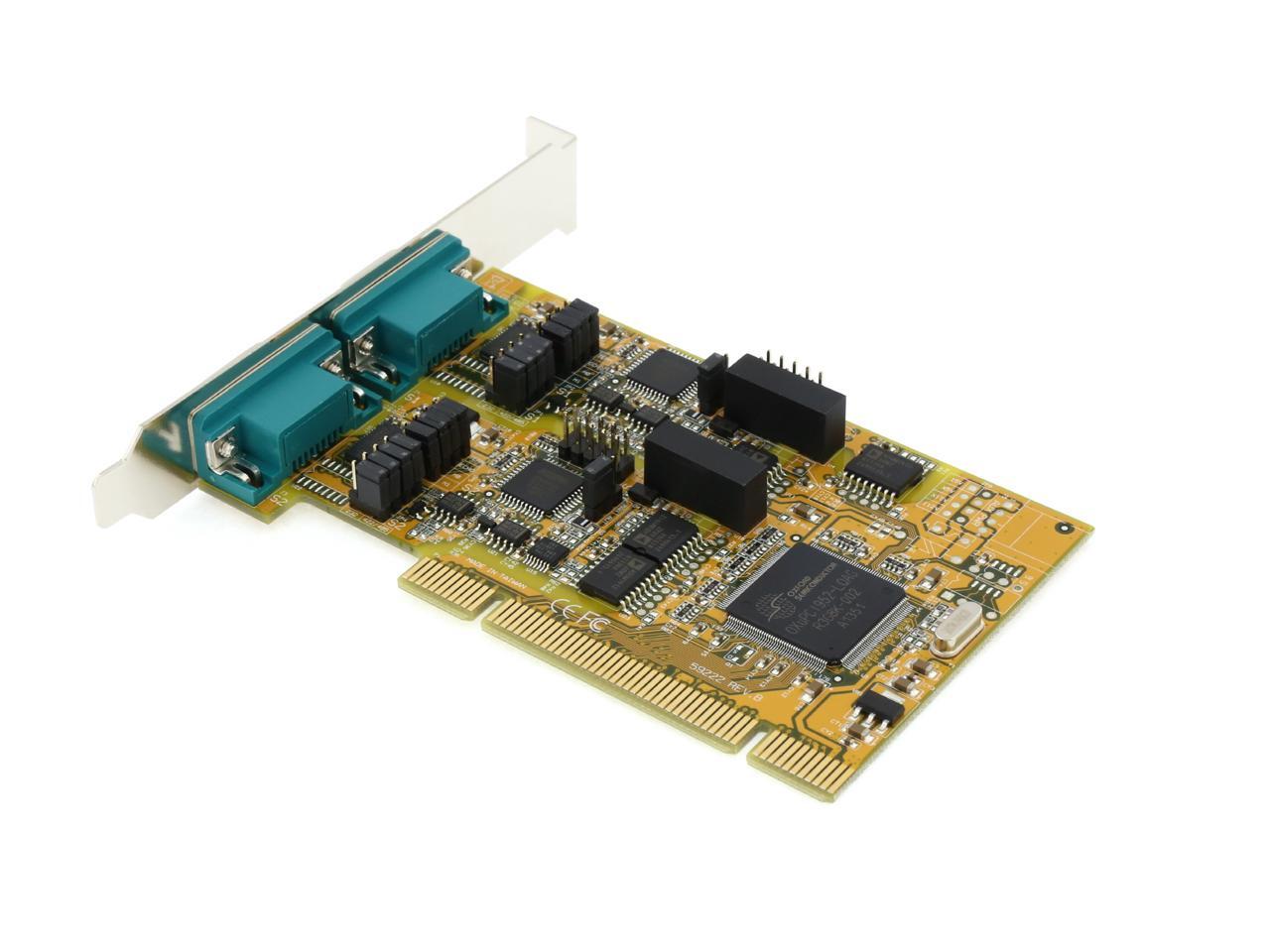

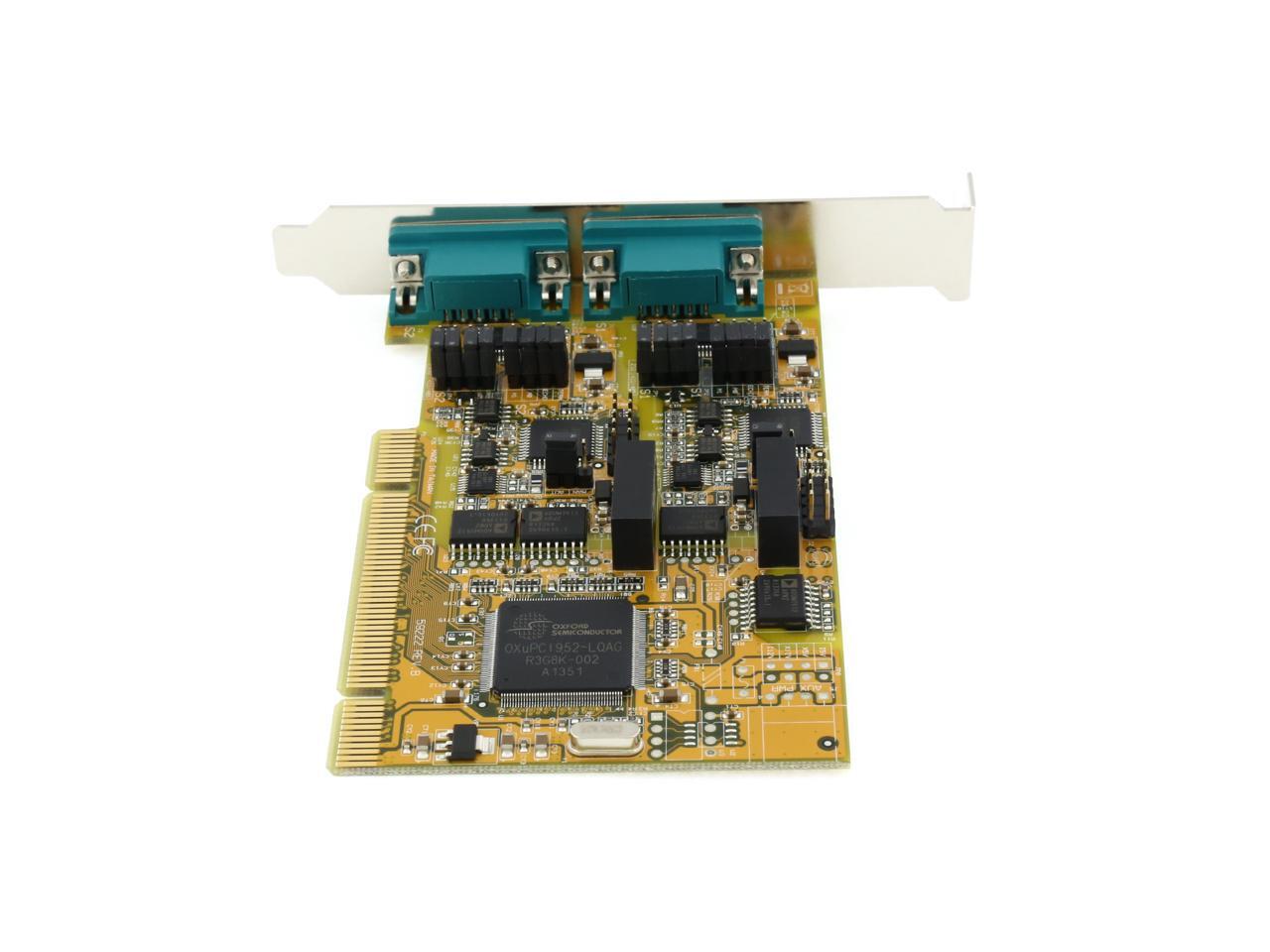

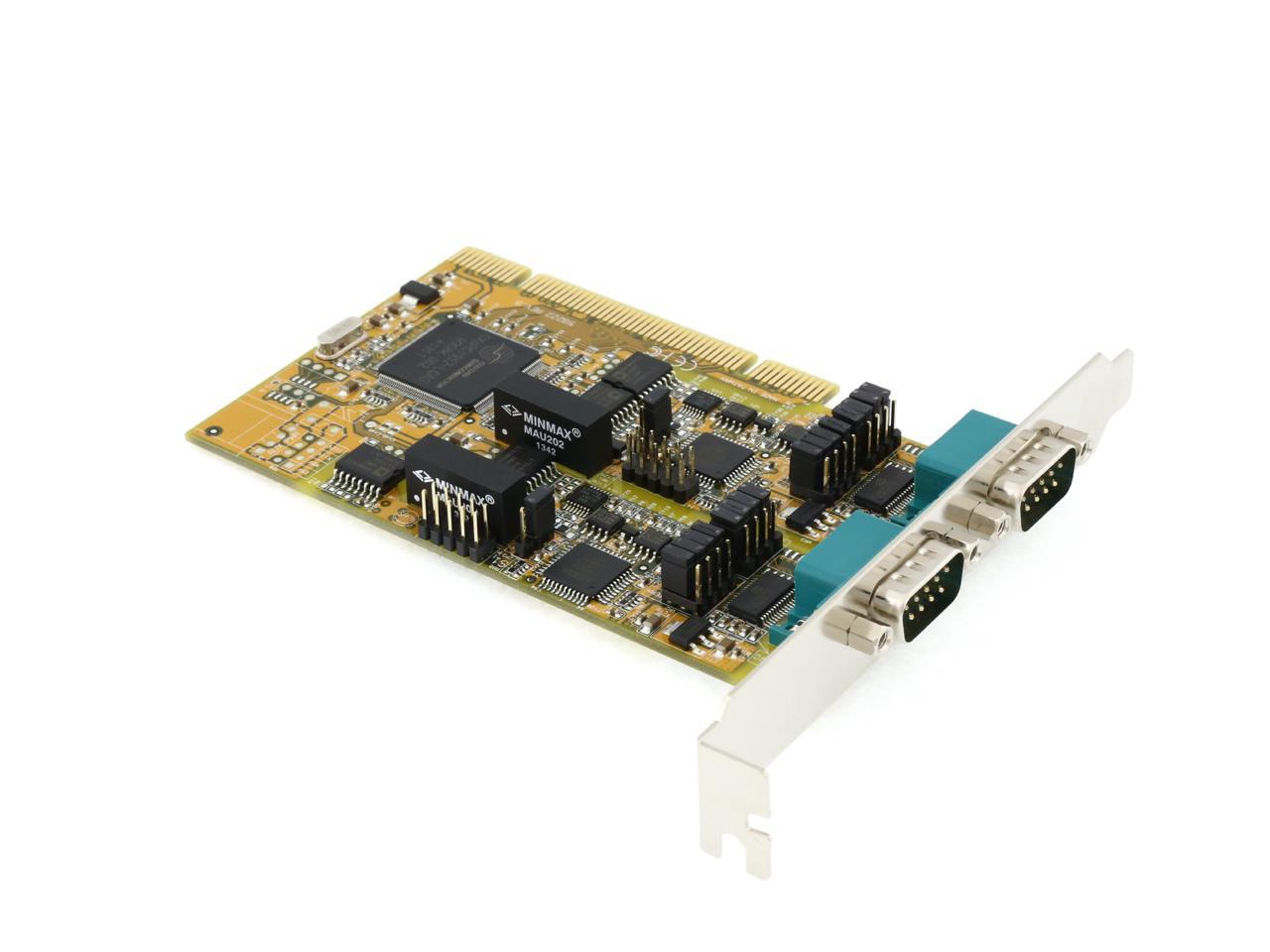

StarTech.com Add-On Card Model PCI2S232485I

Control and communicate with two serial devices even with mixed RS-232 & 485 protocols
2-Port RS232 / 422 / 485 PCI Serial Adapter Card with ESD Protection
Two Port Serial Card / Serial Adapter Card / PCI Serial Card
Supports RS232 RS422 or RS485 2-wire and RS485 4-wire modes
Makes it easy to communicate with two different serial modes from the same PCI card
Supports baud rates up to 921.6 Kbps
built-in ESD protection to ensure that your connected serial devices remain protected

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Control and communicate with two serial devices even with mixed RS-232 & 485 pro

Model
Brand	StarTech.com
Model	PCI2S232485I

Details
Type	PCI to Serial Port Card

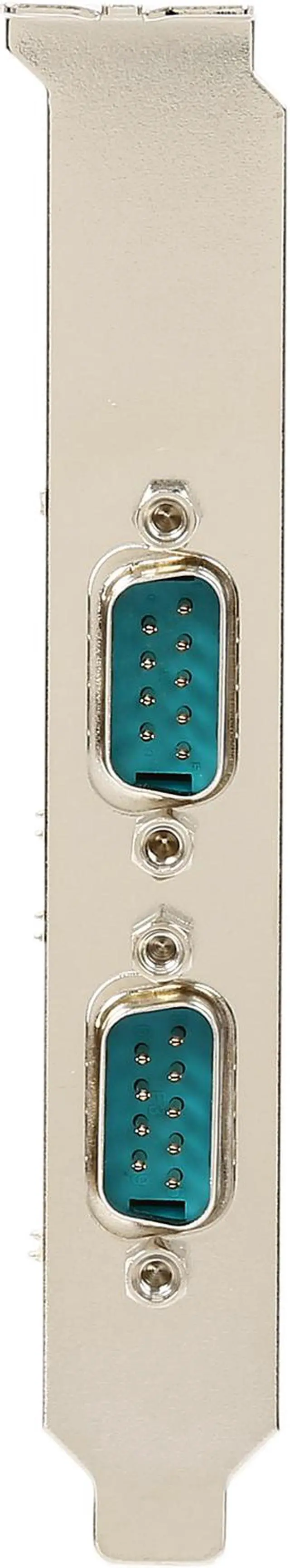

External Ports	2 x Serial Ports
Operating Systems Supported	Windows 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, and Linux Windows XP Embedded/ POS Ready 2009/ CE 4.x/ CE 5.0
Specifications	Bus Type: PCI / PCI-X (5 / 3.3V) Card Type: Standard Profile Chipset ID: PLX/Oxford - OXuPCI952 Color: Yellow Connector Type(s): PCI / PCI-X (Universal 3.3 & 5V ; 32-bit) Male Data Bits: 5, 6, 7, 8, 9 External Ports: DB-9 (9 pin ; D-Sub) Male FIFO: 128 Bytes Flow Control: Hardware, Auto Xon/Xoff, None Humidity: 5~95% RH Included in Package: Driver CD Instruction Manual PCI RS232/RS485/RS422 Serial Card Interface: Serial Isolation: 2500 Vrms Max Baud Rate: 921.6 Kbps Microsoft WHQL Certified: Yes Operating Temperature: 0°C to 55°C (32°F to 131°F) OS Compatibility: Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, 2000, CE 6.0/5.0 Windows Server® 2012, 2008 R2, 2003 Linux Parity: None, Even, Odd Port Style: Integrated on Card Ports: 2 Product Height: 18 mm [0.7 in] Product Length: 121 mm [4.8 in] Product Weight: 100 g [3.5 oz] Product Width: 74 mm [2.9 in] Serial Protocol: RS-232/422/485 Shipping (Package) Weight: 0.2 kg [0.5 lb] Storage Temperature: -20°C to 85°C (-4°F to 185°F)

Features
Features	Supports RS232, RS422, RS485 2 wire, and RS485 4 wire modes Each port can be set independently Built-in ESD (Electro-Static Discharge) protection Compliant with PCI Rev. 2.2 specifications PCI Power Management Rev. 1.1 compliant 921.6Kbps maximum baud rate per port Jumper configuration for mode, echo, and termination setting WHQL drivers

Dimensions & Weight
Weight	0.45

Additional Information
First Listed on Newegg	July 30, 2010
