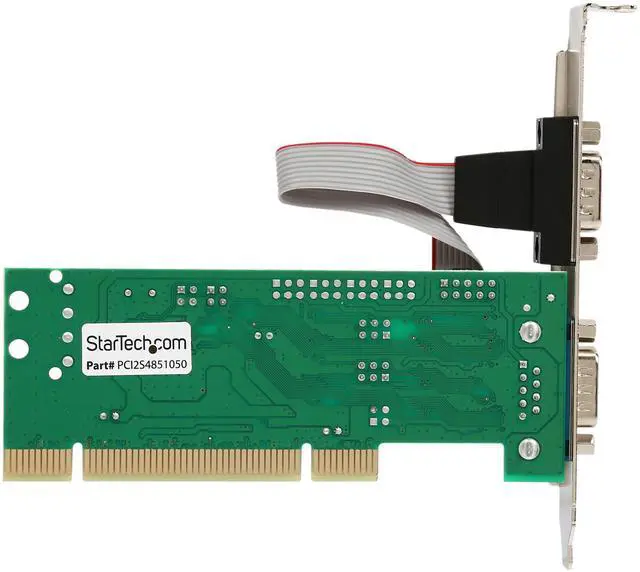

Main image of StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Model PCI2S4851050

100%

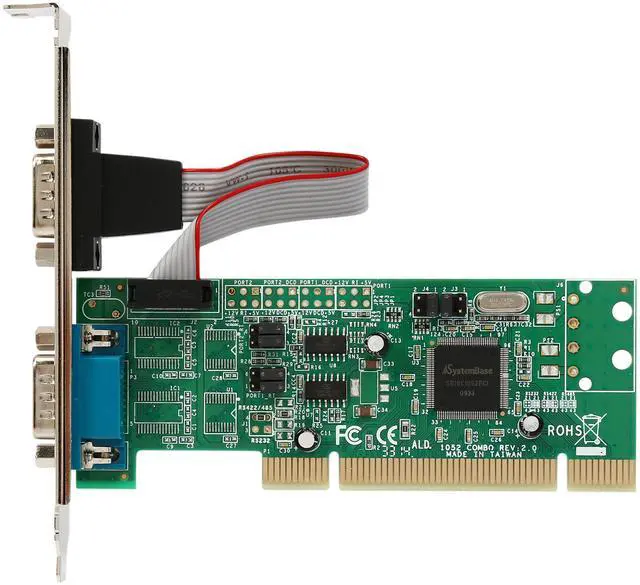

Alt view image 3 of 5 - StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Model PCI2S4851050

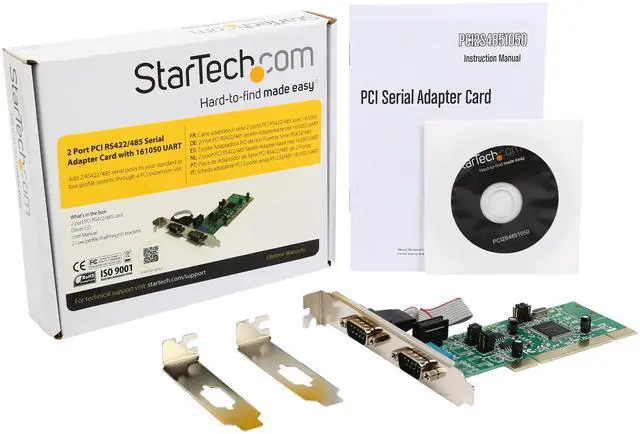

Alt view image 4 of 5 - StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Model PCI2S4851050

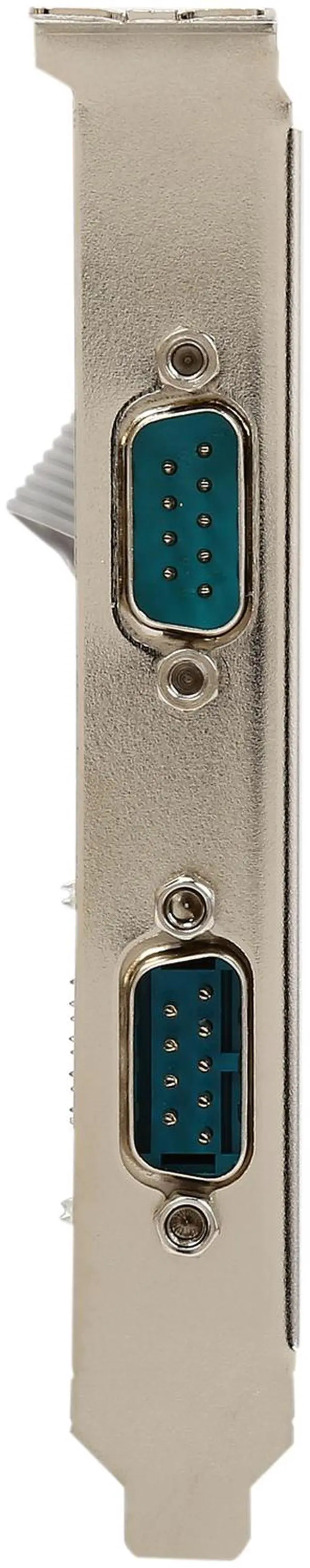

Alt view image 5 of 5 - StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Model PCI2S4851050

Alt view image 6 of 5 - StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Model PCI2S4851050

360^°

Shop All STARTECH Products

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Model PCI2S4851050

Name: StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Model PCI2S4851050
Brand: STARTECH
SKU: N82E16815158277
Price: 96.99 USD
Availability: InStock
Rating: 1 (1 reviews)

(1) Write a Review

Add two RS422/485 serial ports through a standard or low profile PCI expansion slot
2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
PCI serial card supports maximum data transmission rate of 128Kbps
rs422 serial card
rs485 serial card
dual port serial card
2 port rs422 pci card
PCI serial expansion card supports both 2-wire and 4-wire RS485 modes

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

Add two RS422/485 serial ports through a standard or low profile PCI expansion s

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): Lifetime
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Type	PCI to Serial Port Card
External Ports	2 x Serial Ports
Operating Systems Supported	Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64) Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.4.x/ 2.6.x
Specifications	Bus Type: PCI / PCI-X (5 / 3.3V) Card Type: Standard Profile (LP bracket incl.) Chipset ID: SystemBase -SB16C1052PCI Connector Type(s): PCI / PCI-X (Universal 3.3 & 5V 32-bit) Male Data Bits: 5, 6, 7, 8 External Ports: DB-9 (9 pin ; D-Sub) Male FIFO: 256 Bytes Flow Control: Xon, Xoff, RTS#, CTS# Humidity: 5~85% RH Included in Package: 2 port PCI RS422/485 card Driver CD Low profile (half-height) brackets User Manual Industry Standards: PCI Local Bus Specification 2.3 PCI Power Management 1.1 Interface: Serial Max Baud Rate: 128 Kbps Operating Temperature: -10°C to 80°C (14°F to 176°F) OS Compatibility: Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003, 2000 (32/64) Linux 2.4.x / 2.6.x Parity: Even, Odd, or No Parity Port Style: Integrated on Card Ports: 2 Product Height: 45 mm [1.8 in] Product Length: 120 mm [4.7 in] Product Weight: 58 g [2 oz] Product Width: 15 mm [0.6 in] Serial Protocol: RS-422/485 Shipping (Package) Weight: 0.2 kg [0.3 lb] Stop Bits: 1, 1.5, 2 Storage Temperature: -20°C to 100°C (-4°F to 212°F)

Dimensions	1.77" x 4.72" x 0.59"
Weight	0.33
