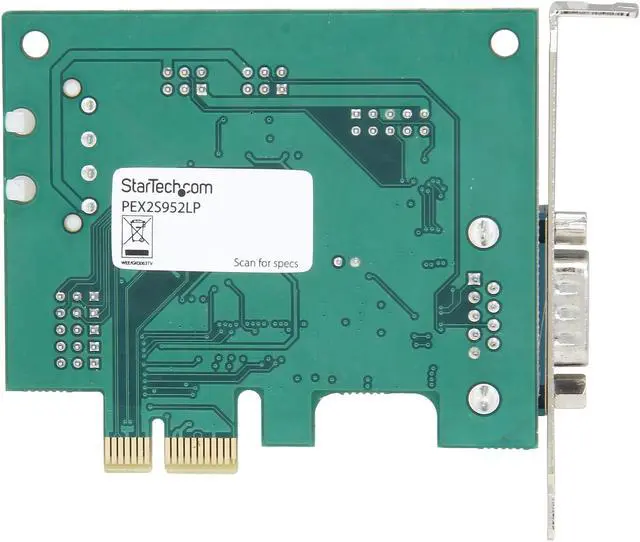

StarTech.com PEX2S952LP 2 Port Low Profile Native RS232 PCI Express Serial Card with 16950 UART

Add two RS-232 serial ports to your standard or small form-factor computer through a PCI Express expansion slot
2 Port Low Profile Native RS232 PCI Express Serial Card with 16950 UART
2 Port PCI Express Serial Card with 16950 UART
PCIe RS232 Serial Adapter Card / PCIe Serial Card Adapter w/ UART

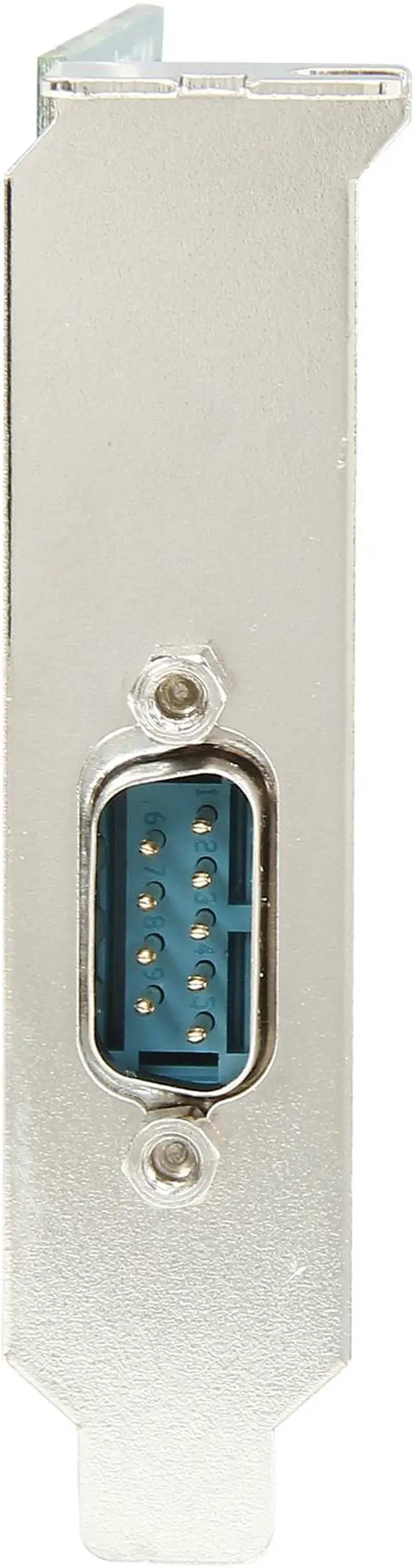

Configured with a low-profile bracket for small form-factor/half-height systems but also includes a standard-profile bracket for full-size computers
Supports data transfer rates up to 460 Kbps

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Add 2 RS-232 serial ports to your standard or small form factor computer through

Model
Brand	StarTech.com
Model	PEX2S952LP

Details
Type	PCI Express to Serial Port Card
External Ports	2 x Serial Ports
Data Transfer Rate	Up to 460 Kbps

Features
Features	128-byte deep FIFO per transmitter and receiver Automated in-band software flow control using programmable Xon/Xoff in both directions Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Compatible with Windows 2000/XP/Vista (32/64Bit), DOS, and Linux Compliant with PCI Express base specifications revision 1.1a High Performance Dual Channel Oxford 950 UART Native single-Chip, single lane PCI Express Selectable power output on pin 9 for the serial port Ships with half-height mounting bracket; includes optional standard bracket Two high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps

Dimensions & Weight
Weight	0.35

Additional Information
First Listed on Newegg	April 28, 2010
