Question 1

Is this adapter bootable?

Accepted Answer

This is a purely passive device.  It allows you to connect a 2.5" form factor SSD with an NVMe (PCI) interface to the PCI bus.  There are no chips on this board.  If your BIOS supports booting from NVMe/PCI storage then yes it will boot.

Question 2

Does it work in PowerEdge R710?

Accepted Answer

I'm not sure about the PowerEdge R710, but I have it installed in an older Asus board, and it works without any flaws for me. plugged the drive in, put in screws, installed into slot on mobo, powered up computer, all was good. Hope this helps.

Question 3

Can you boot the computer off this installation?

Accepted Answer

I would think you can.  You may have to go into the BIOS to teel your computer you want to boot off this item, but it should work.

Question 4

What size of SSD can this adapter accommodate?

Accepted Answer

This adapter can accommodate 2.5-inch U.2 NVMe SSDs with supported drive heights of 15mm, 12.5mm, 9.5mm, 7mm, and 5mm.

Question 5

What benefits can I expect from using this adapter with my SSD?

Accepted Answer

The adapter boosts system speed and performance by allowing you to add a PCIe NVMe U.2 SSD to your PC. It simplifies system builds as it mounts the SSD directly to the adapter without needing additional cables.

Question 6

Is there a limit to the number of drives I can install with this adapter?

Accepted Answer

The adapter supports a single drive.

Question 7

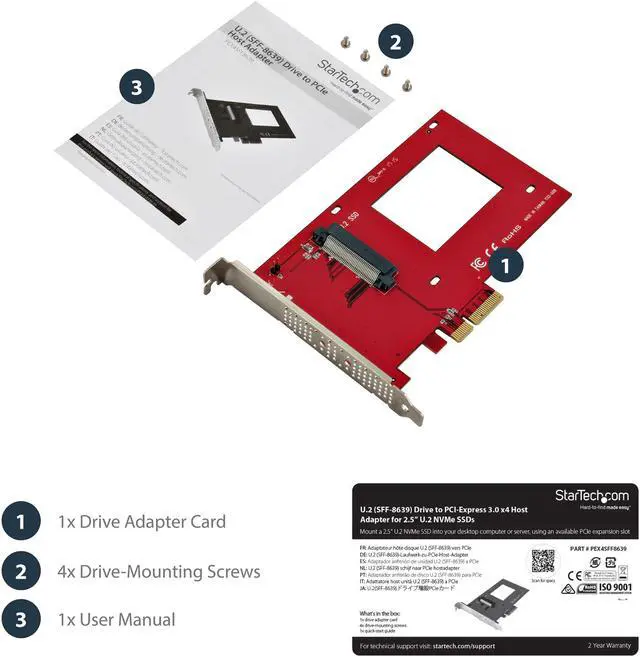

Does this adapter come with the necessary installation hardware?

Accepted Answer

Yes, the adapter comes with drive-mounting screws as part of the package contents.

Question 8

Can I use this adapter on my PCIe 2.0 motherboard?

Accepted Answer

Yes, the adapter is compatible with PCIe 2.0 motherboards.

Question 9

Can apple 10.15 catalina boot from an external drive via Startech tb31pciex16 thunderbolt 3 pcie expansion chassis + Startech pex4sff8639 u.2 to pcie adapter + u.2 ssd?

Accepted Answer

Cannot confirm. But, boot is determined by BIOS/UEFI. I am pretty sure all Mac's use UEFI, which should support NVMe boot

Brand	StarTech.com
Model	PEX4SFF8639

Type	U.2 to PCIe Adapter - x4 PCIe
Specifications	Bus Type: PCI Express Compatible Drive Types: U.2 (SFF-8639, x4 PCIe, NVMe) Drive Installation: Fixed Drive Size: 2.5in Interface : PCI Express Number of Drives: 1 Supported Drive Height(s): 15mm 12.5mm 9.5mm 7mm 5mm

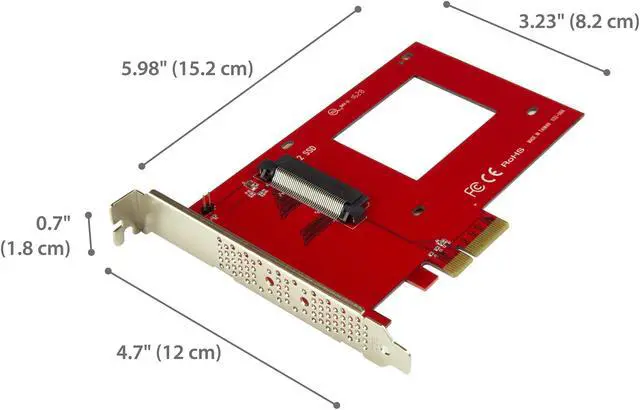

Dimensions	0.90" x 6.50" x 4.80"
Weight	0.14 lbs.
