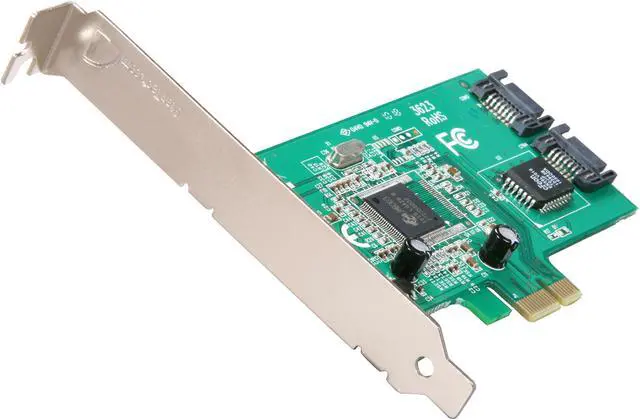

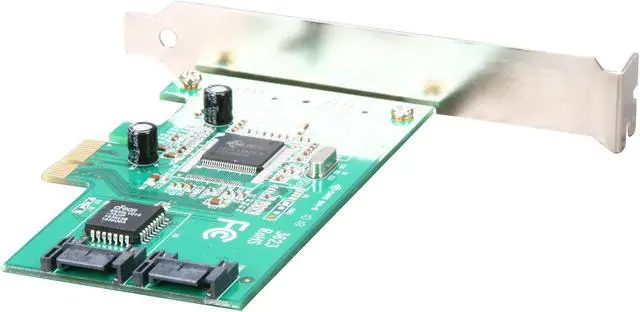

StarTech.com 2 Port PCI Express Internal SATA Controller Card Model PEXSATA22I

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • PCI Express to SATA Card
  • 3.0 Gbps Data Transfer Rate

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

This 2 Port PCI Express Internal Serial ATA Controller Card adds two internal SATA II (SATA /300) ports to a computer through simple installation into an available x1 PCI Express slot.

Supporting data transfer speeds of up to 3.0 Gbps, the SATA controller card features Native Command Queuing support to ensure optimum performance. Using a native PCI Express single chipset, the internal SATA controller card provides enhanced compatibility, reliability and performance for your storage needs.

The controller card includes both standard form factor and low profile brackets, allowing you to add SATA capability to virtually any PCI Express enabled computer, regardless of the case form factor.

  • newegg Add SATA Ports to Computer The StarTech PEXSATA22I card is designed to add two internal SATA ports to your PCI Express equipped computer for easy, up to 3Gbps connection to SATA drives. Native Command Queuing technology is supported allowing you to take full advantage of performance offered by the latest devices.

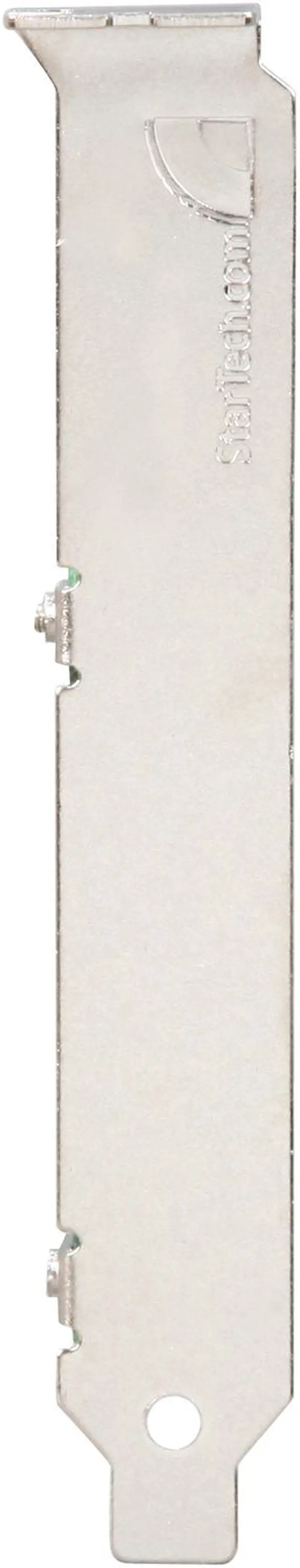

  • newegg Low/Full Profile Brackets Included Both full profile and low profile/half height brackets are included to ensure fitment for any system.

Learn more about the STARTECH PEXSATA22I

Model

|
Brand
StarTech.com
Model
PEXSATA22I

Details

|
Type
PCI Express to SATA Card
Internal Ports
2 x SATA II
Data Transfer Rate
3.0 Gbps
Operating Systems Supported
Windows 2000, XP, Vista, Server 2000, Server 2003
Specifications
Note: 2.0 compliant/compatible with 2.0 slots for PCI Express
Bus Type: PCI Express
Card Type: Standard Profile (LP bracket incl.)
Chipset ID: JMicron - JMB363
Connector Type(s): PCI Express x1 Male

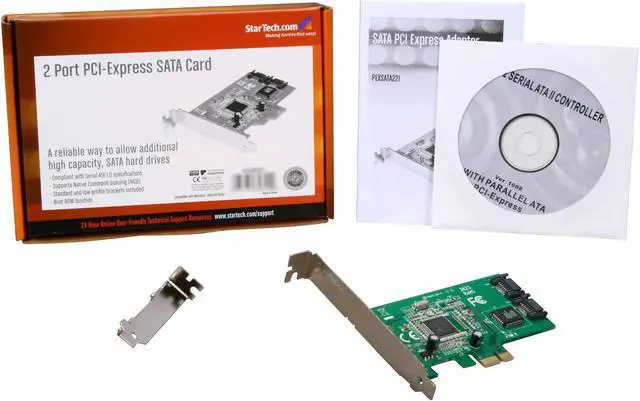

Included in Package: Driver CD
Instruction Manual
Low Profile Bracket
PCI Express SATA Card
Interface: SATA
Internal Ports: SATA (7 pin ; Data) Plug
Maximum Data Transfer Rate: 3Gbps
OS Compatibility: Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000
Windows® Server 2012, 2008 R2, 2003
Linux
Port Multiplier: No
Ports: 2
Product Height: 20 mm [0.8 in]
Product Length: 102 mm [4 in]
Product Weight: 44.2 g [1.6 oz]
Product Width: 120 mm [4.7 in]
RAID: Yes
Shipping (Package) Weight: 0.1 kg [0.3 lb]
Supported RAID Modes: JBOD - (Just a Bunch of Disks)
RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
Type and Rate: SATA II (3 Gbps)

Features

|
Features
Applications
Ideal for individuals and institutions replacing Parallel ATA with Serial ATA hard drives

Boot ROM Function
Compliant with Serial ATA 1.0 specifications
Standard and low profile brackets included
Supports Native Command Queuing (NCQ) with Port Multiplier support
Supports SATA II transfer rates of up to 3.0 Gbps
Uses a native PCI Express single chipset,providing enhanced compatibility, reliability and performance for your external storage needs

Dimensions & Weight

|
Weight
0.28

Additional Information

|
Date First Available
July 25, 2008
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: more than 1 year
Verified Owner
4/ 5
Decent Card 12/24/2014 8:55:43 PM

Pros: Decent Speeds
Plug and play w/ Ubuntu

Cons: Died after ~3 years, both ports stopped working, but for the price I can't complain too much

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
No problems 3/28/2014 6:09:36 AM

Pros: No problems with Windows 7. Works for boot up. Easy RAID configuration and OS install.

Cons: None so far.

Overall Review: Installed in Core 2 duo LGA 775 with Gigabyte GA-P31-ES3G MB. MB does not have built-in RAID so got the Startech card and installed Win 7 Professional with no snags at all. It has been running for about a month now. Be sure to install the correct driver (i.e. read the instructions). I bought two more to keep around.

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Works 2/28/2014 11:10:09 AM

Pros: Works seamlessly.
You can boot from these drives, this card has a boot ROM.

Cons: None so far.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Not bad! 7/3/2013 7:11:49 AM

Pros: Windows rates my ssd as 7.9 now with this card, 7.6 with Sata II. Cheap and works without any hiccups.

Cons: I do agree with another writer here, don't expect to have your Sata clips to clip. But still works without clicking. This was not enough to drop egg.

Did you find this review helpful?
Anonymous
Ownership: 1 month to 1 year
Verified Owner
1/ 5
Compatibility issue and not matching the own specification of the vendor 10/29/2012 3:03:51 PM

Pros: Ultimately I didn't manage to make this controller card work with ZFS Nas server.

Cons: According to the specification of StartTech, this SATA controller card is supposed to use the chipset JMicron JMB366. JMicron is advertising this chipset as supporting AHCI .
First disappointment, the HBA received was using the old chipset JMB362. StartTech support team answered the box was probably seating of a shelf for a while.
Second disappointment, the BIOS setting of the HBA does not support AHCI actually.
Third disappointment, JMicron is advertising the series JMB36x as supporting a wild range of OS (Solaris, FreeBSD, RedHat, MacOS), but it does not.
Fourth dispapointment, it's not possible to boot on a drive connected to this HBA.
Conclusion, I lost hours testing different OS and configuration, exchanging emails with StarTech and JMicron support team.

5 out of 6 people found this review helpful. Did you?
4/ 5
It works 2/23/2012 6:35:44 PM
Did you find this review helpful?
5/ 5
Great Bootable SATA Card 12/5/2011 1:12:29 PM

Comments: Definitely recommended for both extra drives and boot drives.

Did you find this review helpful?
5/ 5
Excellent SATA solution 7/7/2011 5:54:33 PM

Comments: Fast Delivery

Did you find this review helpful?
