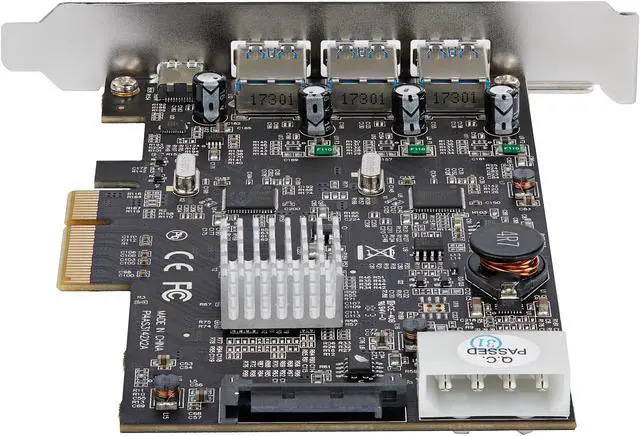

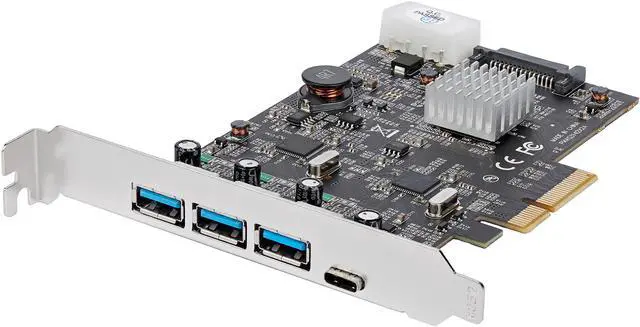

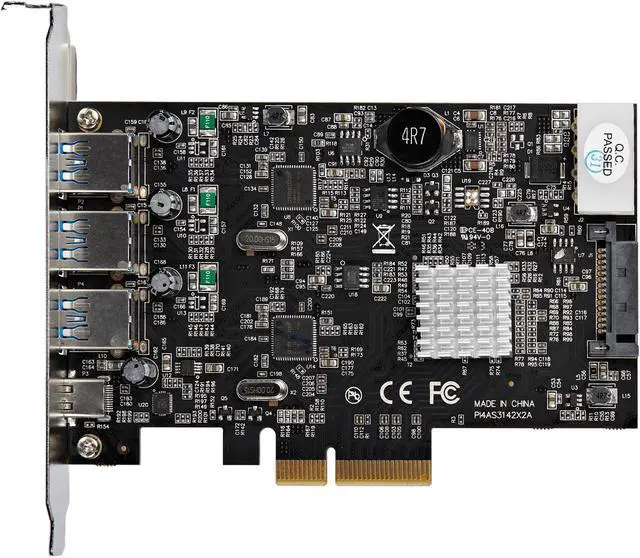

StarTech.com PEXUS313AC2V USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels - USB C PCIe Card - USB 3.1 Controller Card

Add three USB-A ports and one USB-C port via two host controllers through a standard PCI Express slot
PCIe to USB 3.1 card is perfect for PC upgrades or builds
Expand the USB capabilities of your system with four new USB ports
Works with older USB 3.0 & 2.0 devices
USB C PCI-E controller card w/ optional LP4 or SATA power connector provides up to 900mA per port
USB 3.1 Type C PCIe Card with UASP
USB C PCI-E card / 4 Port USB 3.1 Card / USBC Expansion Card / USB 3.1 Gen 2 PCIe Card

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Add 3x USB-A ports & 1x USB-C port, via 2 host controllers, through a standard P

Model
Brand	StarTech.com
Model	PEXUS313AC2V

Details
Type	PCI Express to USB Card

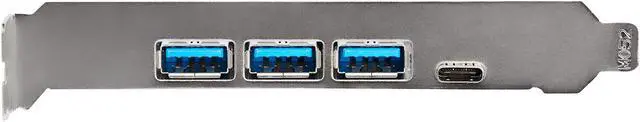

External Ports	3 x USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female 1 x USB Type-C (24 pin) USB 3.1 (10Gbps) Female
Internal Ports	1 x LP4 (4 pin, Molex Large Drive Power) Male 1 x SATA Power (15 pin) Plug
Standard	USB 3.1
Data Transfer Rate	USB 3.1 Gen 2 - 10 Gbit/s
Operating Systems Supported	Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012 R2, 2016 Mac OS X 10.9 to 10.10 Linux 3.5 to 4.14.x LTS version only
Specifications	Bus Type: PCI Express Card Type: Standard Profile Chipset ID: ASMedia - ASM1142, Pericom PI7C9X2G308GP Industry Standards: USB 3.1 Specification Rev. 1.0 USB Specification Rev. 2.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0 Interface : USB 3.1 Gen 2 Port Style: Integrated on Card Ports: 4 Maximum Data Transfer Rate : 10Gbps per 2 ports - 20Gbps Total Type and Rate: USB 3.1 Gen 2 - 10 Gbit/s Connector Type(s): 1 x PCI Express x4 Male External Ports: 3 x USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female 1 x USB Type-C (24 pin) USB 3.1 (10Gbps) Female Internal Ports: 1 x LP4 (4 pin, Molex Large Drive Power) Male 1 x SATA Power (15 pin) Plug Note: The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps per lane. PCI Express Gen 2.0 max throughput is 5Gbps per lane. The available bandwidth (10Gbps) is shared equally between the two ports.

Features
Features	Add three USB-A and one USB-C external USB 3.1 ports on two independent bus channels Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput Connect large external storage solutions: optional LP4 or SATA power connector provides up to 900mA per USB port Add room for more devices on your current system Compatible with older USB 3.0 and USB 2.0 devices

Packaging

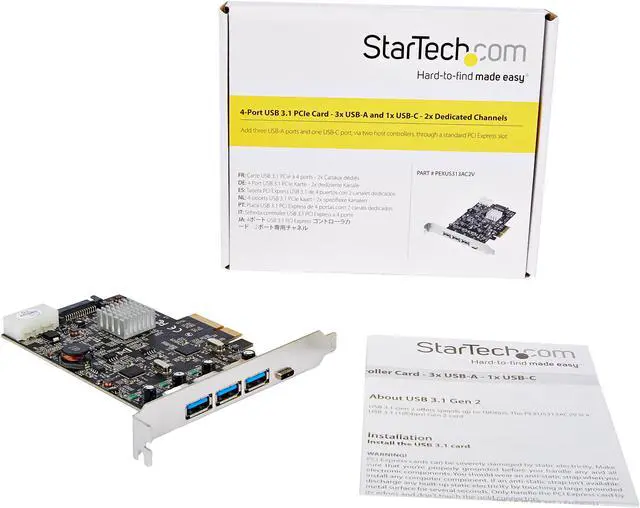

Package Contents	1 x controller card 1 x instruction manual

Additional Information
First Listed on Newegg	June 08, 2018
