is this good for a replacement cpu fan?

It could be used as a replacement CPU fan. It would have to fit the heat sink. This fan uses PWM - pulse width modulation - to control its speed. Most CPU fans nowadays are PWM and the fan speed can frequently be controlled in the BIOS. I have used a 90mm version of this same kind of fan to replace a 3 pin fan on a CPU heat sink..

What is the power requirement for this fan?

The power requirement for this fan is an input current of 160 mA and an input voltage of 12 DC.

What is the airflow rate of this fan?

The airflow rate of this fan is between 9.74 and 25.02 CFM.

Is the noise level of this fan loud?

The noise level of the fan ranges from less than 10 dBA to 28 dBA.

$9^.99

$10.99

Limit 99999 per customer.

Price alert

Add to wish list(Found on 9 wish lists)

Sold by Newegg

Shipped by Newegg

Best Sellers

Hot Deals 4 Less

Hot Seller

4 (3,709 total ratings)

$16^.70

IT Devices Online

Top Rated

4.6 (25 total ratings)

$17^.00
+ FREE SHIPPING

NothingButSavings

Top Rated

4.5 (8,992 total ratings)

$19^.51

Main image of StarTech.com FAN8025PWM 80mm Computer Case Fan with PWM - Pulse Width Modulation Connector

Alt view image 2 of 5 - StarTech.com FAN8025PWM 80mm Computer Case Fan with PWM - Pulse Width Modulation Connector

Alt view image 3 of 5 - StarTech.com FAN8025PWM 80mm Computer Case Fan with PWM - Pulse Width Modulation Connector

Alt view image 4 of 5 - StarTech.com FAN8025PWM 80mm Computer Case Fan with PWM - Pulse Width Modulation Connector

Alt view image 5 of 5 - StarTech.com FAN8025PWM 80mm Computer Case Fan with PWM - Pulse Width Modulation Connector

Shop All STARTECH Products

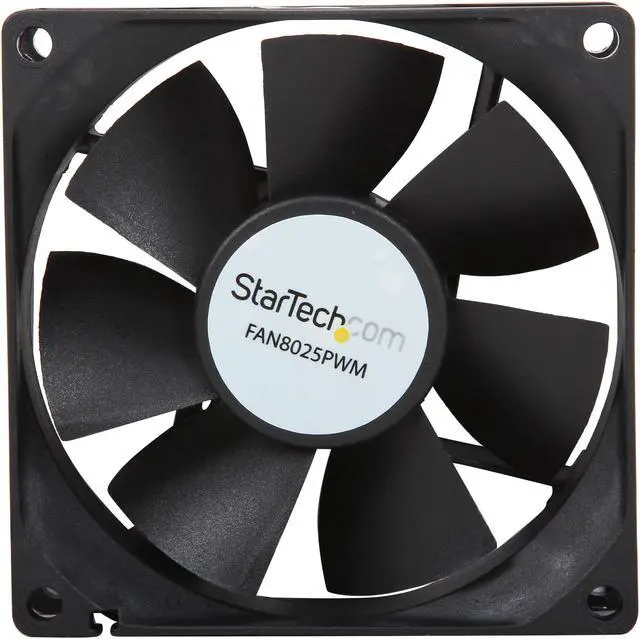

StarTech.com FAN8025PWM 80mm Computer Case Fan with PWM - Pulse Width Modulation Connector

(117) Write a Review

Fan Size: 80mm

50mm
60mm
70mm
80mm
92mm
120mm

Model: PWM

60x10mmTX3 & LP4
60x20mmTX3 & LP4
70x10mmTX3
70x15mmTX3
PWM
LP4
TX3 & LP4
TX3
TX3 - Quiet
TX3 - High Air Flow

80mm
800 ~ 2500 RPM 9.74 ~ 25.02 CFM
Ever Lubricate
< 10dBA ~ 28 dBA

Overview

Specs

Reviews (117)

See all Q & A

80x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector Add a Variable Speed, PWM-Controlled Cooling Fan to a Computer Case.

Model
Brand	StarTech.com
Model	FAN8025PWM

Details
Fan Counts	1 Fan
Fan Controller	No Controller
Type	Case Fan
Compatibility	Case
Fan Size	80mm
Fan Thickness	25mm
Bearing Type	Ever Lubricate
RPM	800 ~ 2500 RPM
Air Flow	9.74 ~ 25.02 CFM
Noise Level	< 10dBA ~ 28 dBA
Power Connector	Molex Fan (4 pin; PWM) Female
Color	Black

Features

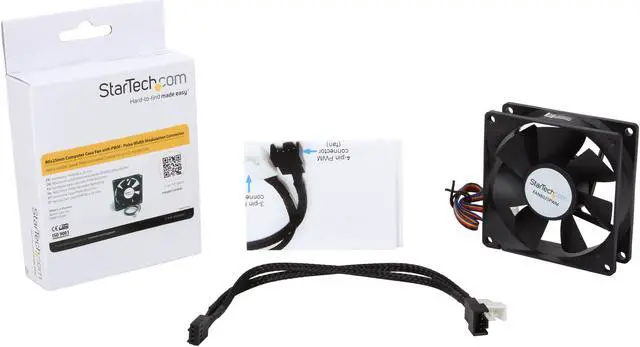

Features	Enclosure Type: Plastic Power: Input Current: 160 mA Input Voltage: 12 DC 4-pin Pulse Width Modulation (PWM) motherboard connector Ever Lubricate Bearing design Includes a PWM Y-split cable

Dimensions & Weight
Dimensions	80 x 80 x 25 mm

Additional Information
First Listed on Newegg	December 28, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
