StarTech.com NETRS232485 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server

Maintain serial connectivity during disruptions with redundant power and network inputs
Suitable for harsh environments and extended temperatures with a rugged, metal enclosure
Mount on DIN rails or on a surface with the attached mounting brackets

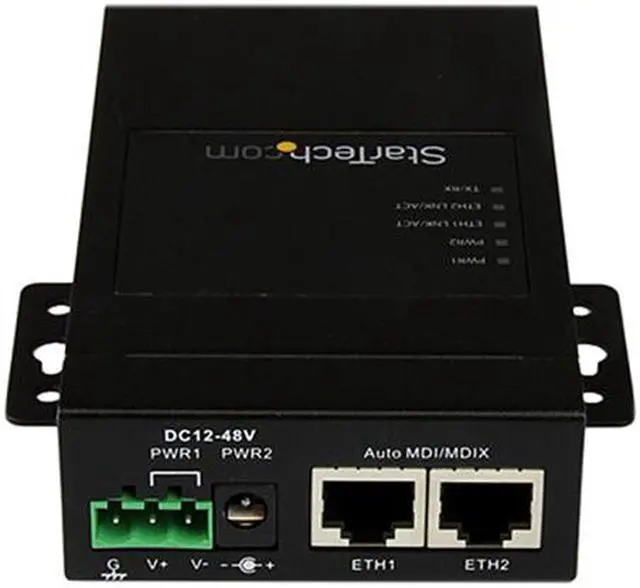

Redundant dual Ethernet ports with < 10ms recovery time
Up to 460.8 Kbps baud rate
IP-30 industrial casing and extended operating temperature range
Redundant power input via 12-48V DC terminal block, or optional 12V DC power adapter
Supports RS232, RS422 and RS485 serial protocols

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	StarTech.com
Model	NETRS232485

Details
Type	Device Server
Specifications	Industry Standards: IEEE 802.3, IEEE 802.3u Interface: Serial Ports: 1 Connector Type(s) 1 - DB-9 (9 pin; D-Sub) Male 2 - RJ-45 Female 1 - Terminal Block (3 Wire) Auto MDIX: Yes Compatible Networks: 10/100 Mbps Data Bits: 5, 6, 7, 8 Flow Control: XON/XOFF, RTS/CTS, DTR/DSR Max Baud Rate: 460.8 Kbps Maximum Data Transfer Rate: 460.8 Kbps MTBF: 533,615 Hours Parity: Odd, Even, None, Mark, Space Remote Management Ability: Yes Security Features: 128-bit SSL Encryption Serial Protocol: RS-232/422/485 Stop Bits: 1, 1.5, 2 Supported Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL, PPPoE, DDNS Color: Black Enclosure Type: Steel Diemnsion: 5" x 2.8" x 1.2" (W x L x H) Weight: 0.73lb

Features
Features	Redundant dual Ethernet ports with < 10ms recovery time Up to 460.8 Kbps baud rate IP-30 industrial casing and extended operating temperature range Redundant power input via 12-48V DC terminal block, or optional 12V DC power adapter Supports RS232, RS422 and RS485 serial protocols Supports ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II SSL, SSH, and HTTPS data encryption and security protocols Wall or DIN rail mountable Configurable via software utility, or web browser 8KV air, and 4KV contact ESD (Electrostatic Discharge) Protection Simultaneous connection with up to five host devices

Additional Information
First Listed on Newegg	March 14, 2014
