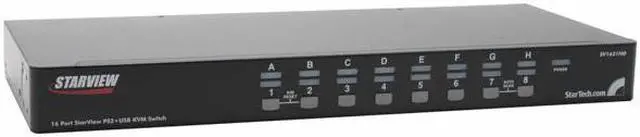

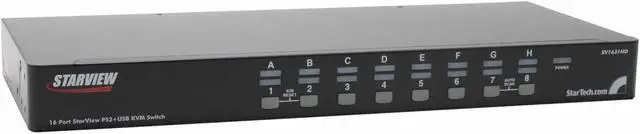

StarTech.com SV1631HD 16 Port StarView KVM switch with OSD

(1) Write a Review
  • 16 Ports Computer Connections
  • 1 Port Monitor Connections
  • AutoScan Interval 3,8,15 & 30 seconds
  • Video Resolution 1920 x 1440
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the STARTECH SV1631HD

Model
Brand StarTech.com
Model SV1631HD
Details
Type D-Sub

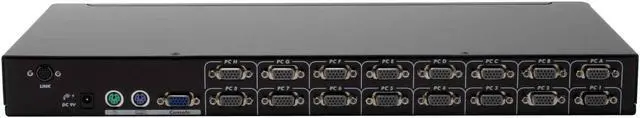

PC Connectors 16 x HD-15 (Female)
Console Connectors 1 x PS/2 Keyboard 6-pin Mini-Din (Female)
1 x PS/2 Mouse 6-pin Mini-Din (Female)
1 x HD-15 (Female)
Computer Connections 16 Ports
Monitor Connections 1 Port
Video Resolution 1920 x 1440
PC Selection Push Buttons/Hot Keys
AutoScan Interval 3,8,15 & 30 seconds
Features
Power Features 9V 600mA DC Power Adapter
Features Auto Scan Mode lets you switch between computers for easy monitoring
Compact 1U rack height takes up very little cabinet or rack space
DDC2B compatible
Each computer name can be defined via the OSD menu
Front panel buttons and port status lights allow for easy selection and status monitoring
Hot-pluggable feature allow computers to be added or removed without shutting down
Login authentication restricts access to authorized users
No software or drivers required
Operating system independent
Plug and Play compliant
Supports IntelliMouse (Pro)
Supports PCs with USB or PS/2 keyboard and mouse connectors
Universal KVM switch controls up to 16 computers directly and up to 136 computers by cascading 8 additional KVM switches
Uses StarTech.com tangle-fee KVM cables
Works with PC, Mac and Sun Servers and Systems
Dimensions & Weight
Dimensions 17.2" x 1.7" x 7.0"
Weight 8.55 lbs.(include package)

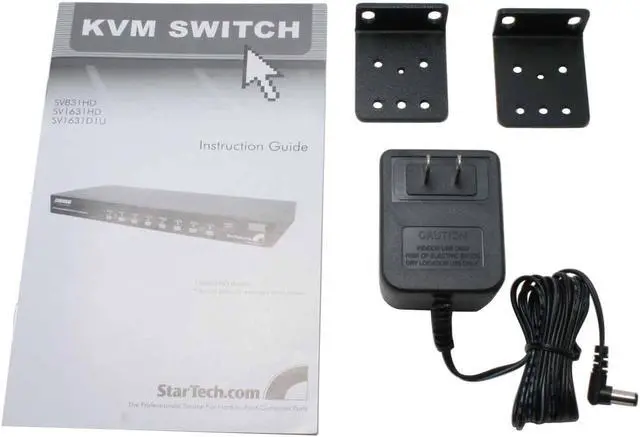

Package Contents
Package Contents SV1631HD16 Port StarView KVM switch
User Manual
Power Adapter
Kits
Additional Information
First Listed on Newegg May 13, 2005
