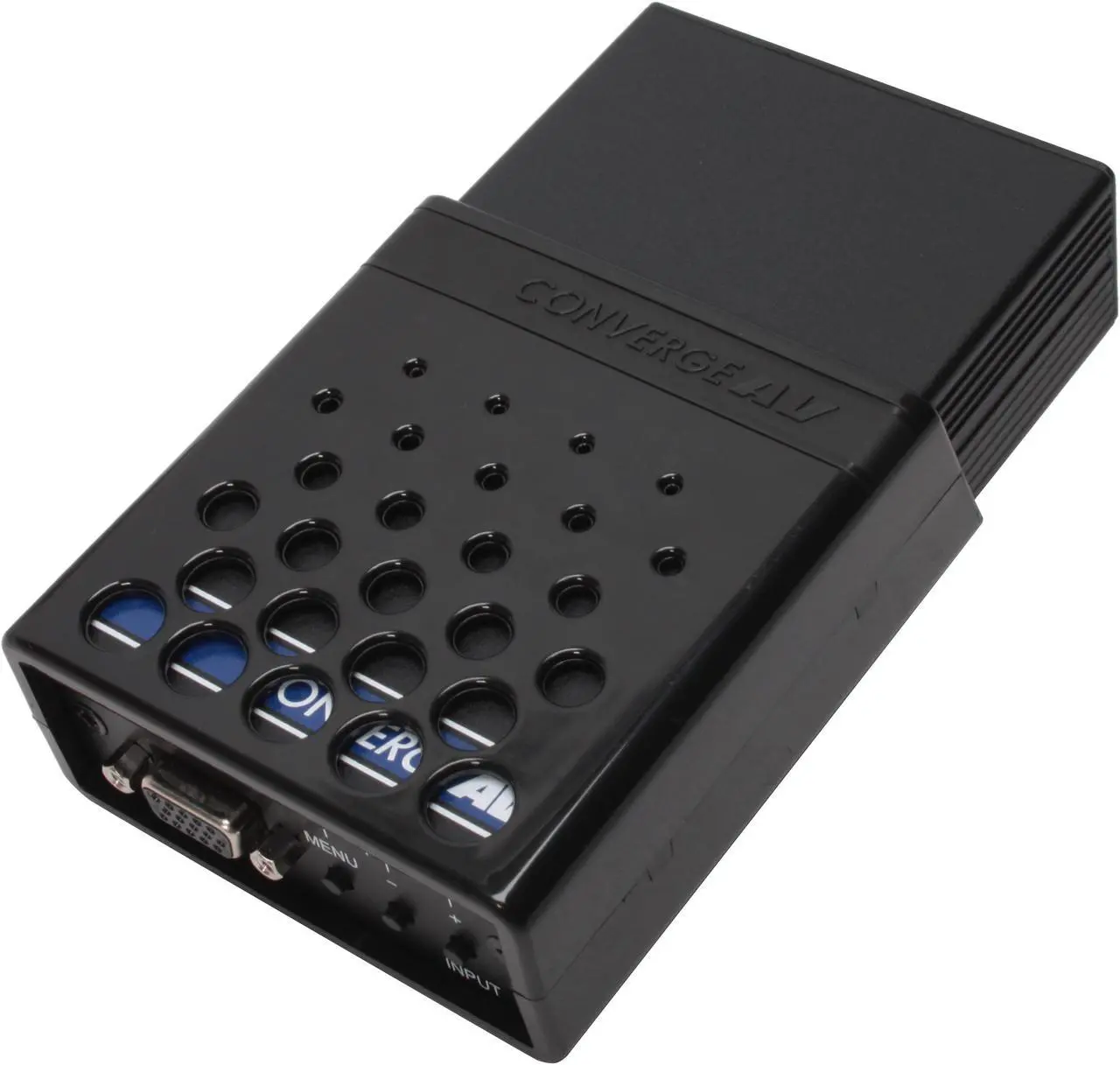

StarTech.com VID2VGATV Composite and S-Video to VGA Video Converter

(4) Write a Review
Specs
Reviews (4)

Learn more about the STARTECH VID2VGATV

Model
Brand StarTech.com
Model VID2VGATV
Details
Changer Type Composite and S-Video to VGA
Color Black
Specifications Converter Type: Scaler

Supported Resolutions:
PC Output (RGBHV, progressive scan): 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024
HDTV (50/60Hz, YPbPr/RGBHV): 480p, 576p, 720p, 1080i

Input Signal Levels:
Video @ 1V p-p, 75 ohm
Y @ 1 V p-p, 75 ohm
Color @ 0.7V p-p, 75 ohm

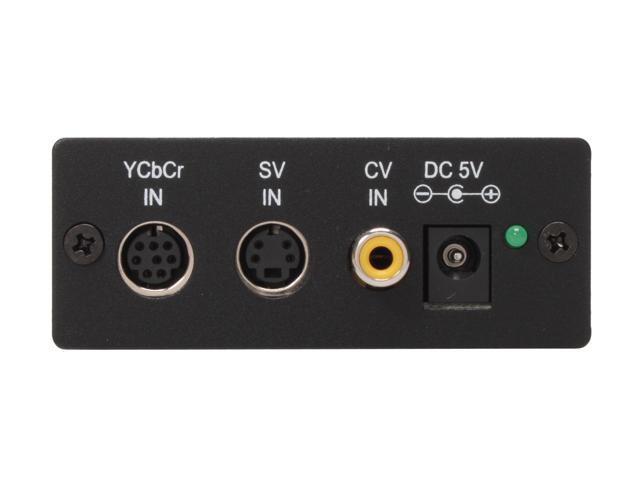

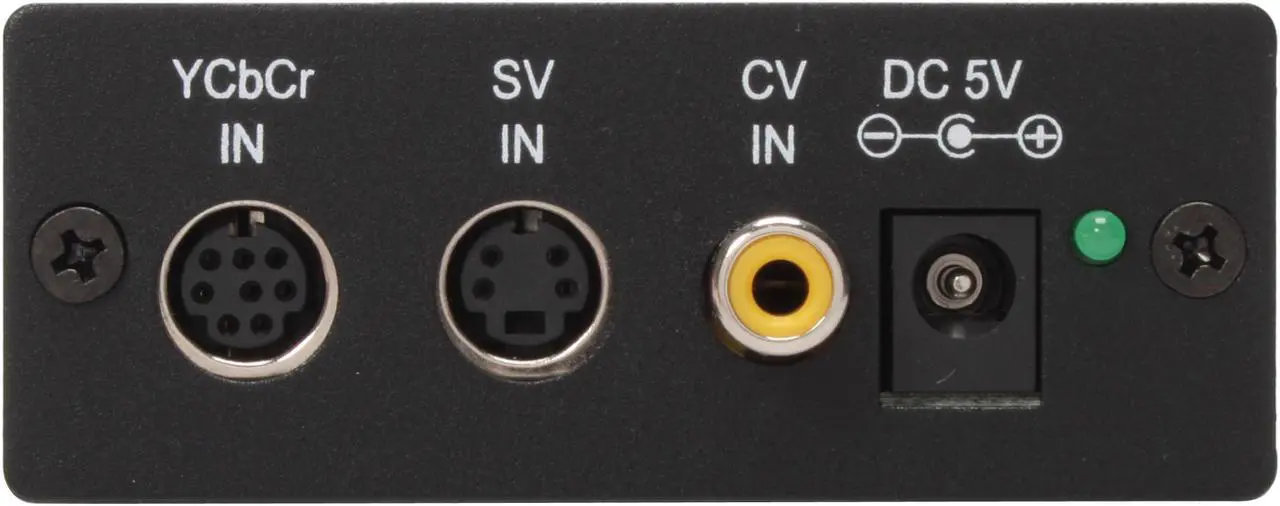

Connectors
Connector A 1 - Component Video (3 x RCA) Female
1 - Composite Video (1 x RCA) Female
1 - S-Video (4 pin; Mini-DIN) Female
Connector B 1 - Component Video (3 x RCA) Male

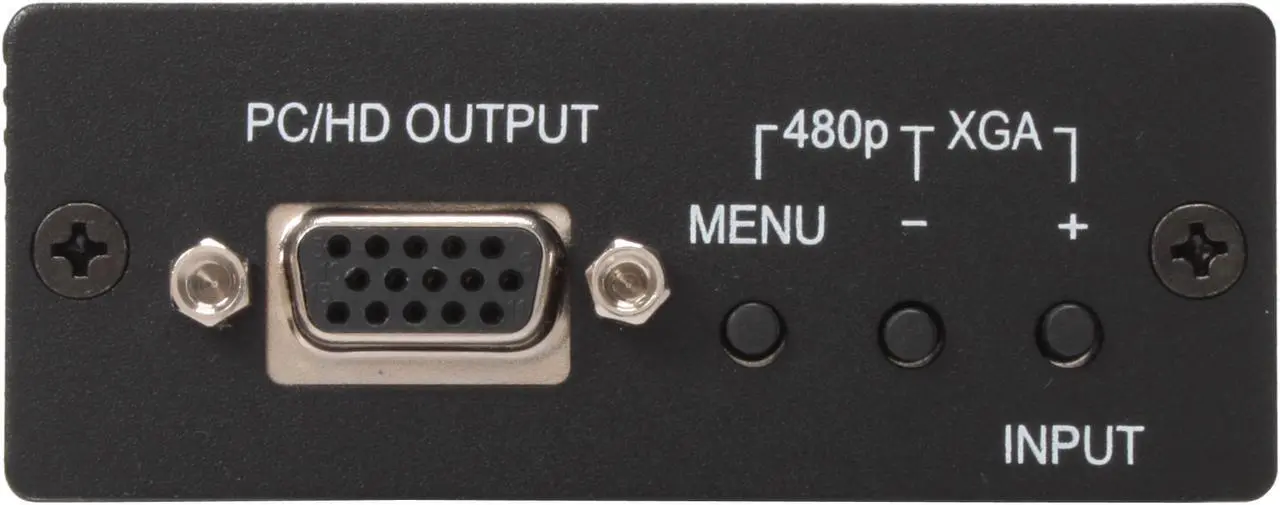

1 - VGA (15 pin; High Density D-Sub) Female
Features
Features Adjust picture brightness, contrast, color, RGB level and horizontal/vertical positioning

Includes a plastic bracket for wall mounts or side panel installation

Output is analog RGBHV or YPbPr via the HD-15 VGA connector

Compatible with input from broadcast formats worldwide, including NTSC and PAL

A 48 MByte frame buffer eliminates image tear/video hiccups

Includes a memory recall feature that automatically reinstates the setting last used
Dimensions & Weight
Dimensions 5.7" x 3" x 1.2"
Weight 0.5 lbs.

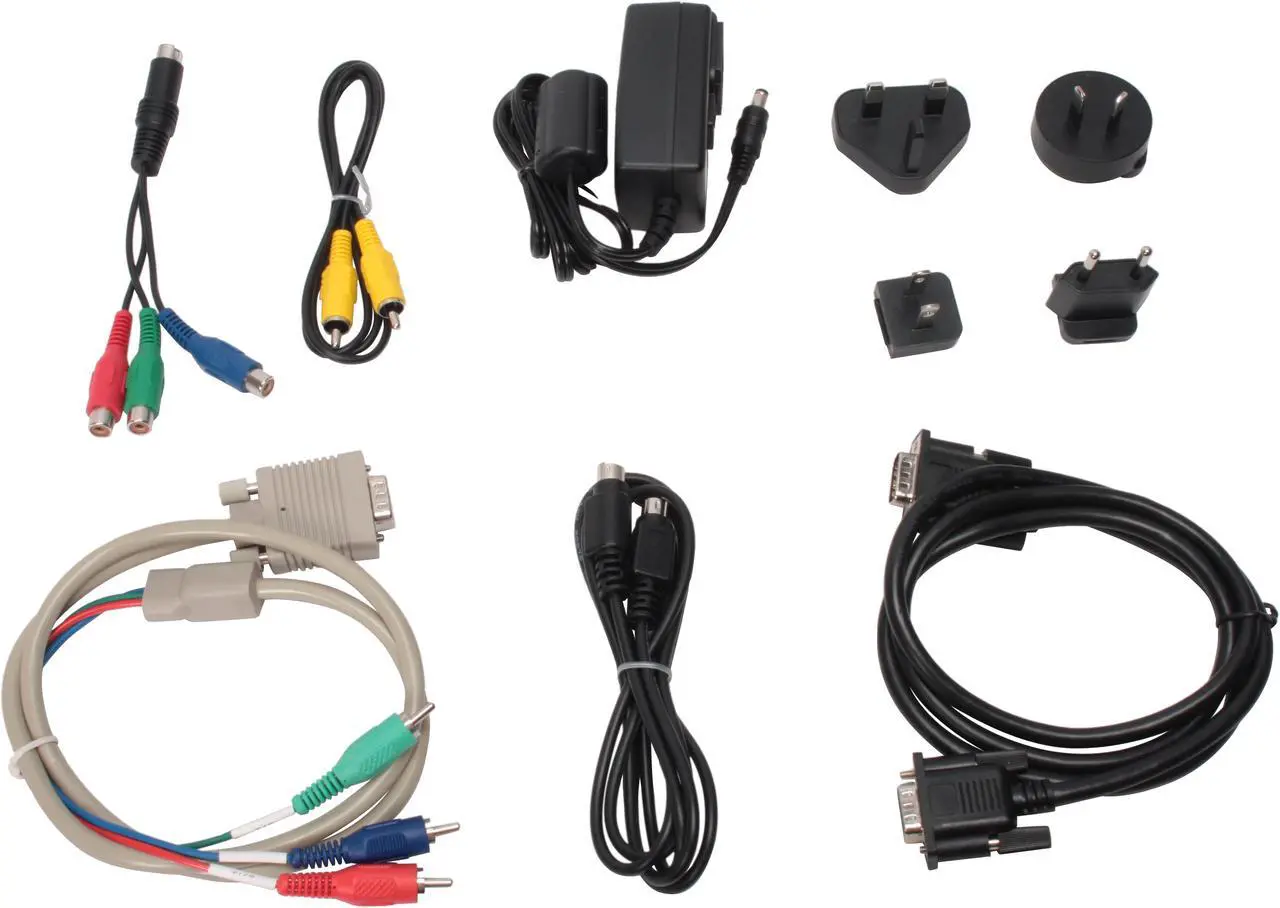

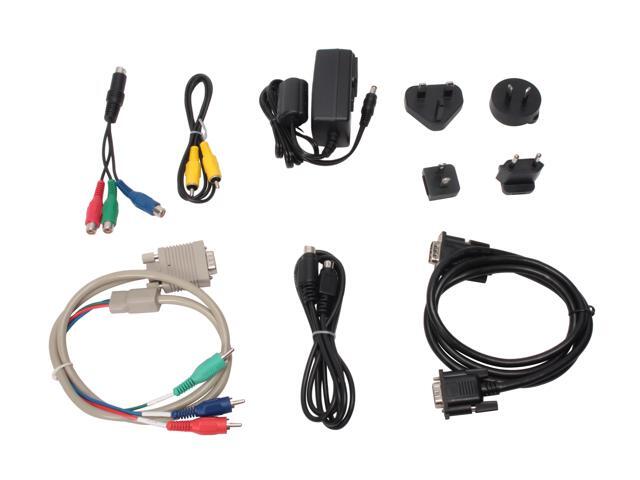

Package Contents
Package Contents 1 - Video to HDTV/VGA Scaler
1 - Plastic Bracket
1 - 3ft (1m) Composite RCA Cable
1 - 3ft (1m) VGA to YPbPr M/M
1 - 4ft (1.2m) S-Video cable
1 - 4ft (1.2m) VGA cable M-M
1 - YCbCr RCA to 8 pin DIN adapter
1 - Universal Power Adapter (US/UK/EU/AUS)
1 - User Manual
Additional Information
Date First Available February 05, 2007
