    Stealkey Customs DisPro 240D Distroplate D5/DDC D-RGB (19002)

    • With the SC DisPro 240D Distroplate D5/DCC D-RGB , you eliminate complex tubing runs and create a clean, professional look. This distribution plate perfectly showcases your hardware and makes loop management more efficient than ever before.
    • The SC DisPro 240D serves as the central hub for your cooling system. Thanks to intelligently placed ports, complicated bends are a thing of the past. The result: shorter paths, cleaner lines, and significantly simplified installation ideal for
    • Unlike fixed standard solutions, the SC DisPro 240D offers full freedom in pump choice. The distroplate is optimized for both D5 and DDC pumps. In this D-version, the pump mount is intentionally placed on the front for maximum accessibility and
    • D5 Power: For maximum smoothness and high flow rates in large loops.
    • DDC Compactness: When every millimeter counts without sacrificing performance.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

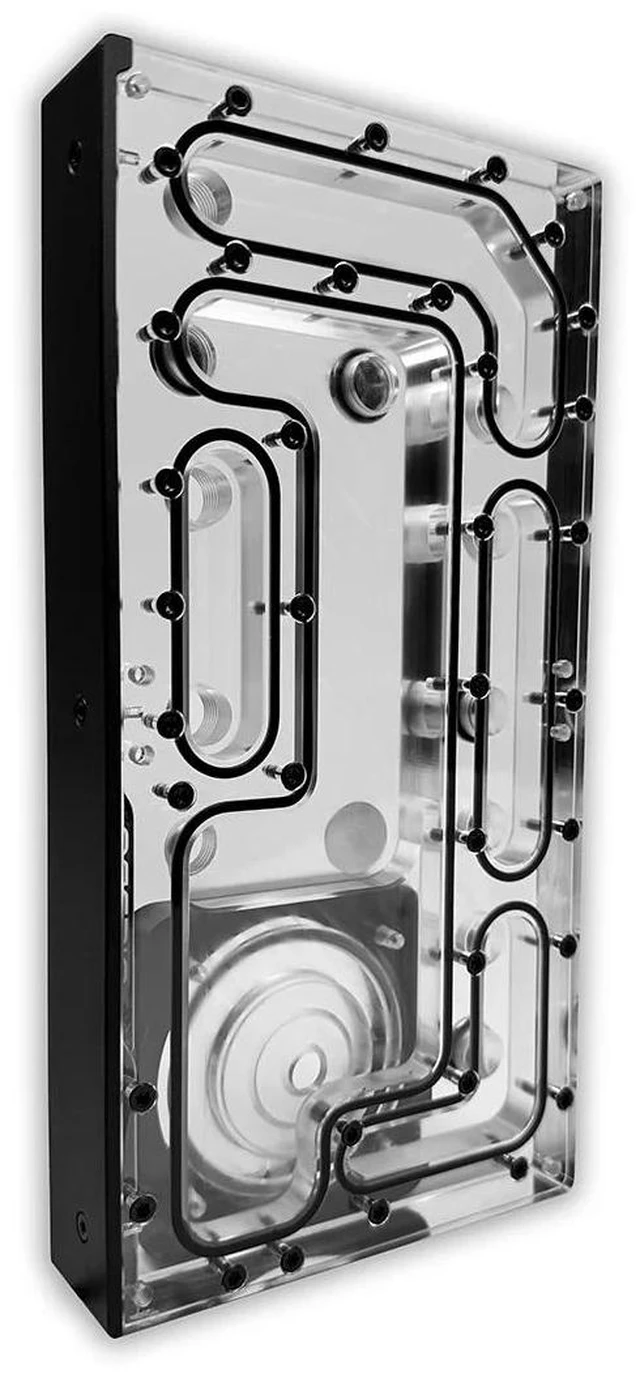

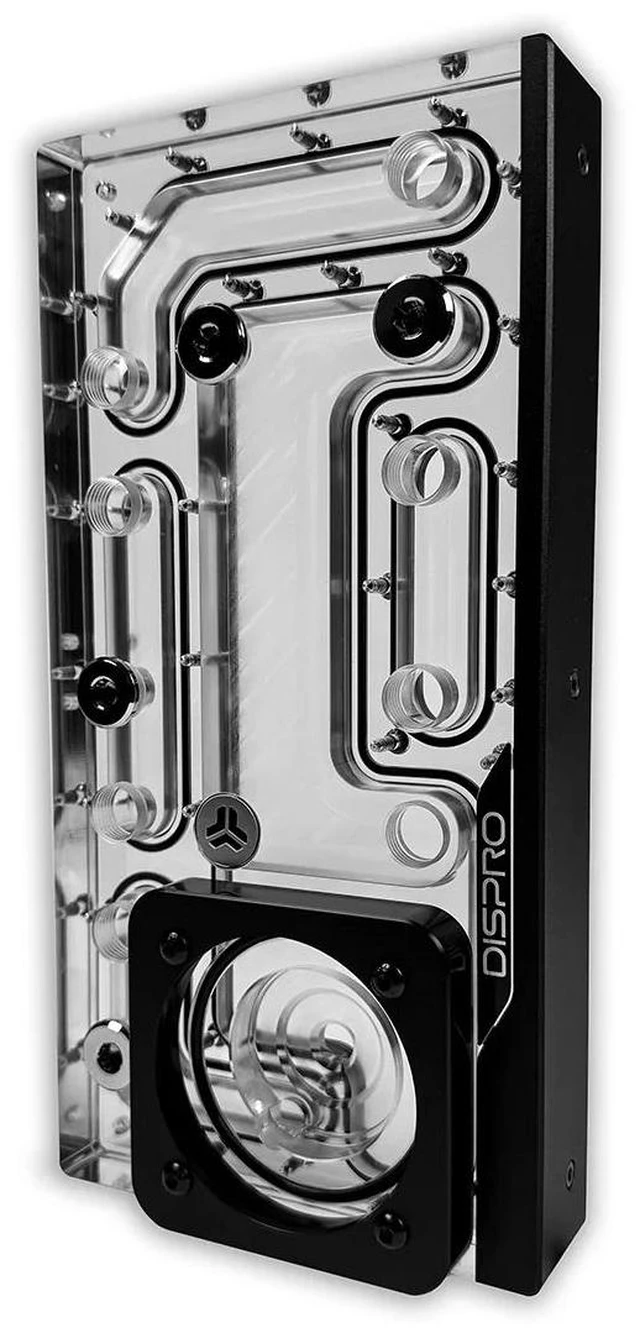

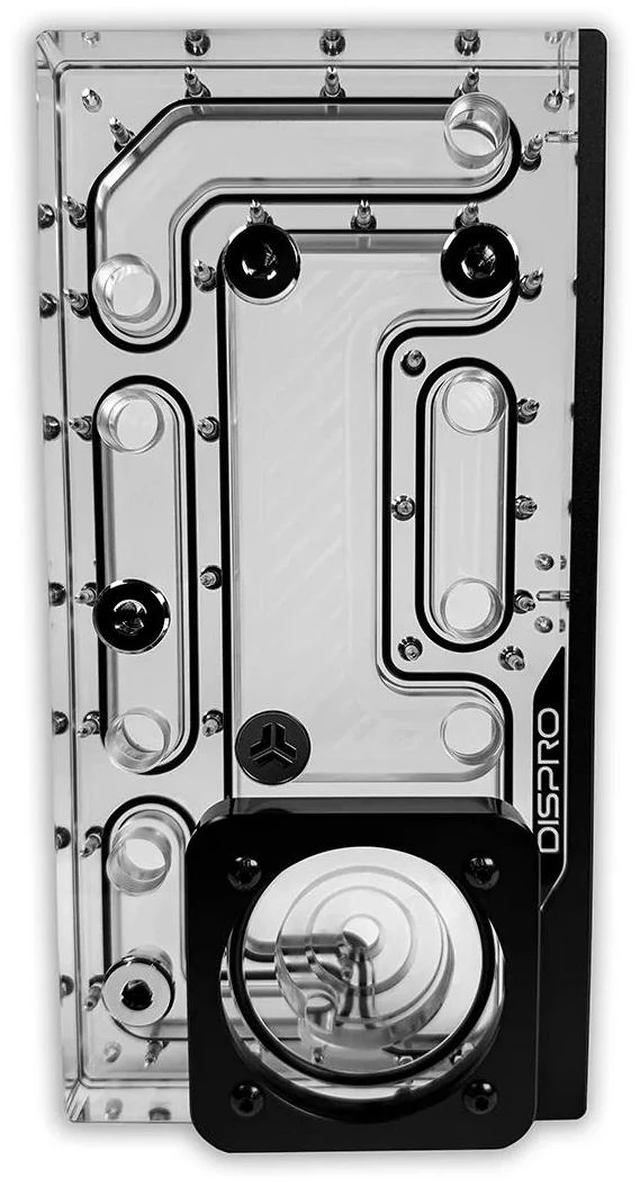

    The Stealkey Customs SC DisPro 240D is a 240 mm distroplate that combines the reservoir, the coolant routing and the pump mount in one CNC-milled acrylic plate. It takes a D5 or a DDC pump (not included) on the front, has 13x G1/4" ports and holds about 150 ml of coolant. Addressable D-RGB lighting behind a black anodized aluminum cover lights the acrylic.

    Properties

    • Type: Distroplate with reservoir and pump mount
    • Size: 240 x 120 x 33 mm
    • Pump mount: D5 or DDC, front (pump not included)
    • Ports: 13x G1/4"
    • Volume: approx. 150 ml
    • Lighting: D-RGB, 3-pin 5V
    • Color: Transparent acrylic, black aluminum cover

    One hub for the whole loop

    The DisPro 240D is the central hub of a custom loop. Its ports are placed so the tubes to the CPU block, the GPU block and the radiators run short and straight, which replaces long tube runs and complicated hard tube bends and makes the installation simpler.

    D5 or DDC pump

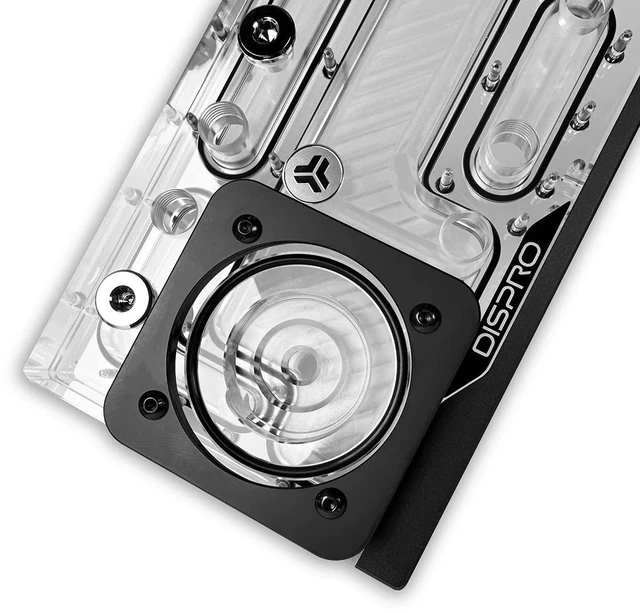

    An integrated universal adapter takes either a D5 or a DDC pump. Stealkey describes the D5 as the choice for high flow and smooth running in large loops, and the DDC as the compact choice where every millimeter counts. In this D version the pump mount sits on the front of the distroplate, where the pump stays visible and easy to reach. Stealkey points builders who want a clean front with the pump hidden on the back to the SC DisPro 240R.

    Mounting

    The DisPro 240D fits a standard 240 mm (2x 120 mm) fan position and is fixed with four M4 screws through the 120 mm fan hole pattern. With the pump on the front, the plate can sit flat on the fan position.

    D-RGB lighting

    The integrated lighting evenly lights the acrylic and the coolant. The addressable D-RGB lighting connects to a 3-pin 5V ARGB header on the motherboard with a 500 mm cable, so it can be synced through the board maker's lighting software, such as ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome Sync or Gigabyte RGB Fusion.

    Coolant and care

    Stealkey asks for a coolant that is compatible with acrylic, because an unsuitable coolant can damage the acrylic parts; Stealkey keeps a coolant compatibility list on its website. Clean the acrylic only with a microfiber cloth and never with alcohol-based cleaners or solvents, which cause stress cracks. Stealkey recommends rinsing the part before installation to remove any last machining residues.

    Technical data

    • Model: SC DisPro 240D (19002)
    • Type: Distroplate, reservoir and pump mount

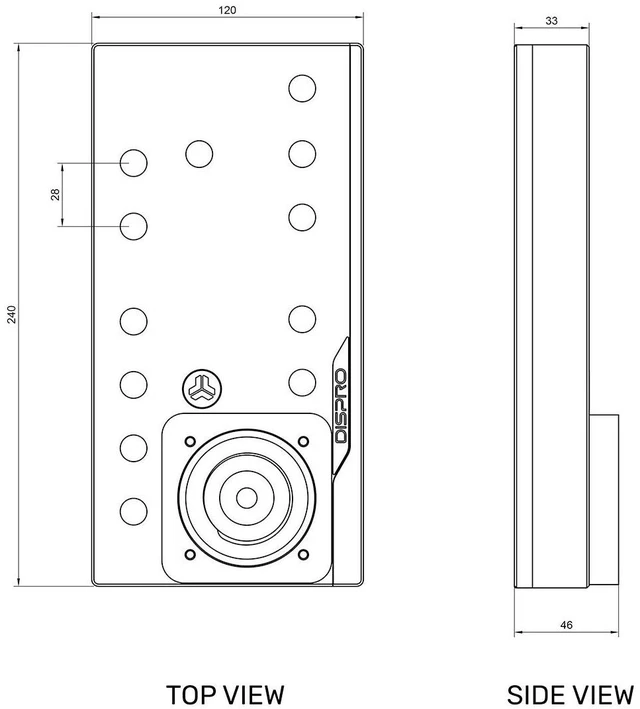

    • Dimensions (W x H x D): 240 x 120 x 33 mm
    • Reservoir volume: approx. 150 ml (chamber and channels)
    • Ports: 13x G1/4"
    • Pump mount: D5 or DDC, front, universal adapter
    • Material: Acrylic, black anodized aluminum cover
    • Color: Transparent, black
    • D-RGB cable: 500 mm
    • D-RGB connector: 3-pin 5V ARGB
    • Mounting: 4x M4 screws, 120 mm fan hole pattern
    • Made in: Germany, CNC-milled and hand-assembled

    Notes

    • The D5 or DDC pump is not included.
    • Fits any case with a 120 mm fan hole pattern on a 240 mm (2x 120 mm) fan position.
    • D5 and DDC pumps are water-lubricated and must never run dry, or the bearing can be damaged for good.
    • Leak-test the loop before you power the rest of the system.

    In the box

    • 1x Stealkey Customs SC DisPro 240D Distroplate D5/DDC D-RGB
    • 4x M4 mounting screws
    • 4x G1/4 plugs
