Stealkey Customs DisPro D-RGB Distroplate for Corsair 7000D (SW10163)
- The SC Dis-Pro Corsair 7000D D-RGB is a high-quality combination of distroplate, reservoir, and pump solution, specifically designed for the Corsair 7000D Airflow and the iCUE 7000X RGB case.
- In total, the distroplate offers 14x G1/4" ports, optimally positioned for connection to:
- 1x CPU block
- 1x GPU block (horizontal or vertical)
- up to 2x 360 mm radiators
- The ports are strategically placed to minimize bending, allowing for a clean and efficient water cooling loop.
Any questions? Ask CelesteSM will help you find out quickly.

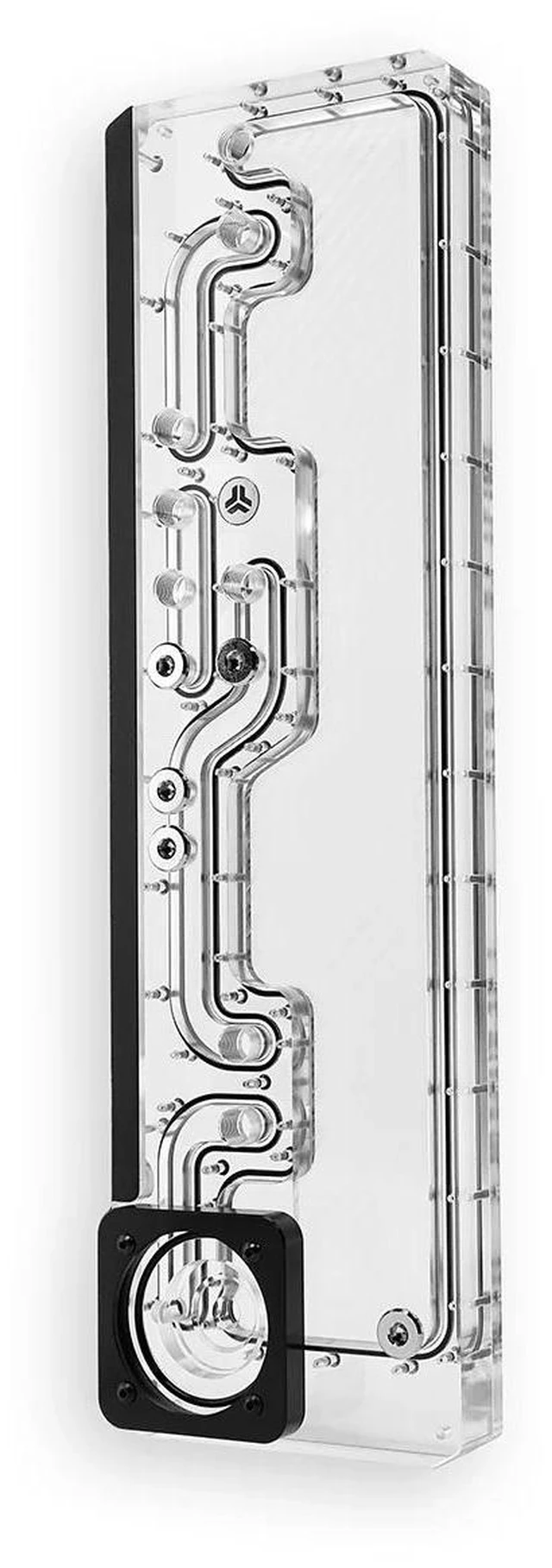

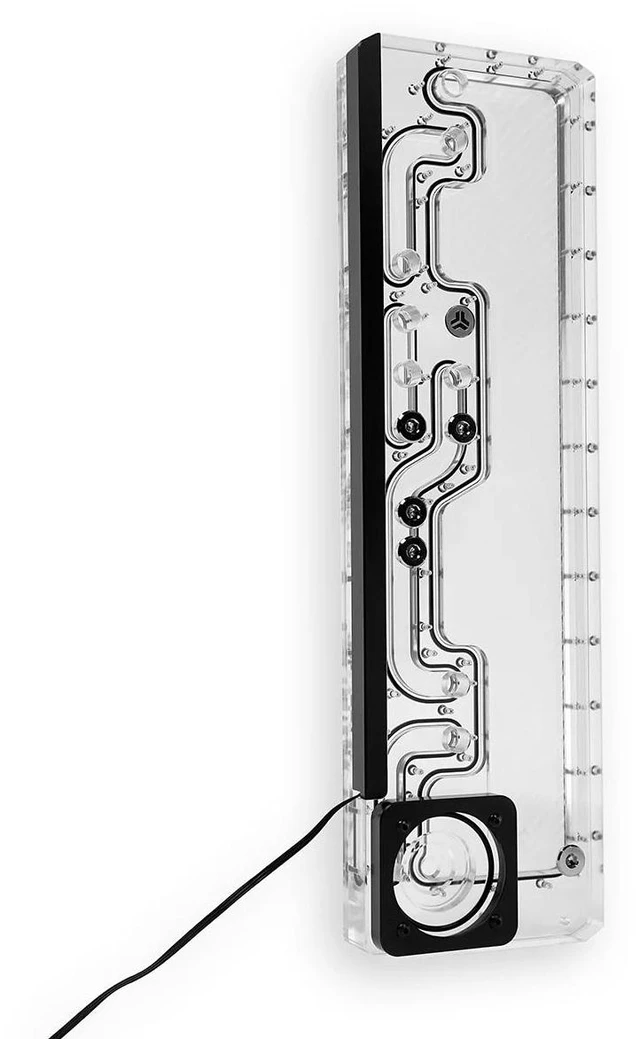

The Stealkey Customs SC DisPro Corsair 7000D D-RGB combines distroplate, reservoir and pump mount in one acrylic plate, made for the Corsair 7000D Airflow and iCUE 7000X RGB cases. It has 14x G1/4" ports, holds about 570 ml and takes a D5 or a DDC pump (not included).
Properties
- Type: Distroplate with reservoir and pump mount
- Fits: Corsair 7000D Airflow, iCUE 7000X RGB
- Size: 463 x 135 x 33 mm
- Ports: 14x G1/4"
- Volume: approx. 570 ml
- Pump mount: D5 or DDC (pump not included)
- Radiators: up to 2x 360 mm
- Color: Transparent, black cover
Made for the Corsair 7000D
The plate mounts to the right of the motherboard, directly on the radiator mounting plate of the case, with the four included M4 x 6 mm hex screws. Stealkey matched the fit to the Corsair 7000D cases.

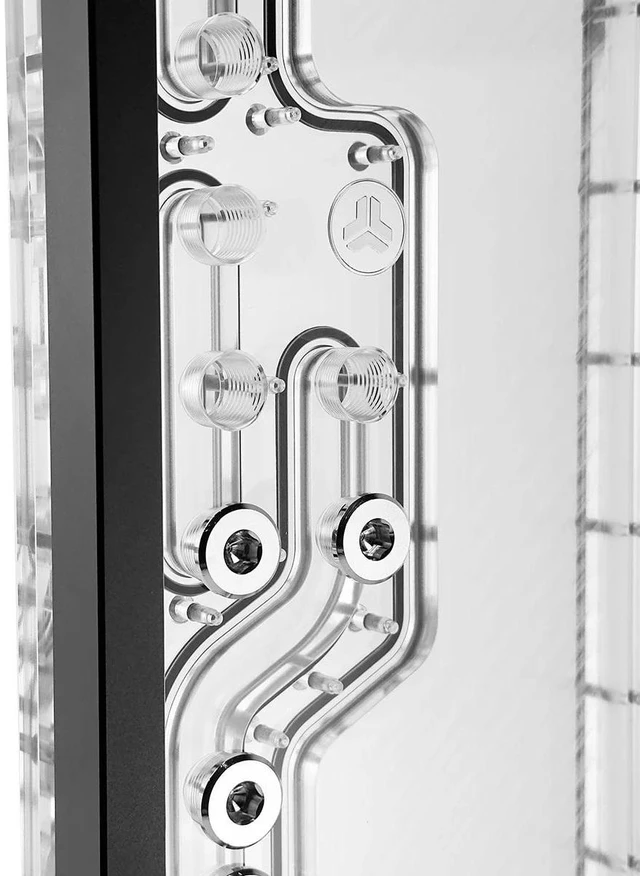

14 ports, short tube runs
- 1x CPU block
- 1x GPU block, horizontal or vertical
- up to 2x 360 mm radiators
Placed to save bends
Stealkey placed the ports so the tubes need as few bends as possible, which keeps the loop clean and efficient.
Radiators
The plate connects a 360 mm radiator at the front and a 360 mm radiator at the top, each up to 58 mm thick.

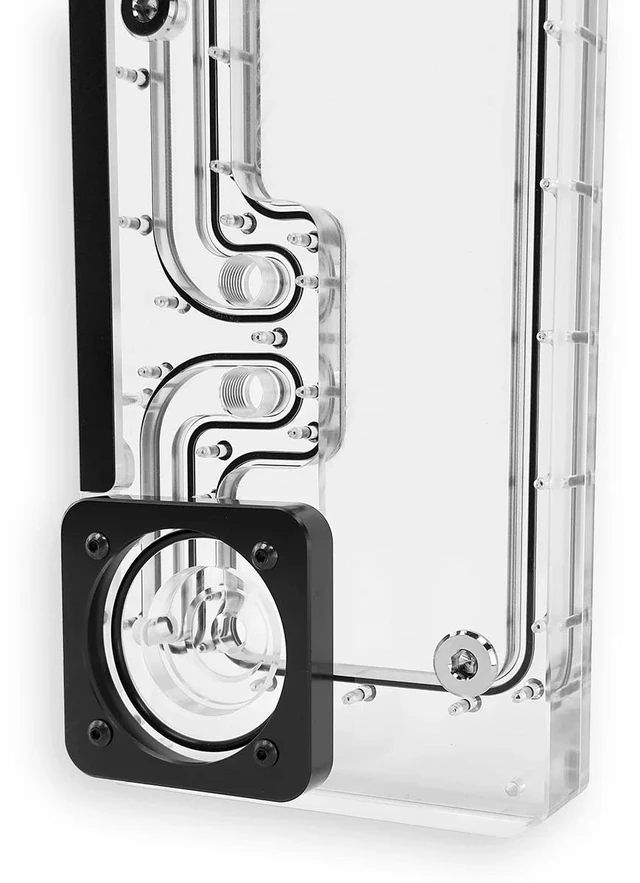

D5 or DDC pump
An integrated universal adapter takes either a D5 or a DDC pump, so you can choose the pump freely.
D-RGB lighting
An addressable D-RGB strip runs along the left side of the plate, and a black anodized aluminum cover hides the LED hotspots for a clean look. The addressable D-RGB lighting connects to a 3-pin 5V ARGB header on the motherboard with a 500 mm cable, so it can be synced through the board maker's lighting software, such as ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome Sync or Gigabyte RGB Fusion.
Technical data
- Model: SC DisPro Corsair 7000D D-RGB (SW10163)
- Type: Distroplate, reservoir and pump mount
- Fits: Corsair 7000D Airflow and iCUE 7000X RGB only
- Dimensions (W x H x D): 463 x 135 x 33 mm
- Reservoir volume: approx. 570 ml
- Ports: 14x G1/4"
- Pump mount: D5 or DDC, universal adapter
- Radiators: Front 1x 360 mm up to 58 mm | Top 1x 360 mm up to 58 mm
- Material: Acrylic, black anodized aluminum cover
- Color: Transparent
- D-RGB cable: 500 mm
- D-RGB connector: 3-pin 5V ARGB
- Made in: Germany, CNC-machined and hand-assembled
Notes
- Fits only the Corsair 7000D Airflow and the iCUE 7000X RGB.
- The D5 or DDC pump is not included.
- D5 and DDC pumps are water-lubricated and must never run dry, or the bearing can be damaged for good.
- Screw fittings into the acrylic hand-tight only and do not use a wrench; an overtightened fitting can crack the acrylic and leak.
- Leak-test the loop before you power the rest of the system.
In the box
- 1x Stealkey Customs SC DisPro Corsair 7000D D-RGB
- 4x M4 x 6 mm hex screws
- 6x SK-Plug G1/4 sealing plugs, silver
