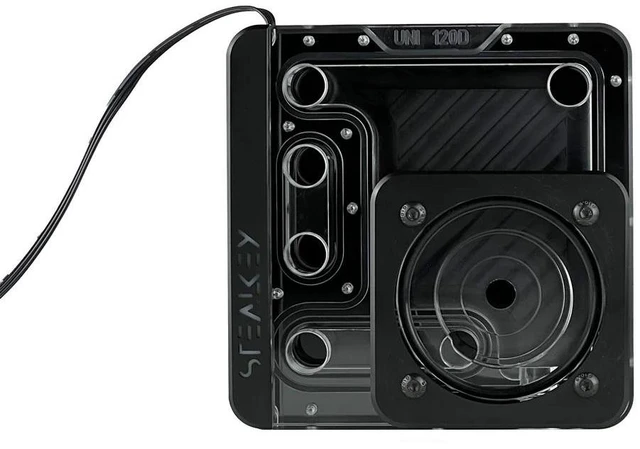

Stealkey Customs UNI 120D Distroplate D-RGB - Black Edition (SW10077)
- The Stealkey Customs UNI 120D is a custom distro plate designed to serve as a reservoir, coolant routing, and pump solution for any case with a 120 mm fan mounting. Perfect solution for your water cooling, it is mounted on the fan bracket or in
- The distroplate is intended to be used on the 120 mm fan space on the back or side air space in front of the mainboard of your PC case. The addressable D-RGB LED strip runs the entire length of the distroplate, while a black pom cover hides the
- addressable RGB stripe incl. 6x G1/4- Ports Standard 120mm fan mounting holes for easy installation noble materials universal for D5 pump & DDC pump Pumpen Combo Distroplate
- Product dimensions:(B x H x T): 120 x 120 x 31 mm Color: Black and Transparent Material: acrylic, plastic Ports: 6x G1/4"
- Delivery scope
- 1x UNI 120D Black Edition 4x Mounting screws 1x D5 ring
Any questions? Ask CelesteSM will help you find out quickly.
The Stealkey Customs UNI 120D Black Edition is a compact distroplate that works as reservoir, coolant routing and pump mount for any case with a 120 mm fan position. At only 120 x 120 x 31 mm it suits small cases, takes a D5 or a DDC pump (not included) and connects the CPU to the top radiator through 6x G1/4" ports.
Properties
- Type: Distroplate with reservoir and pump mount
- Size: 120 x 120 x 31 mm
- Ports: 6x G1/4"
- Pump mount: D5 or DDC (pump not included)
- Lighting: D-RGB, 3-pin 5V
- Color: Black and transparent
A pump combo for one fan position
The UNI 120D mounts on the 120 mm fan position at the back of the case or in the side air space in front of the motherboard. It has the standard 120 mm fan holes and is held by the included screws, and with Stealkey's spacers it can also sit on a fan bracket or in front of a radiator. Stealkey designed it to link the CPU directly to the top radiator.
Six ports
The 6x G1/4" ports keep the layout flexible. Stealkey's example layout uses two fill ports at the top, a radiator inlet, CPU OUT and CPU IN on the left, and a fill or drain port at the bottom.
D5 or DDC pump
The pump mount takes a D5 or a DDC pump; a D5 ring for the D5 comes with the plate.
Materials and lighting

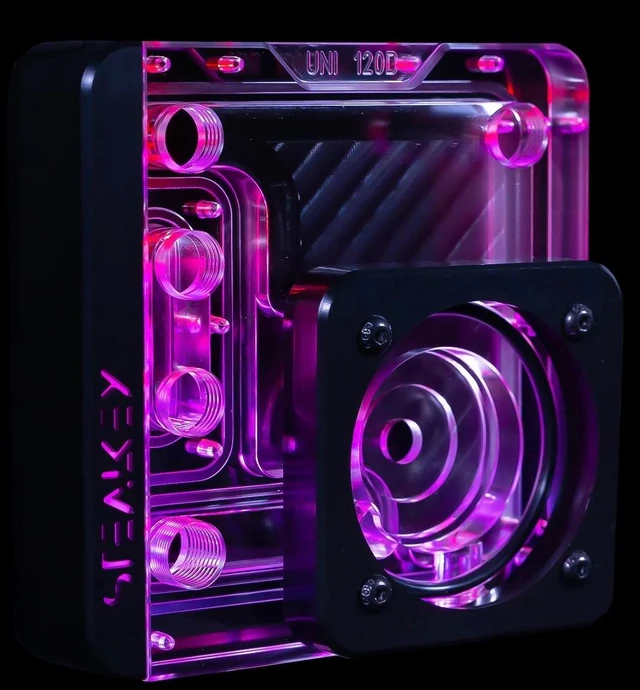

The plate is made of acrylic, the RGB bar on the side of black Acetal and the seals of EPDM. The addressable D-RGB strip runs the full length of the plate, and the black Acetal cover hides the LED hotspots. A backlit "STEALKEY" lettering completes the look. The addressable D-RGB lighting connects to a 3-pin 5V ARGB header on the motherboard with a 500 mm cable, so it can be synced through the board maker's lighting software, such as ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome Sync or Gigabyte RGB Fusion.
Coolant and care
Stealkey asks for a coolant that is compatible with acrylic, because an unsuitable coolant can damage the acrylic parts; Stealkey keeps a coolant compatibility list on its website. Clean the acrylic only with a microfiber cloth and never with alcohol-based cleaners or solvents, which cause stress cracks. Stealkey recommends rinsing the part before installation to remove any last machining residues.
Technical data
- Model: SK-UNI 120D Distroplate D-RGB, Black Edition (SW10077)
- Type: Distroplate, reservoir and pump mount
- Dimensions (W x H x D): 120 x 120 x 31 mm
- Ports: 6x G1/4"
- Pump mount: D5 or DDC
- Material: Acrylic, black Acetal RGB bar, EPDM seals
- Color: Black and transparent
- D-RGB cable: 500 mm
- D-RGB connector: 3-pin 5V ARGB
- Mounting: 120 mm fan holes
Notes
- The D5 or DDC pump is not included.
- Fits any case with a 120 mm fan mount.
- Stealkey also makes the UNI 120D as a White Edition.
- D5 and DDC pumps are water-lubricated and must never run dry, or the bearing can be damaged for good.
- Screw fittings into the acrylic hand-tight only and do not use a wrench; an overtightened fitting can crack the acrylic and leak.
- Leak-test the loop before you power the rest of the system; Stealkey says to test with no more than 0.5 bar.
In the box
- 1x Stealkey Customs UNI 120D Black Edition
- 4x M3 x 5 mm mounting screws
- 1x D5 ring
