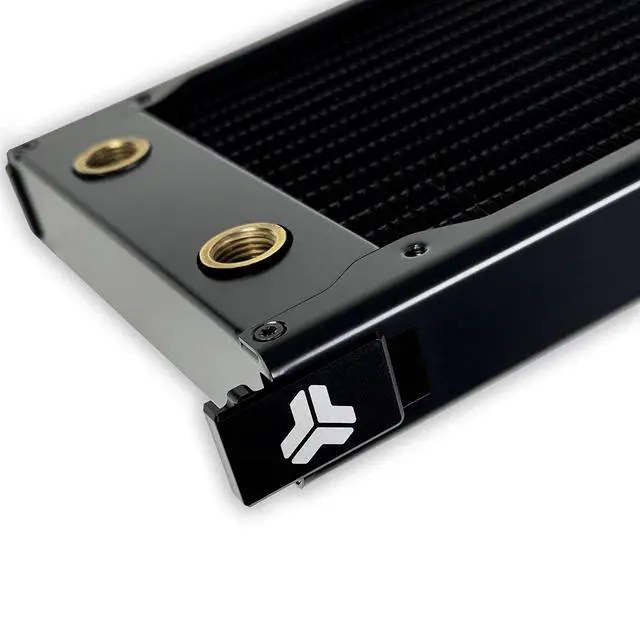

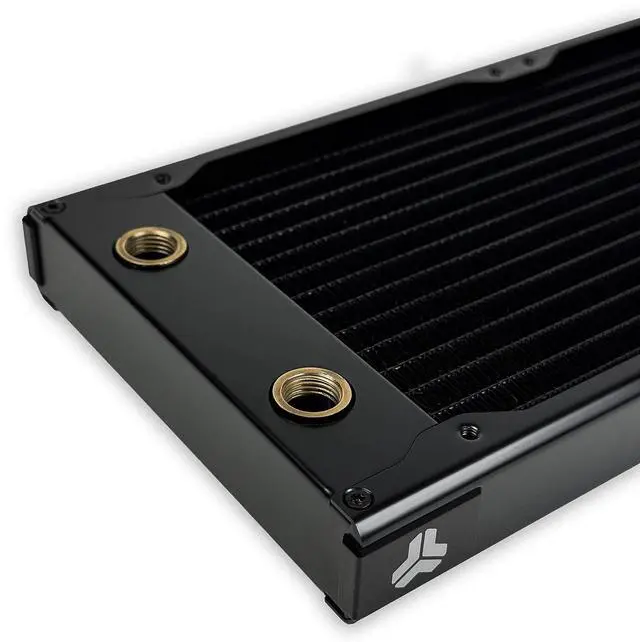

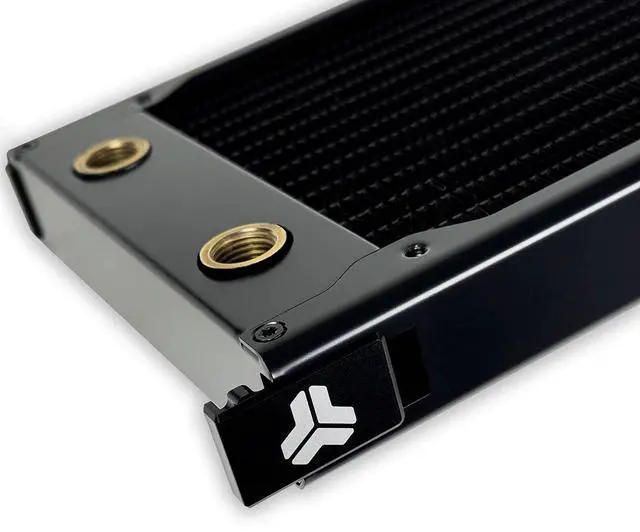

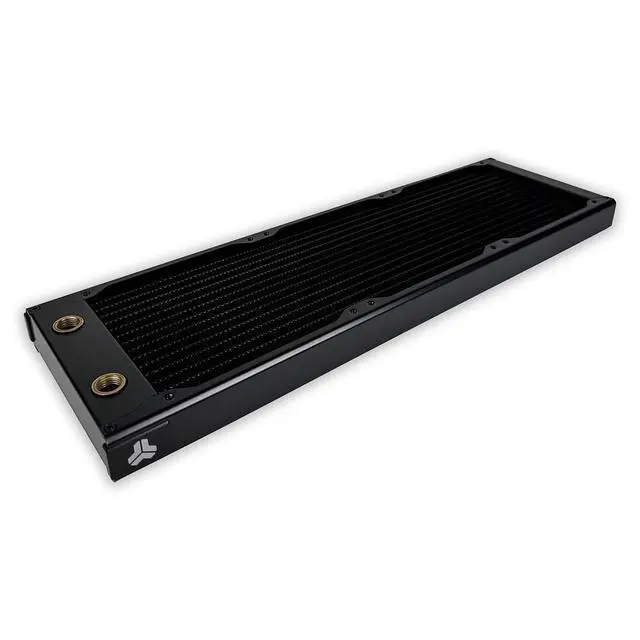

    Stealkey Customs RadPro L420 H30 Radiator Black, 140mm, G1/4, 30mm, Copper (11431)

    • The SC RadPro L420 H30 Black combines uncompromising cooling performance with a slim, modern design. Perfect for gamers, overclockers, and demanding workstation users who want to take their PC to the next level.
    • Logo plug interchange system Each side of the radiator features a removable logo plate (logo plug). This allows the logo to be easily repositioned depending on the installation orientation, ensuring correct alignment even in top-mount or bottom-mou
    • Compact dimensions With dimensions of 464 × 145 × 30 mm, the radiator remains extremely space-saving despite its thickness ideal for cases that support 420 mm radiators.
    • The brass pre-chambers, in combination with the copper channels, ensure fast and even heat distribution and effectively reduce hotspots within the cooling loop.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    The Stealkey Customs RadPro L420 H30 is a 420 mm radiator for three 140 mm fans, 30 mm thick. Inside is a copper core with brass end chambers, and the frame around it is coated stainless steel in black. Logo plates on both ends can be swapped so the Stealkey logo stays upright however you mount it, and the whole radiator comes apart for modding.

    Properties

    • Type: 420 mm radiator (3x 140 mm fans)
    • Thickness: 30 mm
    • Dimensions: 464 x 145 x 30 mm
    • Fans: Up to 6x 140 mm (push/pull)
    • Ports: 2x G1/4"
    • Materials: Copper core, brass chambers, coated stainless steel frame
    • Color: Black

    Copper core with brass chambers

    The fins are 99.9% copper and the end chambers are brass. Stealkey says the brass chambers and copper channels spread the heat quickly and evenly and reduce hot spots in the loop. Copper and brass together make the RadPro a good match for loops built from copper, brass and nickel parts.

    Coated stainless steel frame

    The side rails, end covers and logo plates are stainless steel with a black coating. Stealkey says the steel gives the radiator a stable structure, reliable corrosion protection and an even, high-quality look.

    Quiet at low speed, more with push/pull

    • Stealkey says the core already cools very well at low fan speed and that performance rises almost linearly as the fans speed up.
    • Low speed: efficient cooling with very little noise.
    • Medium speed: a balance between noise and temperature.
    • High speed or push/pull: the most heat removed, with up to six 140 mm fans on both sides.

    Easy on the pump

    Stealkey says the RadPro has low air and water resistance, so it adds little load to the pump. Several RadPro radiators can be run in series on one D5 or DDC pump without overloading it.

    Technical data

    • Article number: 11431
    • Size: 420 mm (3x 140 mm)
    • Fan compatibility: 140 x 140 x 25 mm fans
    • Fan positions: Up to 6x 140 mm (push/pull)
    • Dimensions (L x W x H): 464 x 145 x 30 mm
    • Ports: 2x G1/4"
    • Port spacing: 69 mm
    • Fins: Copper (99.9%)
    • End chambers: Brass
    • Side rails and end covers: Stainless steel, black coated
    • Fan screw thread: M4
    • Supplied screws: M4 x 30 mm (black), M4 x 5 mm
    • Pressure tested: 1 bar
    • Weight: 1.4 kg
    • Color: Black

    Notes

    • Do not use this radiator in a loop with aluminum parts. Stealkey recommends a coolant with corrosion protection.
    • The supplied M4 x 30 mm screws are made for standard 25 mm thick fans.
    • Stealkey keeps the paint on the copper fins very thin so it does not hurt heat transfer. Because of that, the fins can show an orange shimmer from some angles.
    • Always leak test the loop before you power on the system. The installation manual gives 0.5 bar as the maximum test pressure.
    • Stealkey makes the RadPro L420 H30 in black (11431) and white (11432). This listing is the black version.

    In the box

    • 1x Stealkey Customs RadPro L420 H30 Radiator - Black
    • 12x M4 x 30 mm screws for 25 mm thick fans
    • 12x M4 x 5 mm screws for mounting the radiator directly to the case or fan grill
