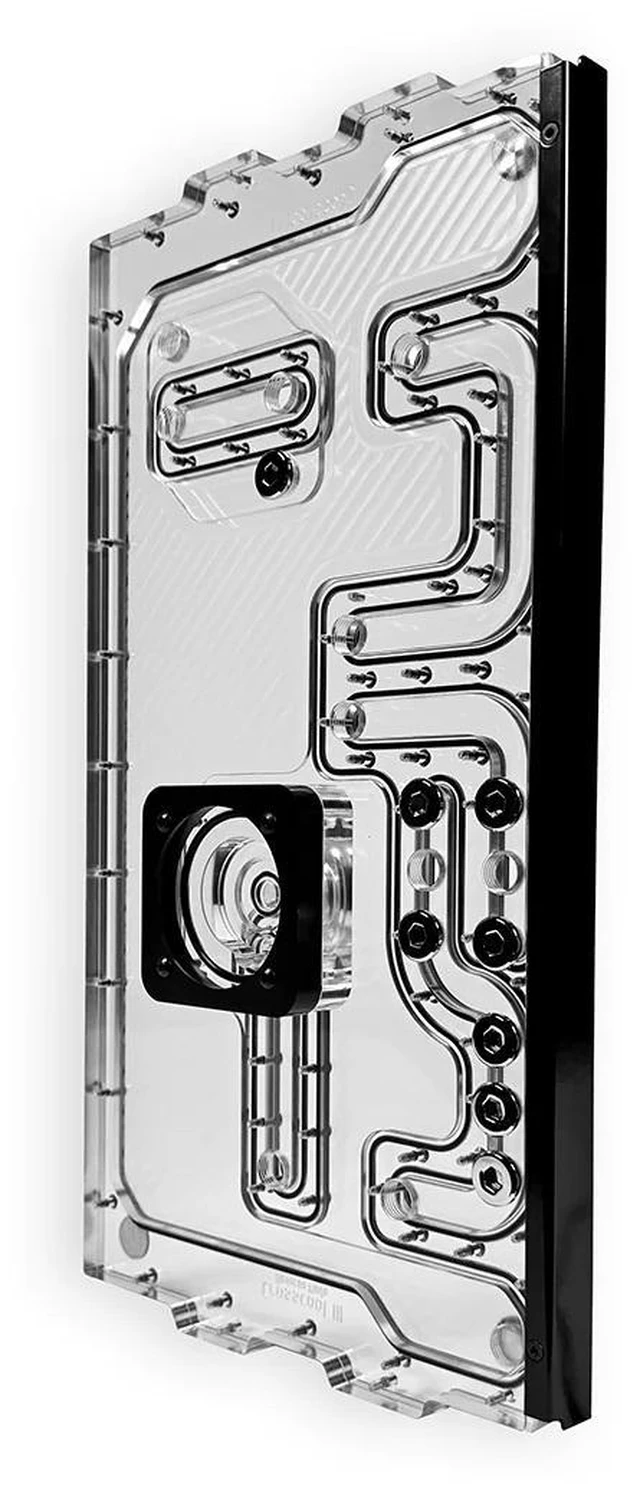

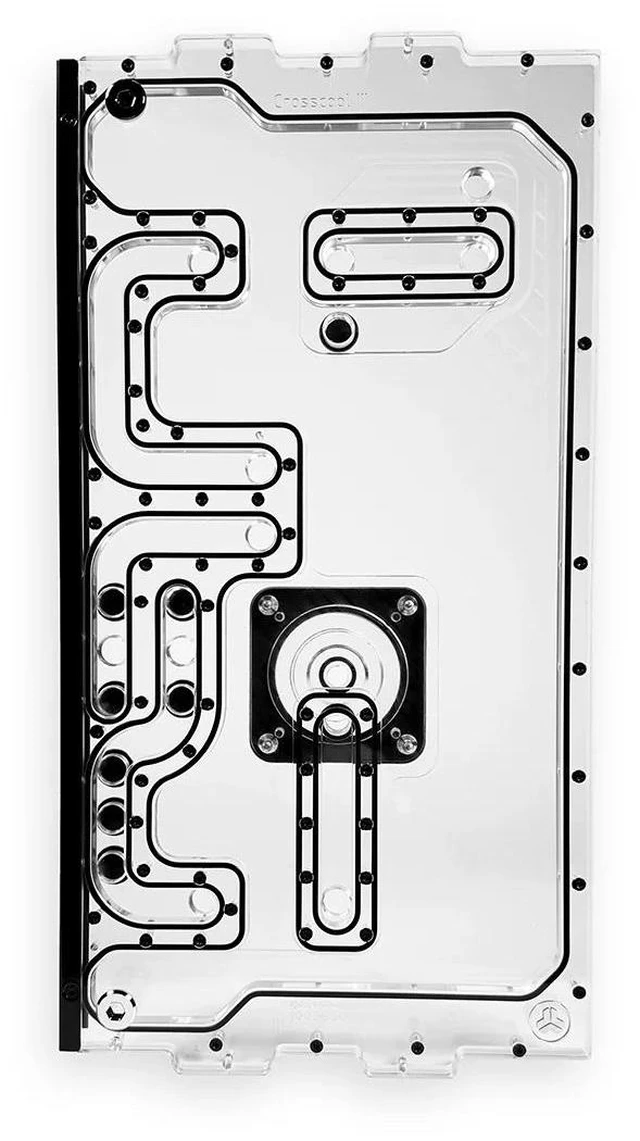

Stealkey Customs Crosscool III D-RGB Distroplate for Lian Li O11 DYNAMIC EVO (SW10160)
- The SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB is a distro plate, as well as an expansion tank and pump solution in one. Suitable for the front of the Lian Li O11 Dynamic EVO RGB case.
- Only branded acrylic glass is used for the production of the distro plates. The material is machined on precision machines in the Stealkey Customs halls. In addition, M3 stainless steel screws are used to assemble the distroplates. Powder-coated
- The Crosscool 3 allows you to invert your configuration. This is because the Lian Li O11 DYNAMIC EVO RGB case can be mirrored if required. The graphics card and mainboard then do not have to be viewed from the left, but can be viewed from the right
- A total of 9 ports ensure the connection of a vertically and horizontally installed GPU cooler. Of these, 6 ports are available for the input and 3 for the output. Their spacing is selected so that the graphics card cooler can be connected to the
- Pump compatibility: D5/DDC
Any questions? Ask CelesteSM will help you find out quickly.
The Stealkey SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB is a distro plate, reservoir and pump mount in one for the front of the Lian Li O11 Dynamic EVO RGB case. It has 20x G1/4" ports, holds 300 ml, connects up to three 360 mm radiators and takes a D5 or a DDC pump (not included).
Properties
- Type: Distroplate with reservoir and pump mount
- Fits: Lian Li O11 Dynamic EVO RGB
- Size: 216 x 419 x 51 mm
- Ports: 20x G1/4"
- Volume: 300 ml
- Pump mount: D5 or DDC (pump not included)
- Radiators: up to 3x 360 mm
- Color: Black and transparent
Made for the O11 Dynamic EVO RGB

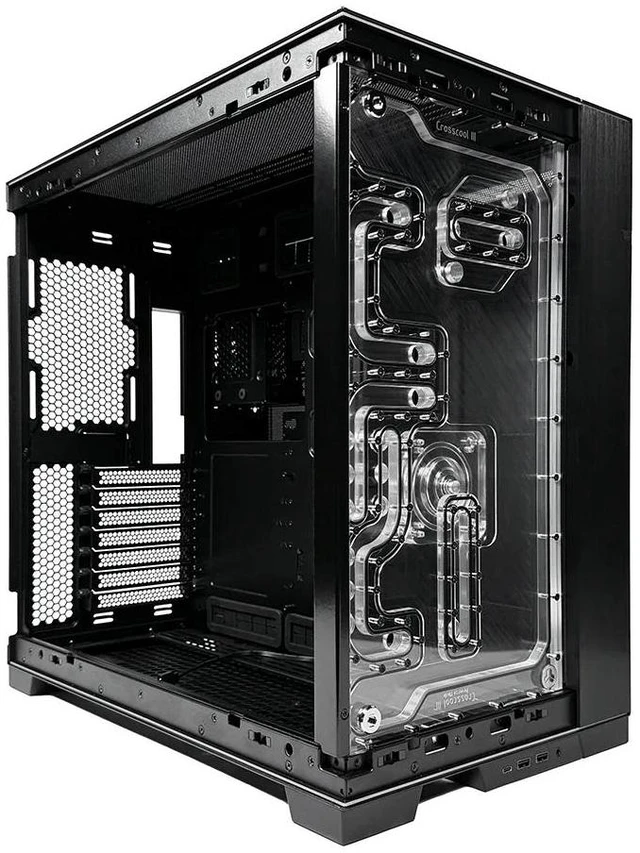

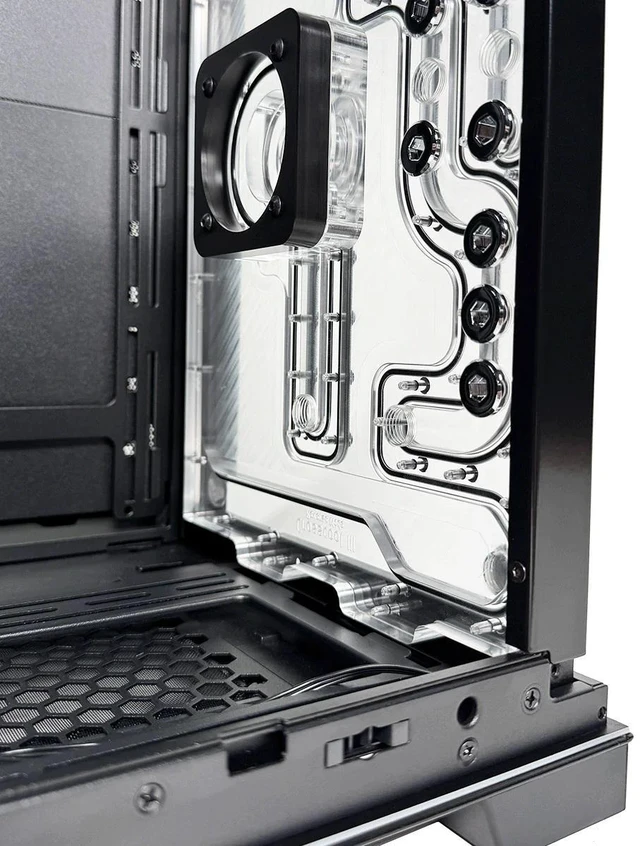

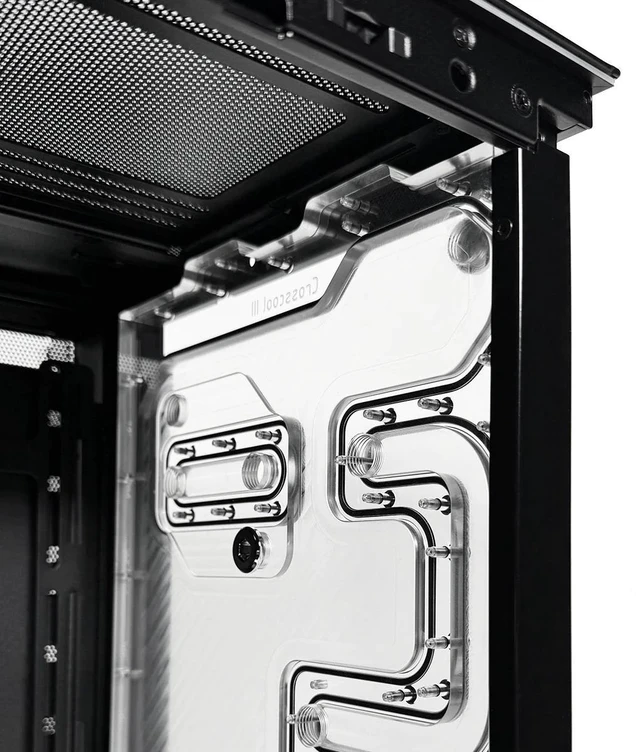

The Crosscool III mounts with four M3 x 16 mm Torx screws on the front of the case, directly behind the front glass, two at the top and two at the bottom. The screws go into mounting holes the case already has, which makes the installation easy.

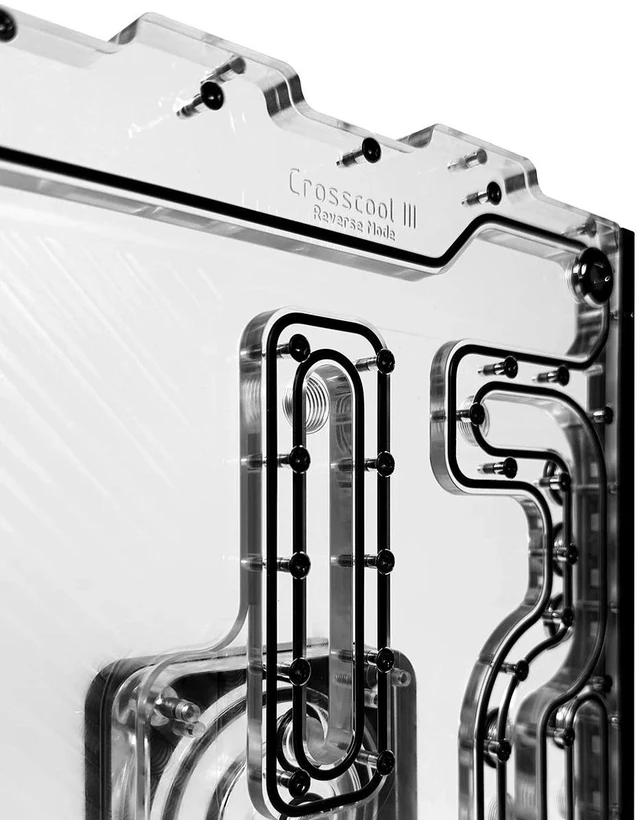

Reverse mode
The Lian Li O11 Dynamic EVO RGB can be mirrored, so the motherboard and the graphics card are seen through the right side panel instead of the left. The Crosscool III follows that inverted layout; the fill and drain ports simply swap roles.
Straight to the GPU and CPU
Nine ports serve a vertically or horizontally installed GPU block, six for the inlet and three for the outlet. Their spacing lets the GPU block connect in a straight line whichever PCIe slot the card is in. Two more ports 28 mm apart connect a CPU block in a straight line.
Three 360 mm radiators
The plate connects up to three 360 mm radiators. With the plate installed, radiators can be up to 48 mm thick at the top, the bottom and the side; at the bottom the radiator ports sit on the plate side for a direct connection without tubes over the fans. Stealkey suggests its SC RadPro L360 H30 radiator.
Technical data
- Model: SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB (SW10160)
- Type: Distroplate, reservoir and pump mount
- Fits: Lian Li O11 Dynamic EVO RGB only
- Dimensions (W x H x D): 216 x 419 x 51 mm
- Reservoir volume: 300 ml
- Ports: 20x G1/4" (9 GPU, 2 CPU at 28 mm)
- Pump mount: D5 or DDC
- Radiators: up to 3x 360 mm, max. 48 mm thick top, bottom and side
- Material: Acrylic, plastic, powder-coated steel
- Color: Black and transparent
- D-RGB cable: 500 mm
- D-RGB connector: 3-pin 5V ARGB
- Mounting: 4x M3 x 16 mm Torx screws into the case mounting holes
Notes
- Fits only the Lian Li O11 Dynamic EVO RGB.
- The D5 or DDC pump is not included. Screws for a DDC pump (4x M4 x 25 mm) are sold separately.
- D5 and DDC pumps are water-lubricated and must never run dry, or the bearing can be damaged for good.
- Screw fittings into the acrylic hand-tight only; Stealkey gives 0.7 to 1.5 Nm. An overtightened fitting can crack the acrylic and leak.
- Leak-test the loop before you power the rest of the system; Stealkey says to test with no more than 0.5 bar.
In the box
- 1x SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB
- 4x M3 x 16 mm mounting screws
- 10x G1/4 plugs
