Overview

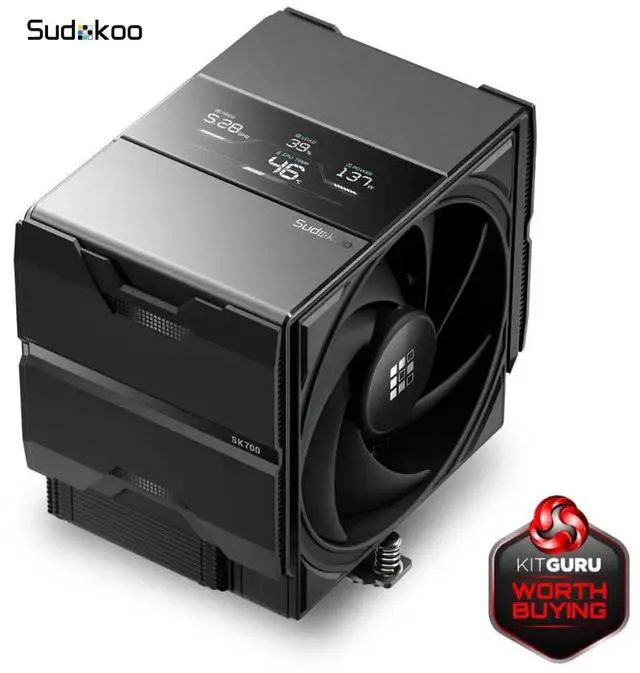

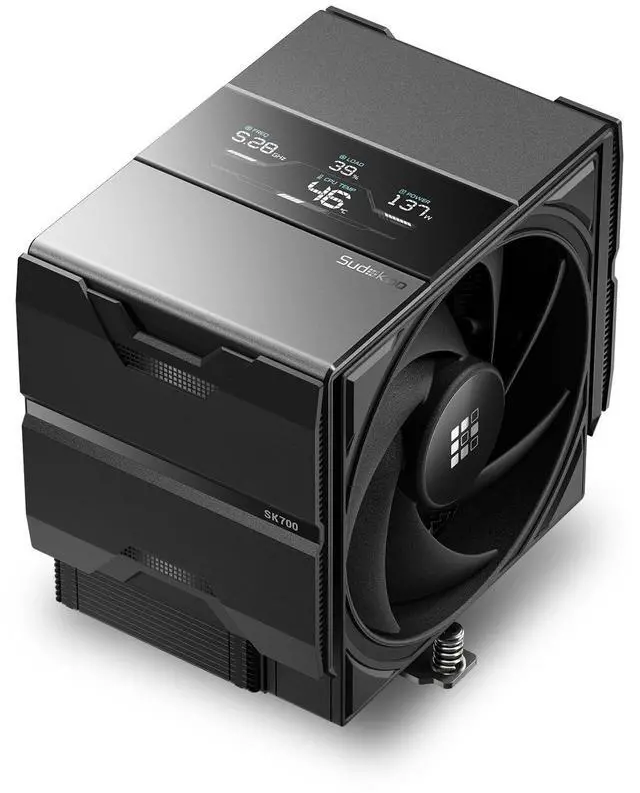

The Sudokoo SK700-V is a single-tower CPU air cooler designed exclusively for AMD Socket AM5 CPUs. It combines a 265W TDP rating, seven heatpipes, a digital monitoring display, and RAM-friendly heatpipe clearance for compatible desktop builds.
Key Features

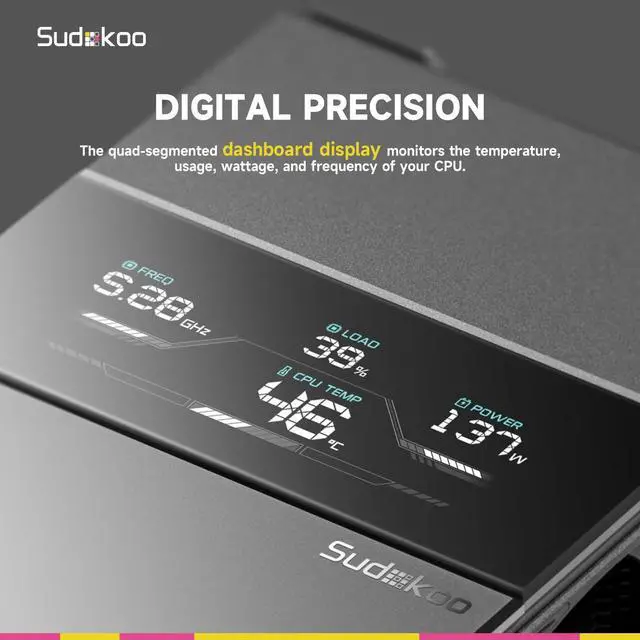

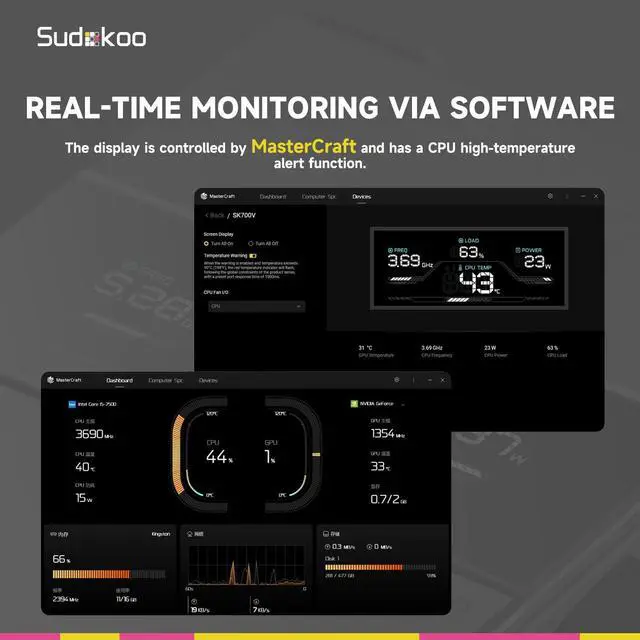

- Quad-segmented digital display for real-time CPU temperature, usage, wattage, and frequency information

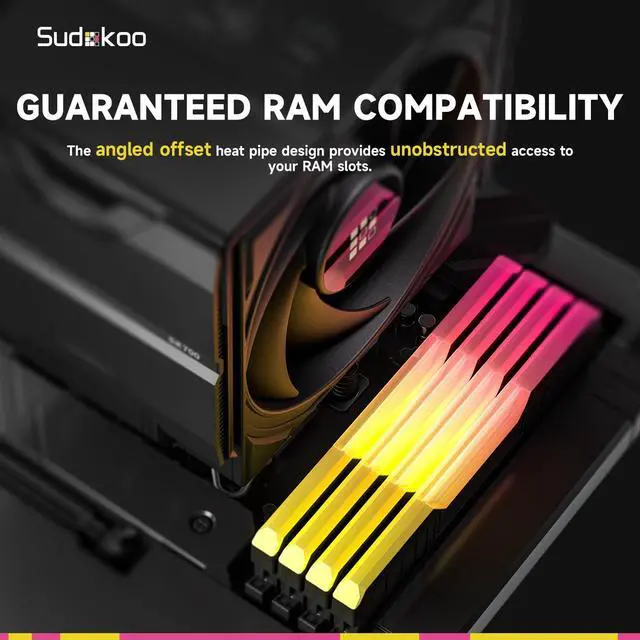

- Angled offset heatpipe design for unobstructed RAM-slot access, including tall heat spreaders and RGB visibility

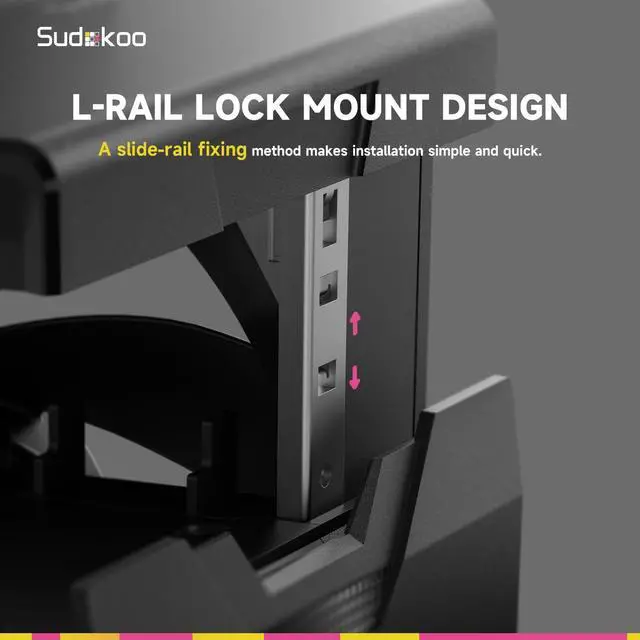

- L-Rail slide-rail mounting method for straightforward fan installation

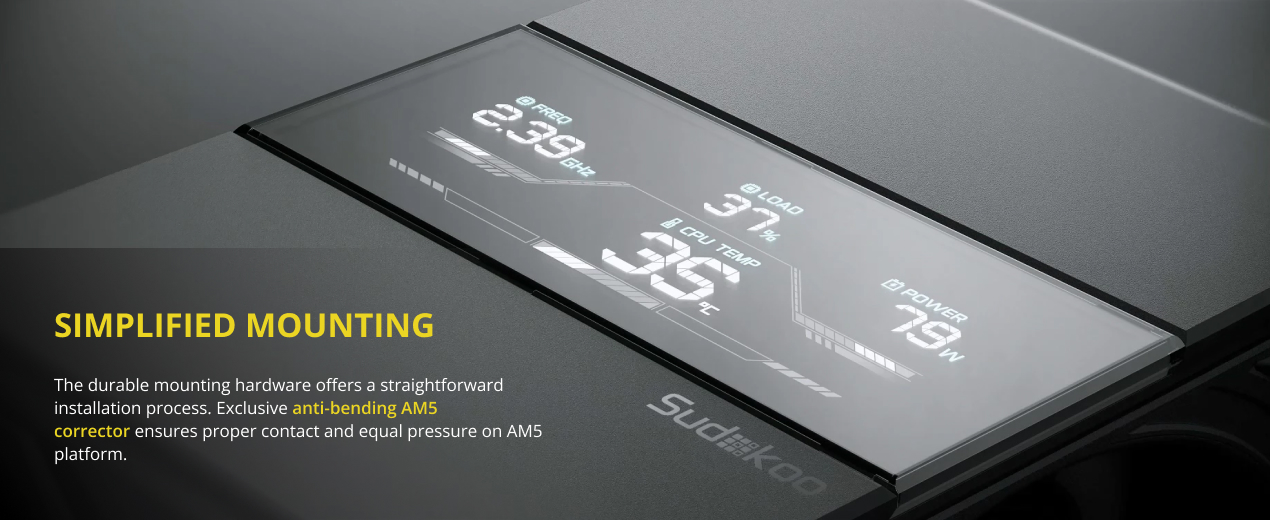

- AM5 anti-bend bracket to support the radiator and help prevent CPU bending

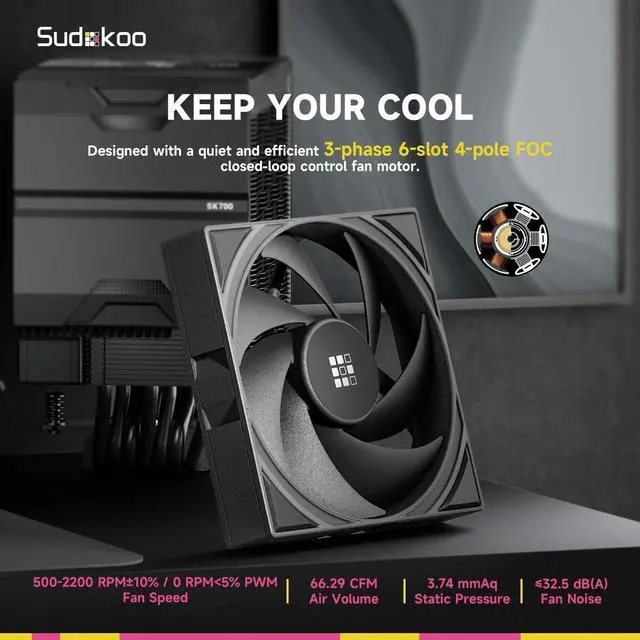

- M-Winding Tech Fan and 3-phase, 4-pole, 6-slot FOC closed-loop motor design
Performance

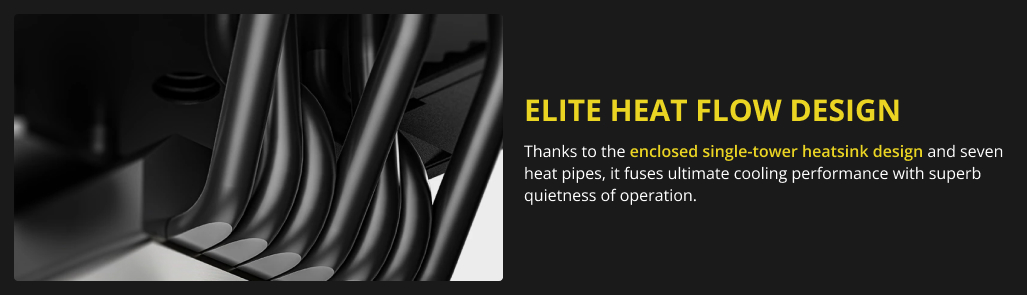

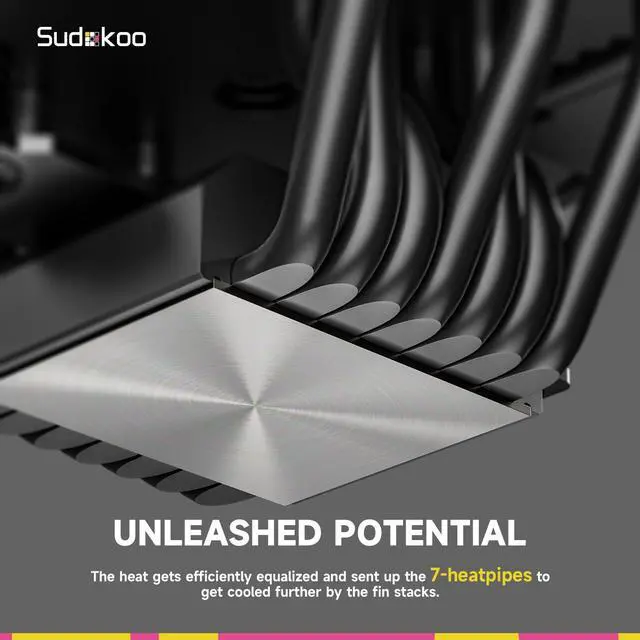

The cooler is rated for 265W TDP and uses seven heatpipes to transfer heat through the aluminum and copper heatsink. Its 120mm fan operates from 500 to 2200 RPM ±10%, delivers 66.29 CFM airflow, and has a listed noise level of 32.5 dB. ISST Intelligent Start Stop Tech is included, with 0 RPM below 5% PWM.
Design

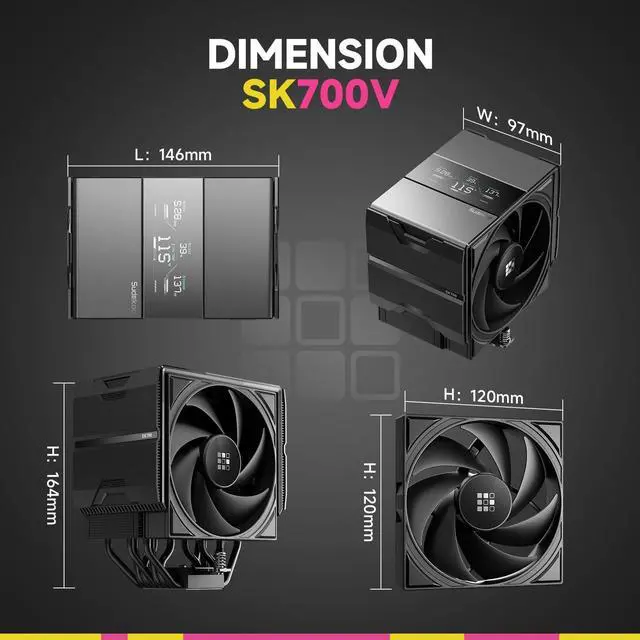

The black cooler uses a single-tower format with an aluminum and copper heatsink. The fan measures 4.72 x 4.72 x 0.98 inches, the heatsink measures 4.88 x 2.99 x 5.94 inches, and the listed weight is 1.35 kilograms. The fan includes RGB lighting.
Connectivity & Compatibility
The cooler is compatible with AMD Socket AM5 only. The fan uses a 4-pin PWM power connector. The digital display is powered through a pogo pin and pad contact point and requires an open USB 2.0 header.
Reliability & Durability
The AM5 anti-bend bracket supports the radiator's weight and helps prevent CPU bending. The fan motor uses 3-phase, 4-pole, 6-slot FOC closed-loop control to minimize voltage and power consumption.
Specifications
- Brand: Sudokoo
- Model: SK700-V
- Series: SK700 V
- Cooling Type: Air
- TDP: 265W
- Fan Size: 120mm
- Fan Speed: 500–2200 RPM ±10%; 2200 RPM maximum
- Airflow: 66.29 cubic feet per minute
- Noise Level: 32.5 decibels
- Fan Bearing: Fluid Dynamic Bearing
- Power Connector: 4-pin PWM
- LED: RGB
- Heatsink Material: Aluminum and copper
- CPU Socket Compatibility: AMD Socket AM5
- Fan Pressure: 3.74 mmAq
- Max CPU Cooler Height: 5.75 L x 3.82 W x 6.46 H inches
- Weight: 1.35 kilograms
- Color: Black
What's in the Box
CPU air cooler.
