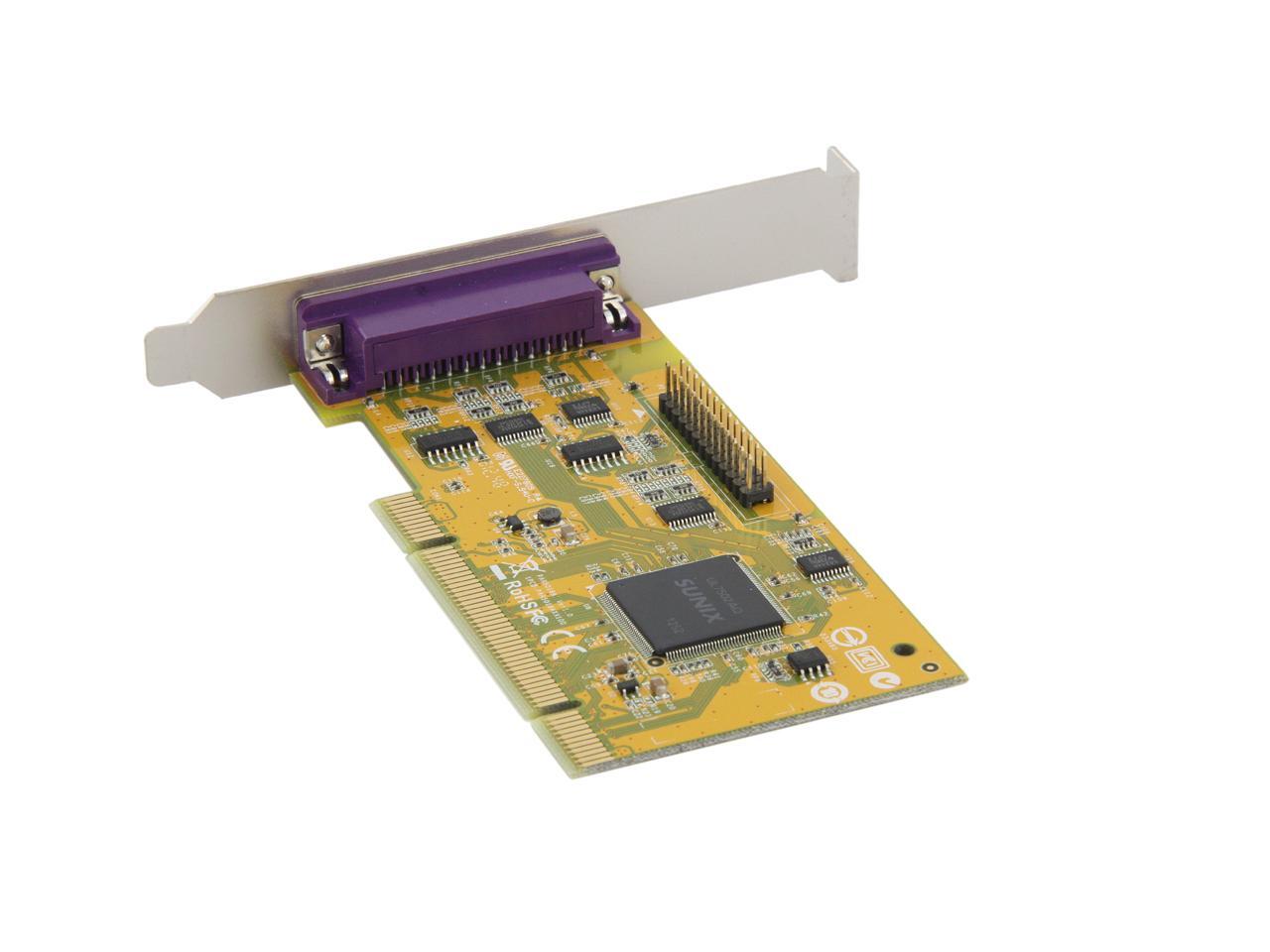

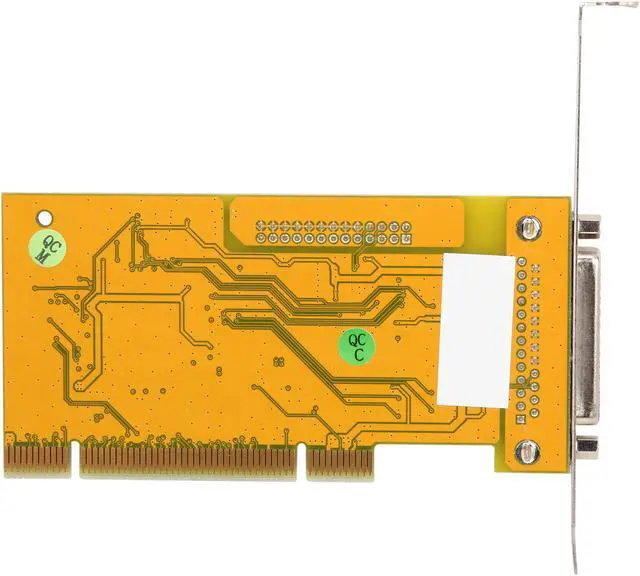

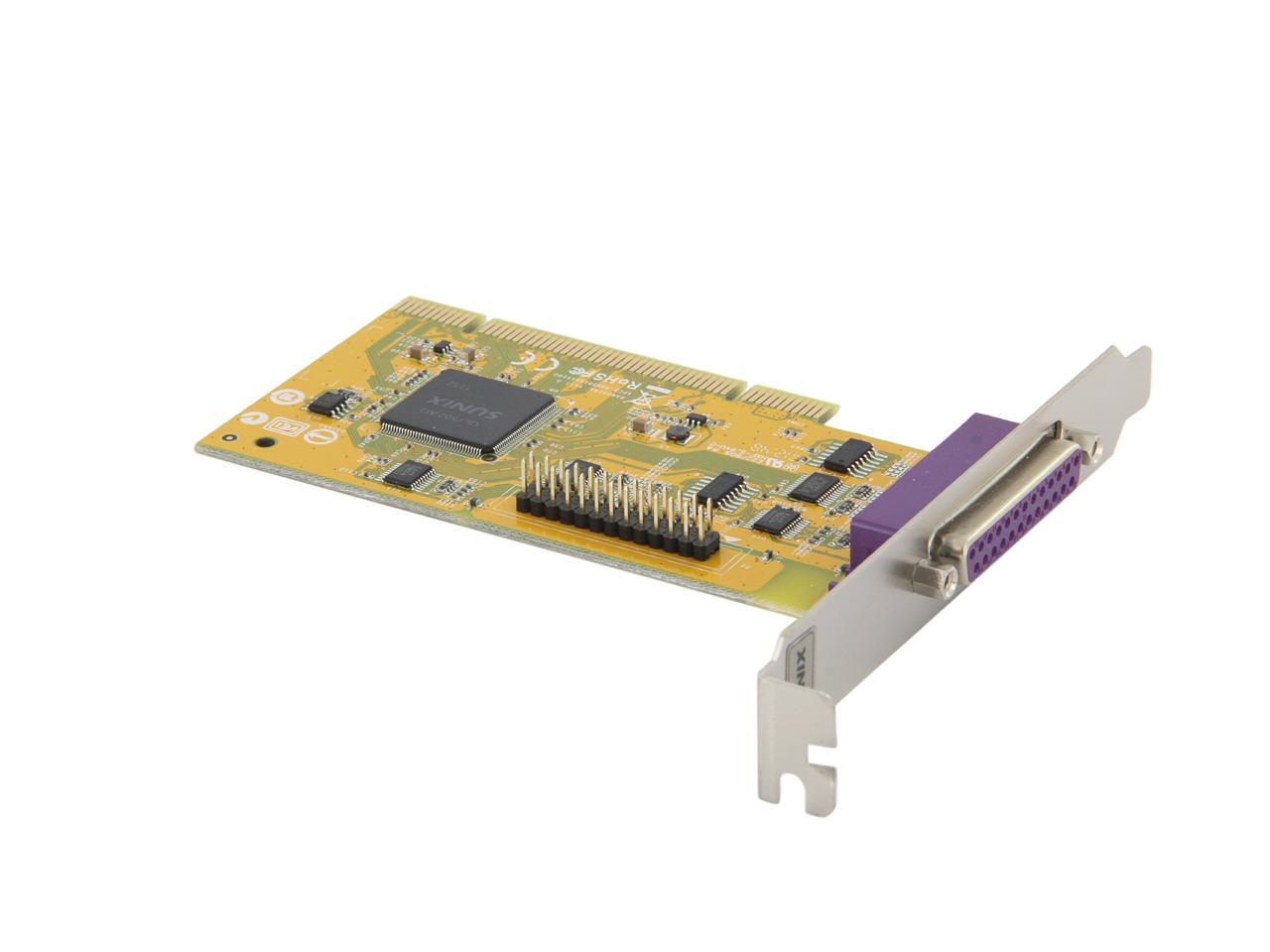

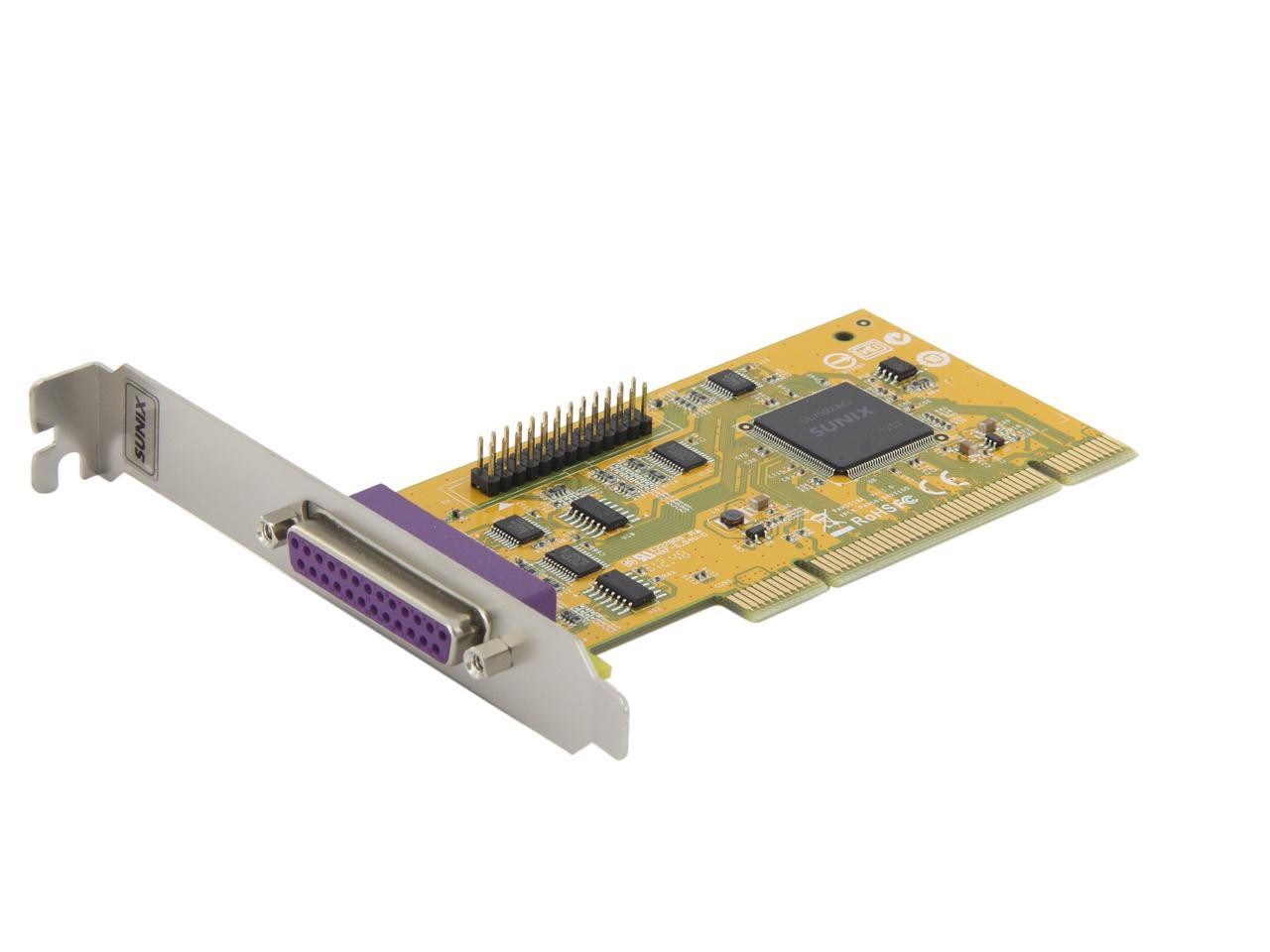

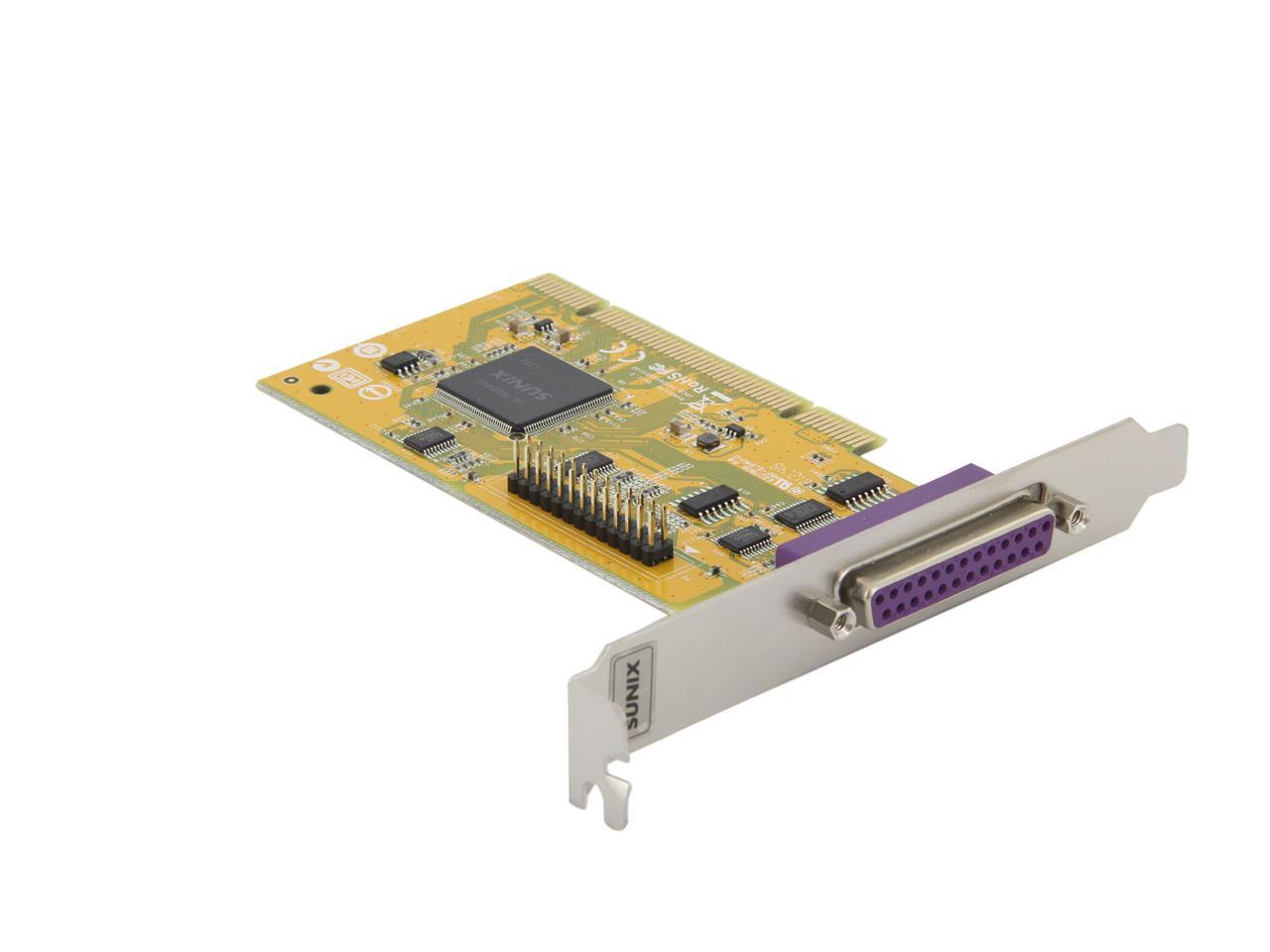

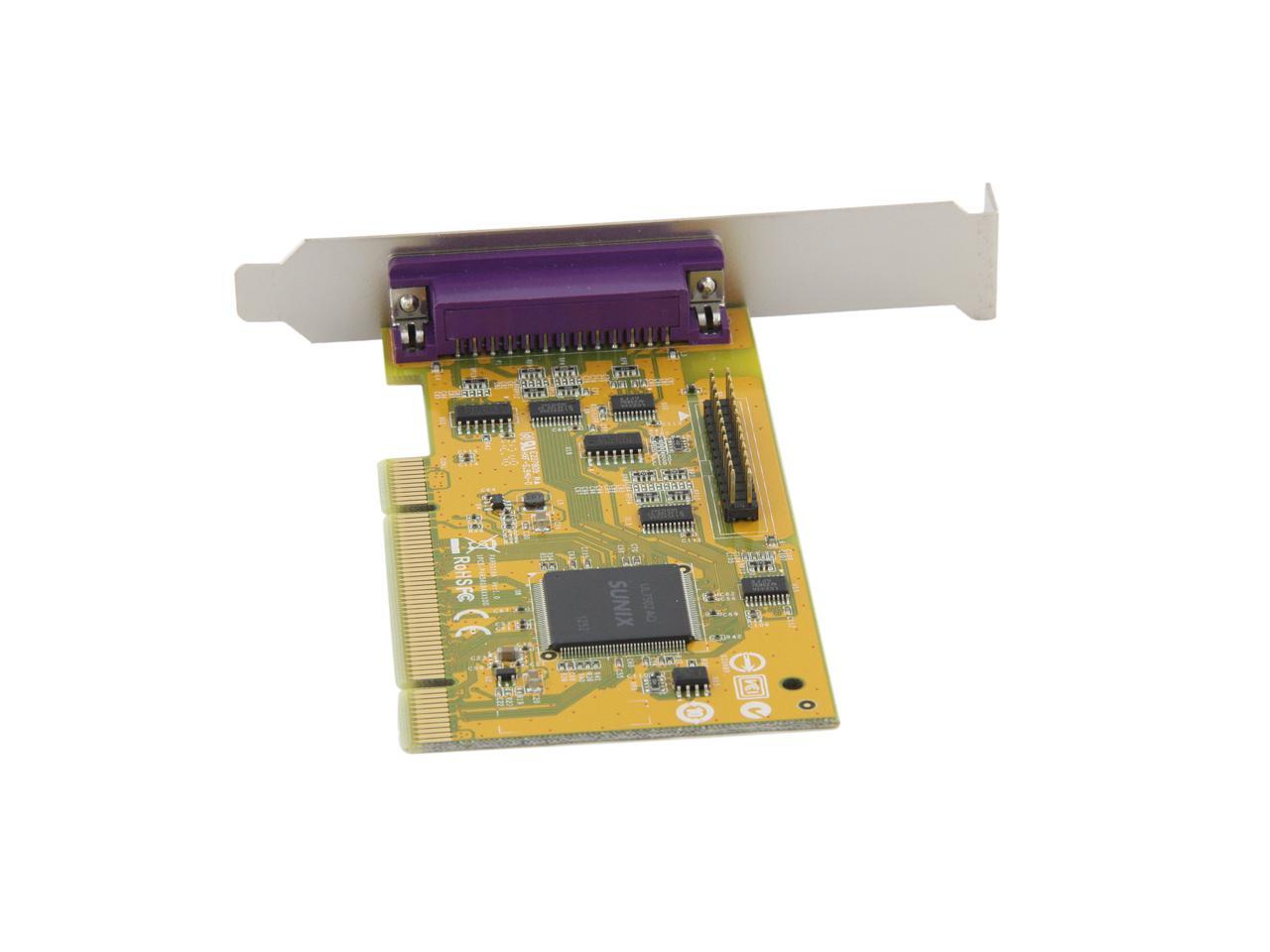

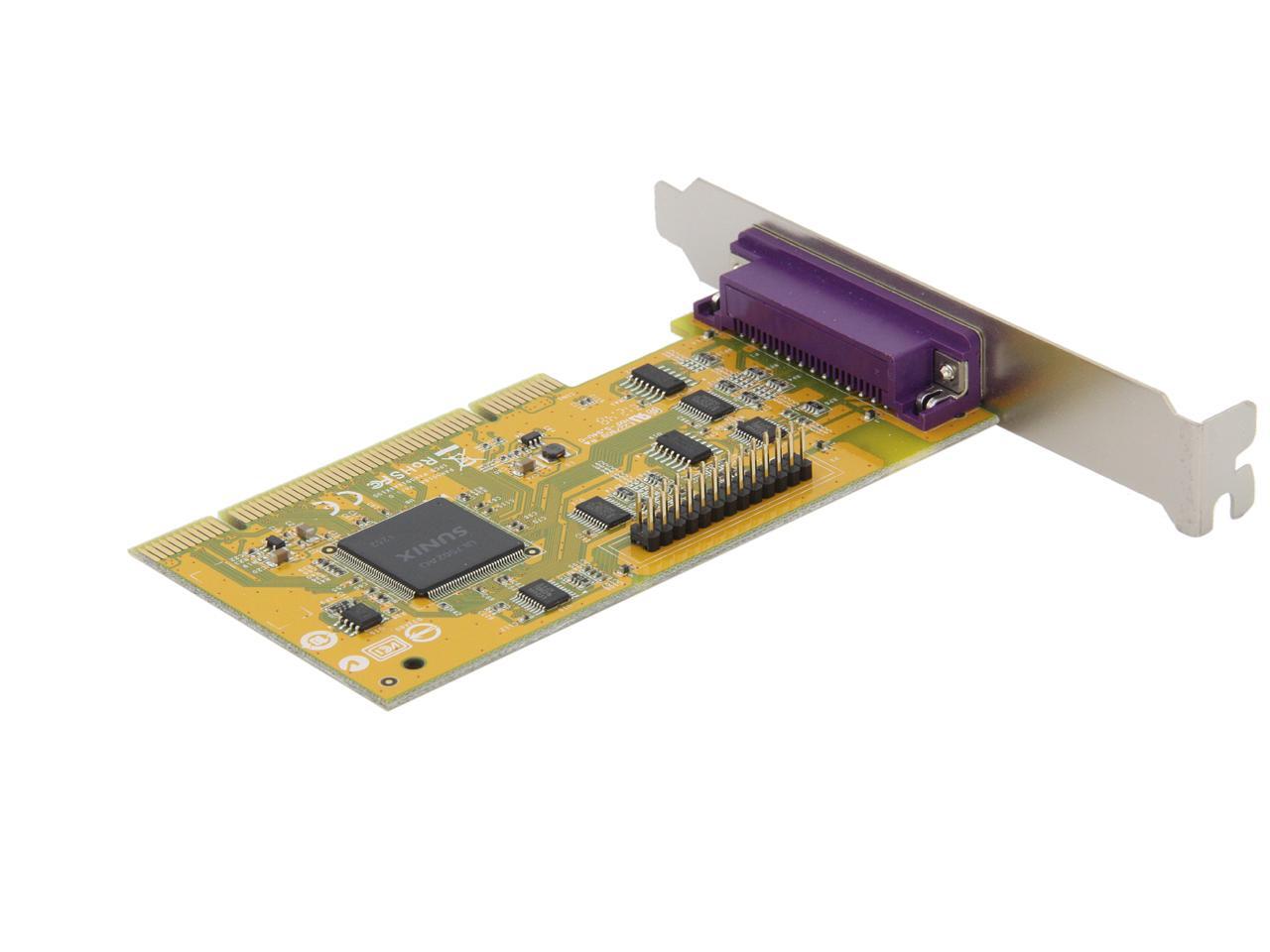

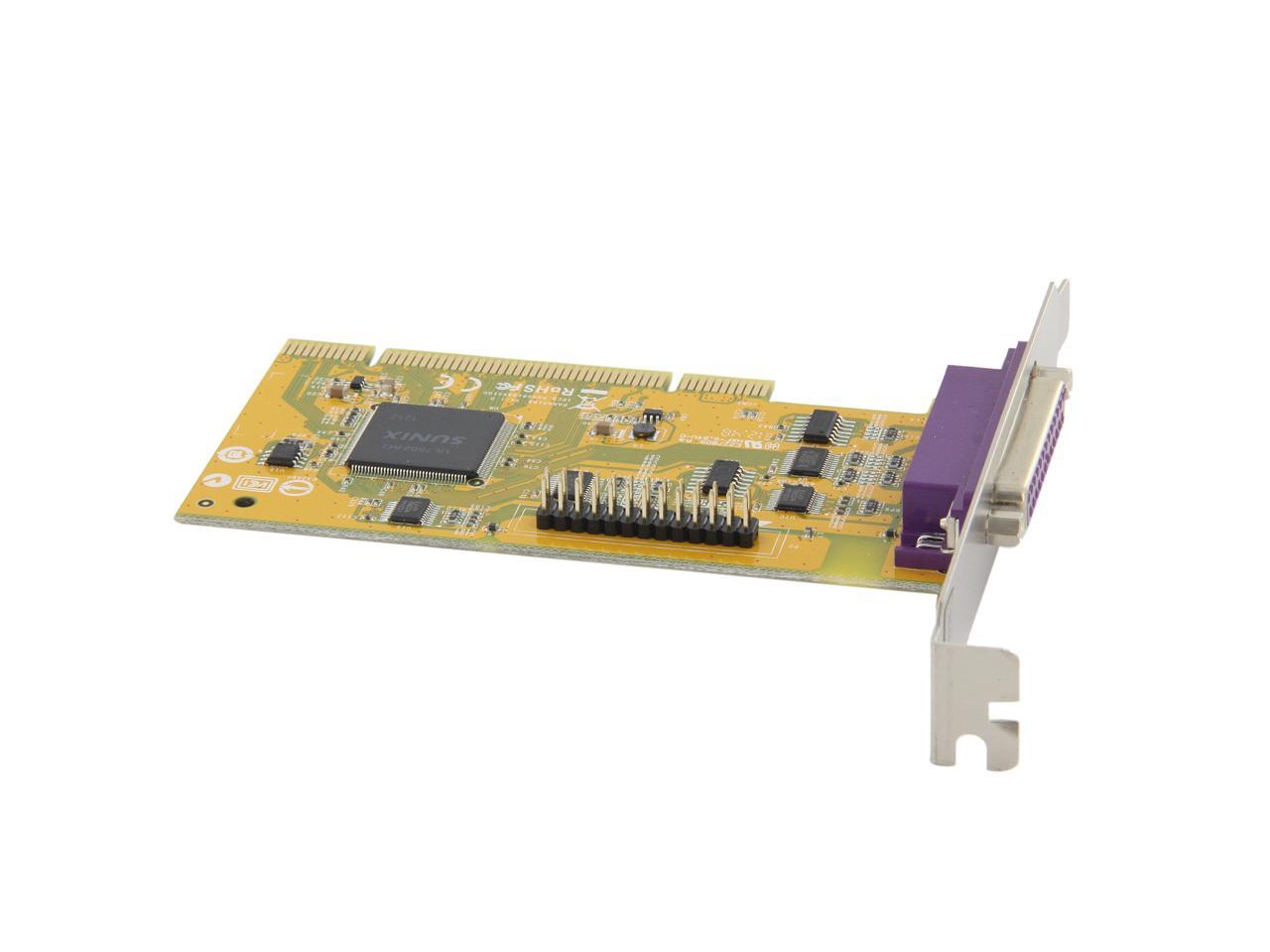

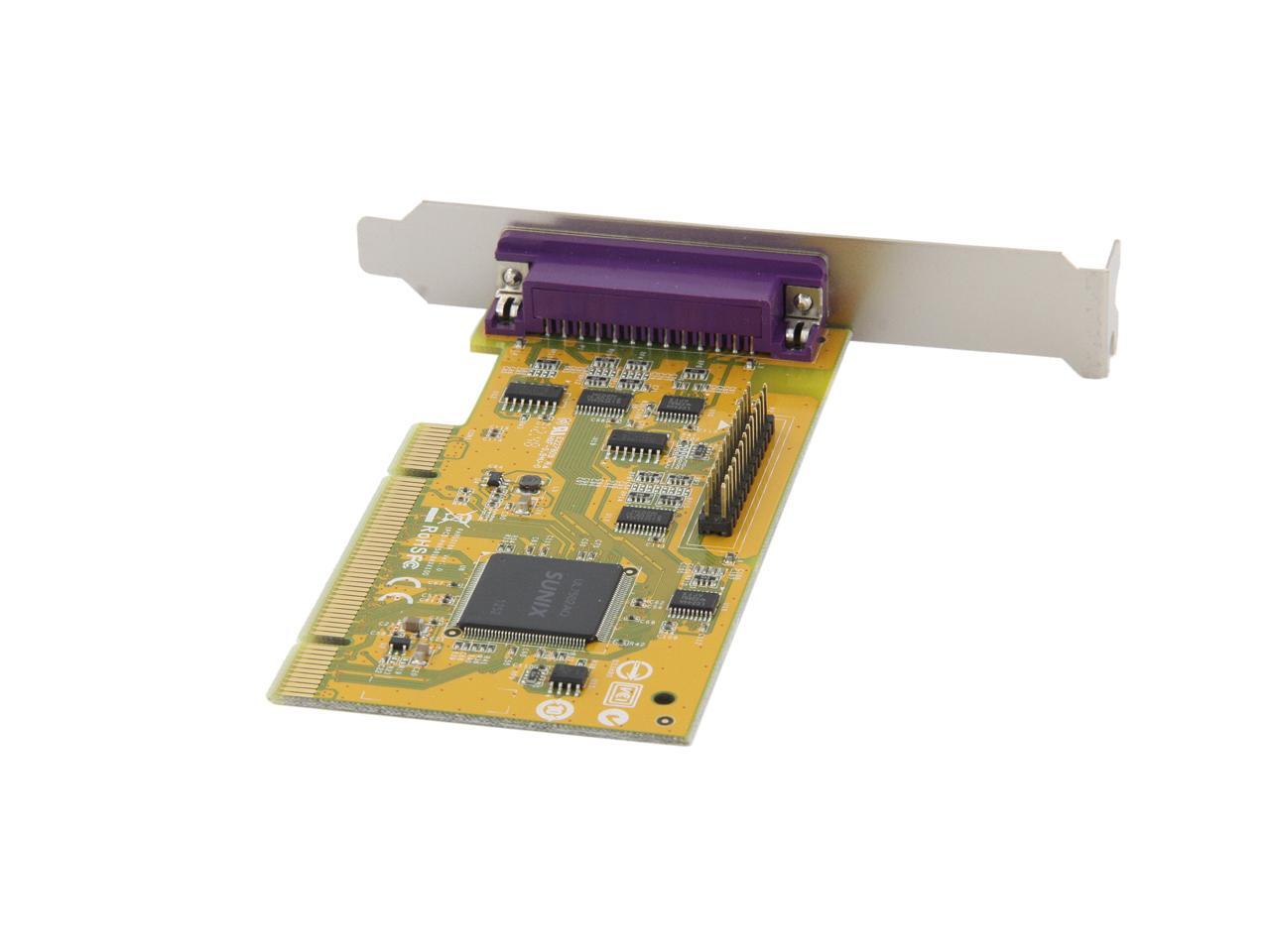

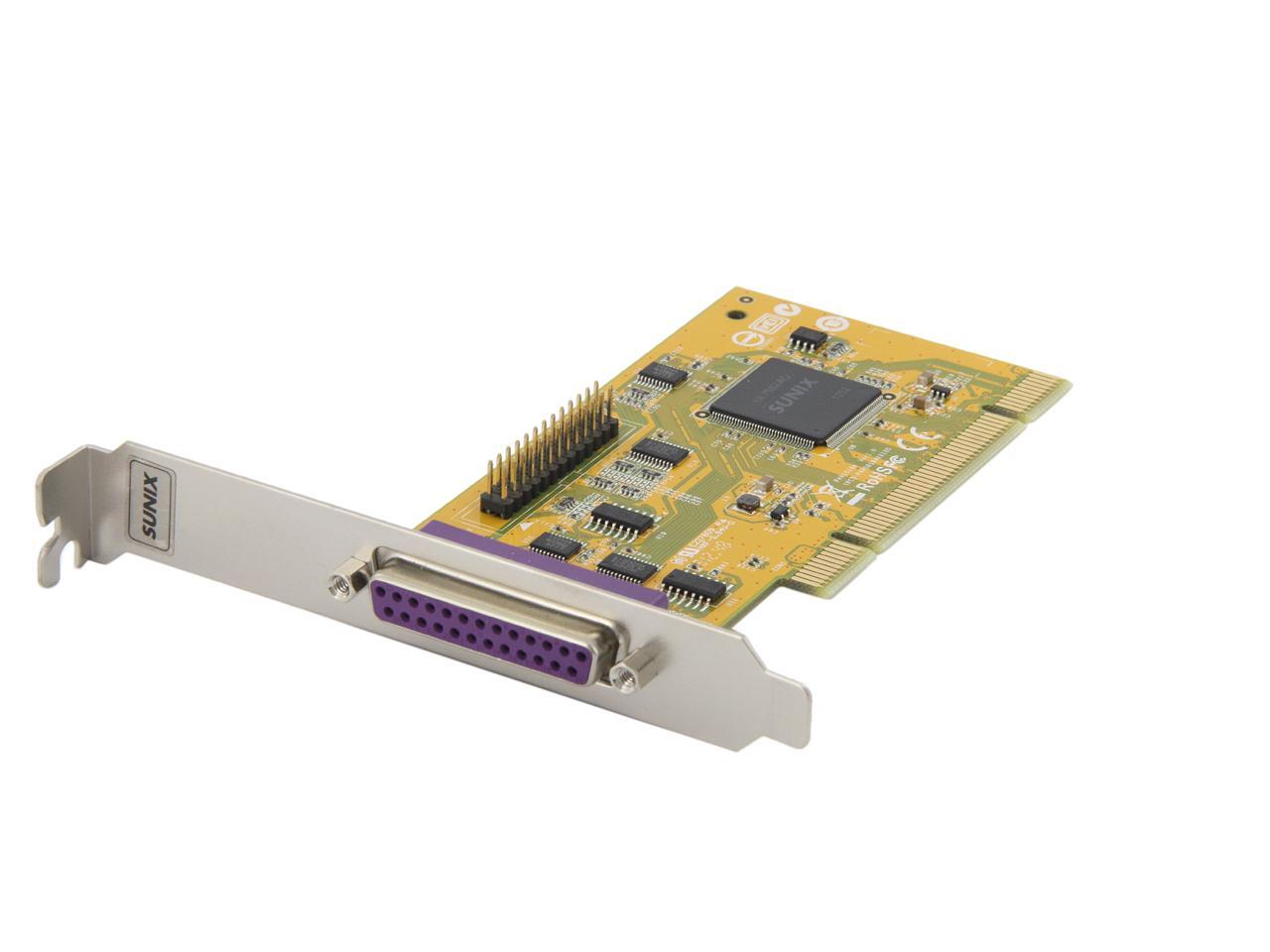

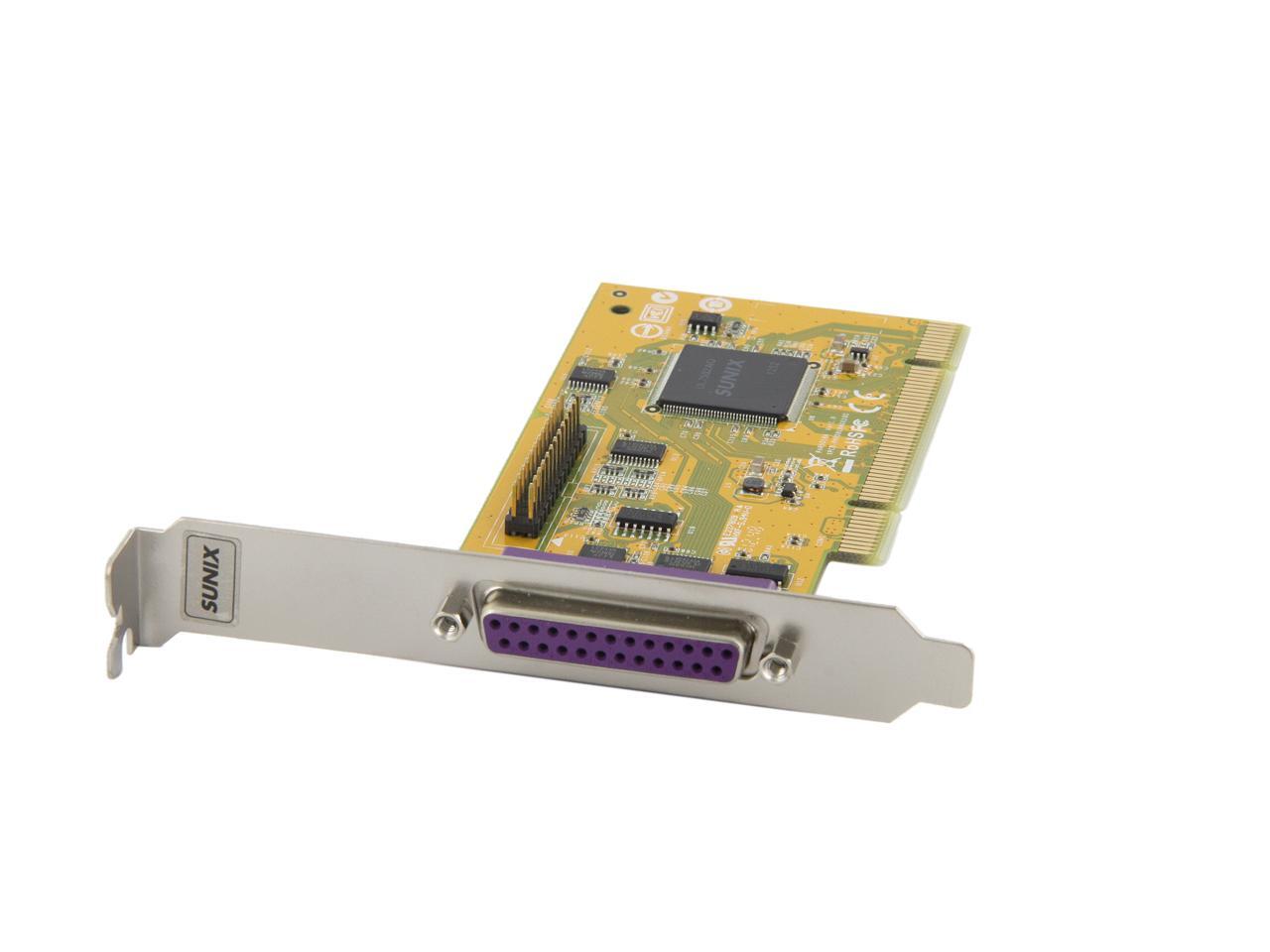

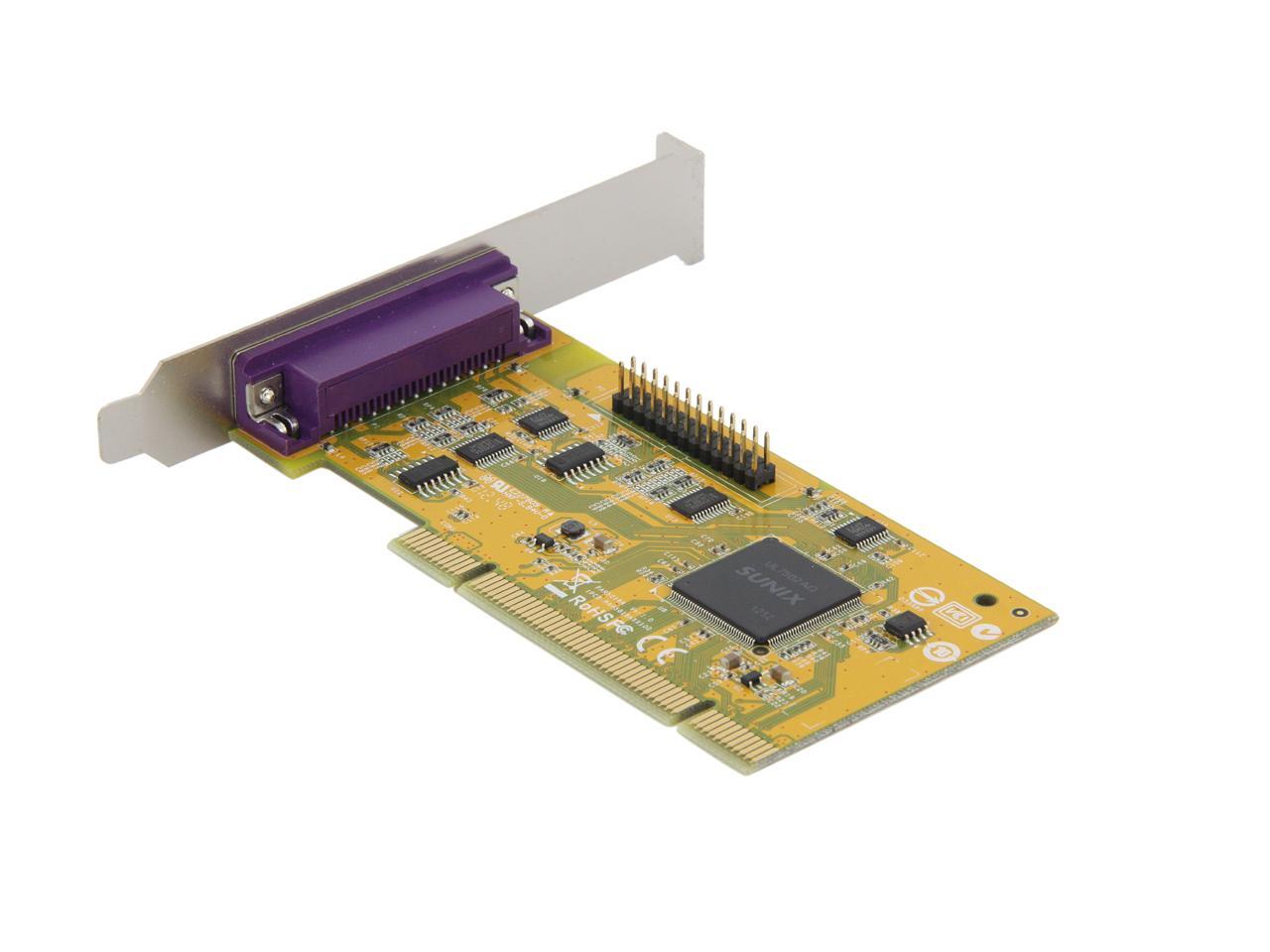

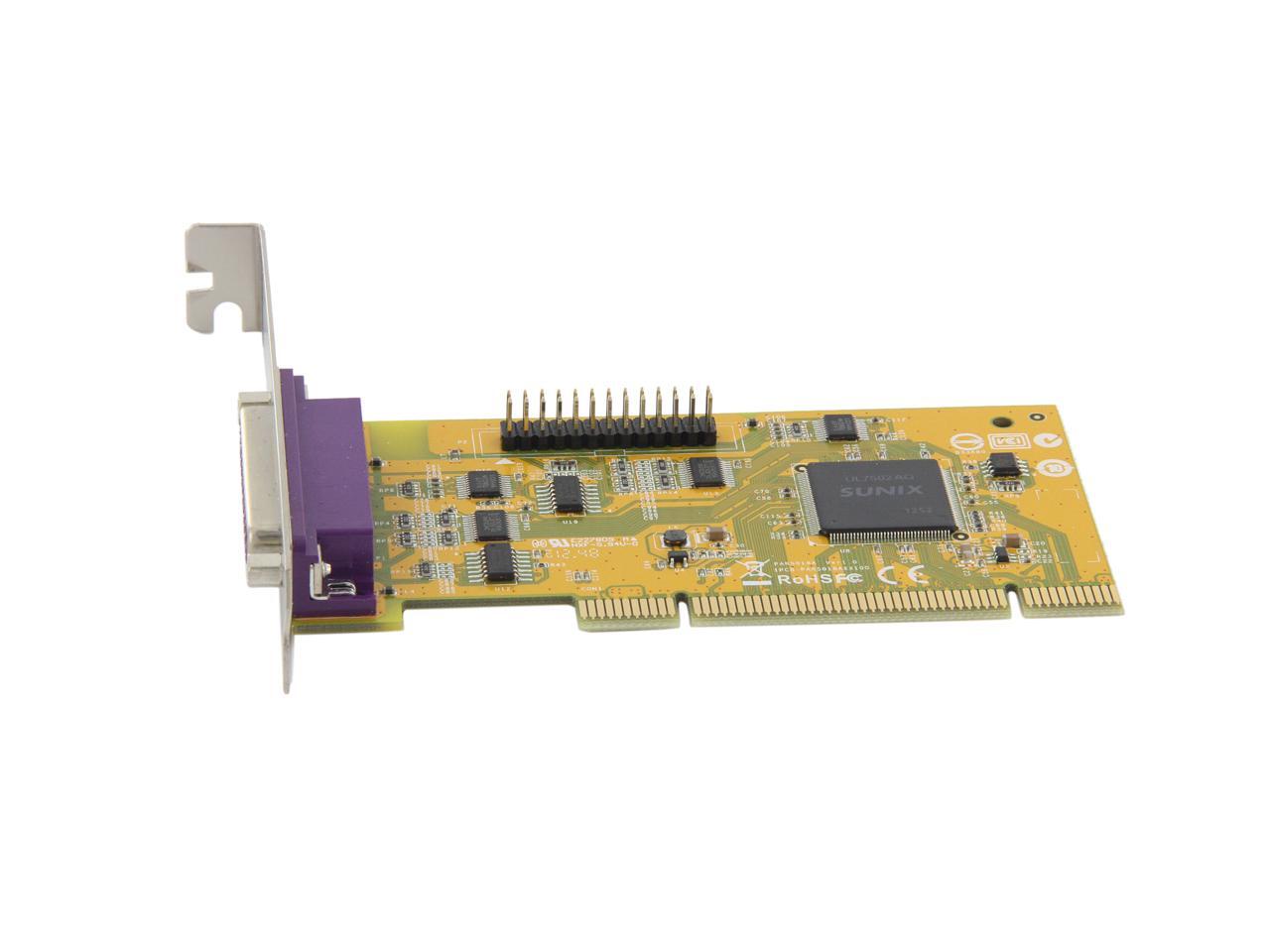

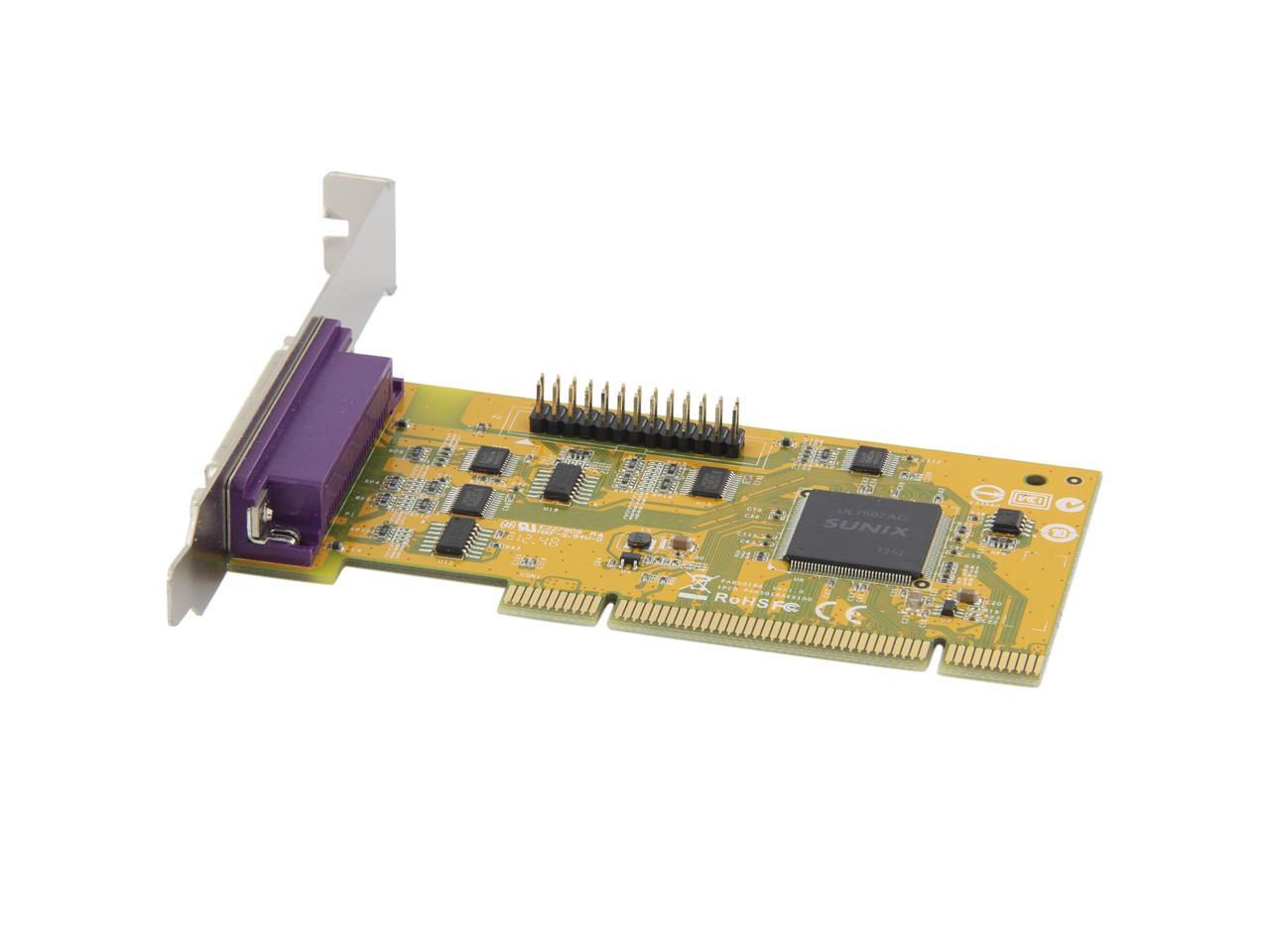

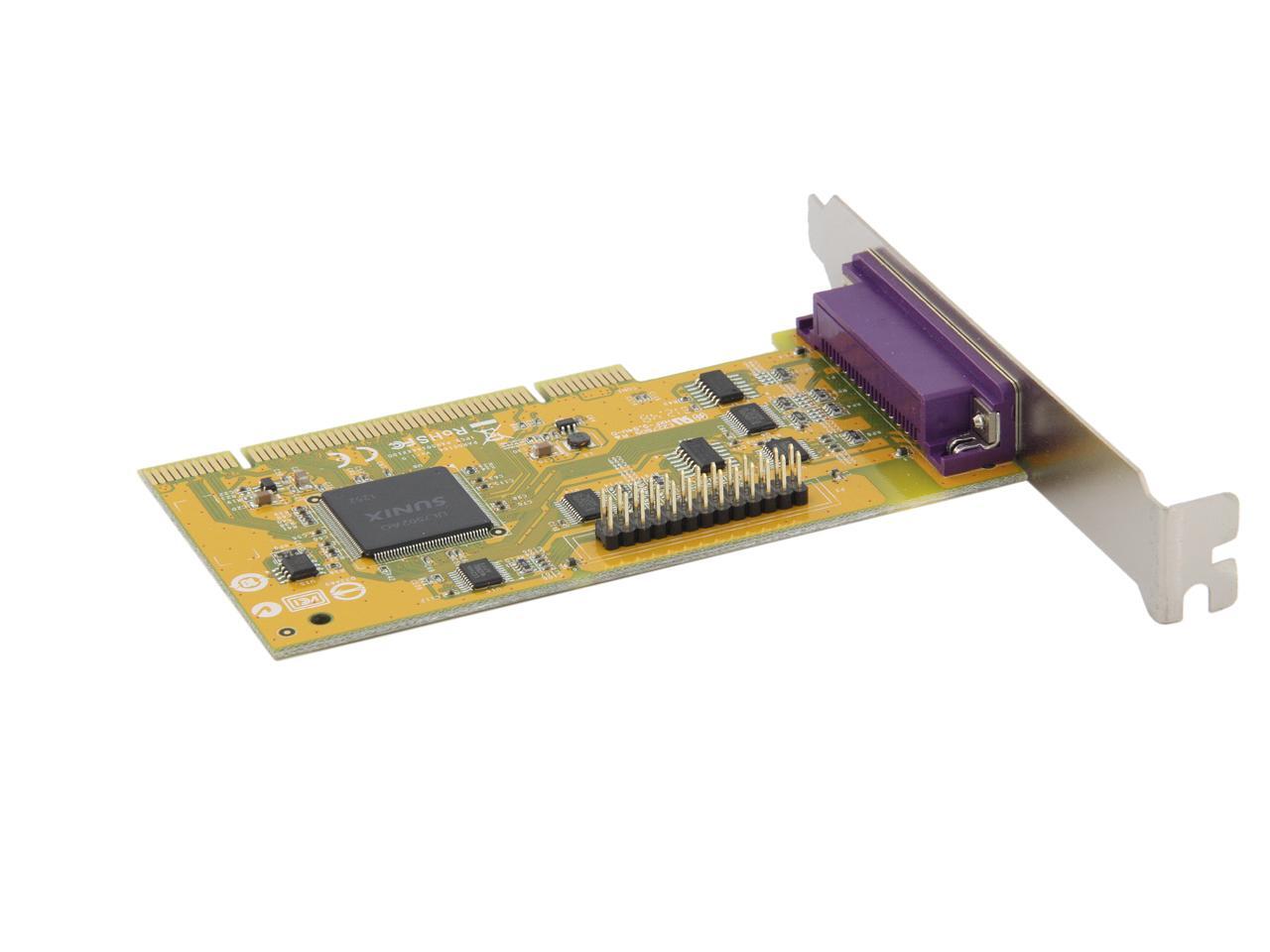

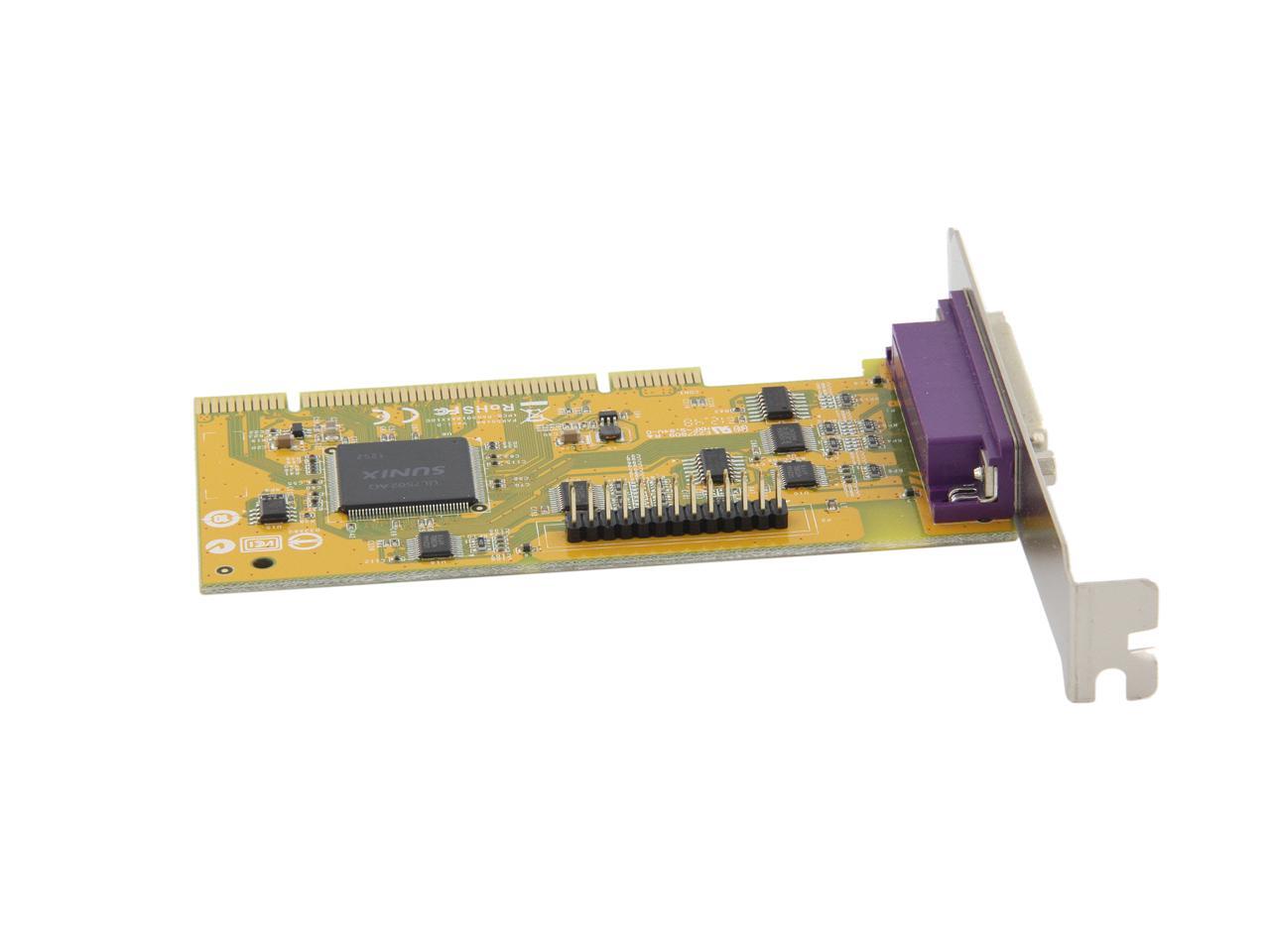

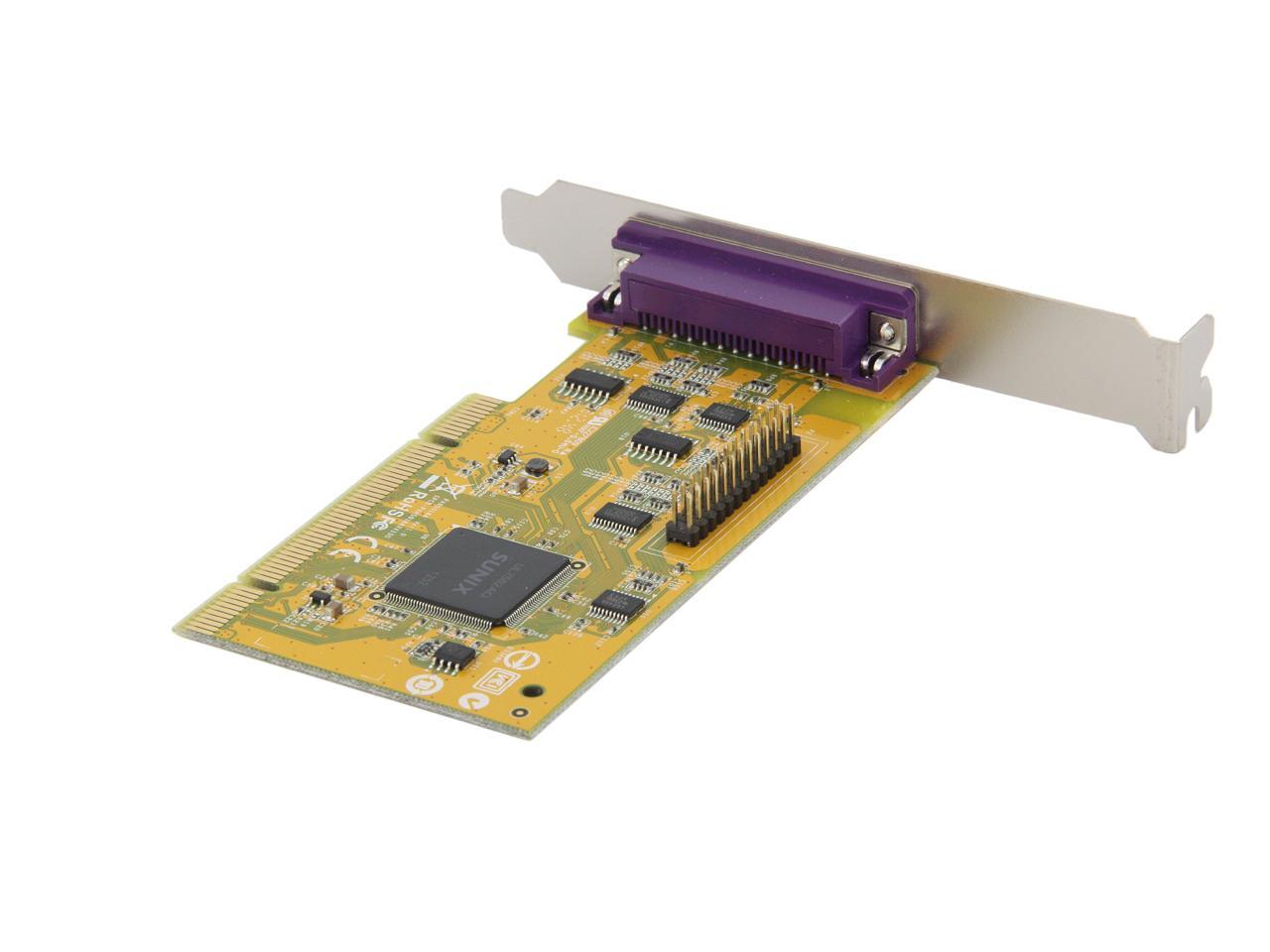

SUNIX 2-port IEEE1284 Parallel PCI Board Model PAR5018A+L

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the SUNIX PAR5018A+L

Model
Brand SUNIX
Model PAR5018A+L
Details
Type PCI to Parallel Port Card
Specifications General
-Interface: IEEE1284

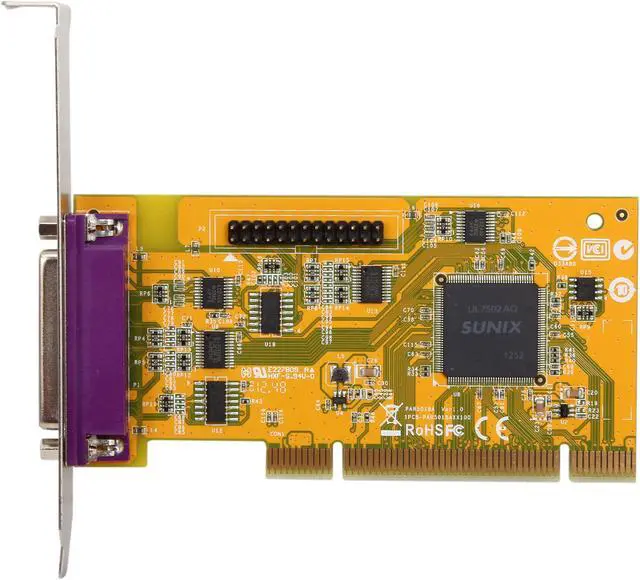

-Controller: SUNIX UL7502AQ
-BUS: Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
-IRQ & IO: Assigned by System

Parallel Communication
-Interface: IEEE1284
-No. of Port : 2-port
-FIFO: 16byte Hardware
-Mode: SPP / ECP / EPP / BPP
-Speed: Maximum 1.8MBps

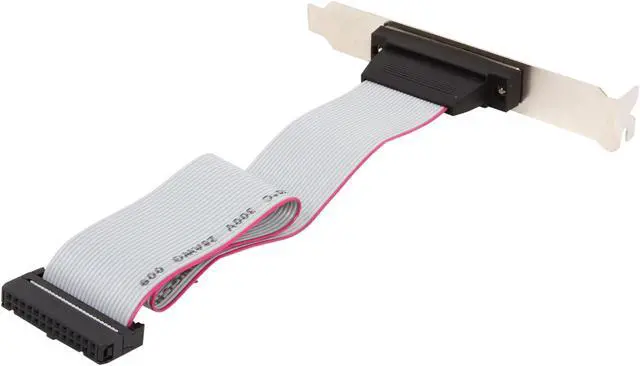

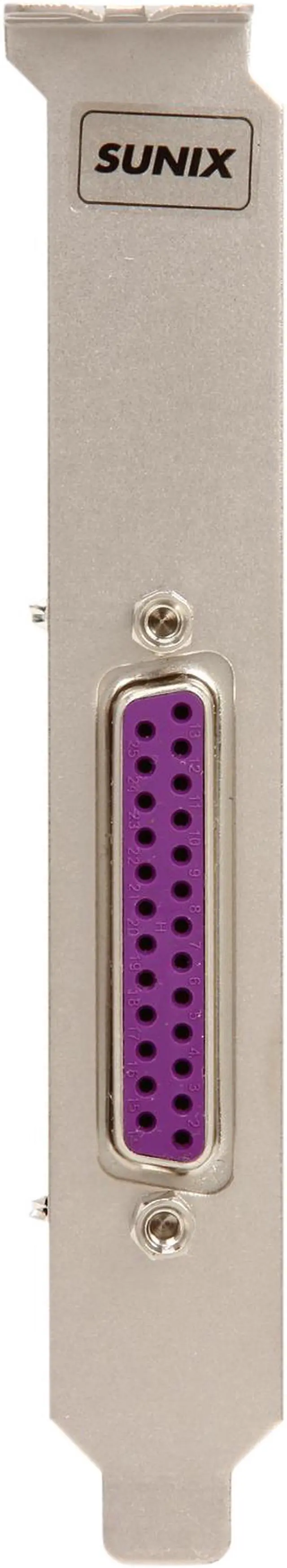

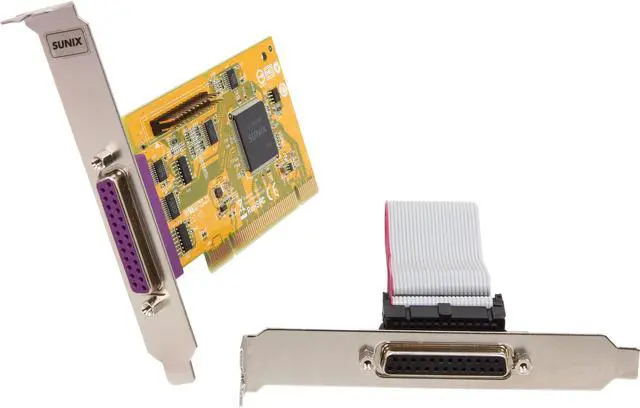

-PCB Connector: DB25 Female & 13 x 2 Pin Header

Driver Support
-Windows Client XP/Vista/7/8/8.1 (X86/X64)
-Windows Server 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
-Windows Embedded
Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System
-Linux: Linux 2.4.x/2.6.x/3.x
-DOS: DOS

Regulatory Approvals
-Hardware:
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
-Software
Microsoft WHQL Windows:
Windows Client: XP/Vista/7/8/8.1 (X86/X64)
Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)
Features
Features High reliability SUNIX UL7502AQ Parallel controller on-board.

Expands two IEEE1284 Parallel port on system.

Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.

Support IEEE 1284-1994 parallel port standard
-ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
-SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).

Auto-switching between ECP/EPP/SPP/BPP modes without configuration.

Plug-n-Play, I/O address and IRQ assigned by system.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.
Dimensions & Weight
Dimensions PCB Dimension: 120 x 61 mm
Bracket: Standard 121 mm
Additional Information
First Listed on Newegg February 24, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
