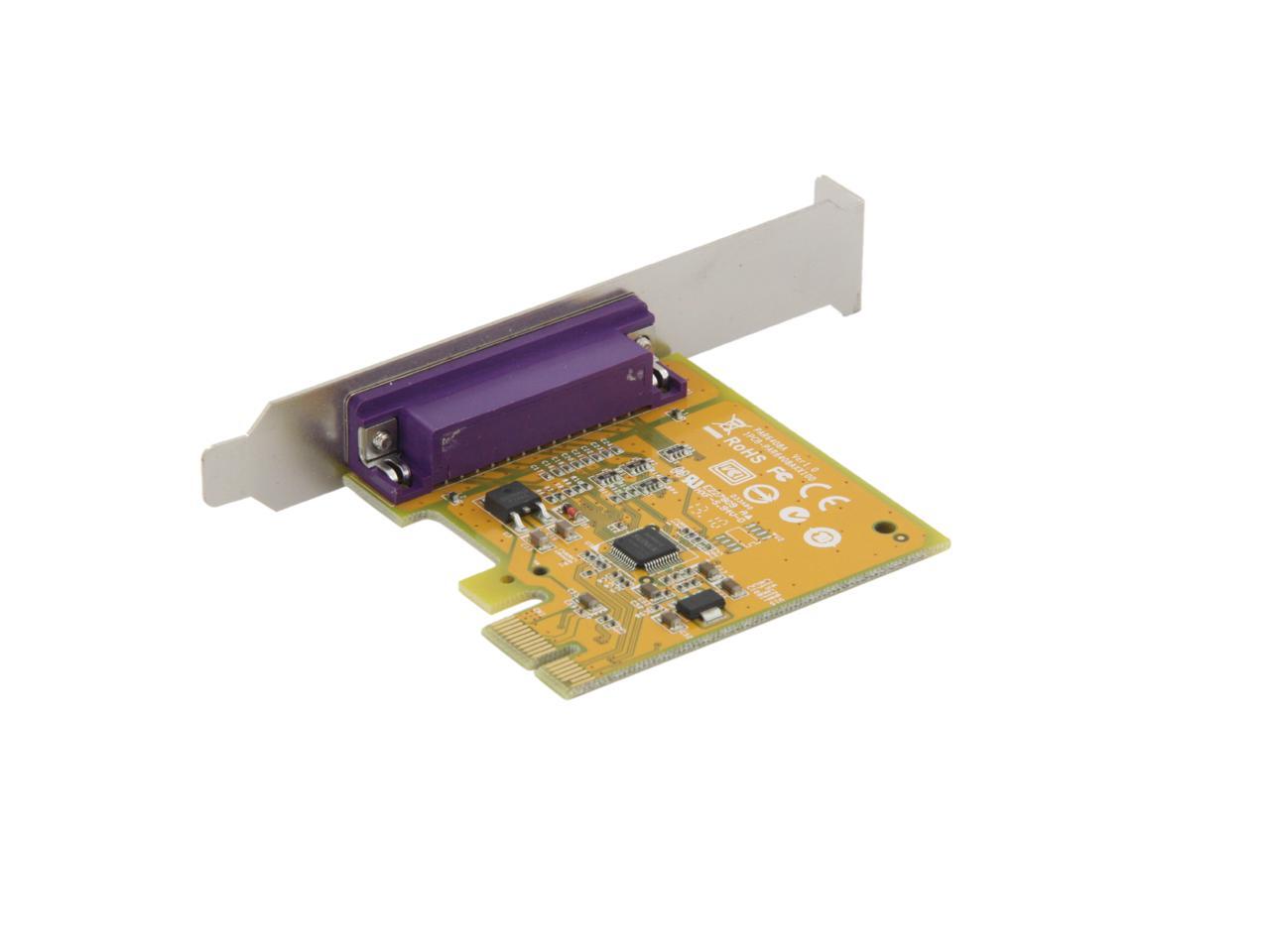

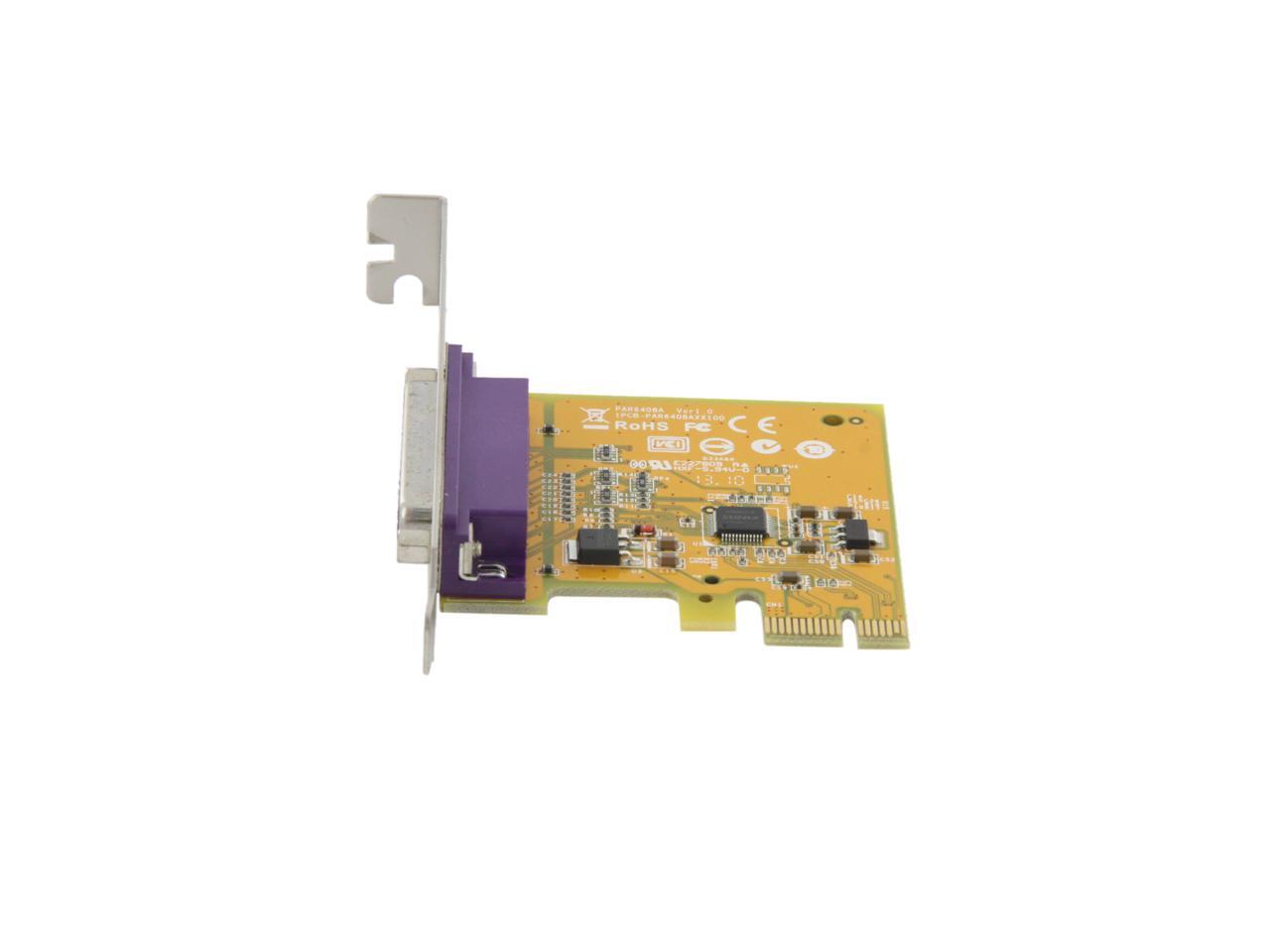

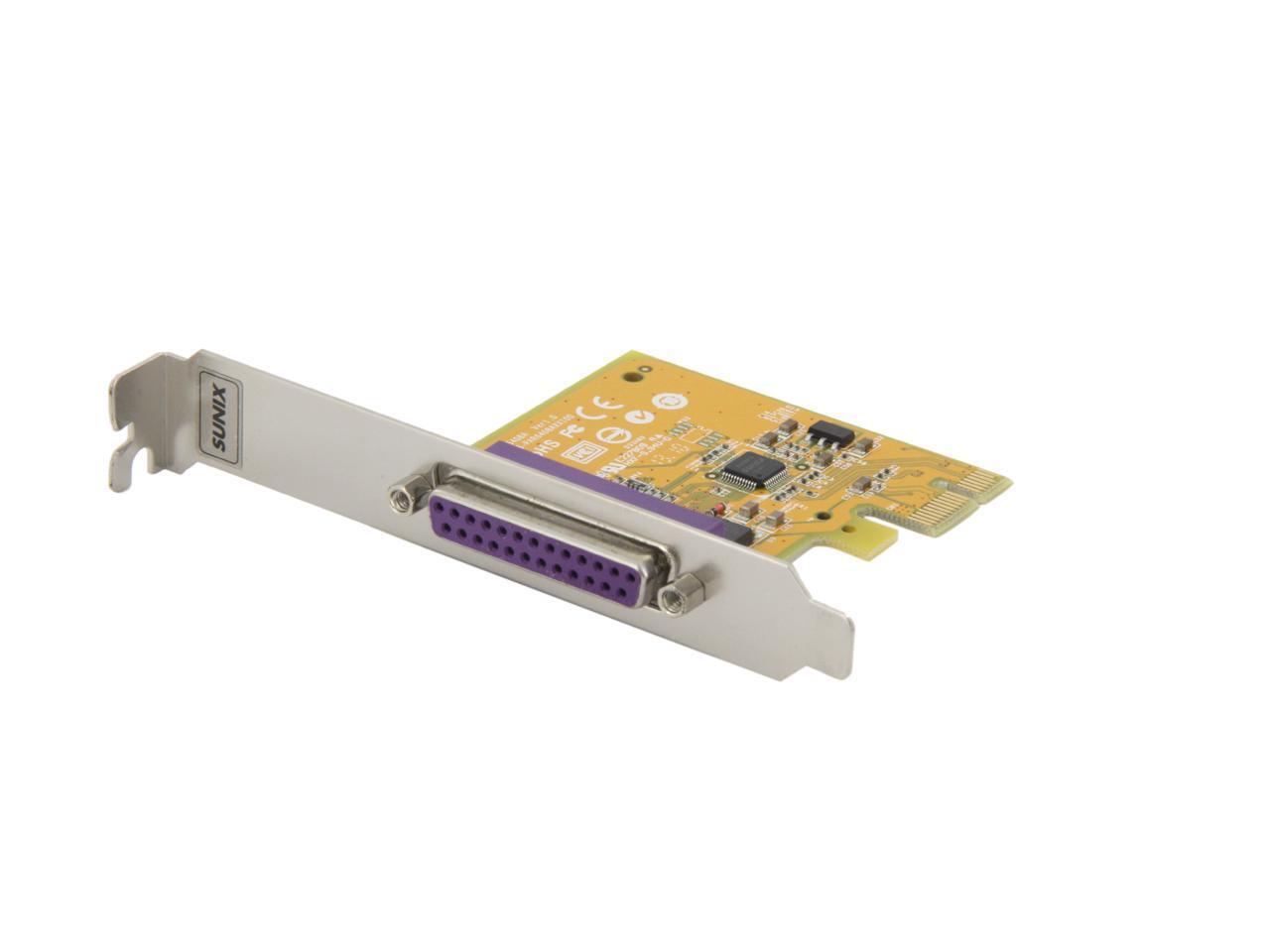

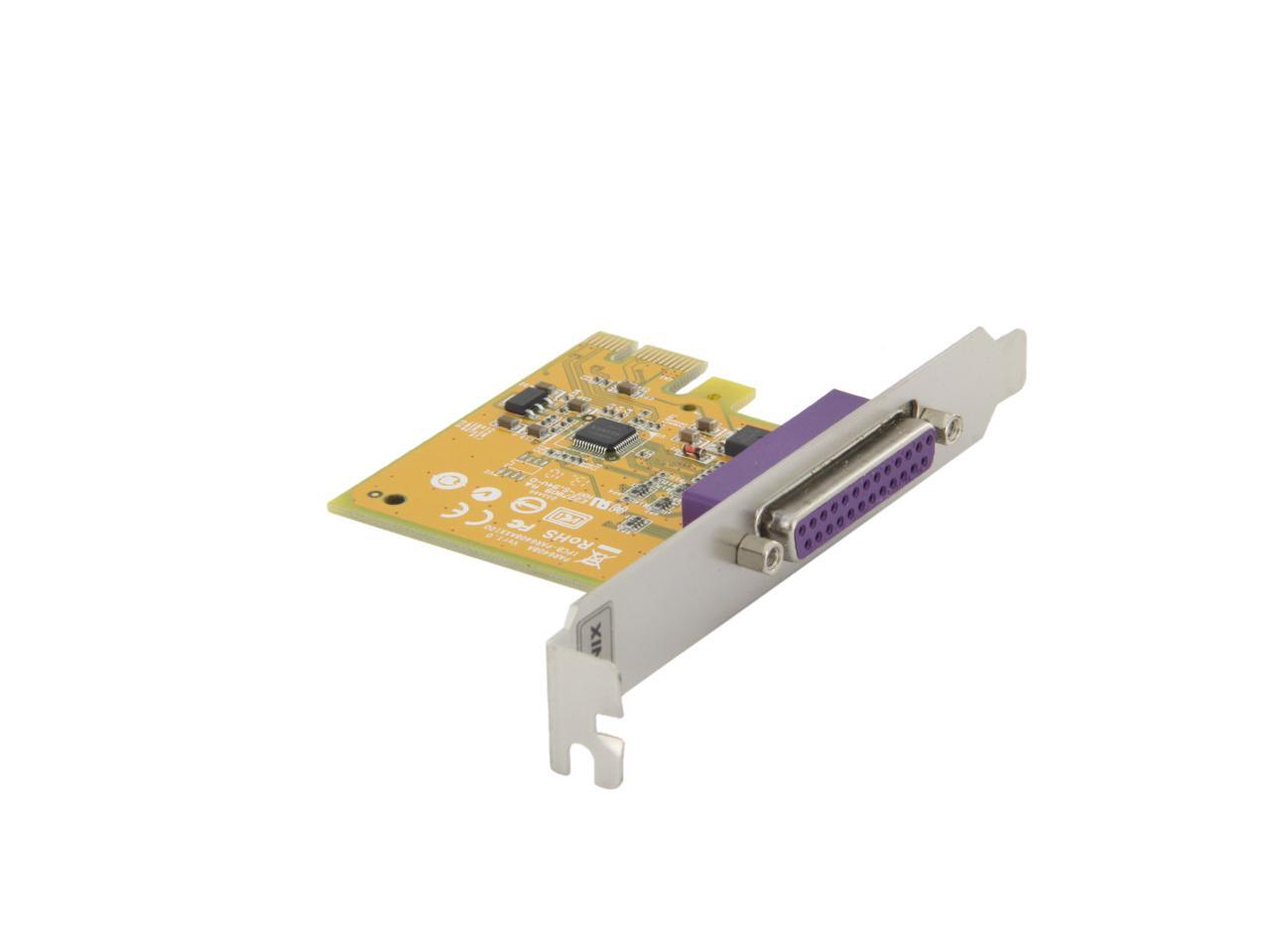

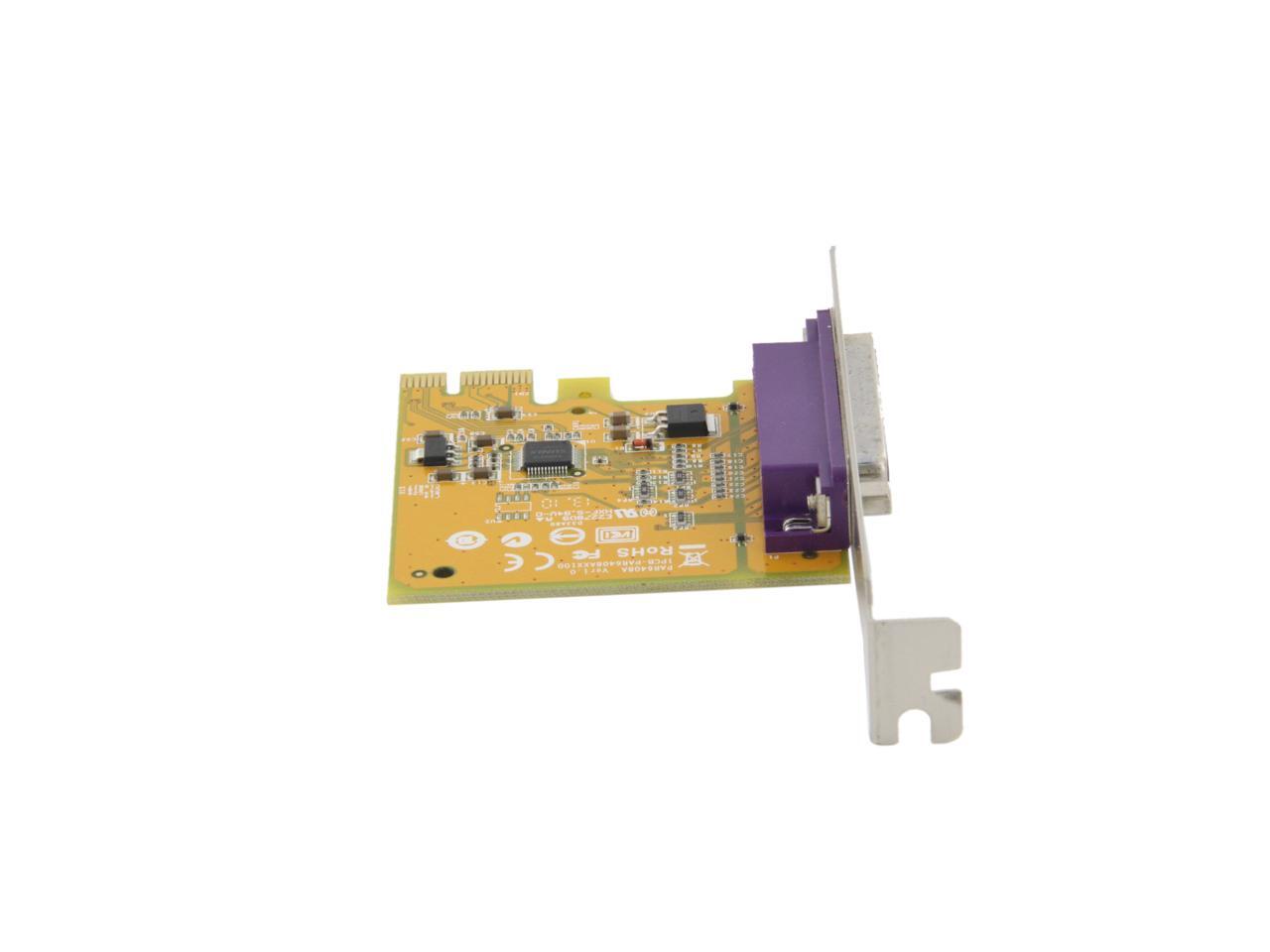

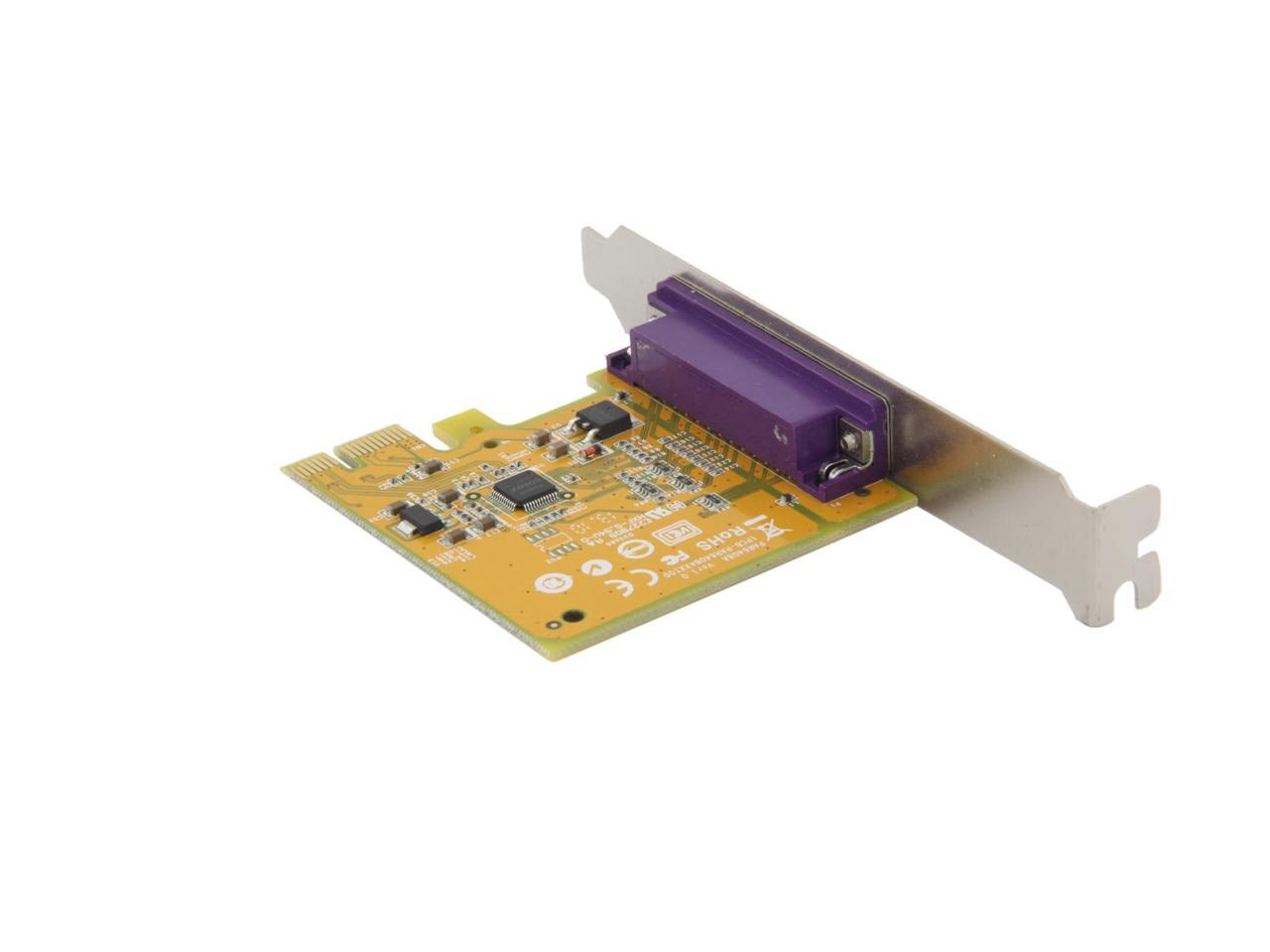

SUNIX 1-port IEEE1284 Parallel PCI Express Board Model PAR6408A+L

(2) Write a Review
Specs
Reviews (2)
See all Q & A

Learn more about the SUNIX PAR6408A+L

Model
Brand SUNIX
Model PAR6408A+L
Details
Type PCI Express to Parallel Port
Specifications General
-Interface: IEEE1284
-Controller: SUNIX SUN2212
-BUS: PCI Express Spec 2.0, Single-Lane (x1)
-IRQ & IO: Assigned by System

Parallel Communication
-Interface: IEEE1284
-No. of Port: 1-port
-FIFO: 16byte Hardware
-Mode: SPP / ECP / EPP / BPP
-Speed: Maximum 1.8MBps

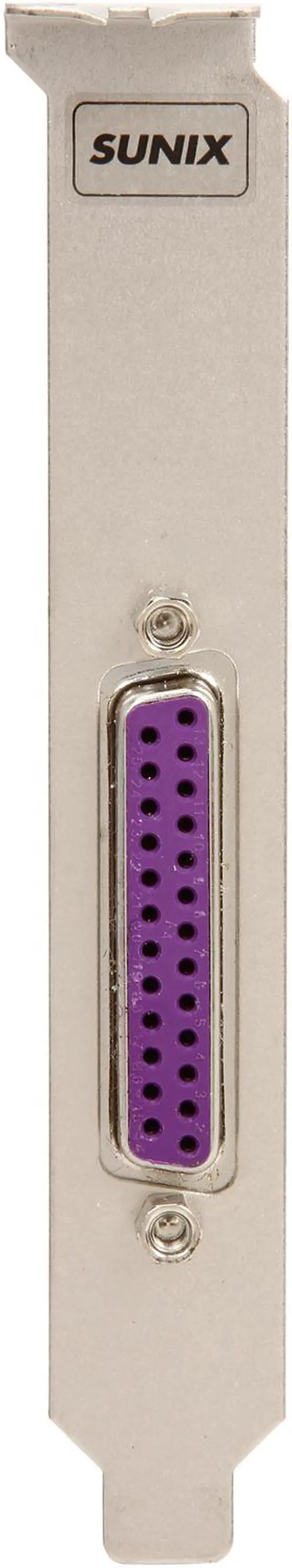

-PCB Connector: DB25 Female

Driver Support
-Windows Client: XP/Vista/7/8/8.1 (X86/X64)
-Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
-Windows Embedded
Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System
-Linux: Linux 2.4.x/2.6.x/3.x
-DOS: DOS

Regulatory Approvals
-Hardware
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
-Software
Microsoft WHQL Windows
Windows Client: XP/Vista/7/8/8.1 (X86/X64)
Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)
Features
Features Expands single IEEE1284 Parallel LPT port on system.

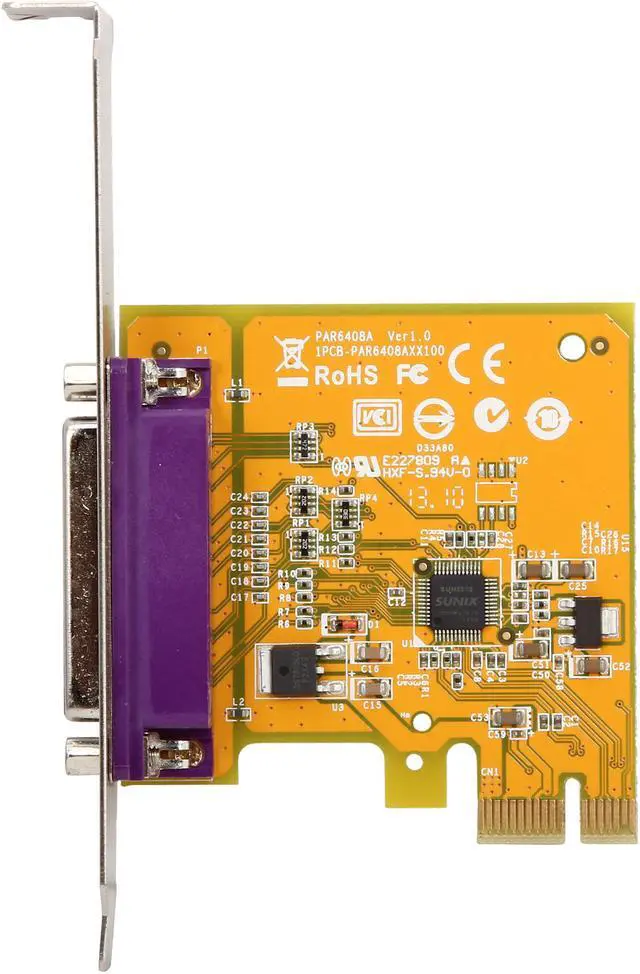

High reliable SUNIX SUN2212 native PCI Express IEEE1284 controller on-board.

Designed to meet PCI Express Base Specification Revision 2.0.

Full single-lane (or x1) PCI Express throughput.

Support IEEE 1284-1994 parallel port standard
-ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
-SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).

Plug-n-Play, I/O address and IRQ assigned by system.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.
Dimensions & Weight

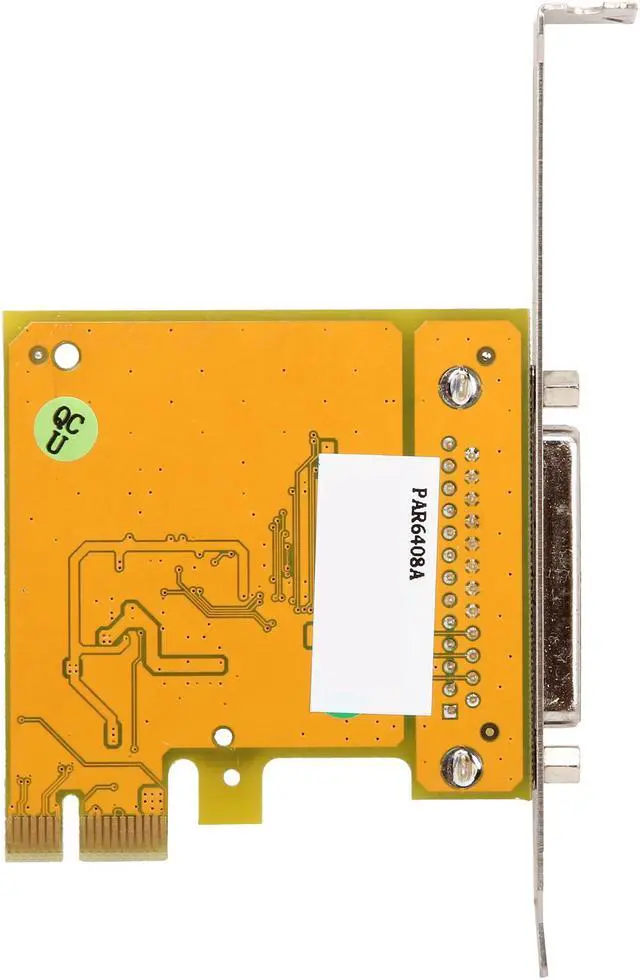

Dimensions PCB Dimension: 65 x 69 mm
Bracket: Standard 121 mm
Additional Information
First Listed on Newegg February 24, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
