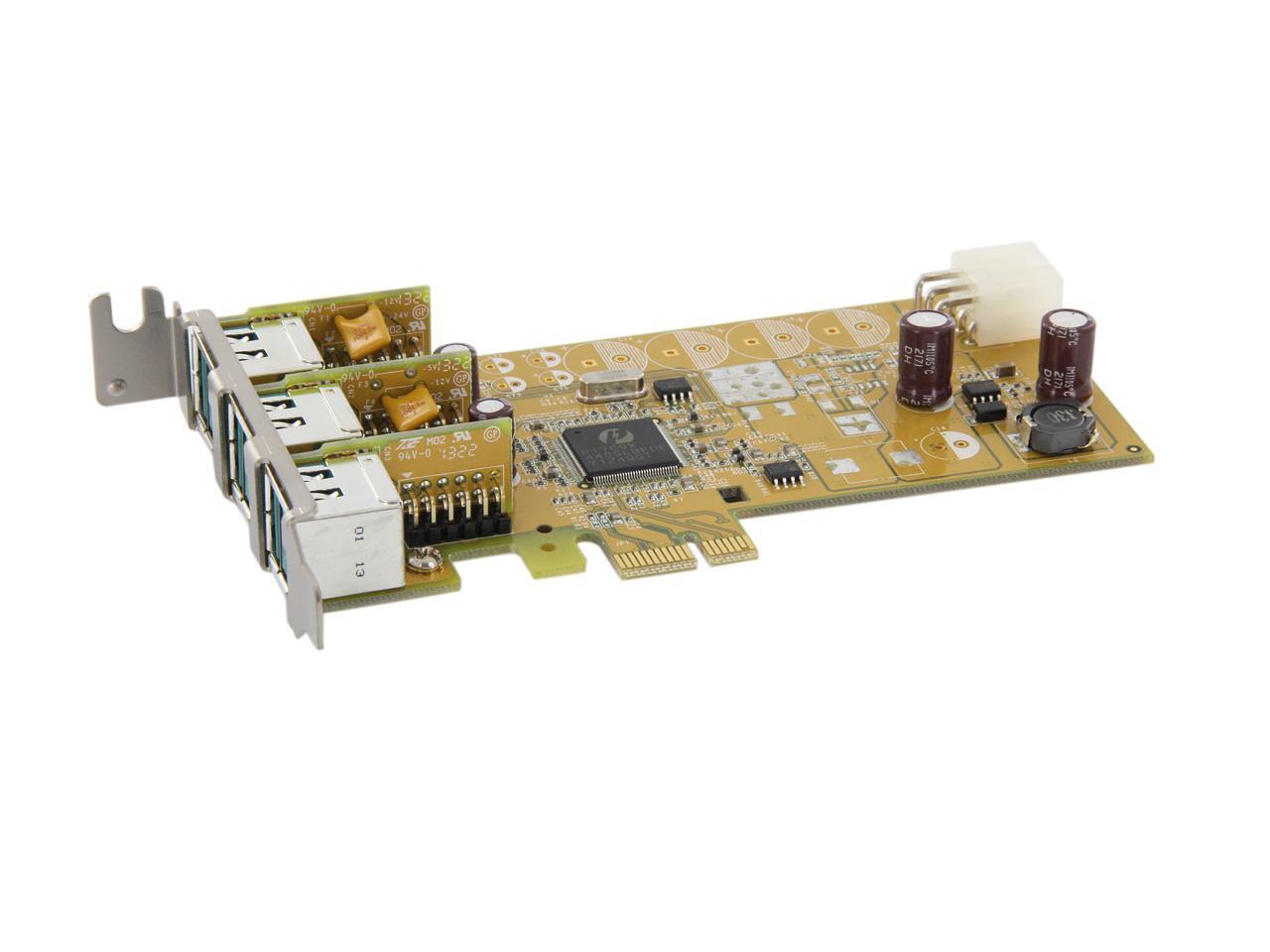

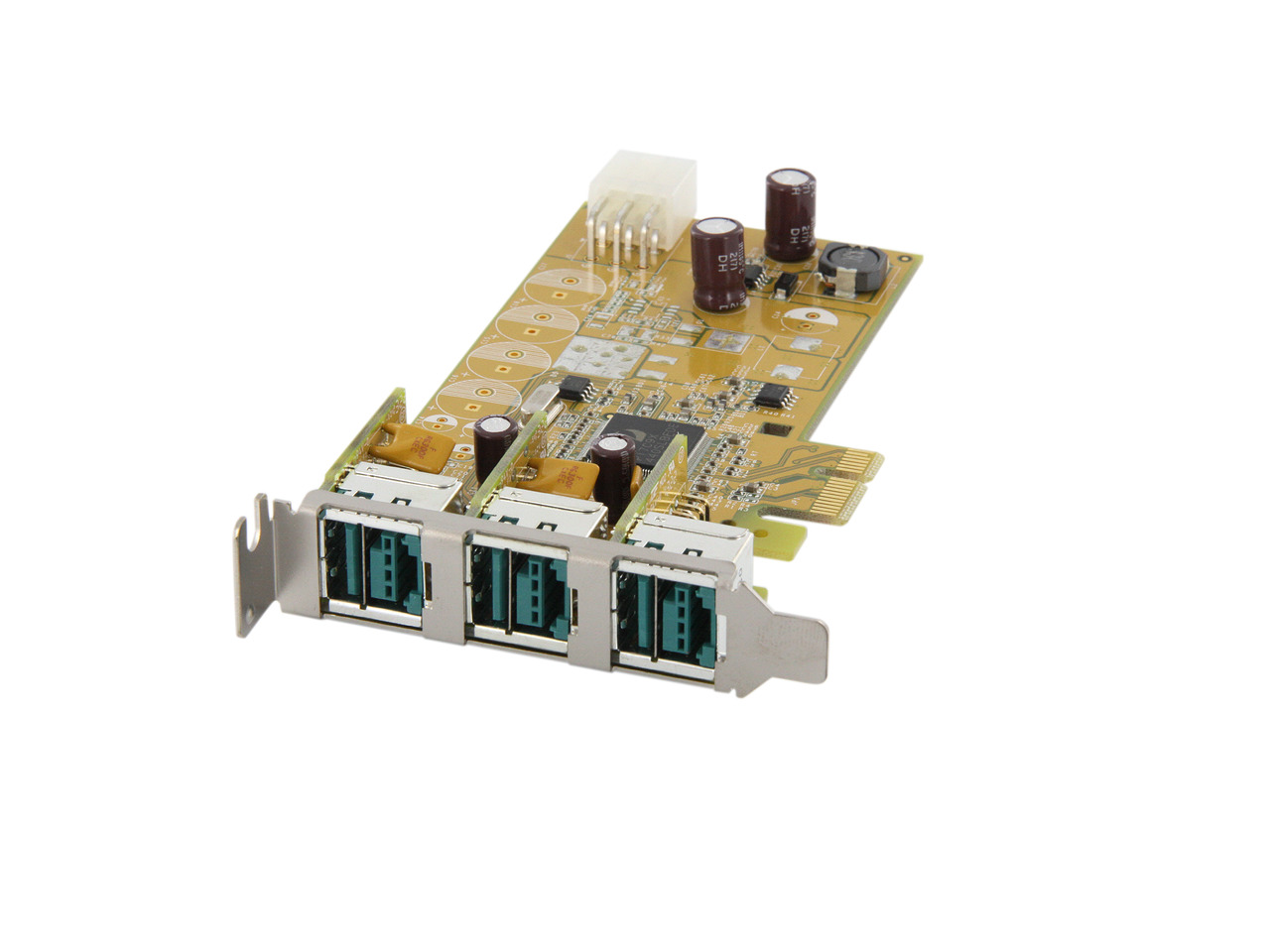

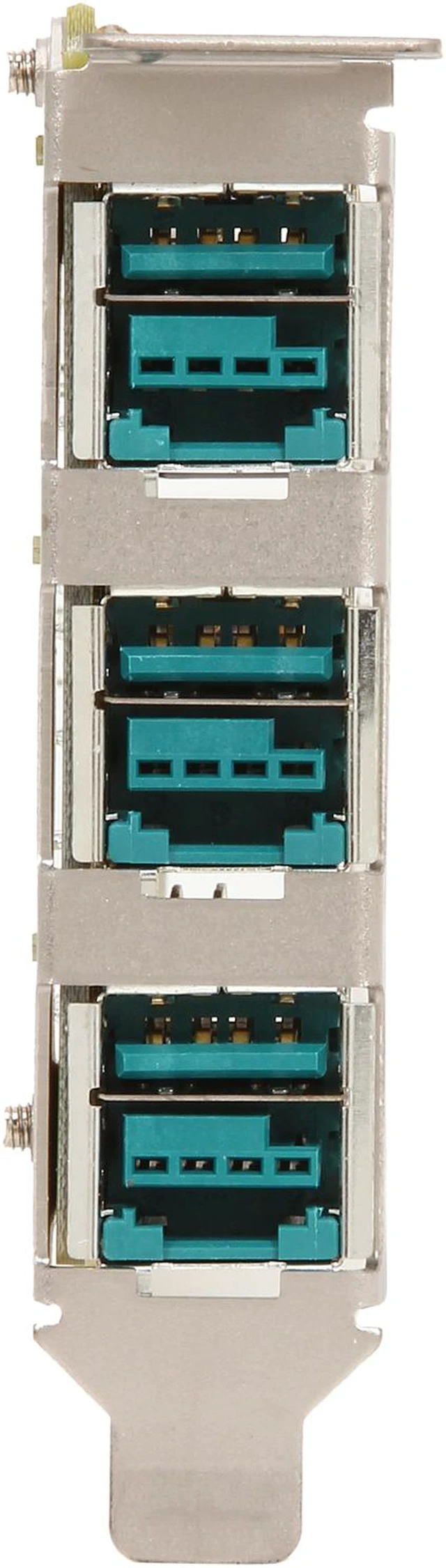

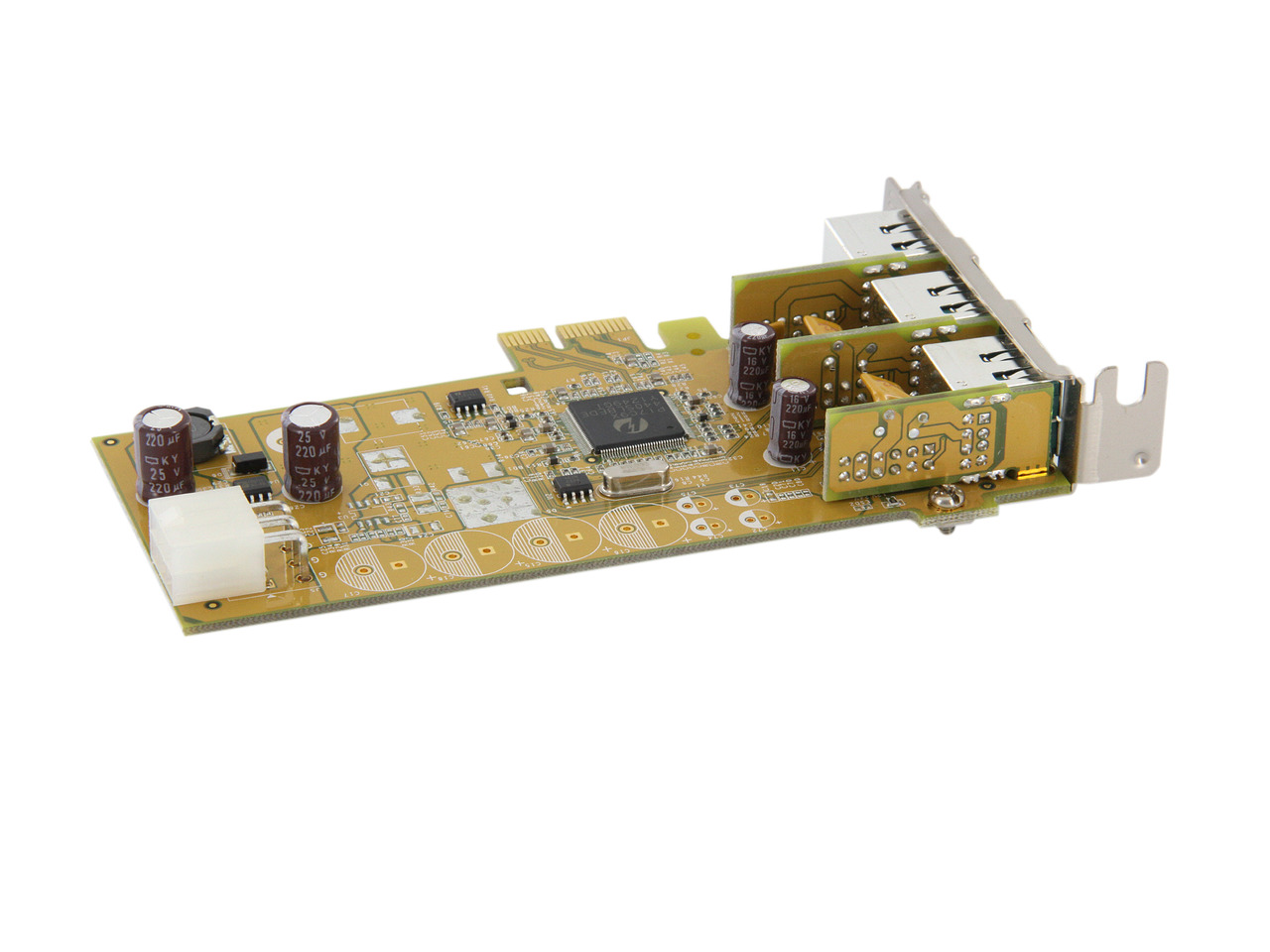

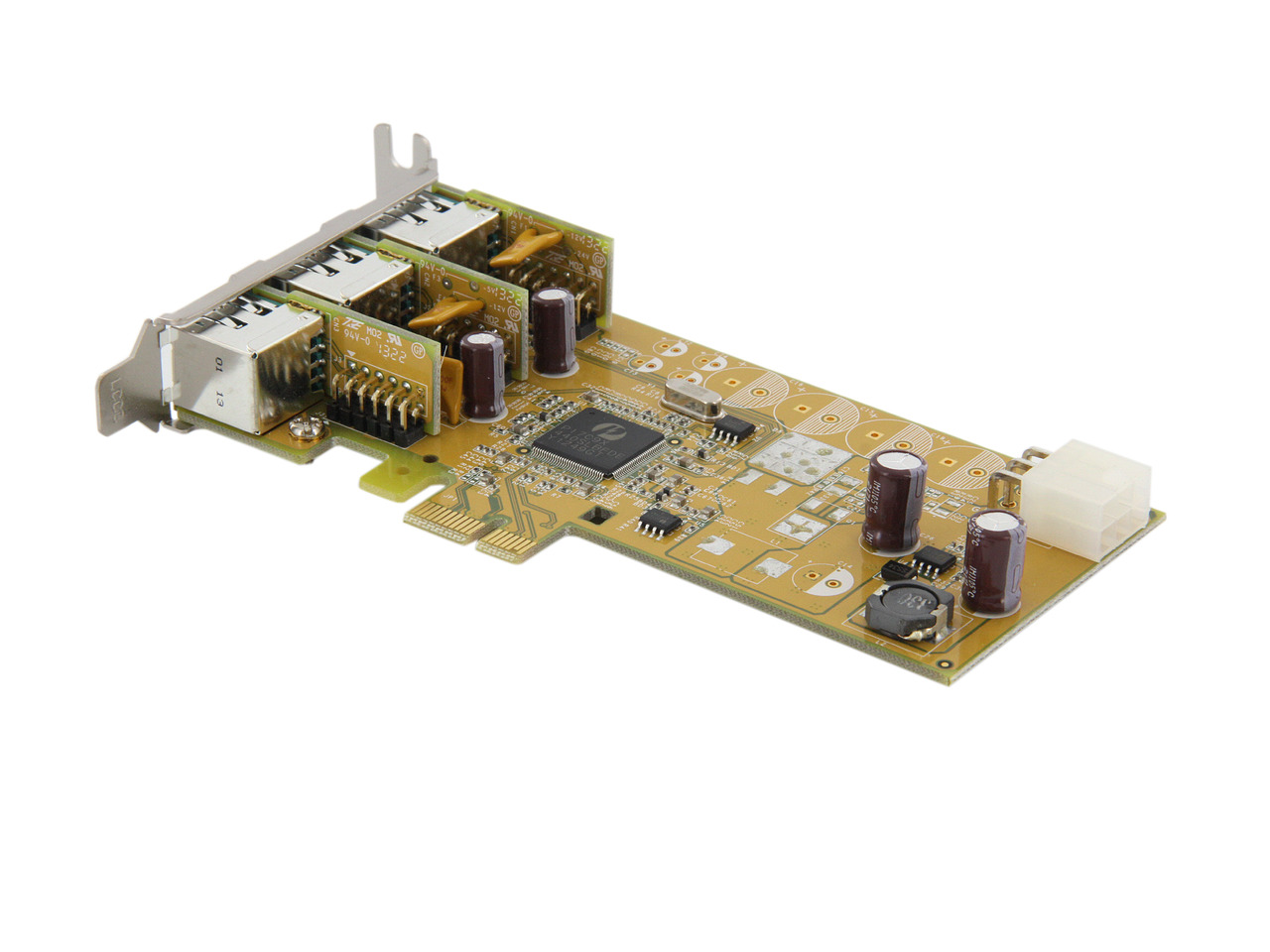

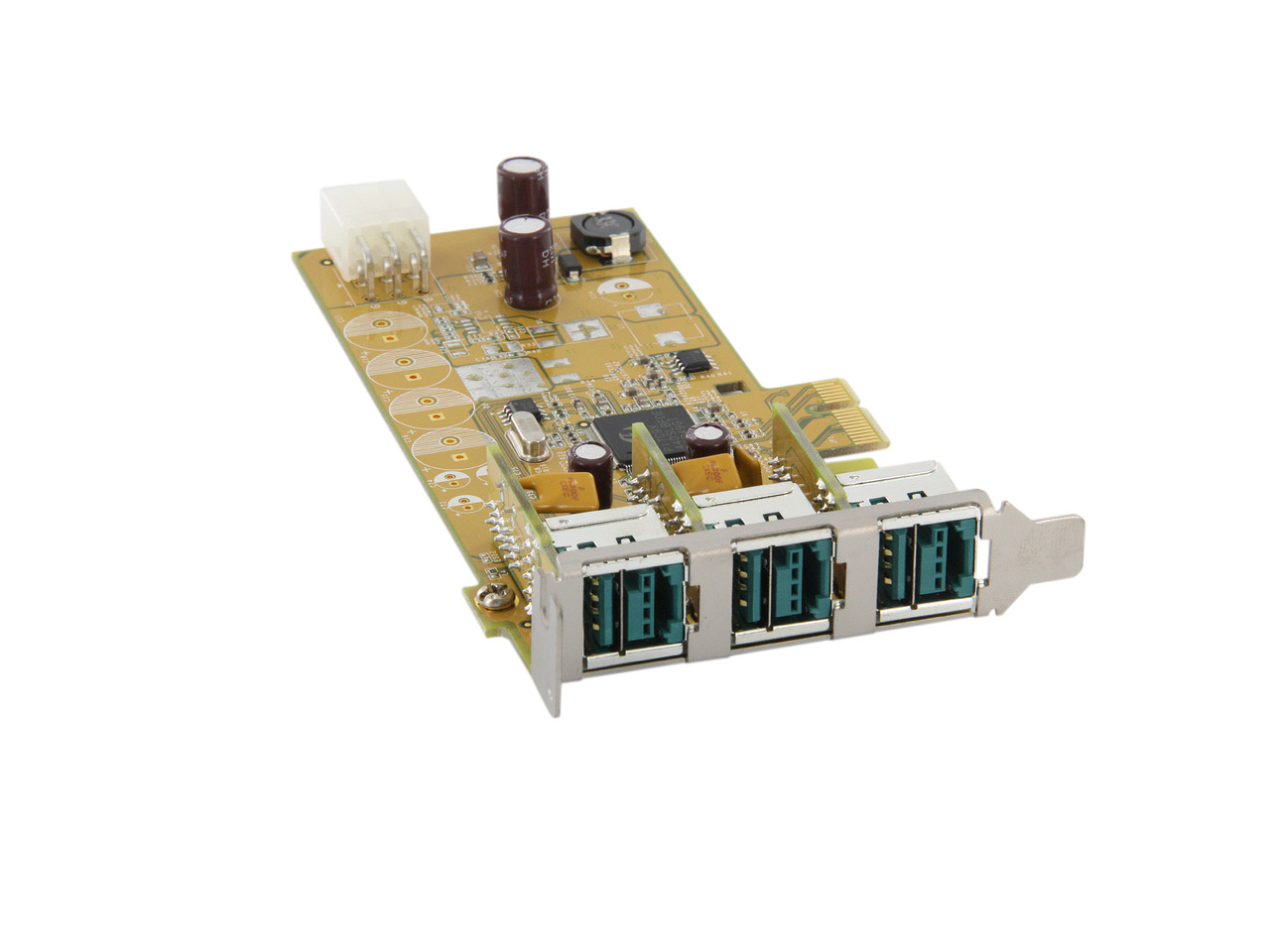

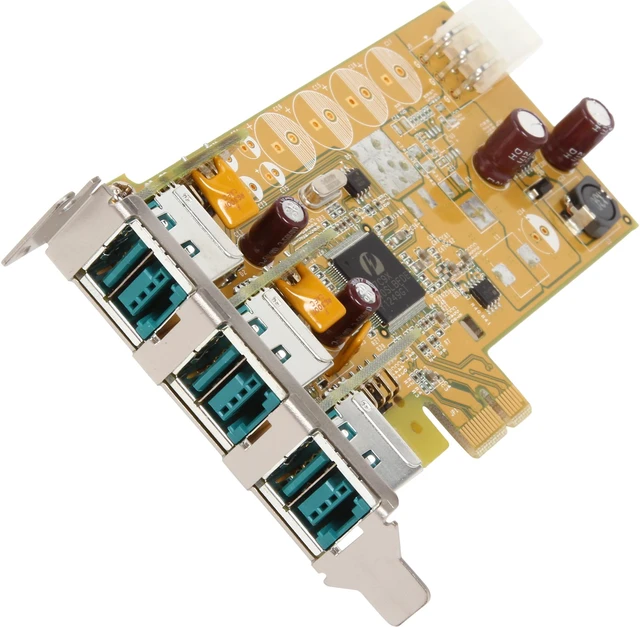

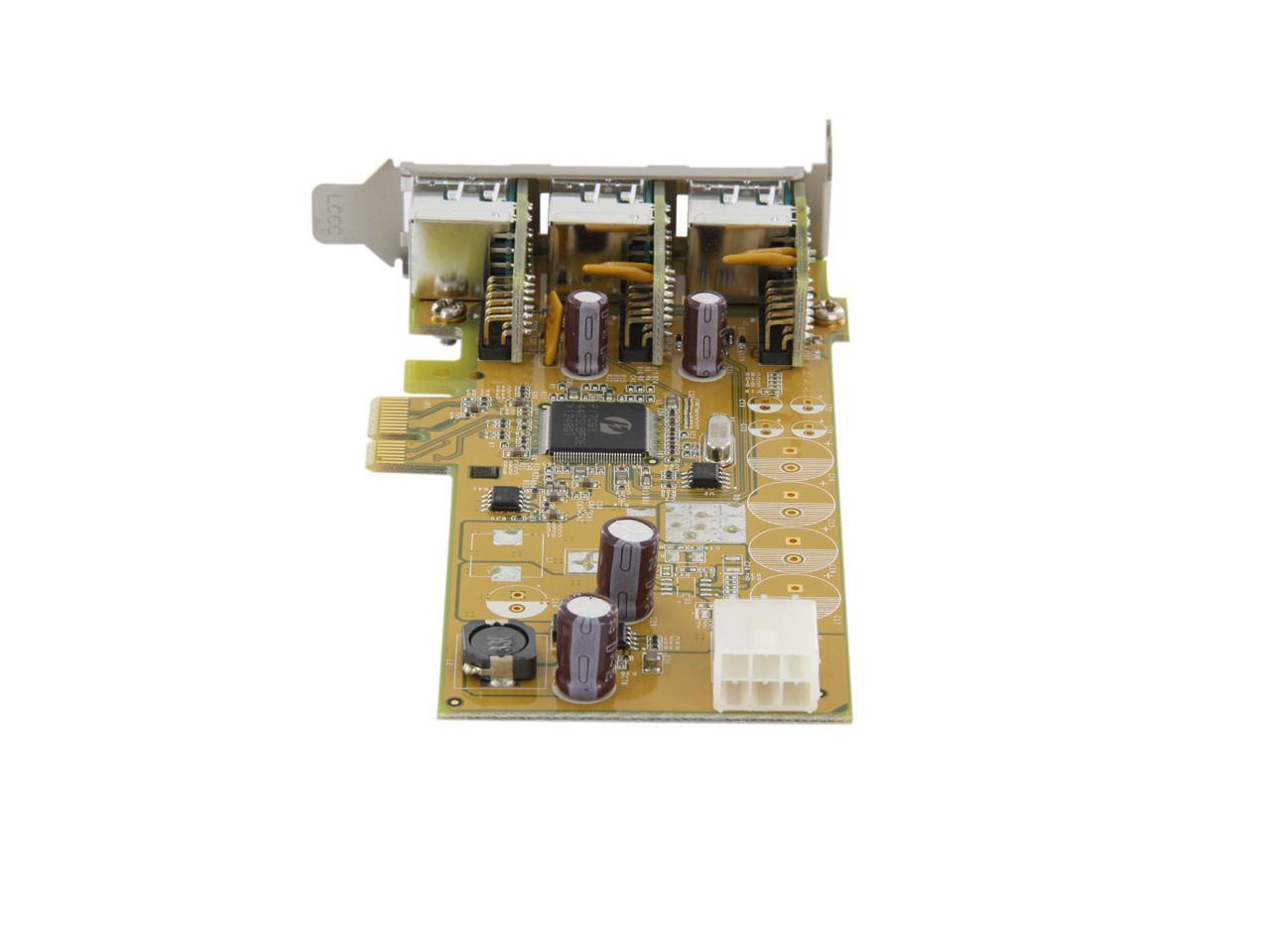

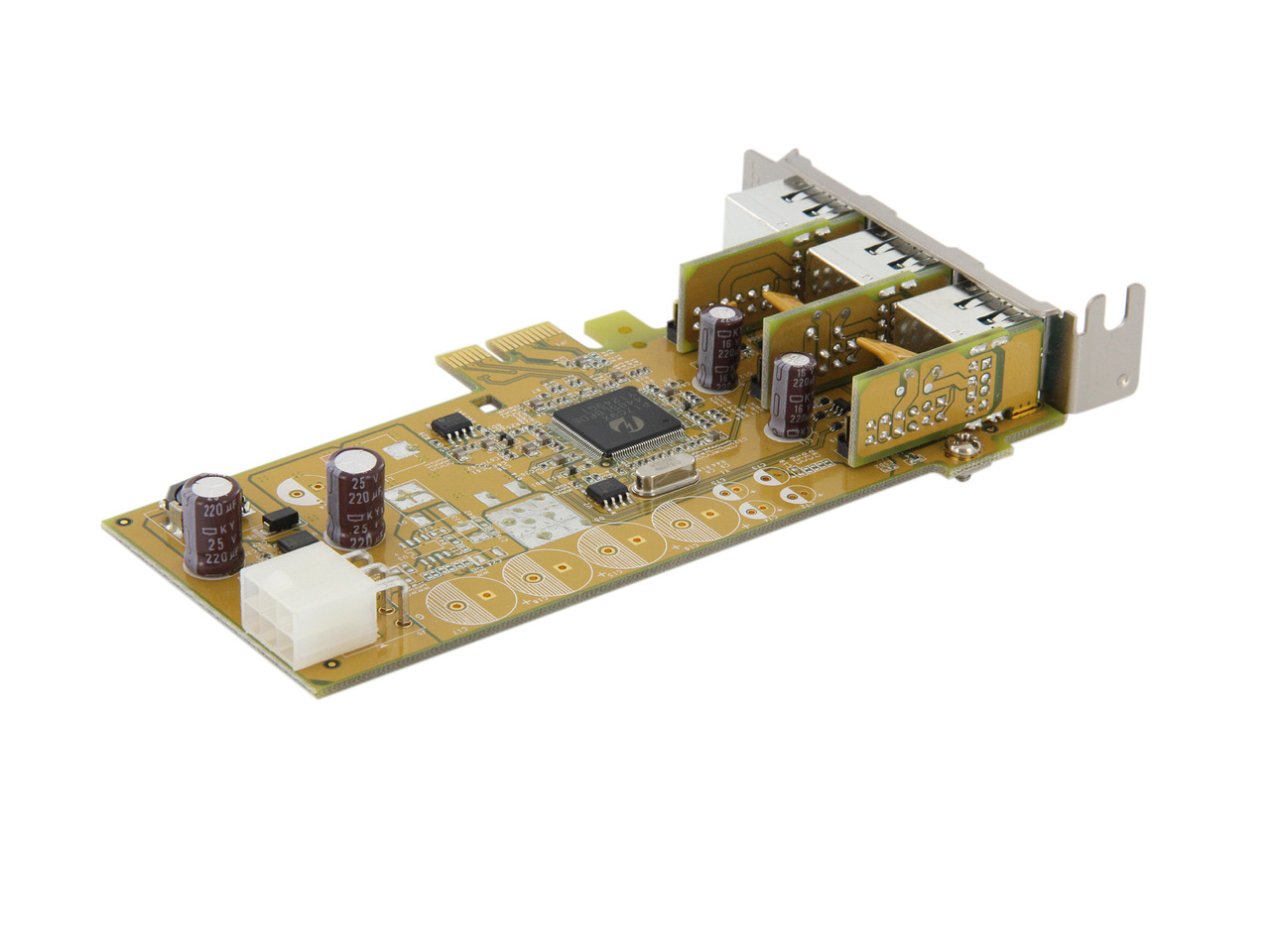

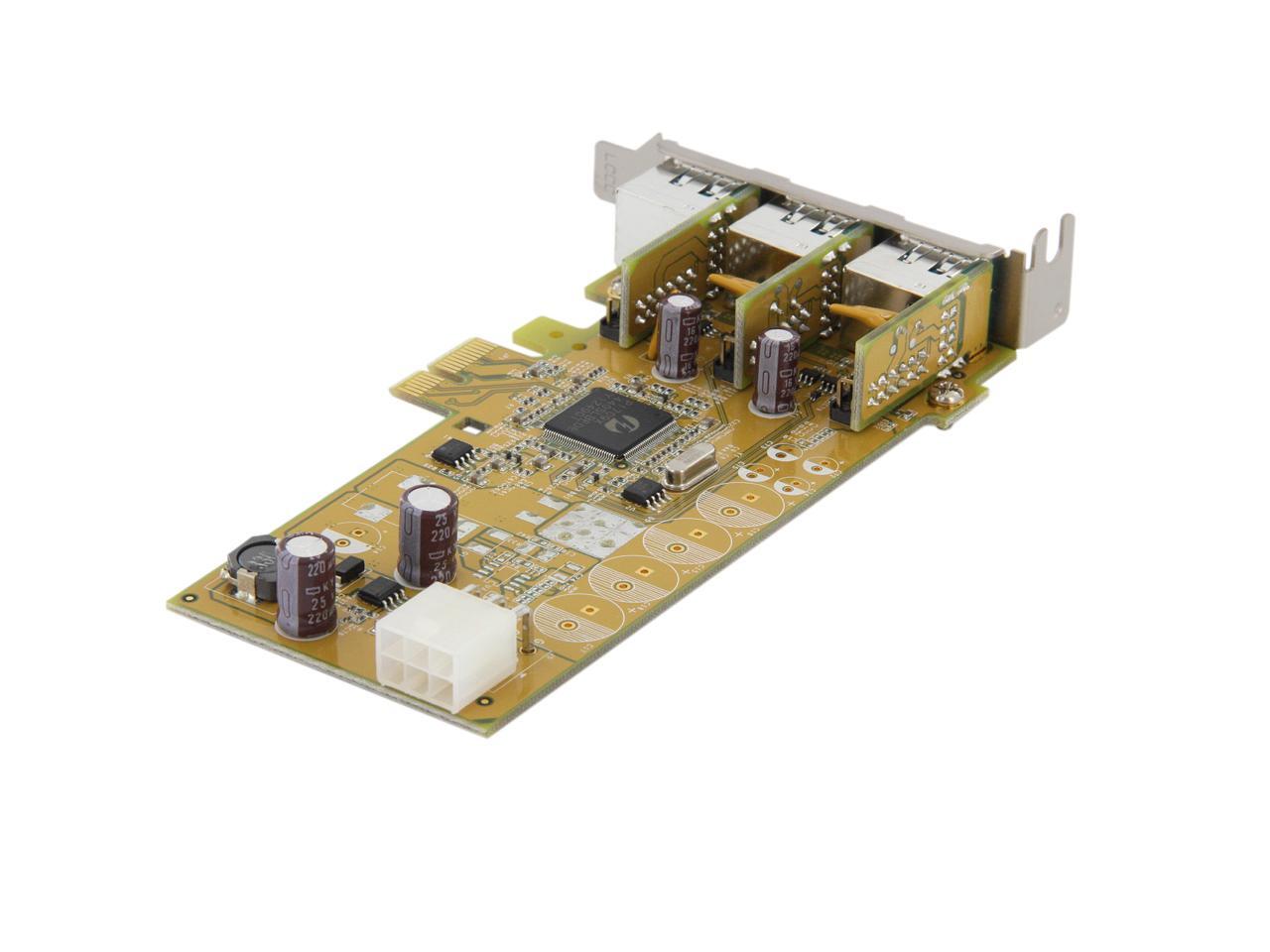

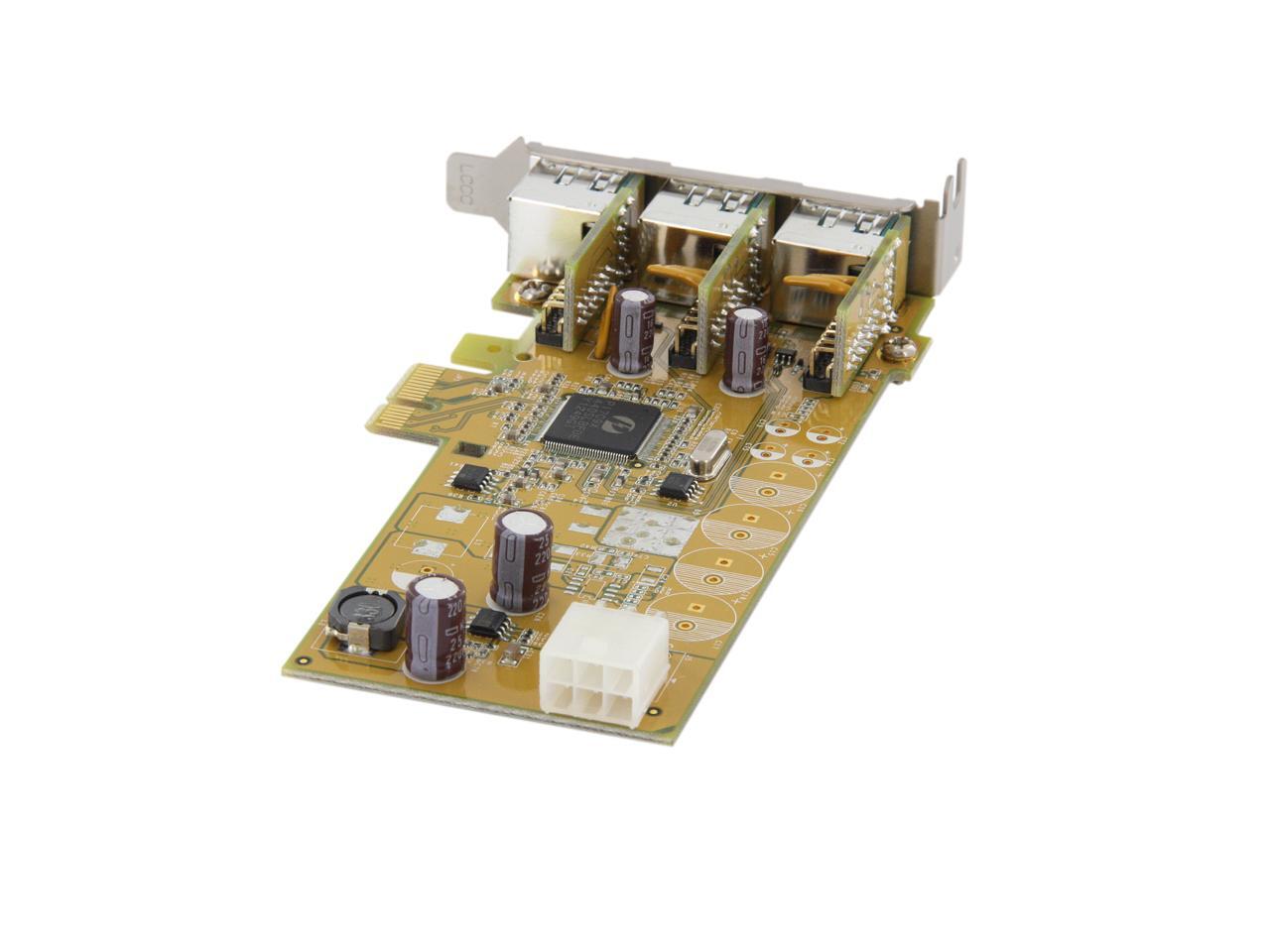

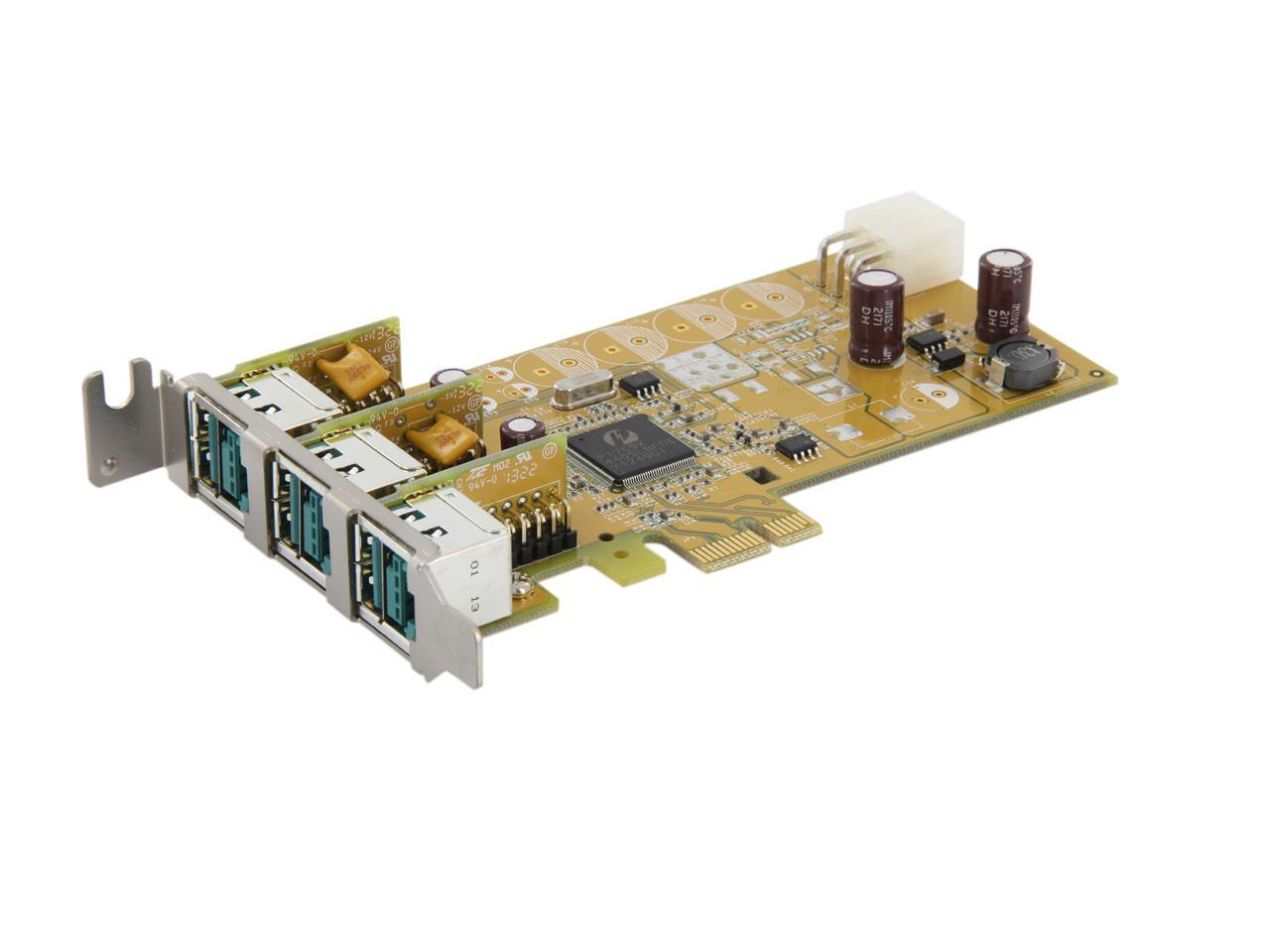

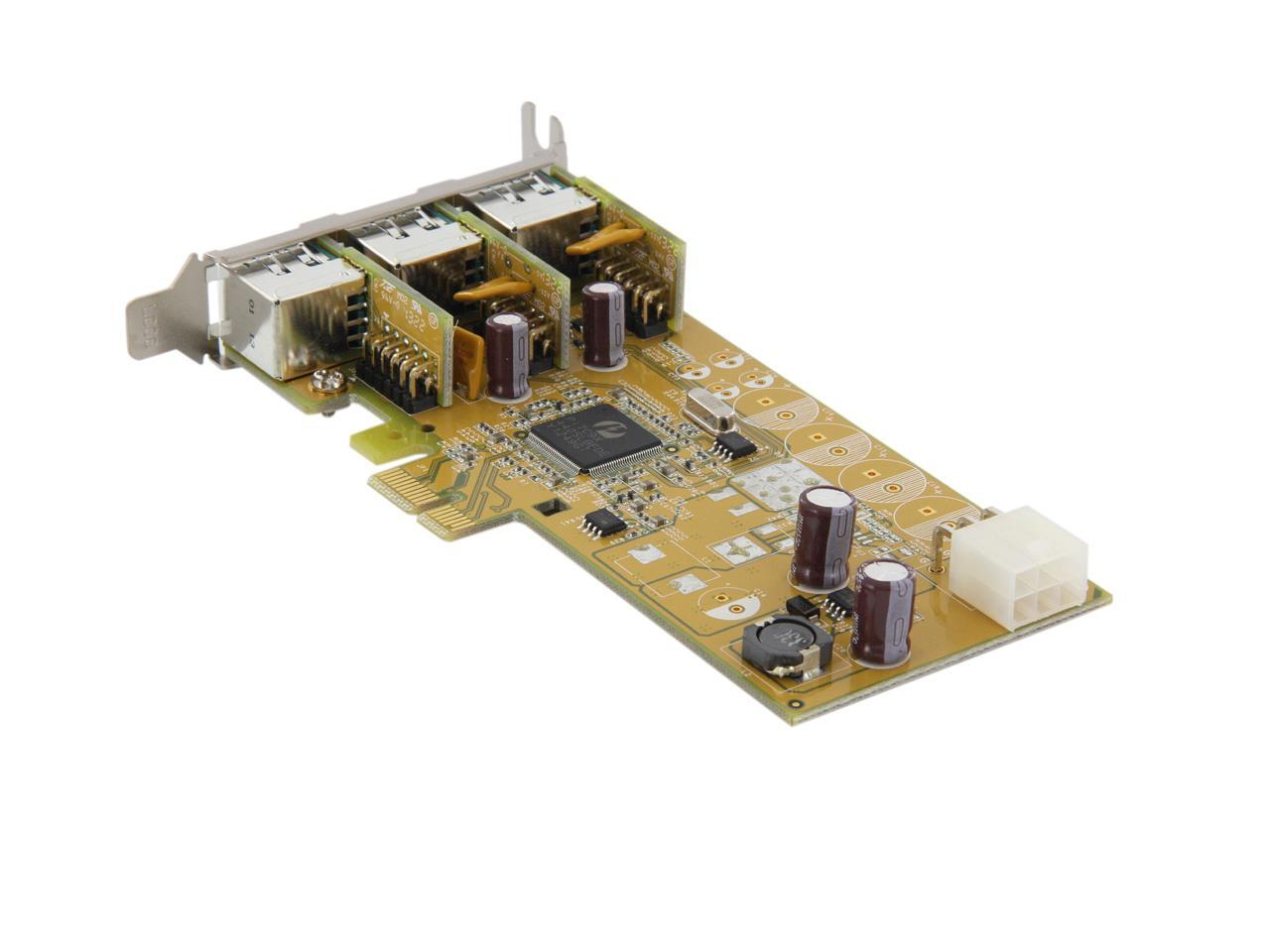

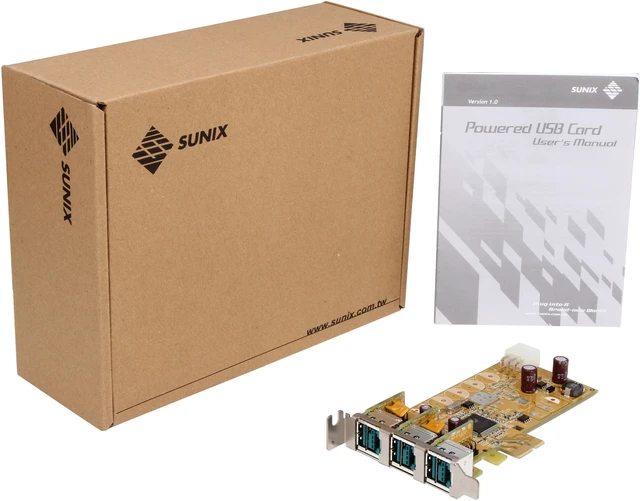

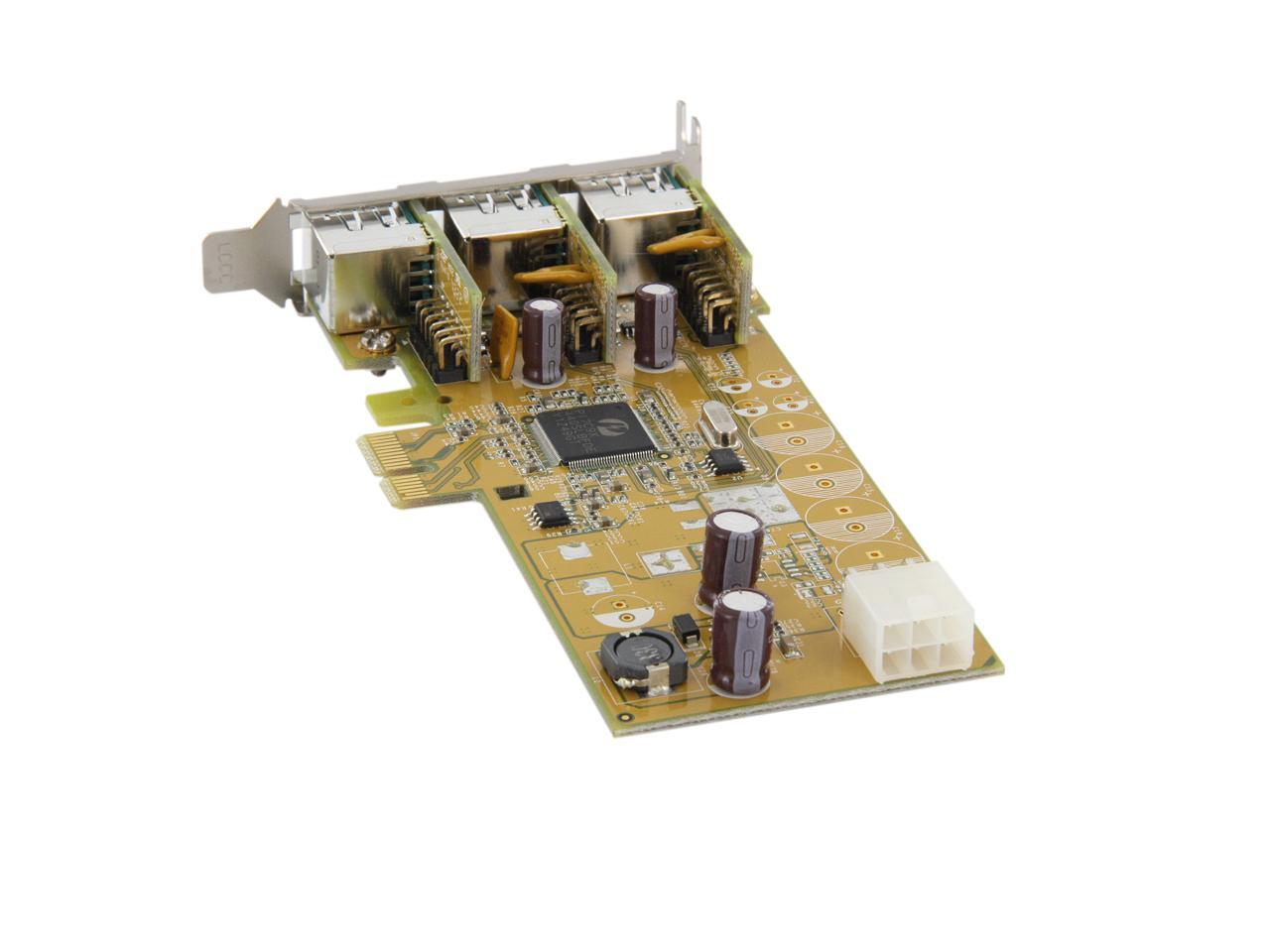

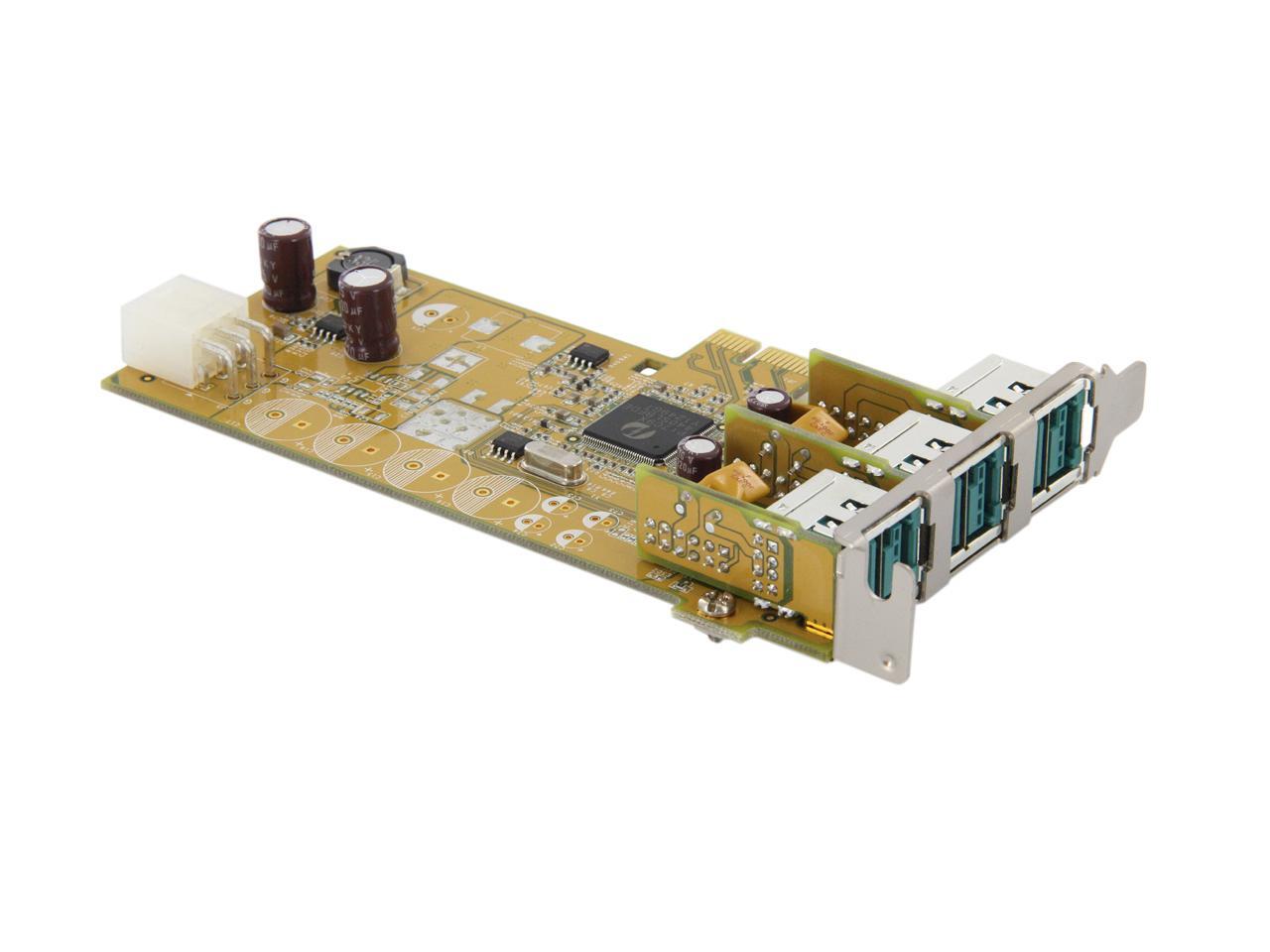

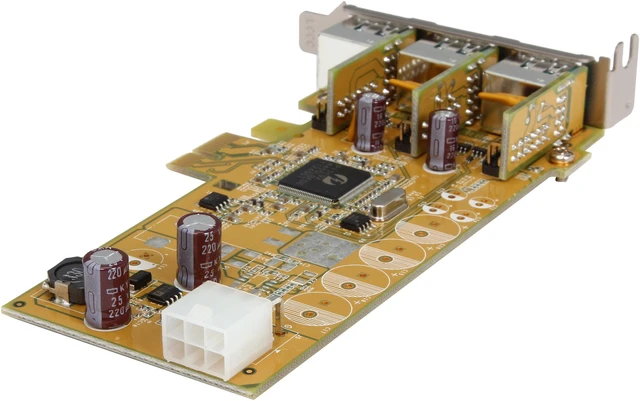

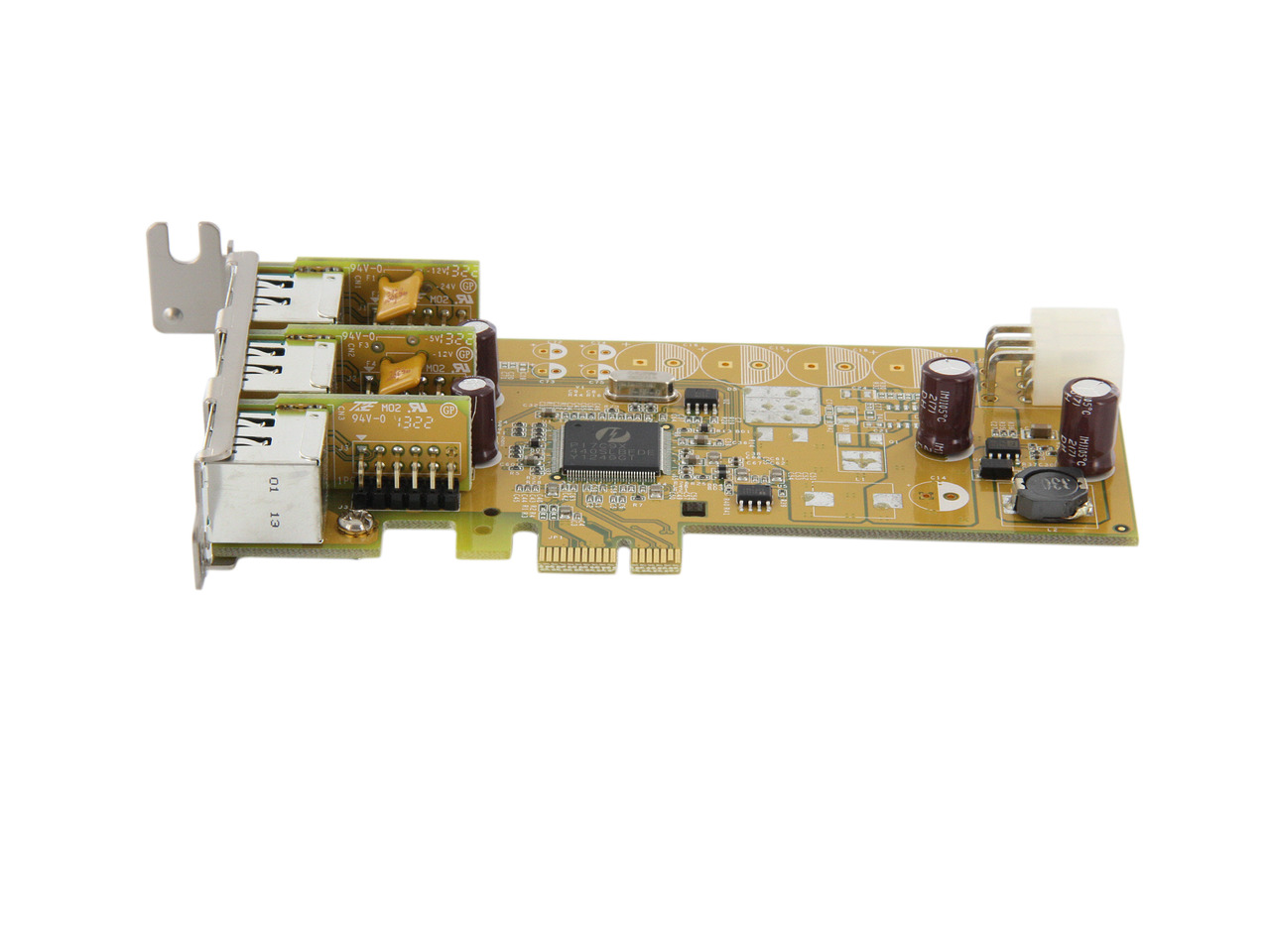

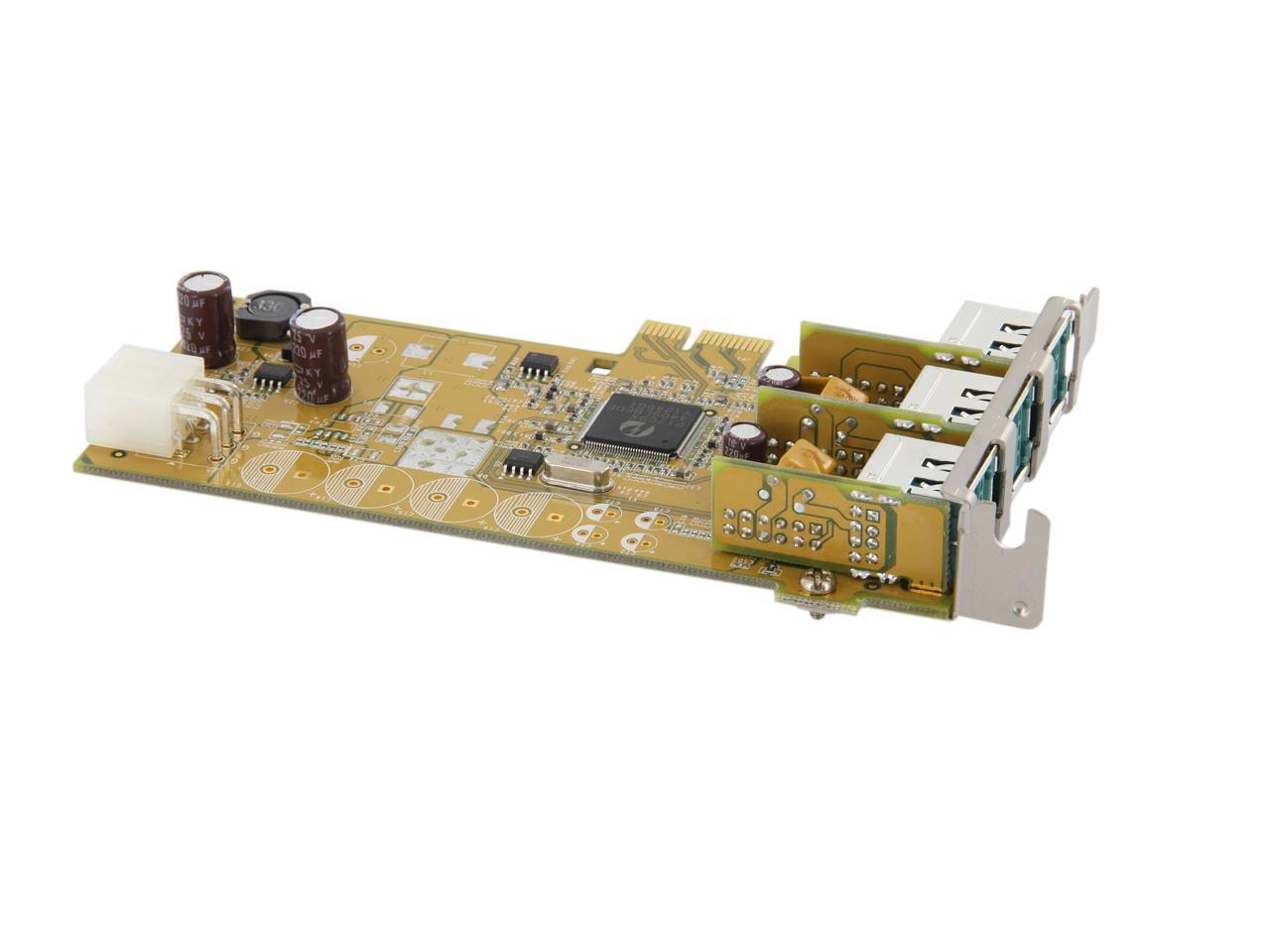

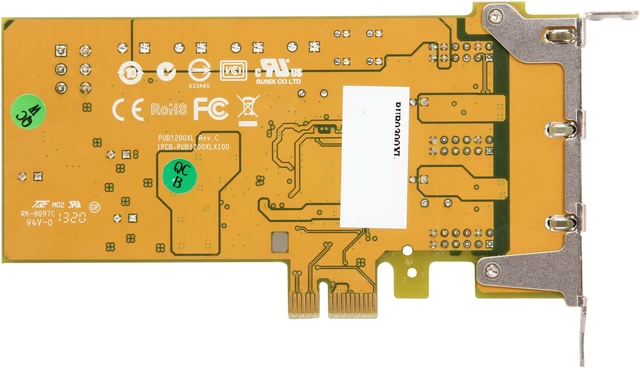

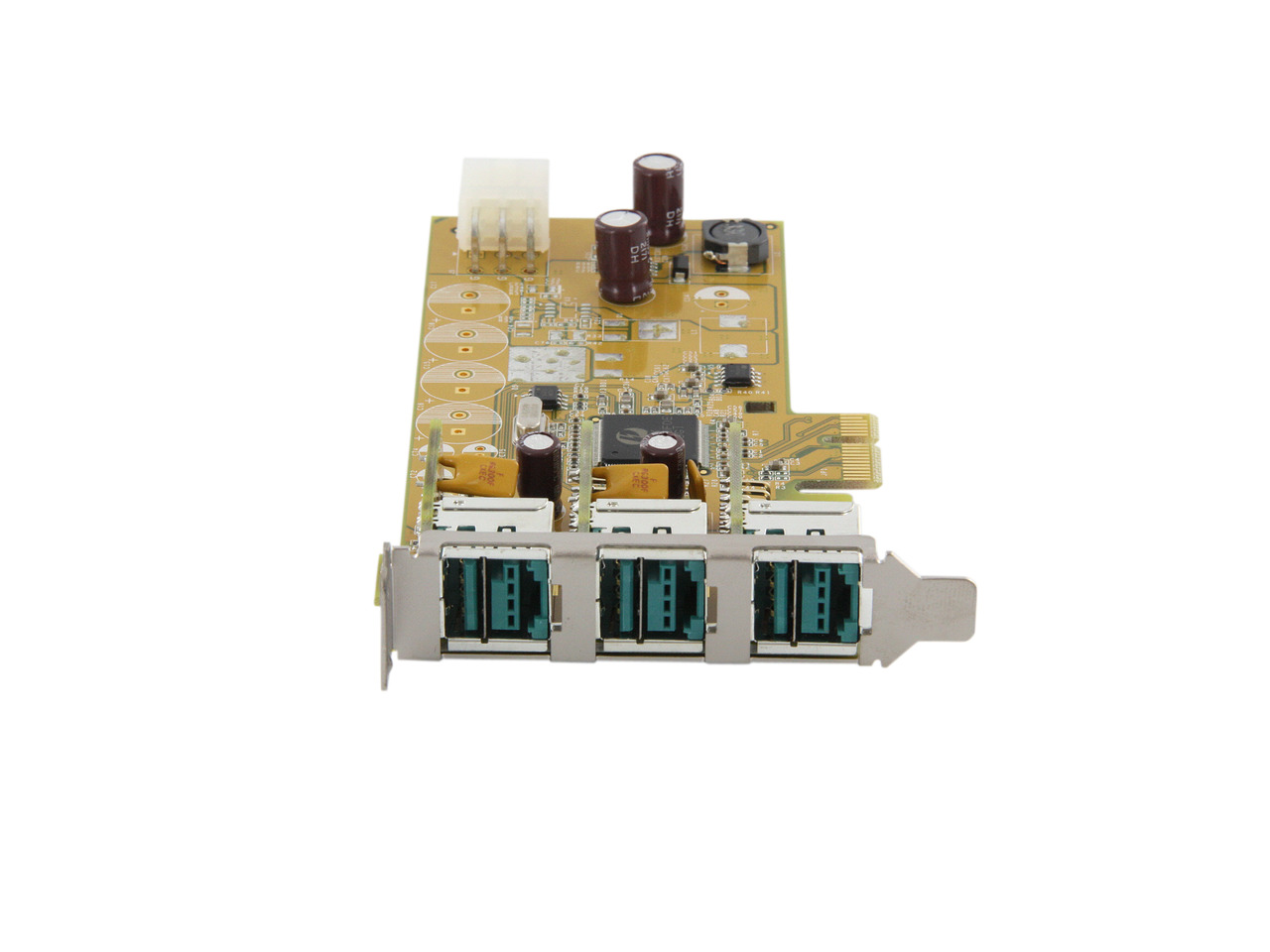

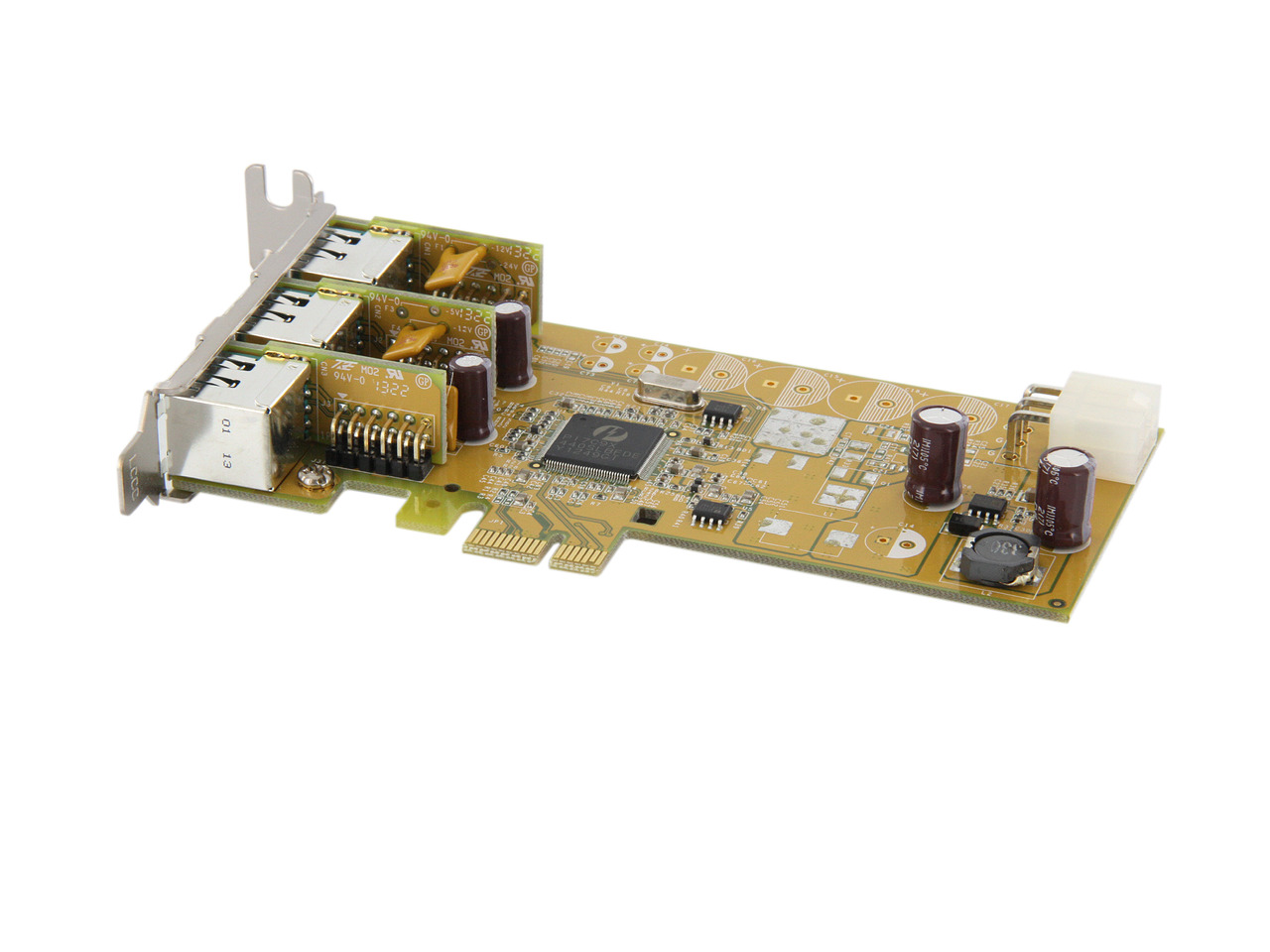

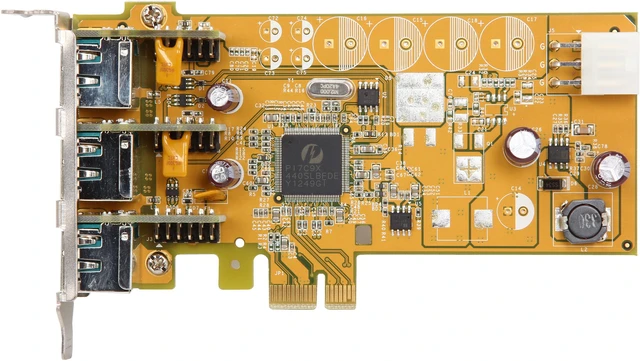

SUNIX 3-port 12V Powered USB PCI Express Low Profile Add-On Card Model PUB0300XL

Be the first to review this product...
  • PCI Express to USB Card
  • USB 2.0
  • 480/12/1.5 Mbps Data Transfer Rate
Specs
Reviews
avatar

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the SUNIX PUB0300XL

Model
Brand SUNIX
Model PUB0300XL
Details
Type PCI Express to USB Card
External USB Ports 3 x USB 2.0
Standard USB 2.0
Data Transfer Rate 480/12/1.5 Mbps
Operating Systems Supported Microsoft Client: XP / Vista / 7 / 8 (X86/X64)
Microsoft Server: 2000 / 2003 / 2008 / 2008R2 / 2012 (X86/X64)
Microsoft Embedded: XP Embedded / POS Ready 2009 / Embedded System
Linux: Linux 2.4.x / 2.6.x /3.x
Specifications BUS: PCI Express Spec 1.1, Single-Lane (x1)

Controller: PCI Express USB2.0 Host controller, PI7C9X440SL

Protection:
+/-15KV ESD protection for each signal Human Body Model (HBM)
+/-15KV IEC61000-4-2 Air Gap Discharge
+/-8KV IEC61000-4-2 Contact Discharge
DELL M6403_A09 Direct Pin Injection

Power:
-Source: +12VDC / PCIe GFx power connector 2x3 Type
-Output Capacity:
Standard USB2.0 Port: +5VDC / Maximum 0.5A / each port
Powered USB Port: +12VDC / Maximum 3.0A / each port
Note: Total power output capacity will be limited by system power supply.
Over Current Protection:
Standard USB2.0 Port: +5VDC / Share Maximum 2.0A / 3-port total
Powered USB Port: +12VDC / 3.0A@16V PTC fuse / each port
-Power Consumption: 1.1W @ 3.3V (board only without power output to device).
Features
Features Compliance with PCI Express Base Specification Reversion 1.1.
Compliant with the Universal Serial Bus (USB) Specification Revision 2.0
High performance USB2.0 PCI Express host controller on board.
Support 3 external Powered USB ports.
Powered USB port supports +12VDC power output with maximum 3A / per port.
Each Powered USB ports built-in over current protection.
Built-in ESD protection for all serial signals meets IEC61000-4-2 and DELL M6403_A08 standard.
Plug-n-Play, I/O address and IRQ assigned by operating system.
Support USB device Hot-Swapping and Plug-n-Play function.
Low profile bracket design idea for slim or portable PC.
Certified by RoHS CE, FCC ClassB approval.
Support Linux, Microsoft 2000, XP, 2003 Vista, 2008, 7, and 8 (X86/X64) operation system.
Dimensions & Weight
Dimensions PCB Dimension: 130 x 68 mm
Bracket: Low Profile 80 mm
Additional Information
First Listed on Newegg January 20, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
