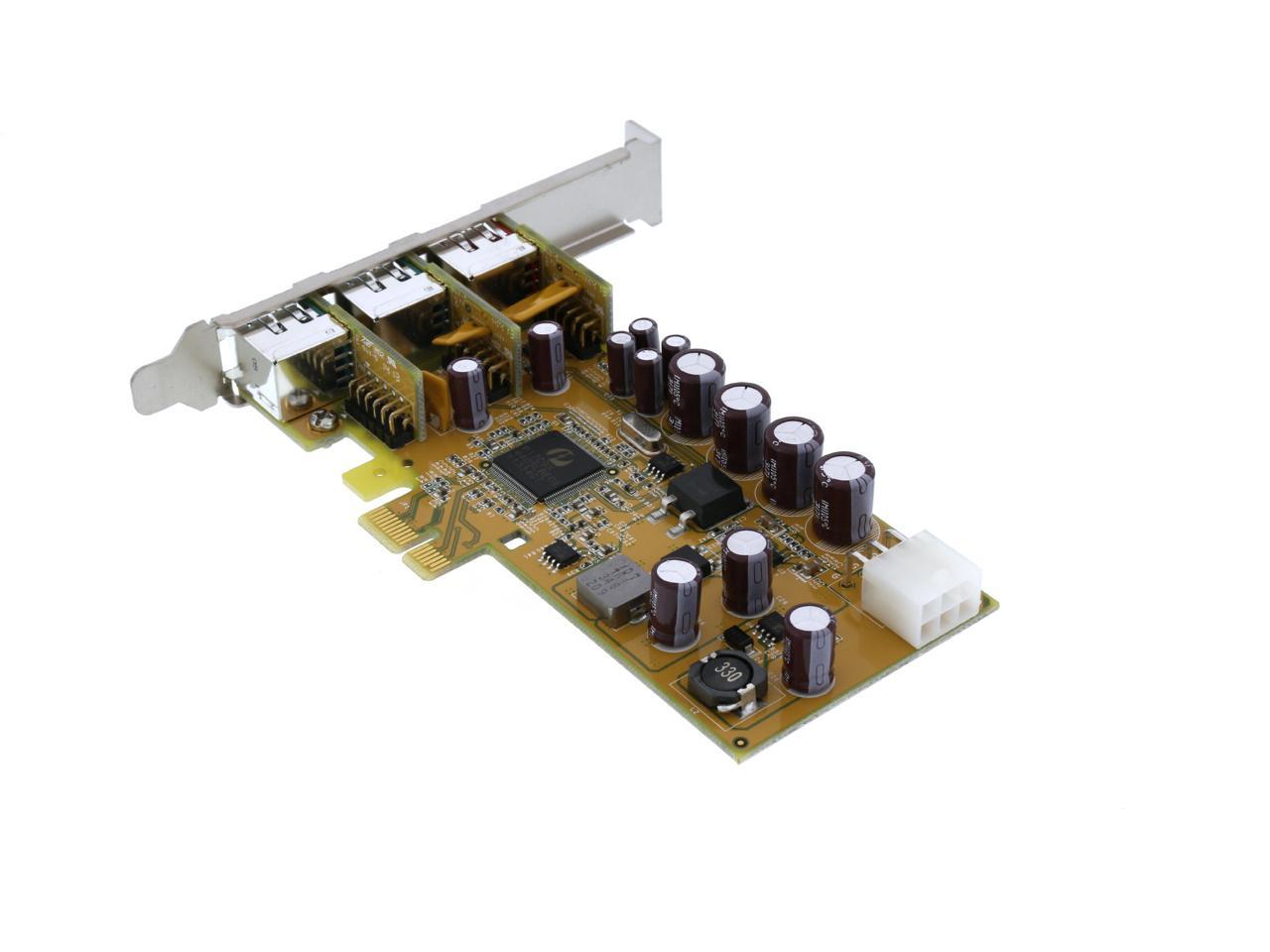

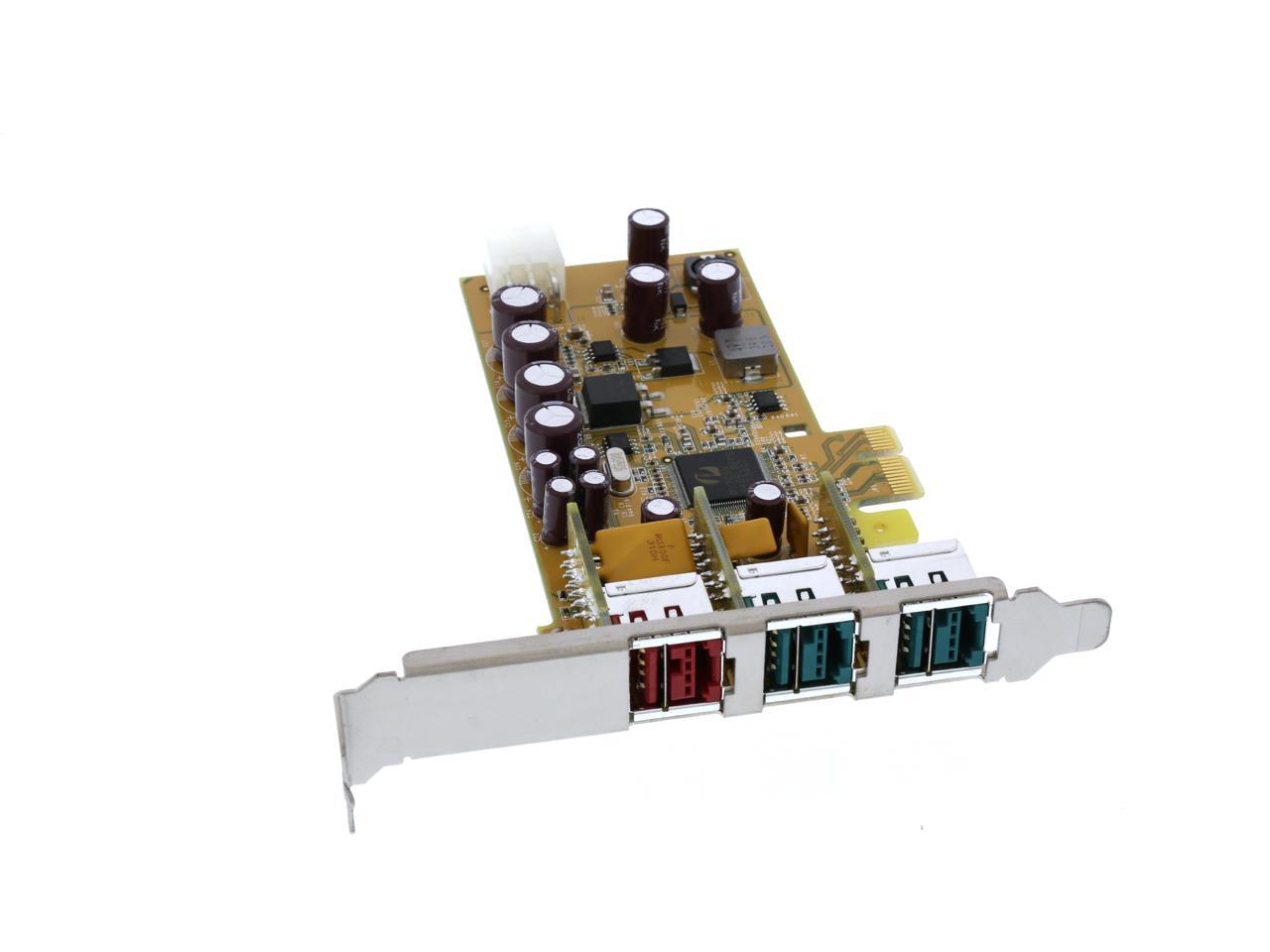

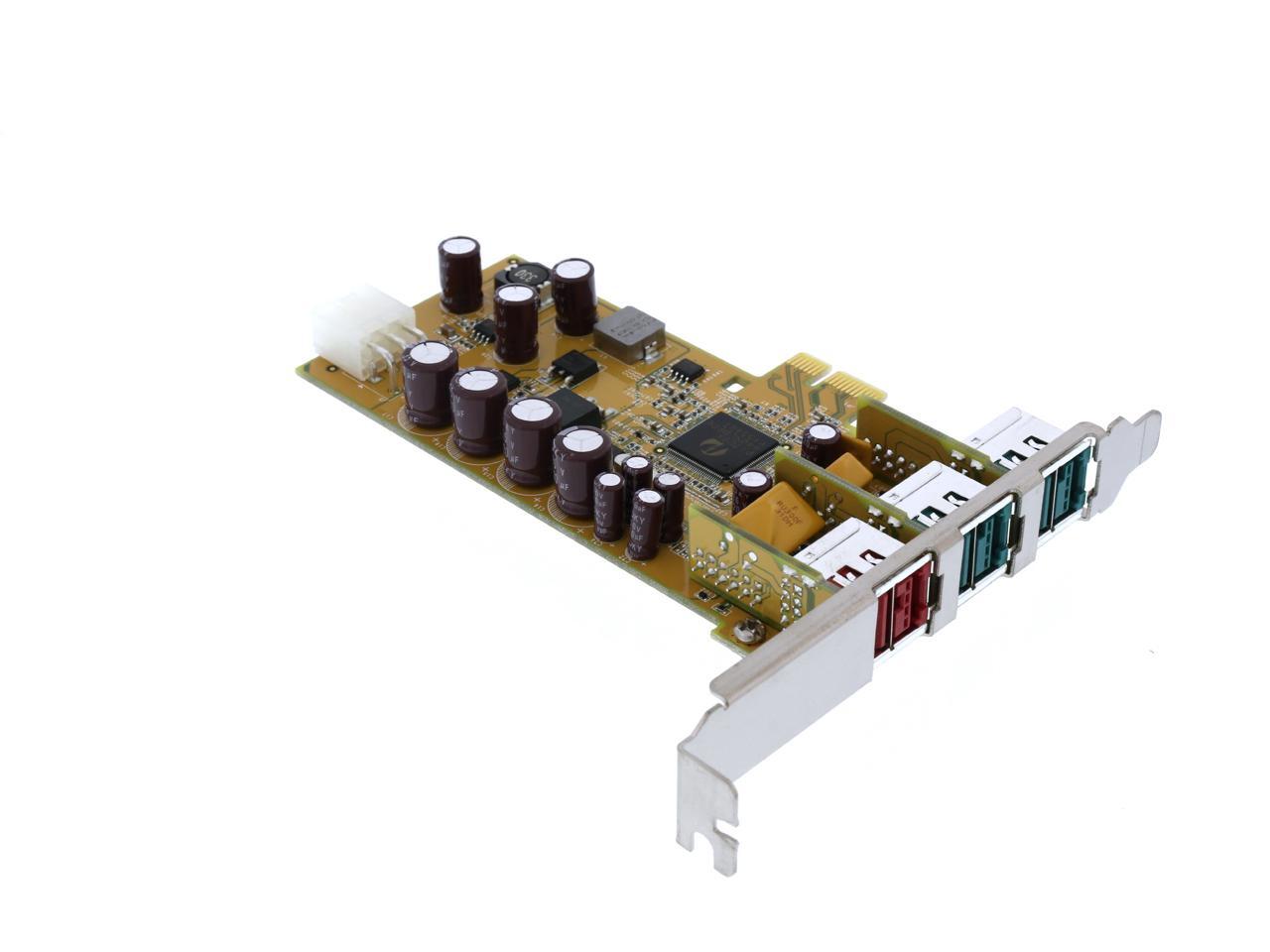

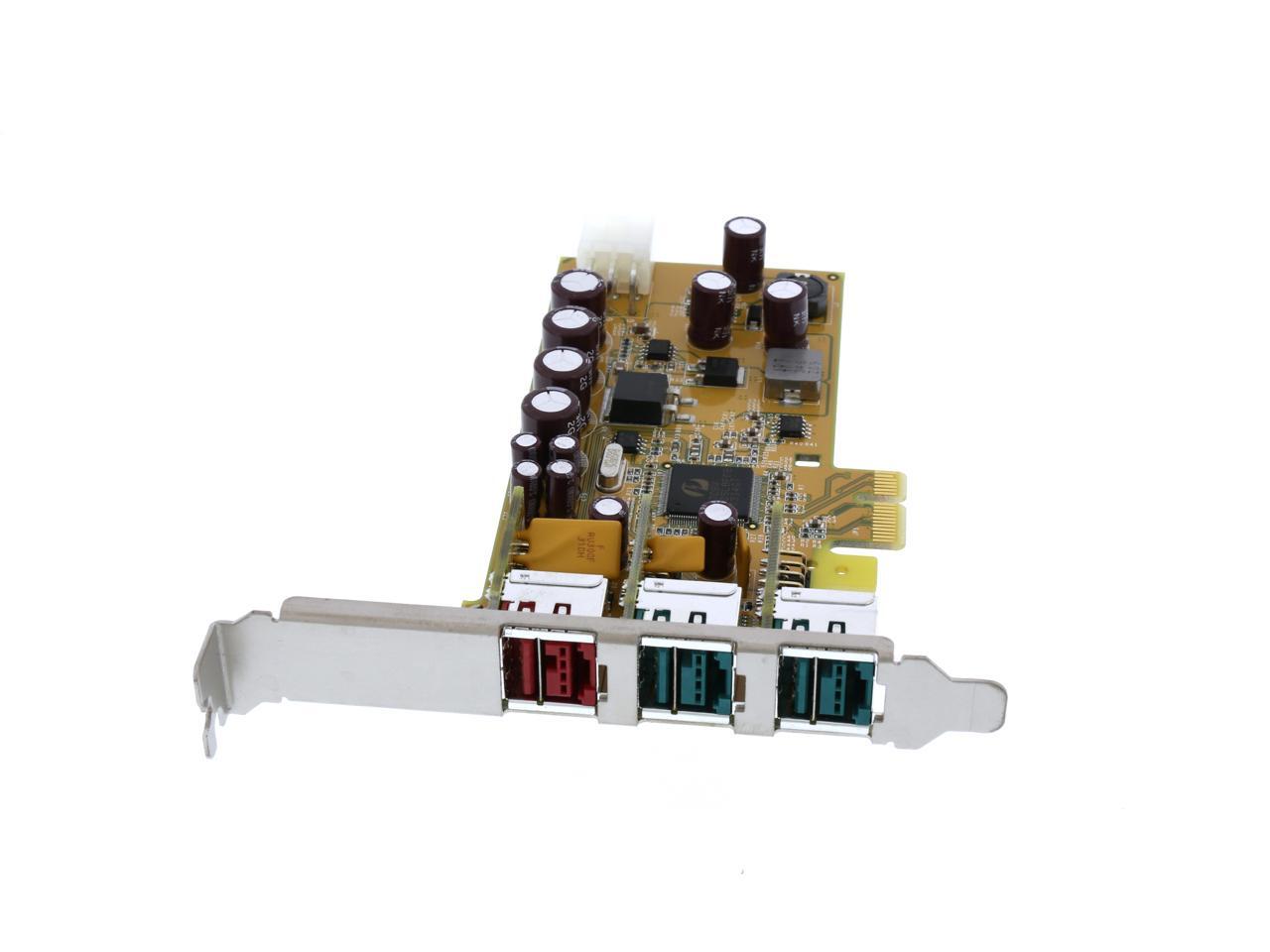

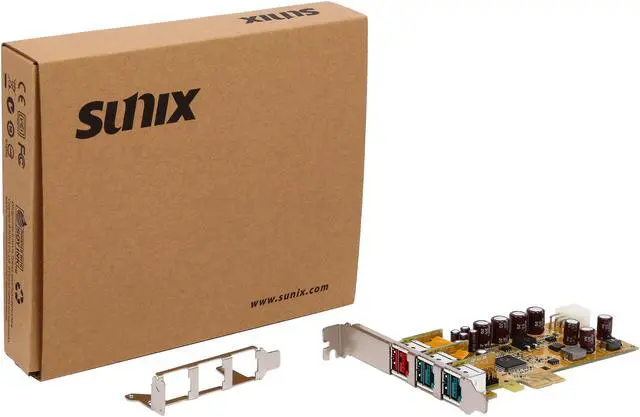

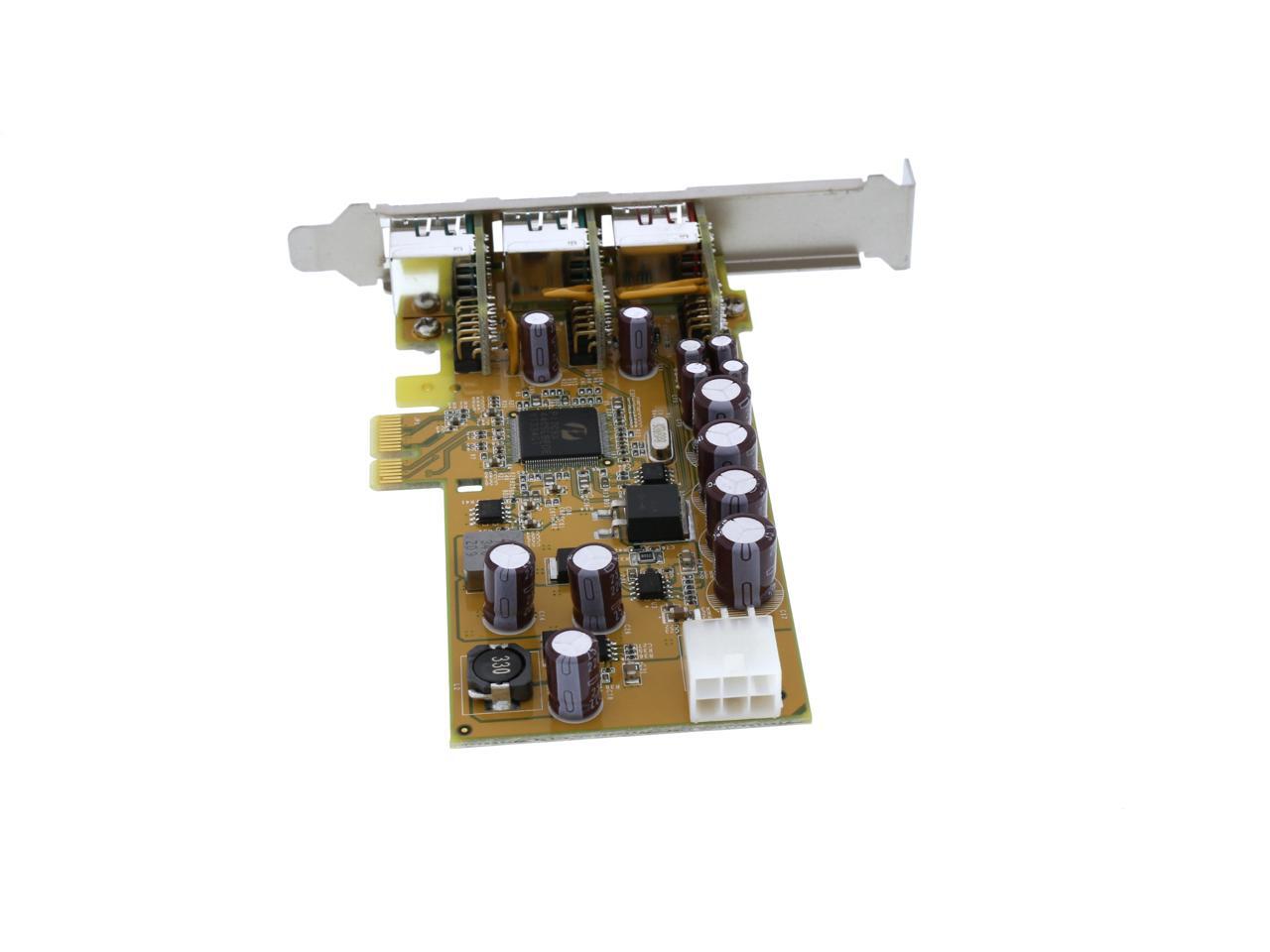

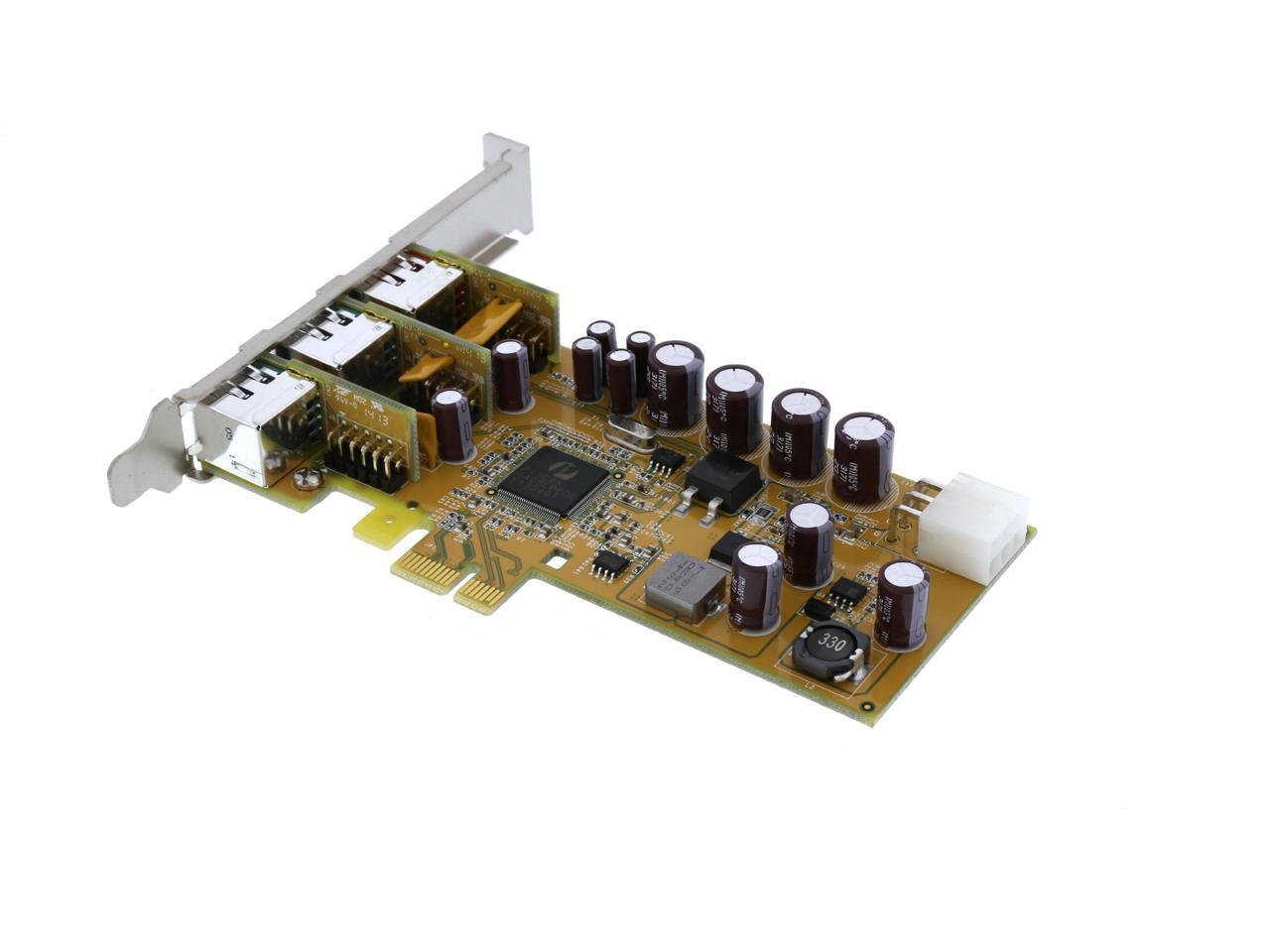

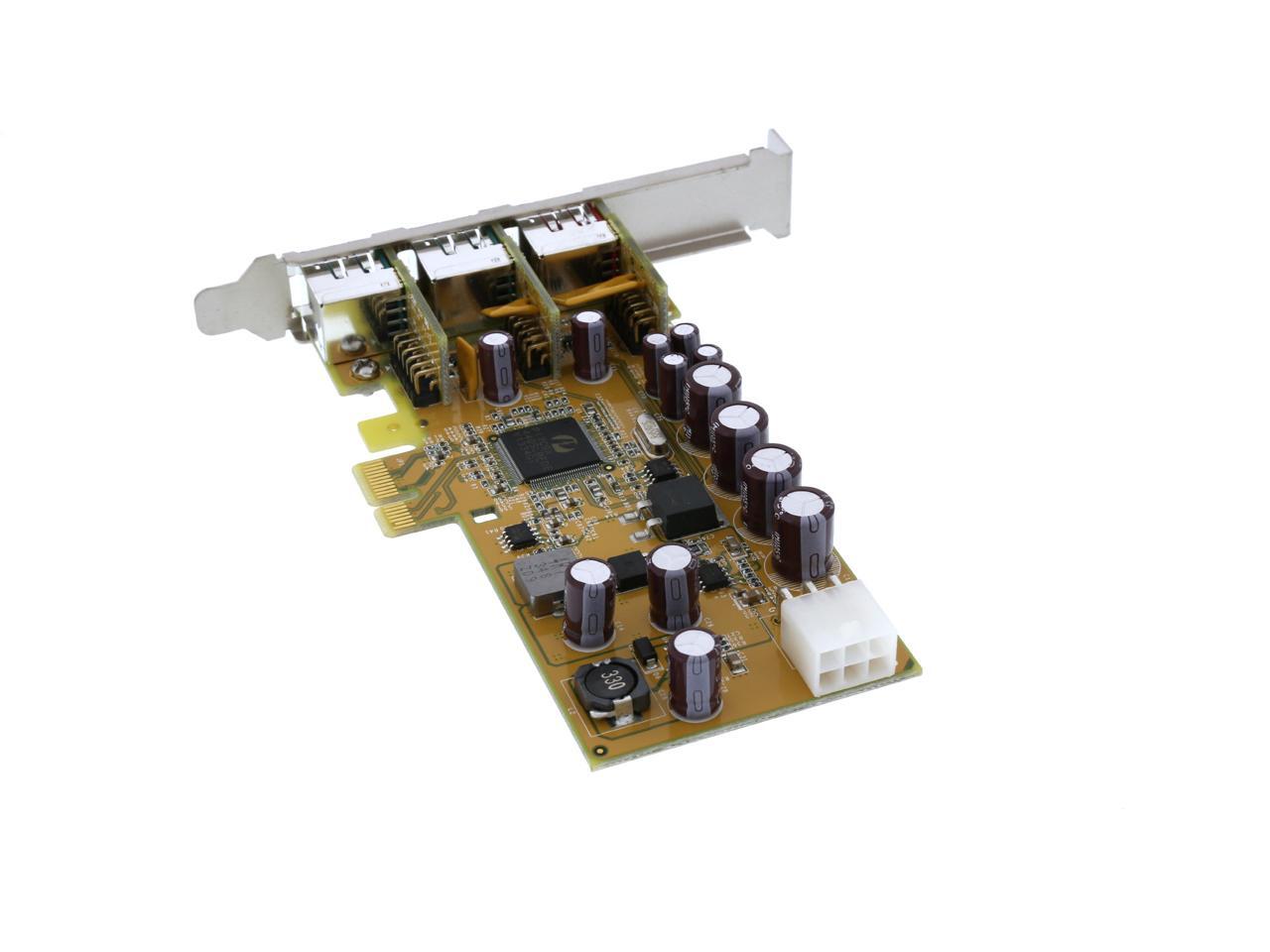

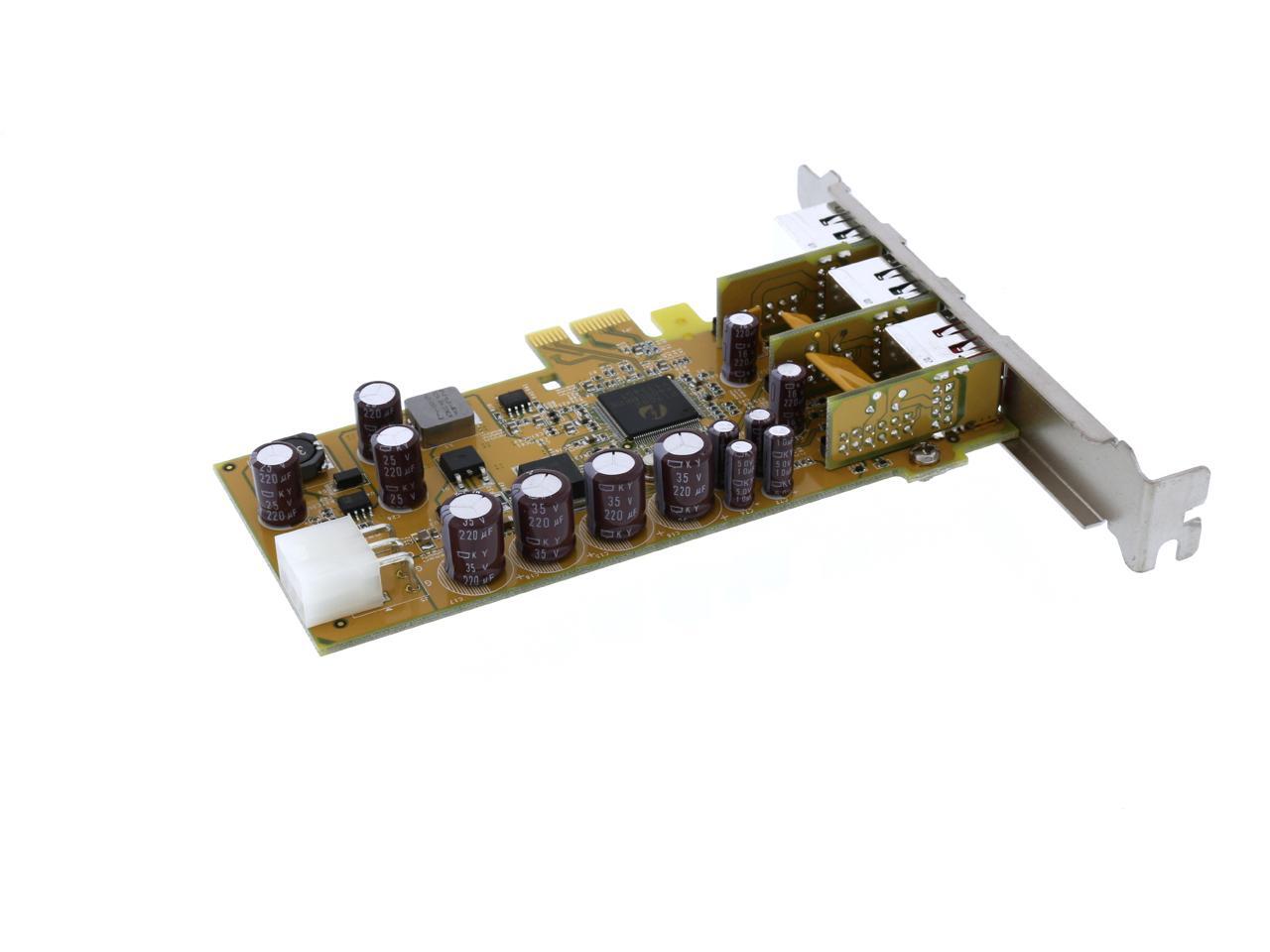

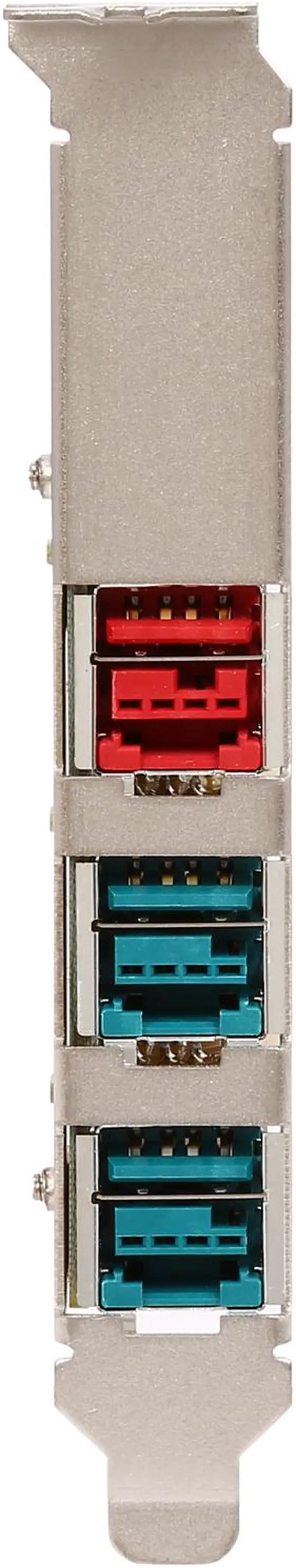

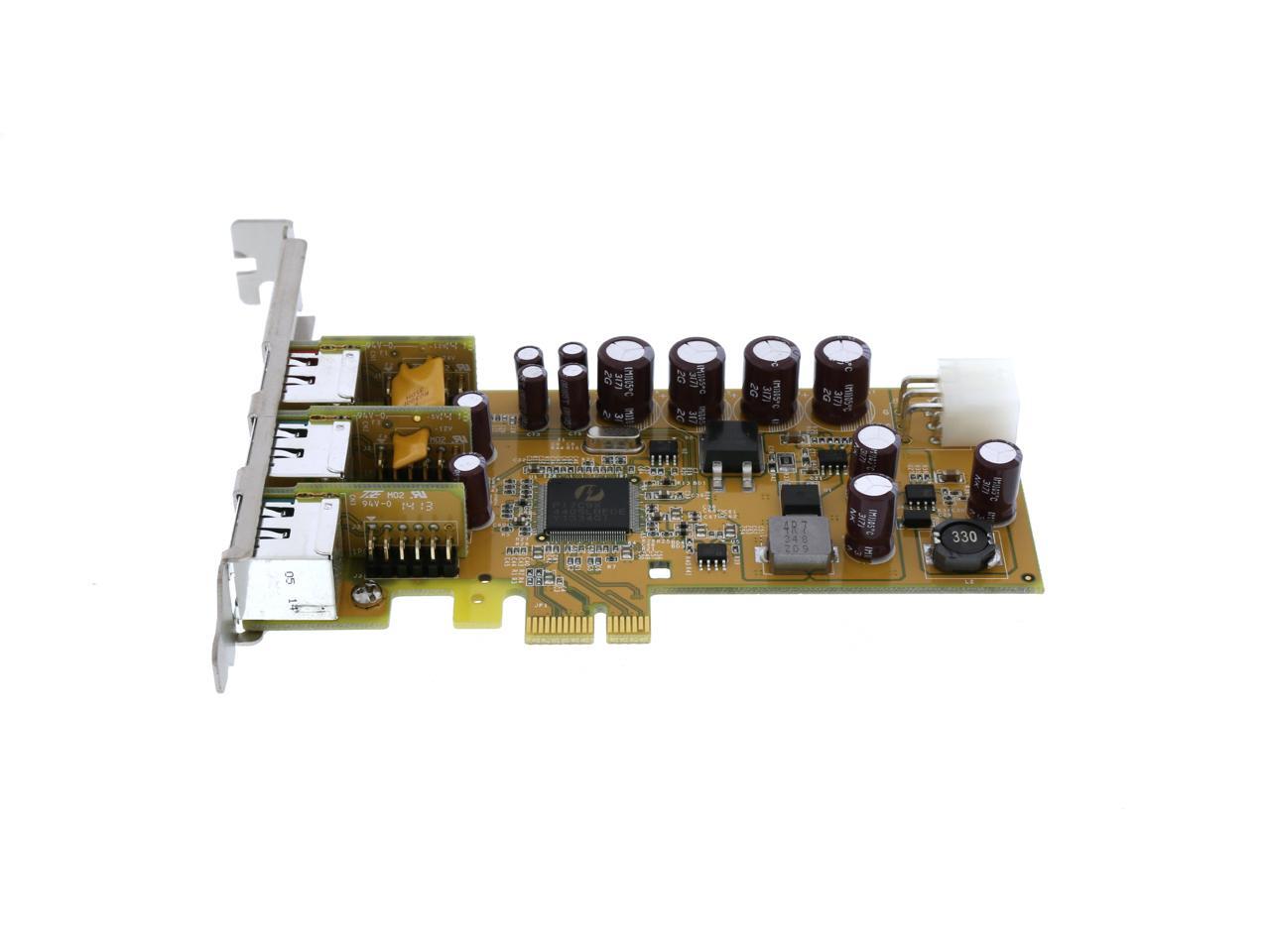

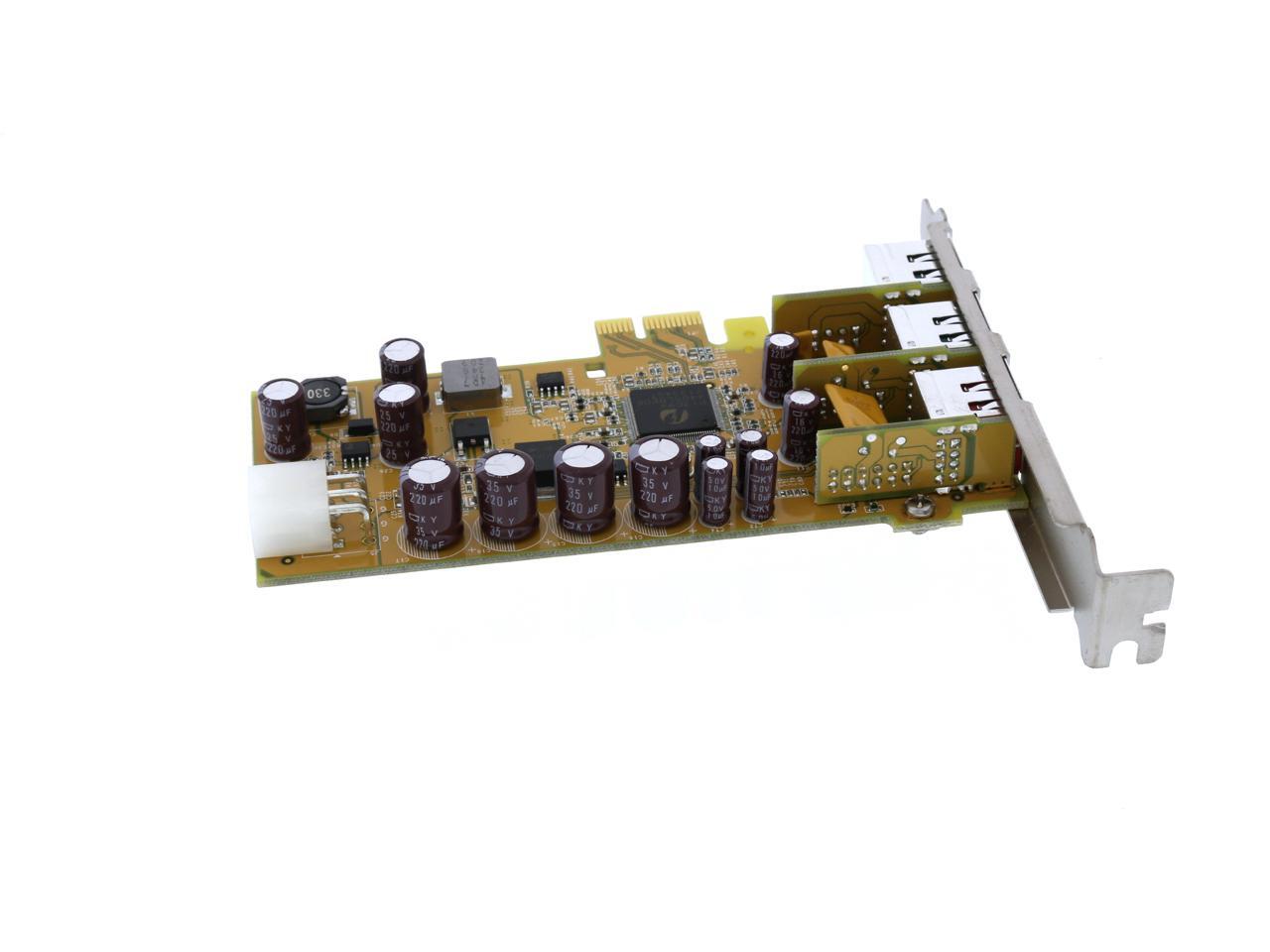

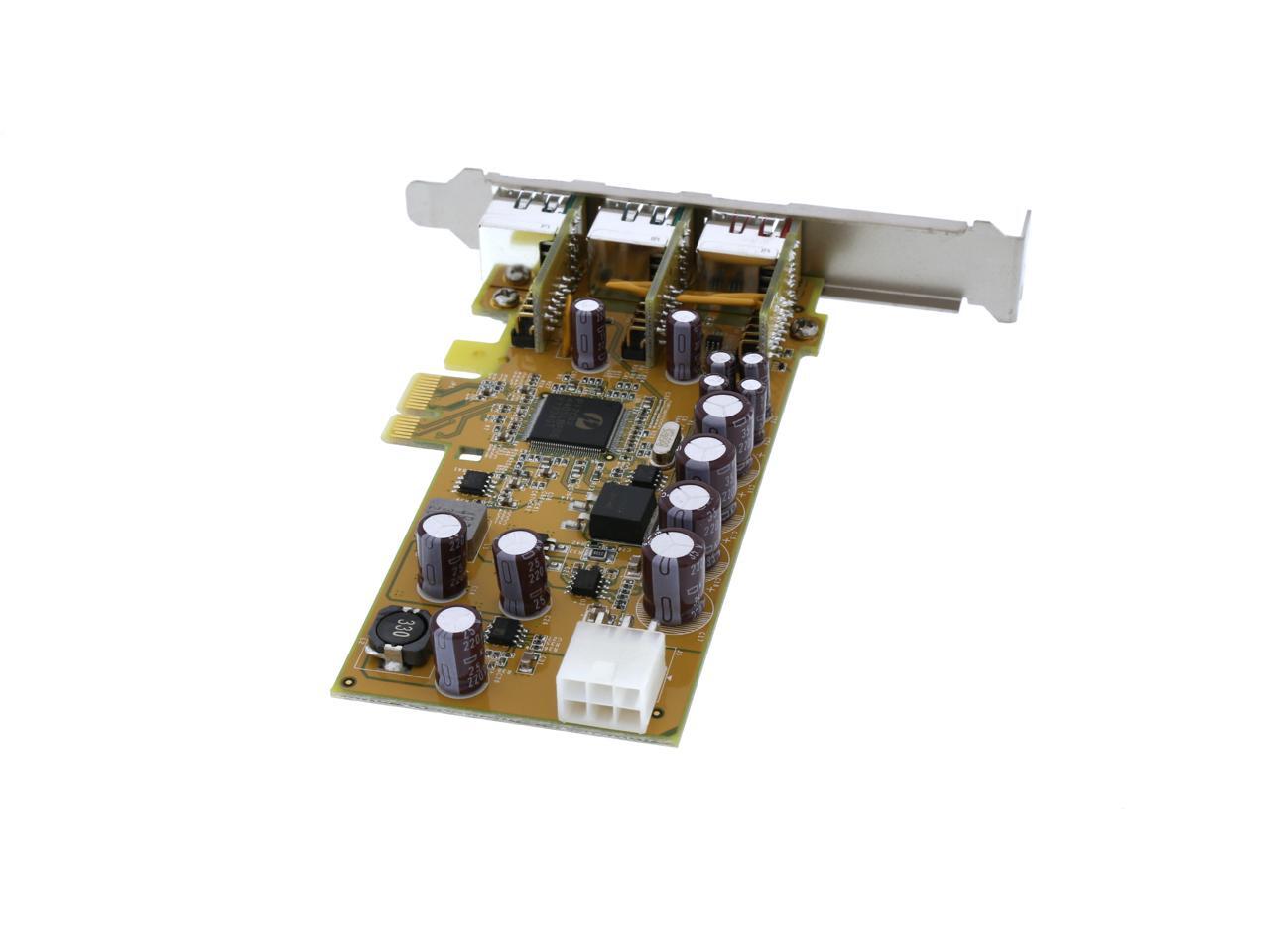

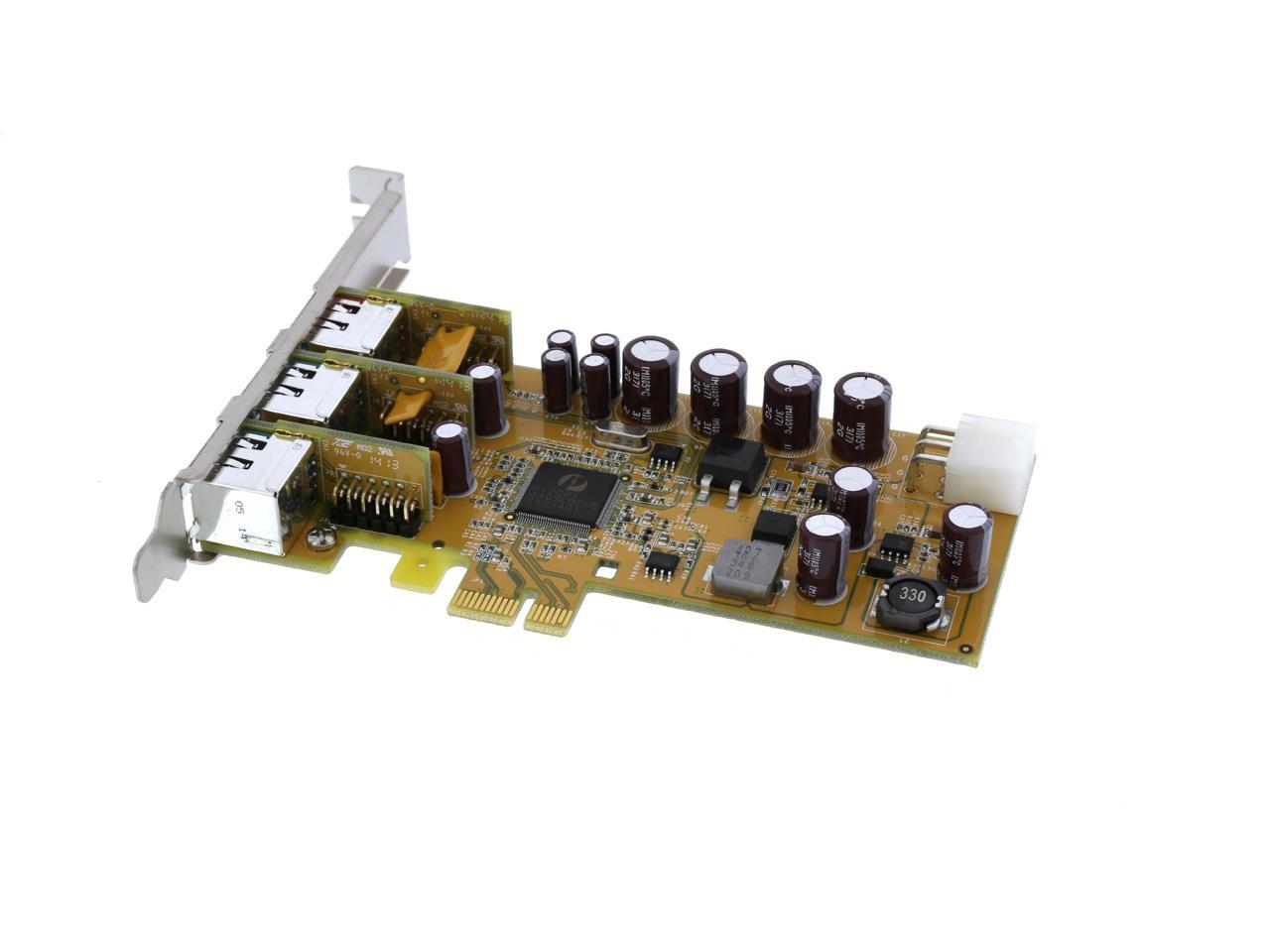

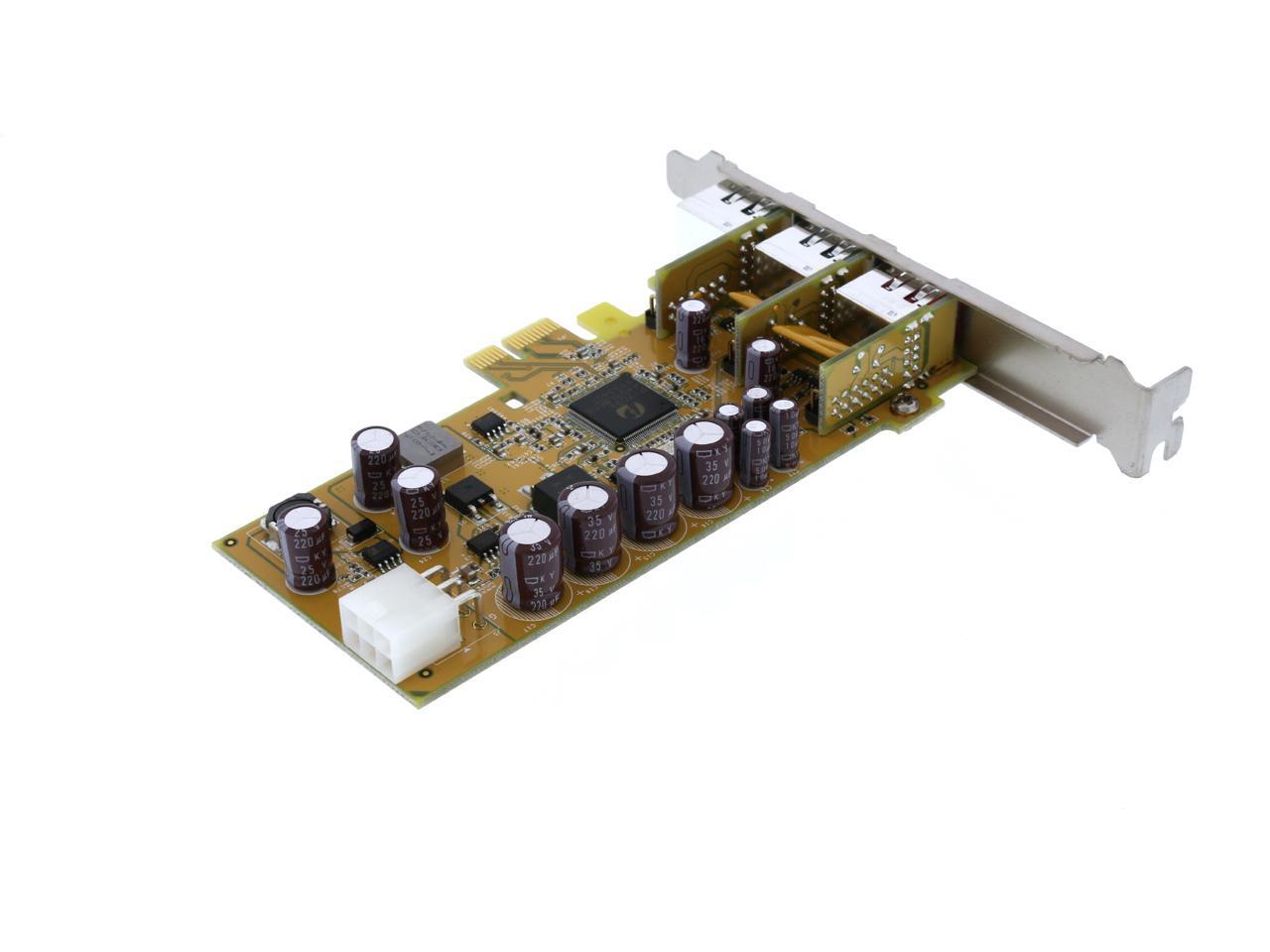

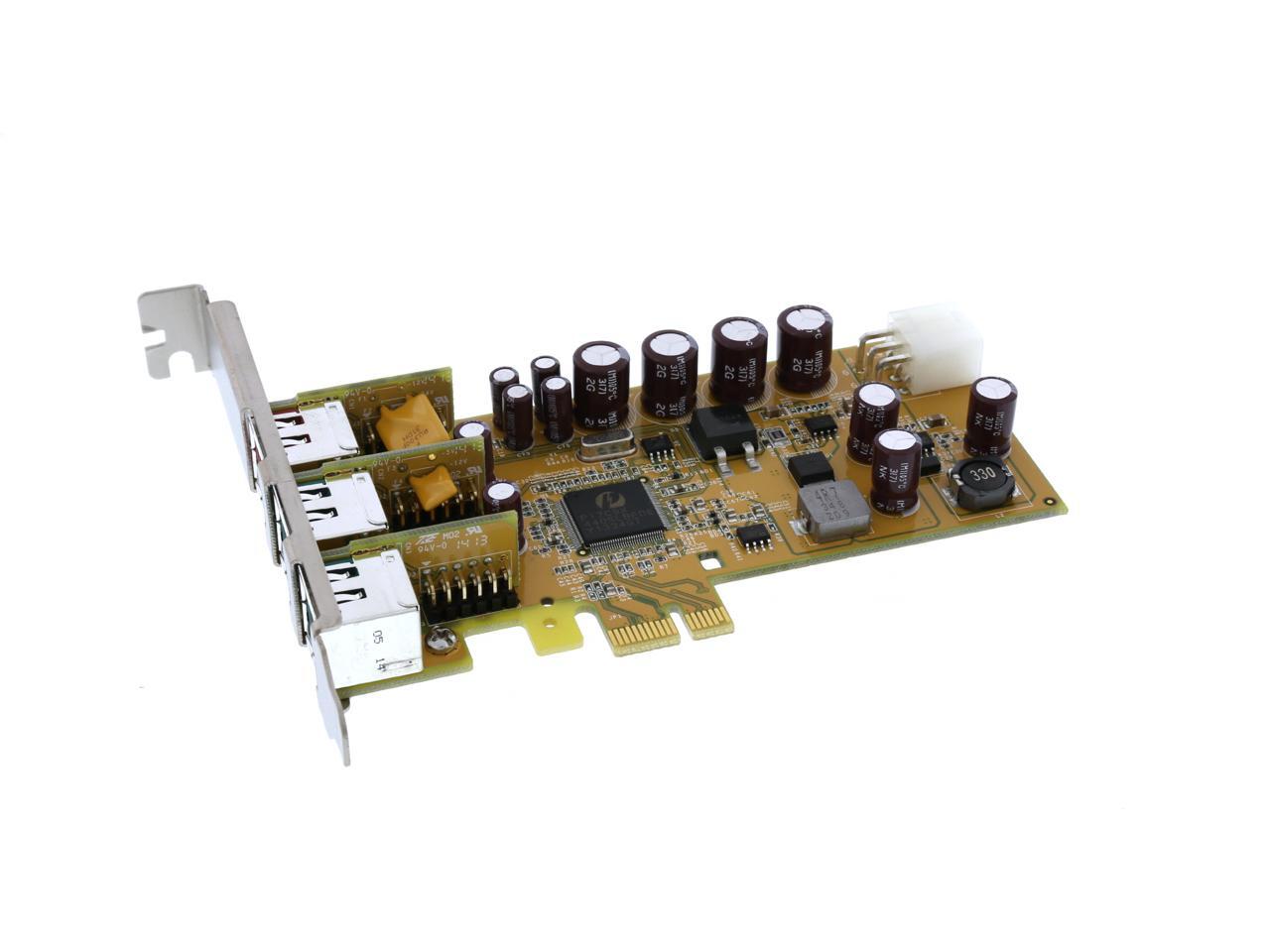

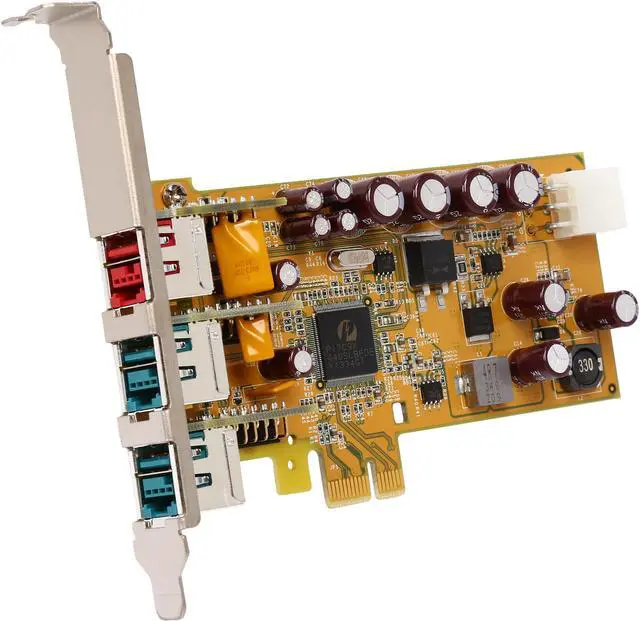

SUNIX 1-port 24V & 2-port 12V Powered USB PCI Express Add-On Card Model PUB1200X+L

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the SUNIX PUB1200X+L

Model
Brand	SUNIX
Model	PUB1200X+L

Details
External USB Ports	3x USB Ports
Data Transfer Rate	480/12/1.5 Mbps
Operating Systems Supported	Microsoft Client: XP / Vista / 7 / 8 (X86/X64) Microsoft Server: 2000 / 2003 / 2008 / 2008R2 / 2012 (X86/X64) Microsoft Embedded: XP Embedded / POS Ready 2009 / Embedded System Linux: Linux 2.4.x / 2.6.x /3.x
Specifications	BUS: PCI Express Spec 1.1, Single-Lane (x1) Controller: PCI Express USB2.0 Host controller, PI7C9X440SL USB Standard: Enhanced Host Controller Interface (EHCI) and Open Host Controller Interface (OHCI) IRQ & IO: Assigned by System Interface: Universal Serial Bus 2.0 Speed: High-Speed (HS), Full-Speed(FS) and Low-Speed(LS) Data Transfer rate of 1.5, 12, and 480Mbps No. of Port: 3-port Protection: ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge DELL M6403_A09 Direct Pin Injection PCB Connector: Powered USB Connector

Features
Features	Compliance with PCI Express Base Specification Reversion 1.1. Compliant with the Universal Serial Bus (USB) Specification Revision 2.0 High performance USB2.0 PCI Express host controller on board. Support 3 external Powered USB ports. Powered USB port supports +24 and +12VDC power output with maximum 3A / per port. Each Powered USB ports built-in over current protection. Built-in ESD protection for all serial signals meets IEC61000-4-2 and DELL M6403_A08 standard. Plug-n-Play, I/O address and IRQ assigned by operating system. Support USB device Hot-Swapping and Plug-n-Play function. Certified by RoHS CE, FCC ClassB approval. Support Linux, Microsoft 2000, XP, 2003 Vista, 2008, 7, and 8 (X86/X64) operation system.

Additional Information
First Listed on Newegg	October 21, 2014
