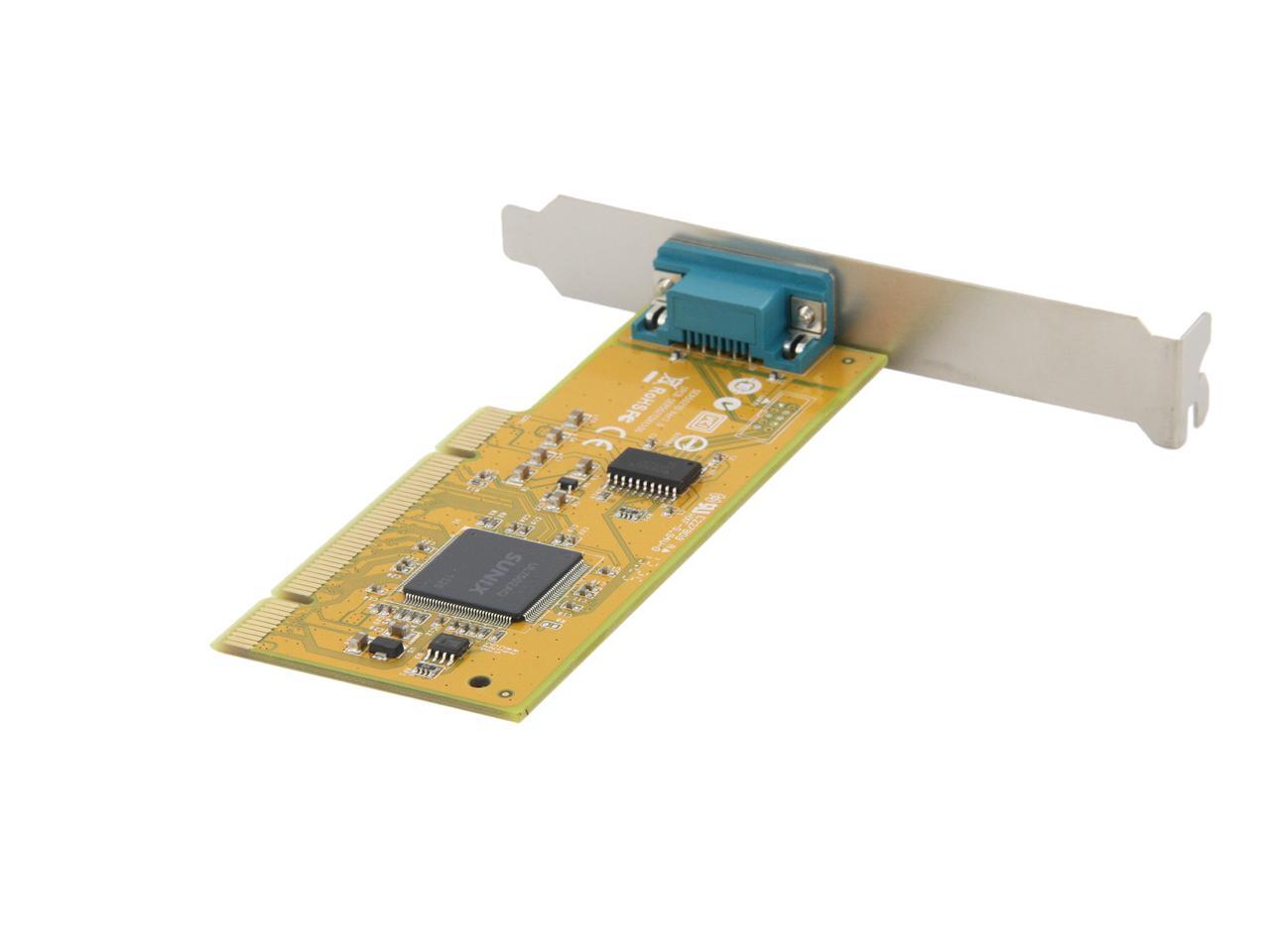

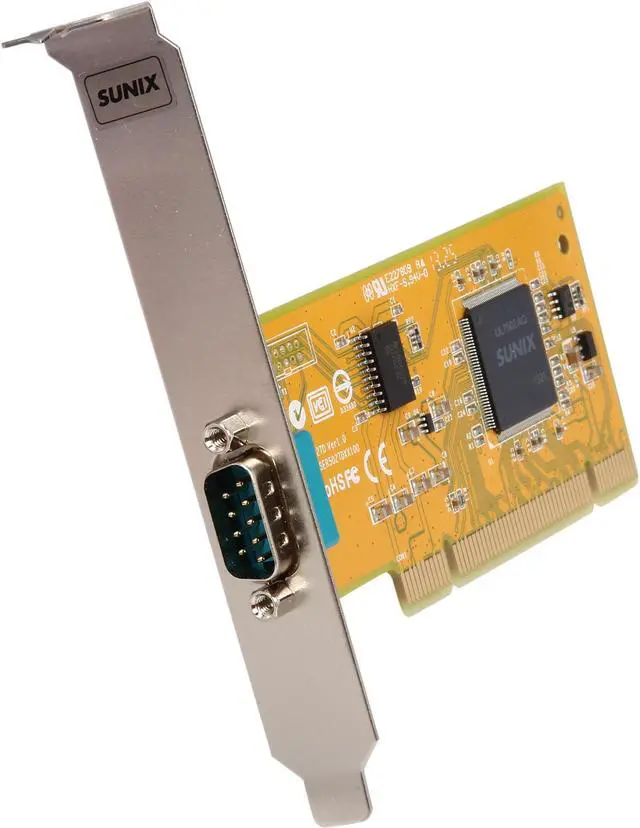

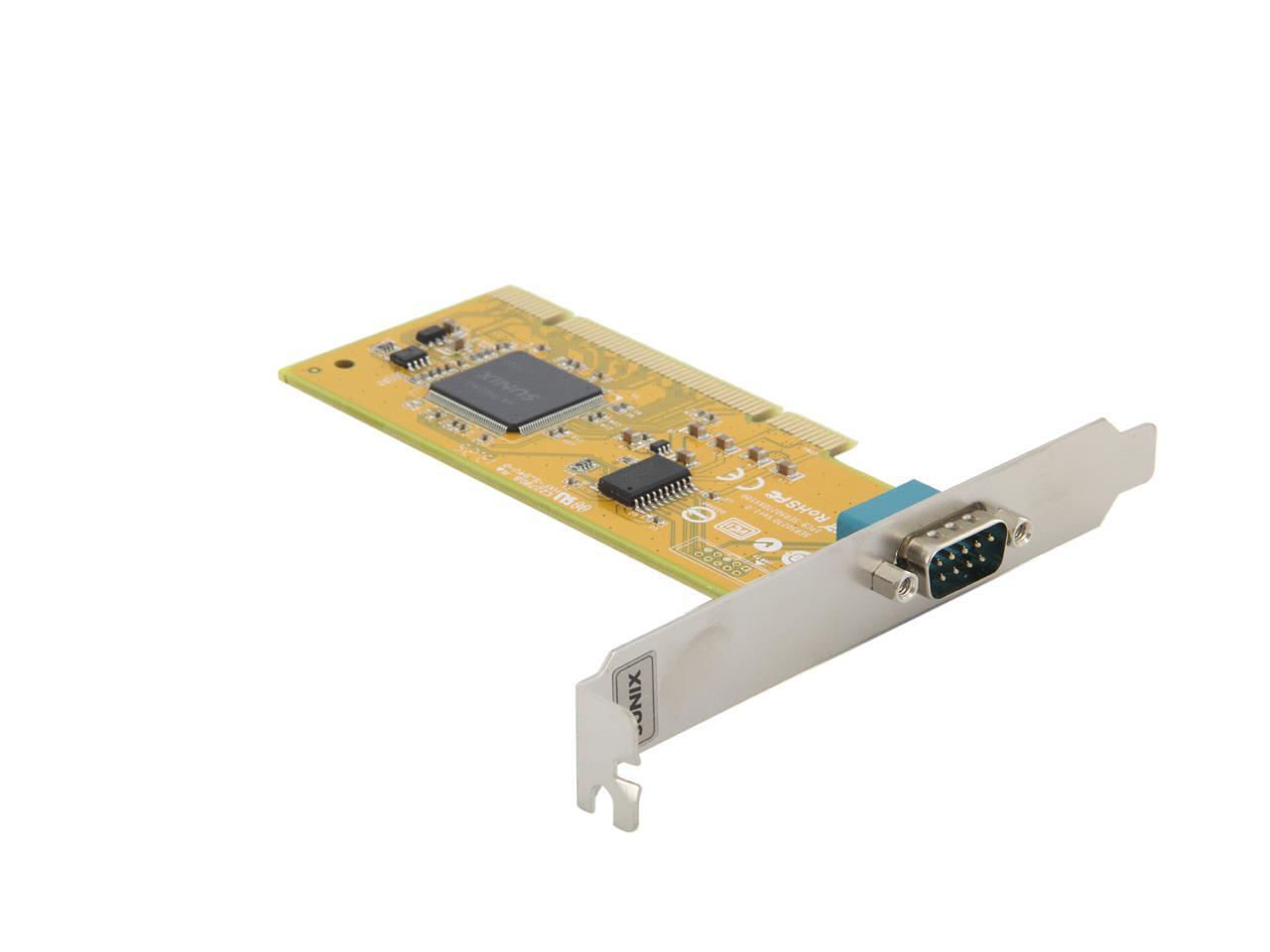

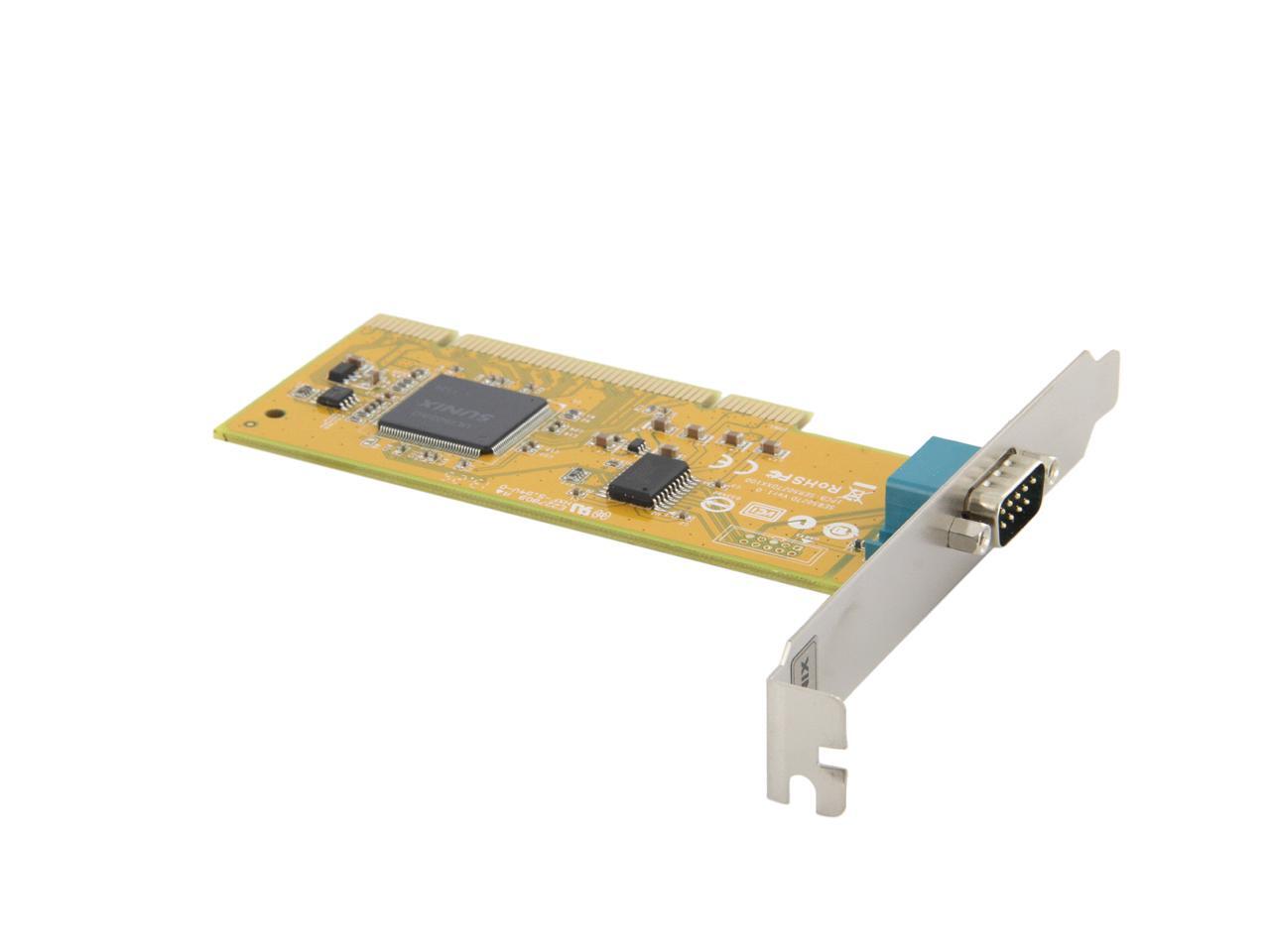

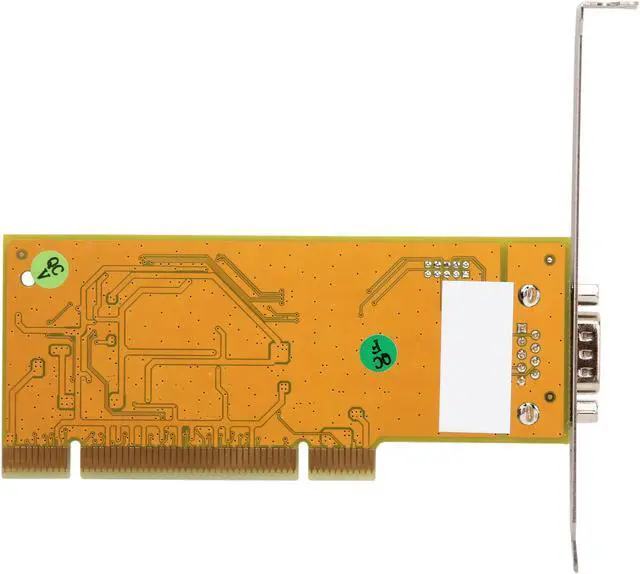

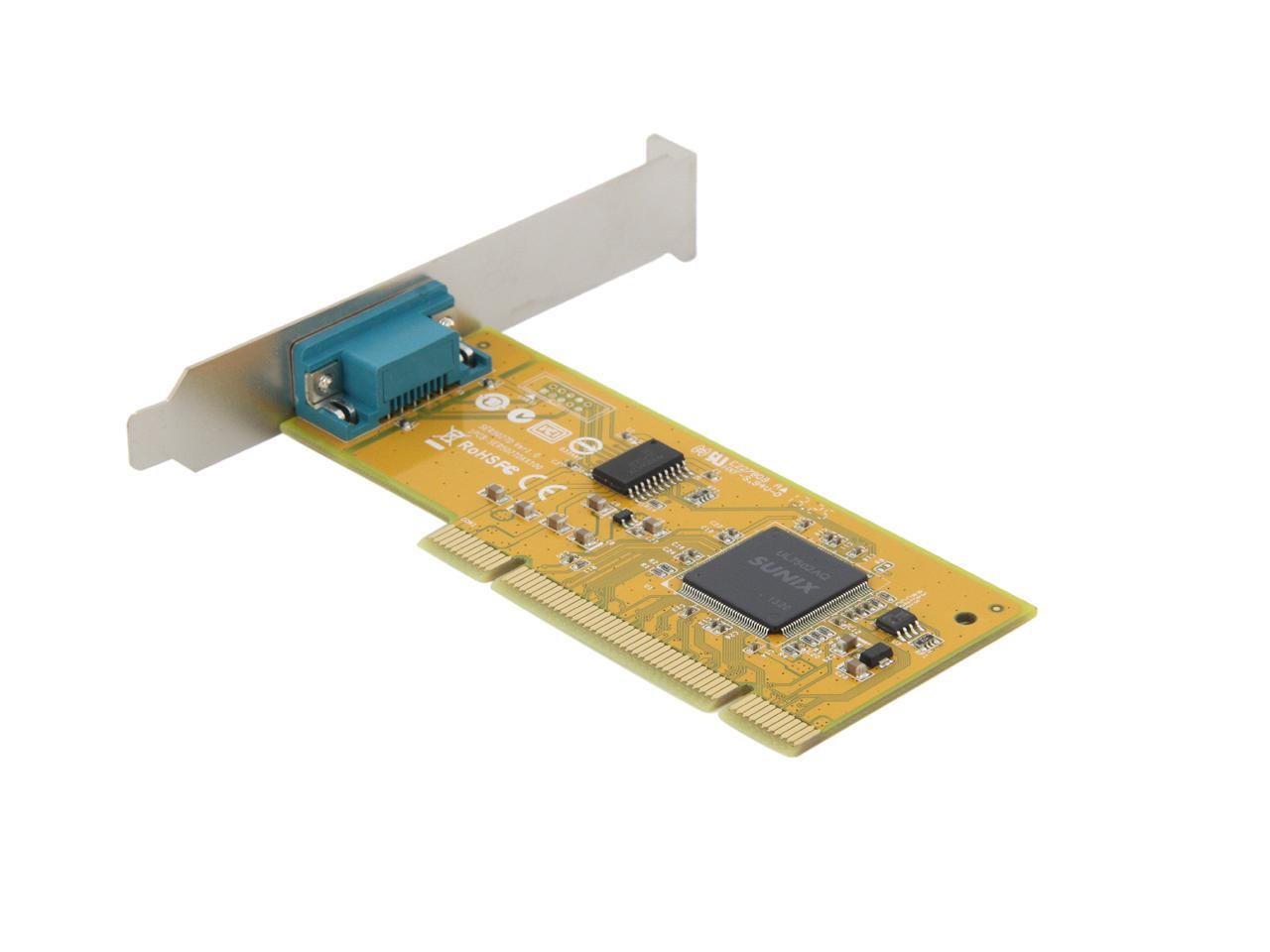

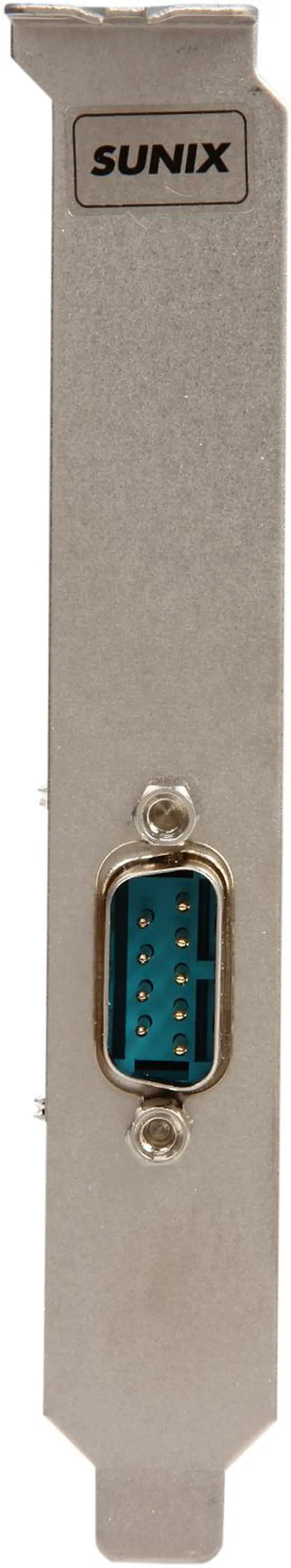

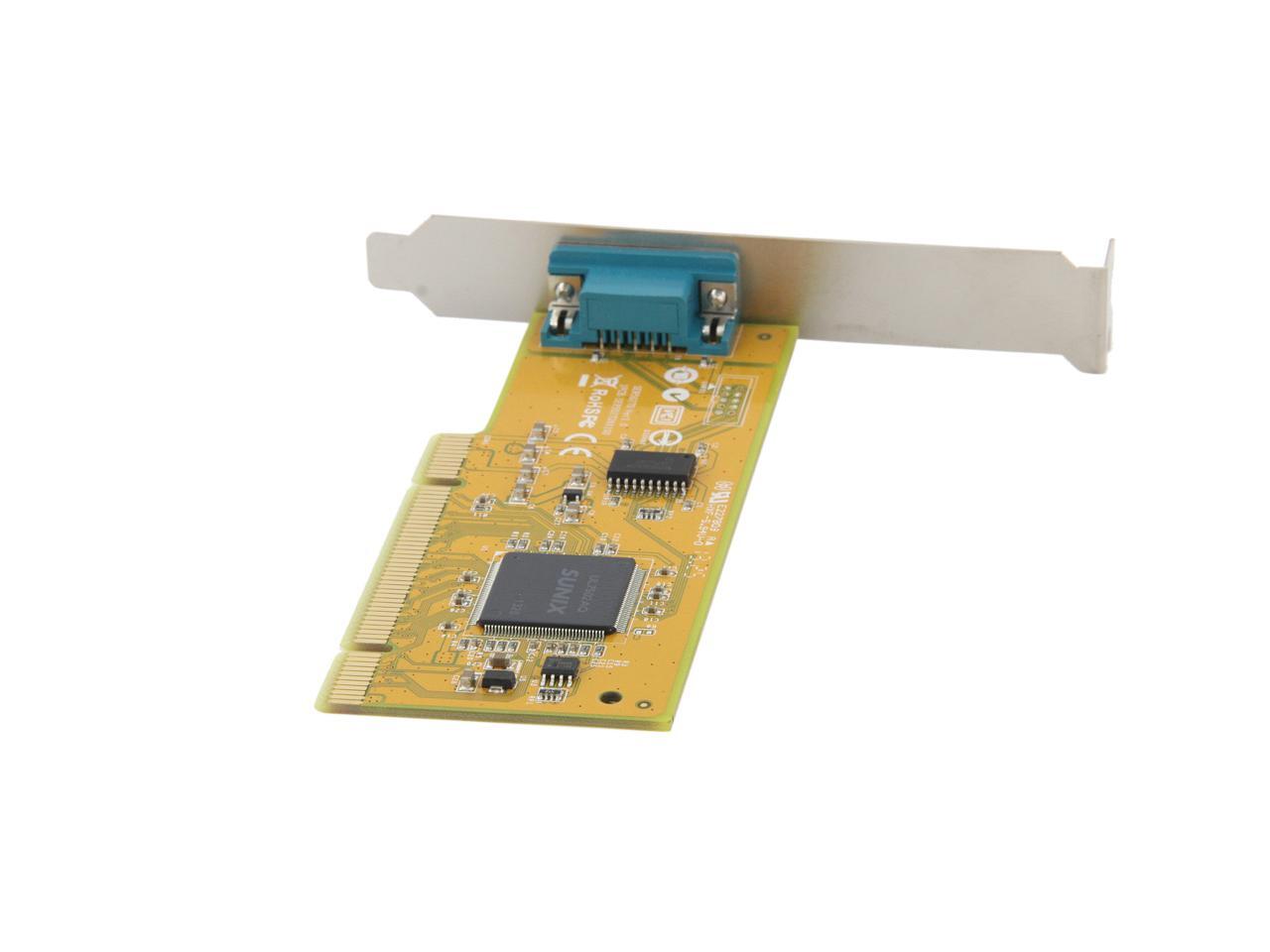

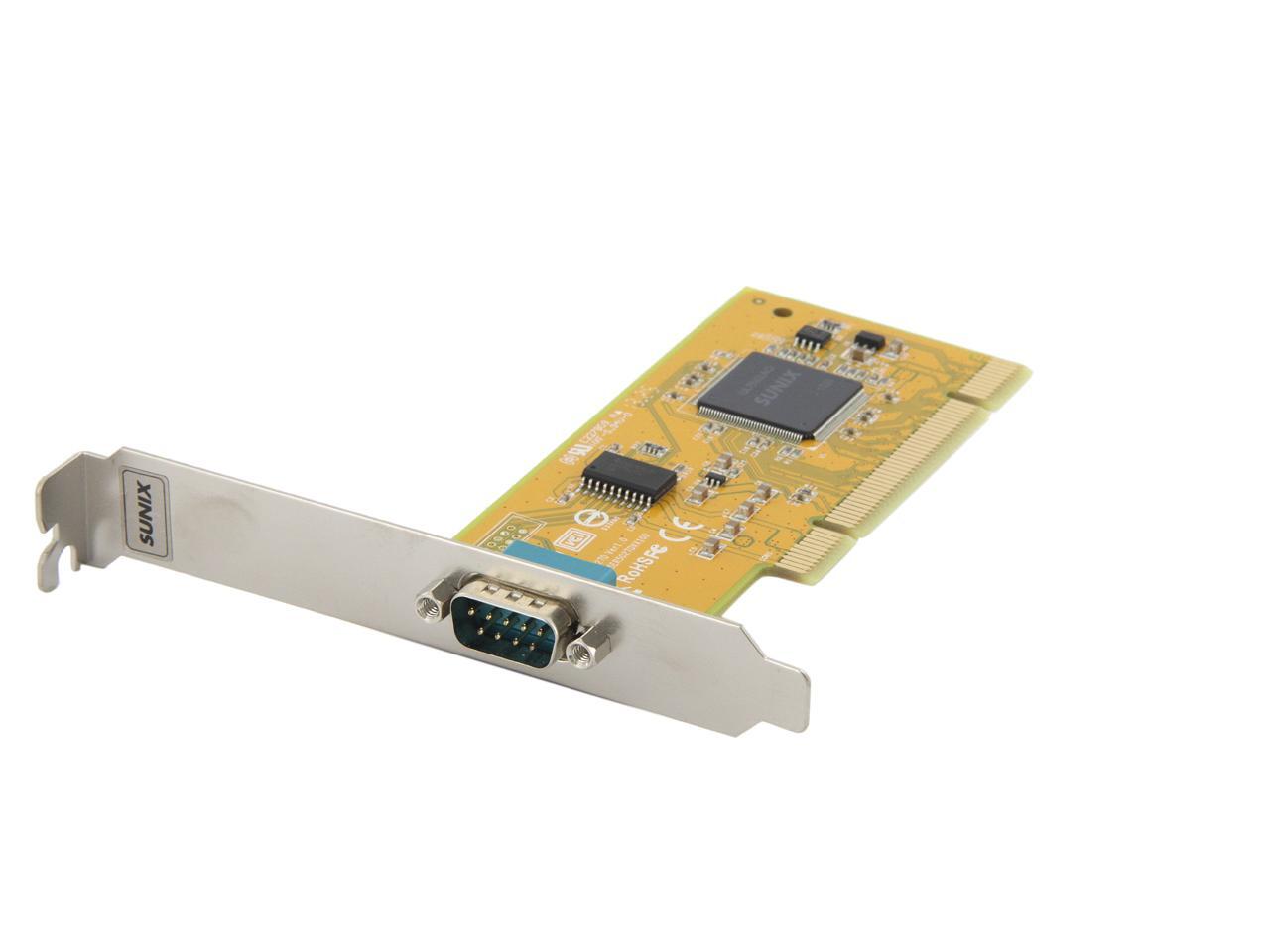

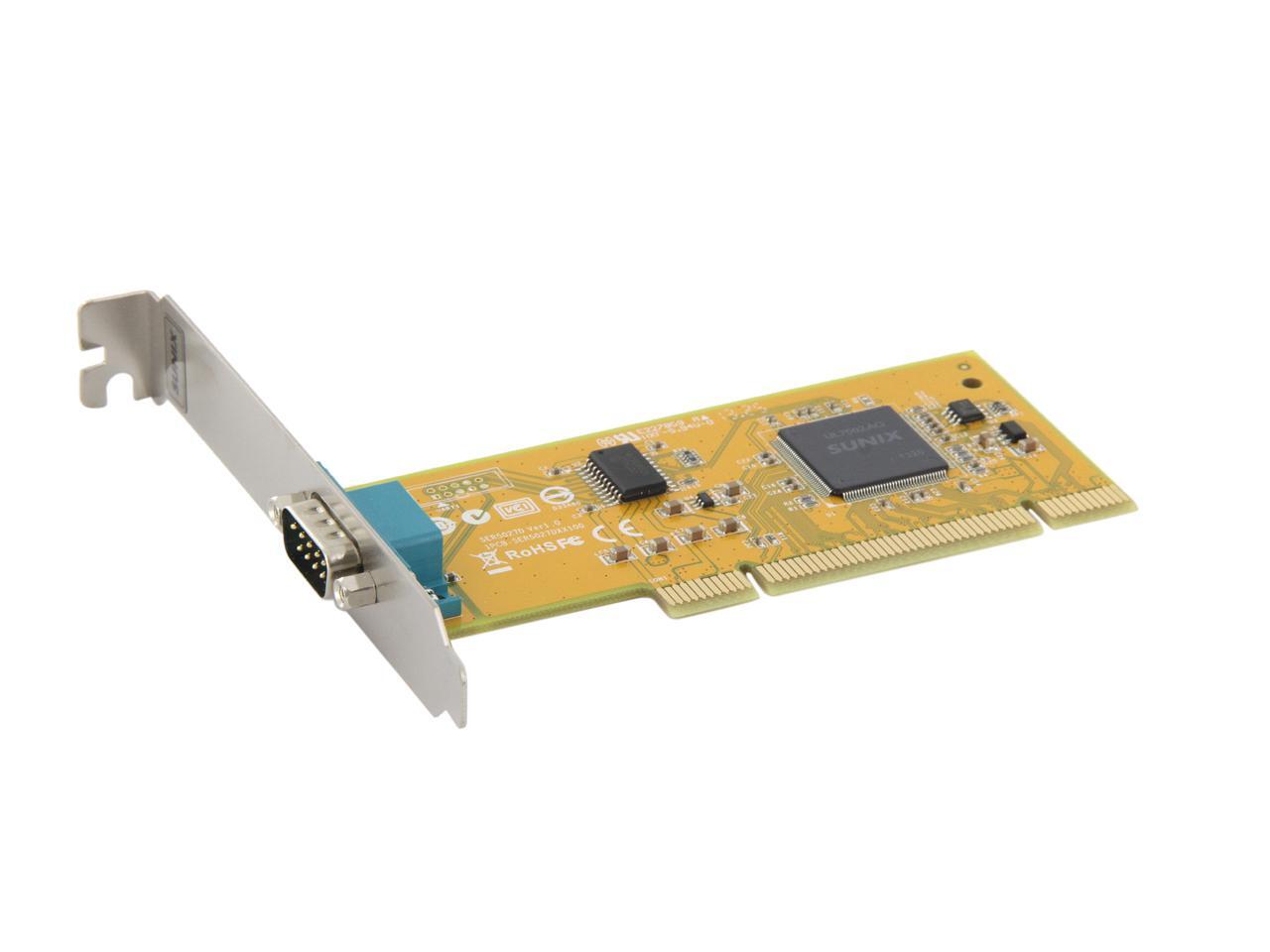

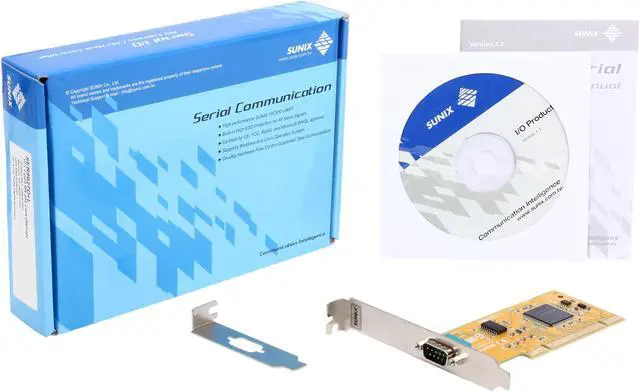

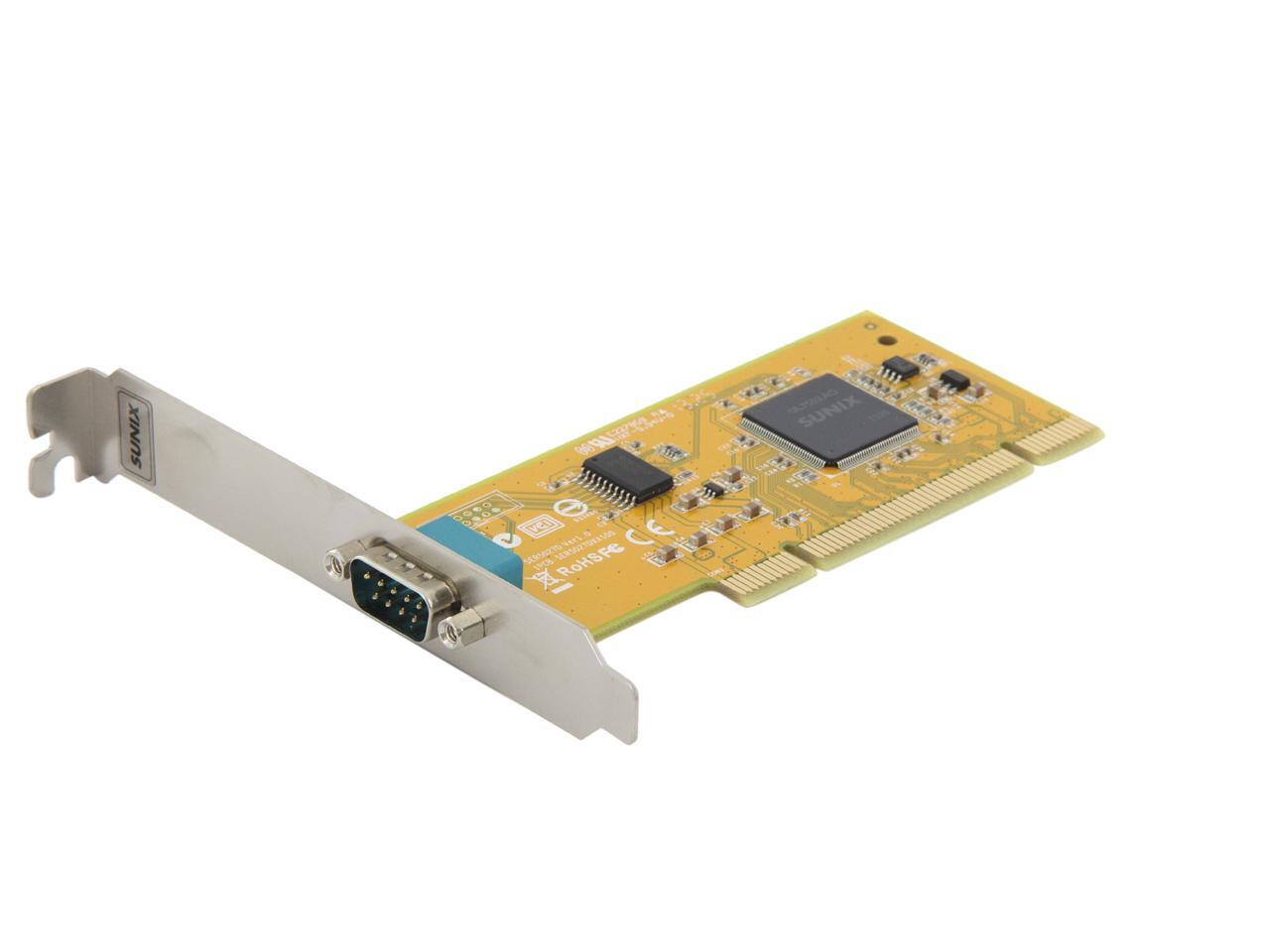

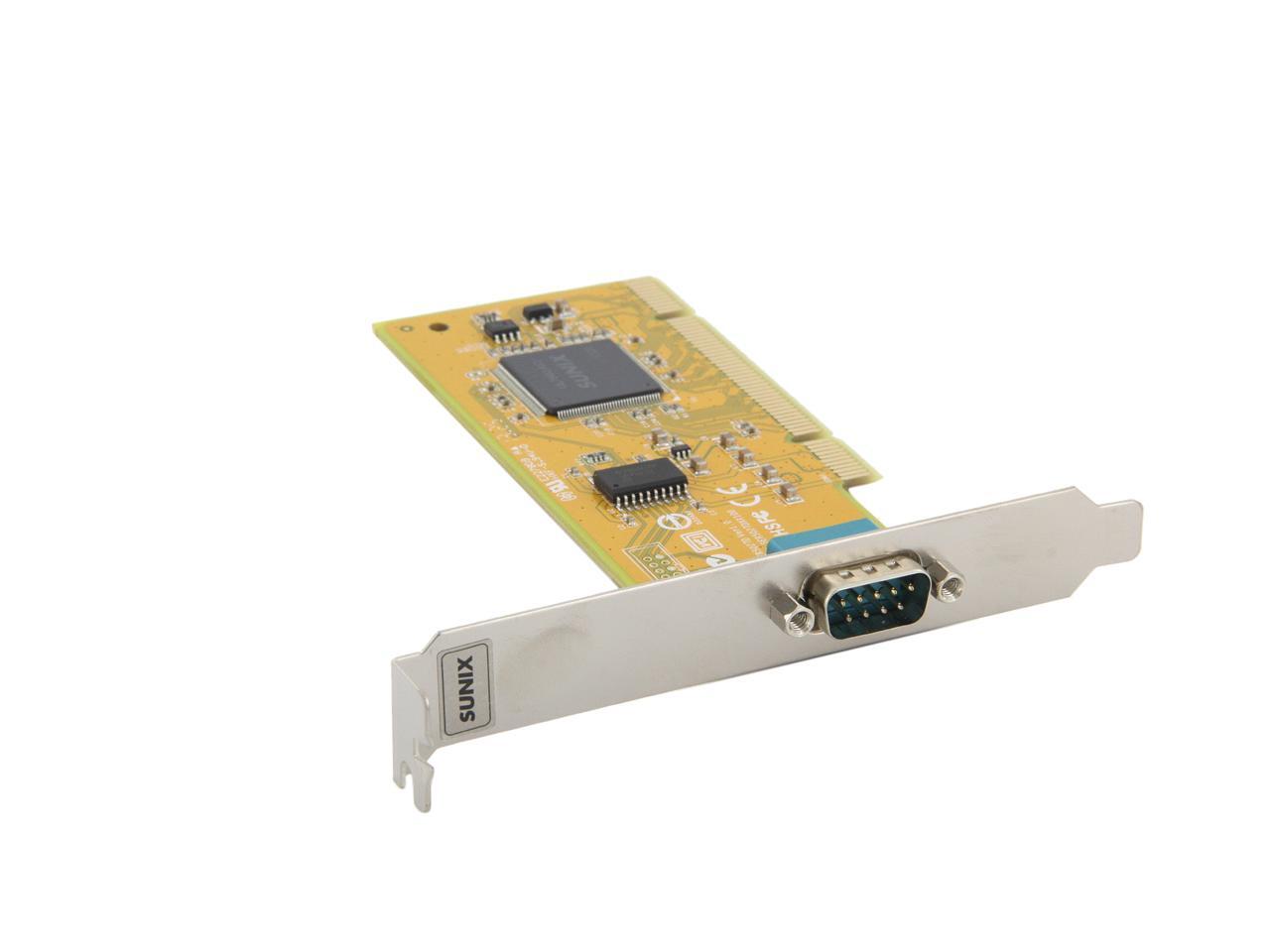

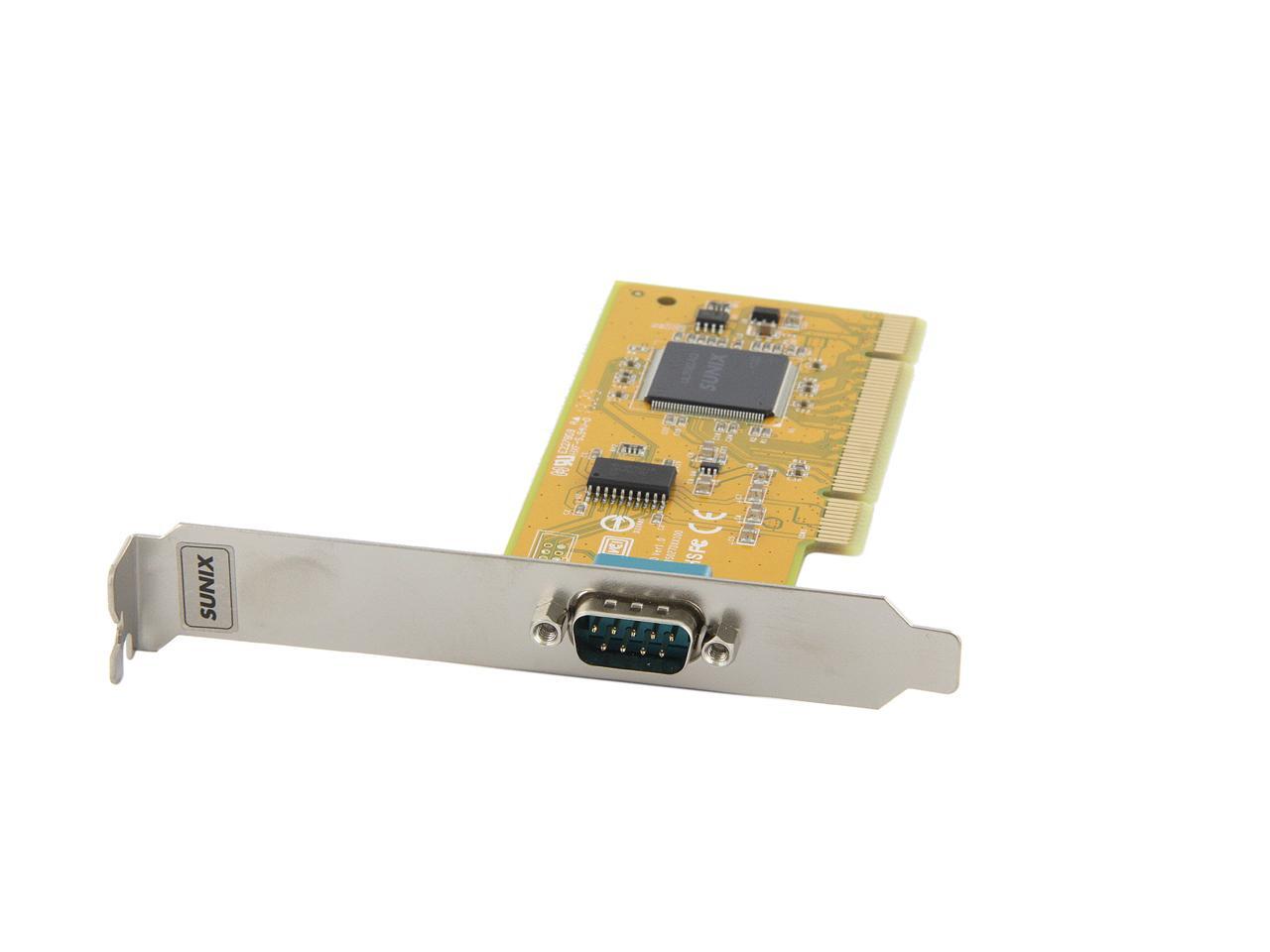

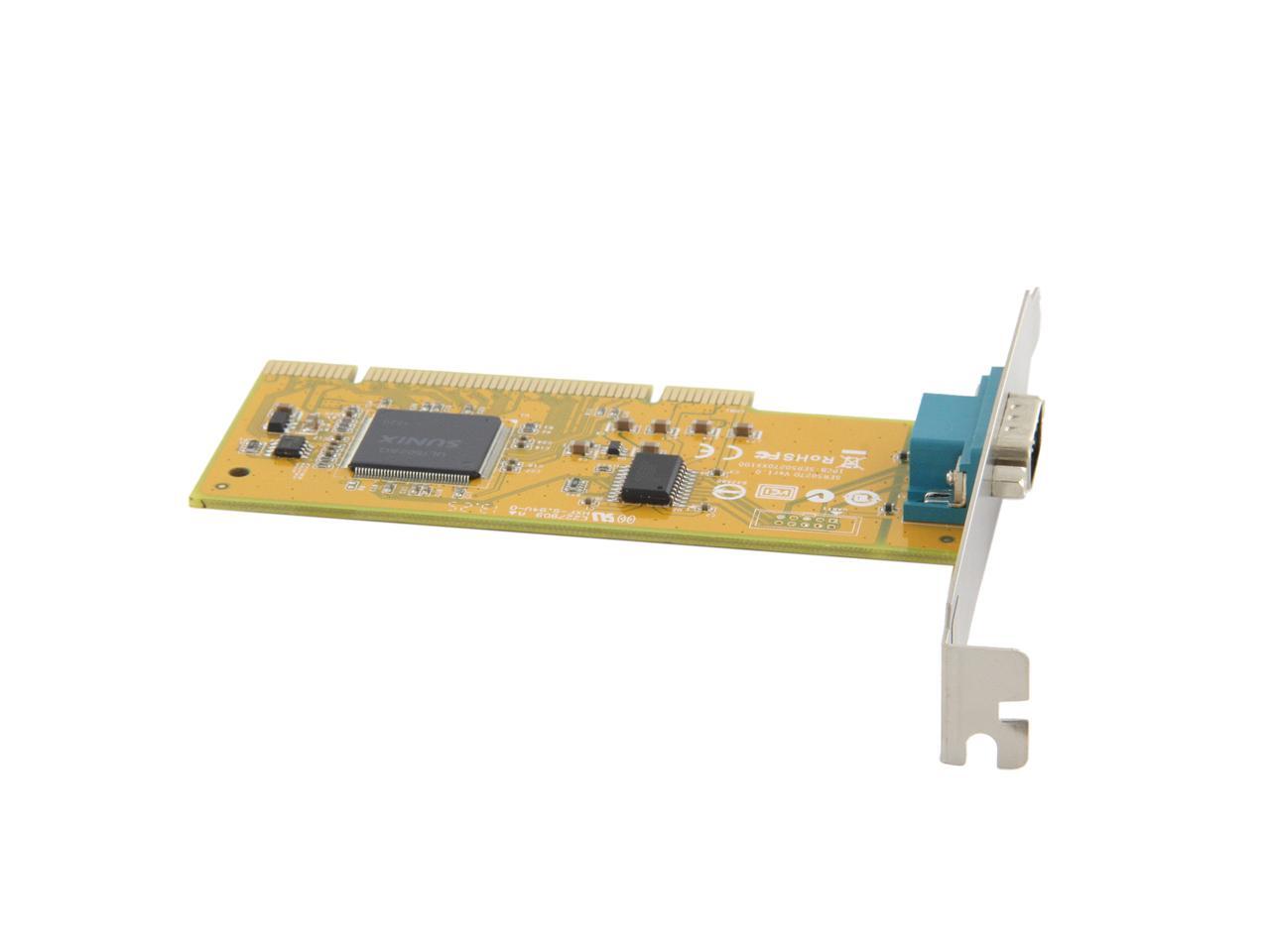

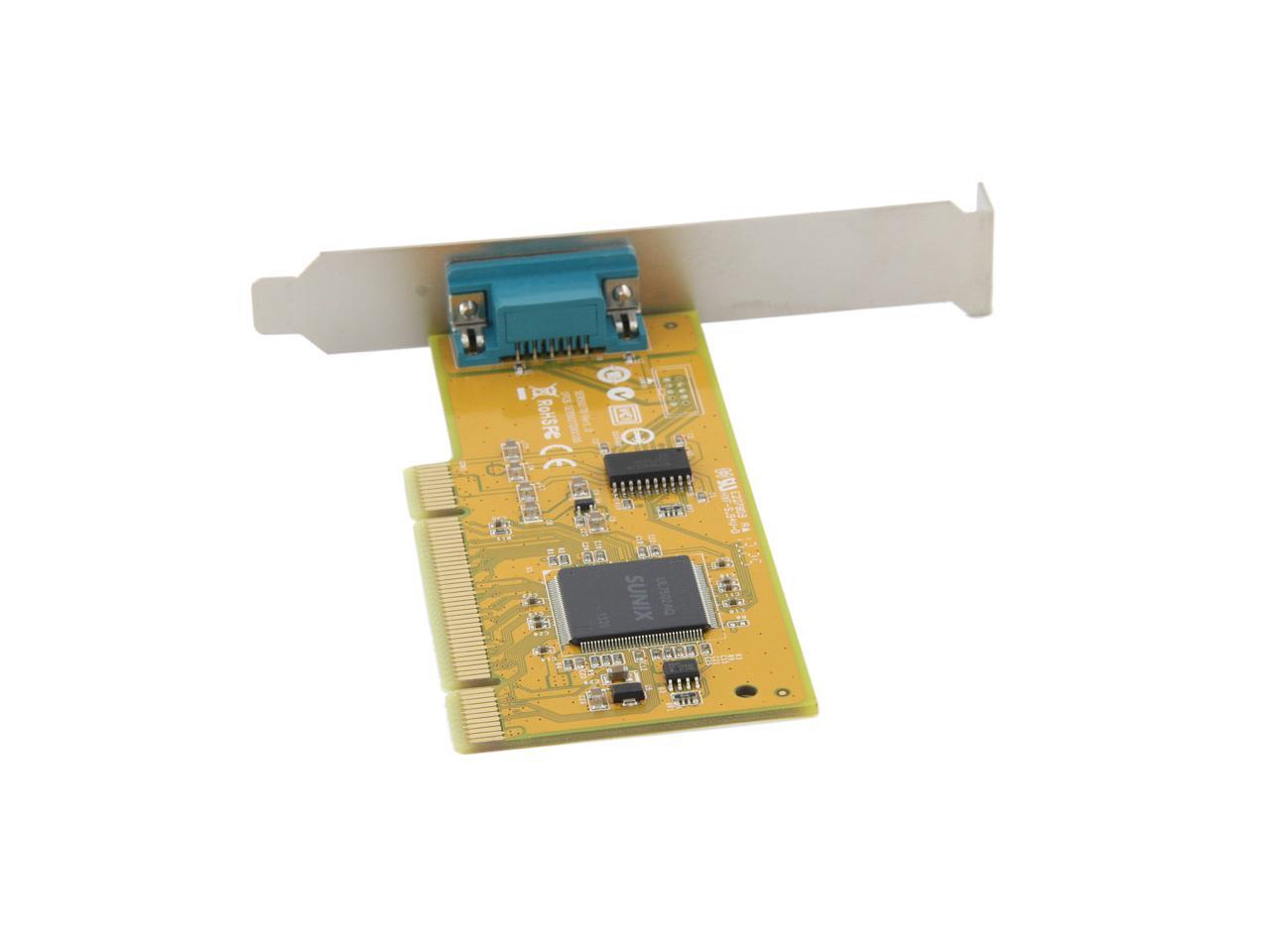

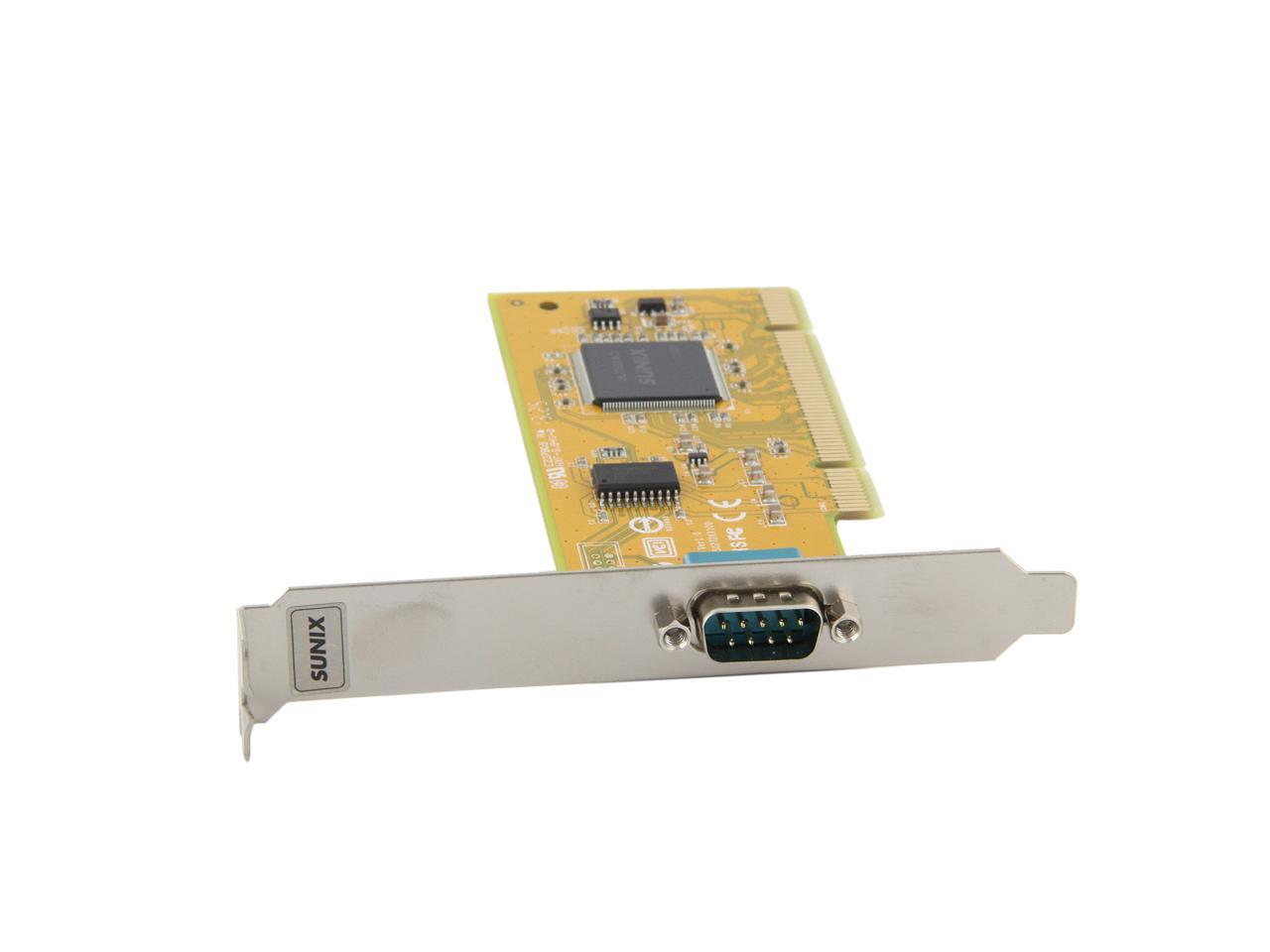

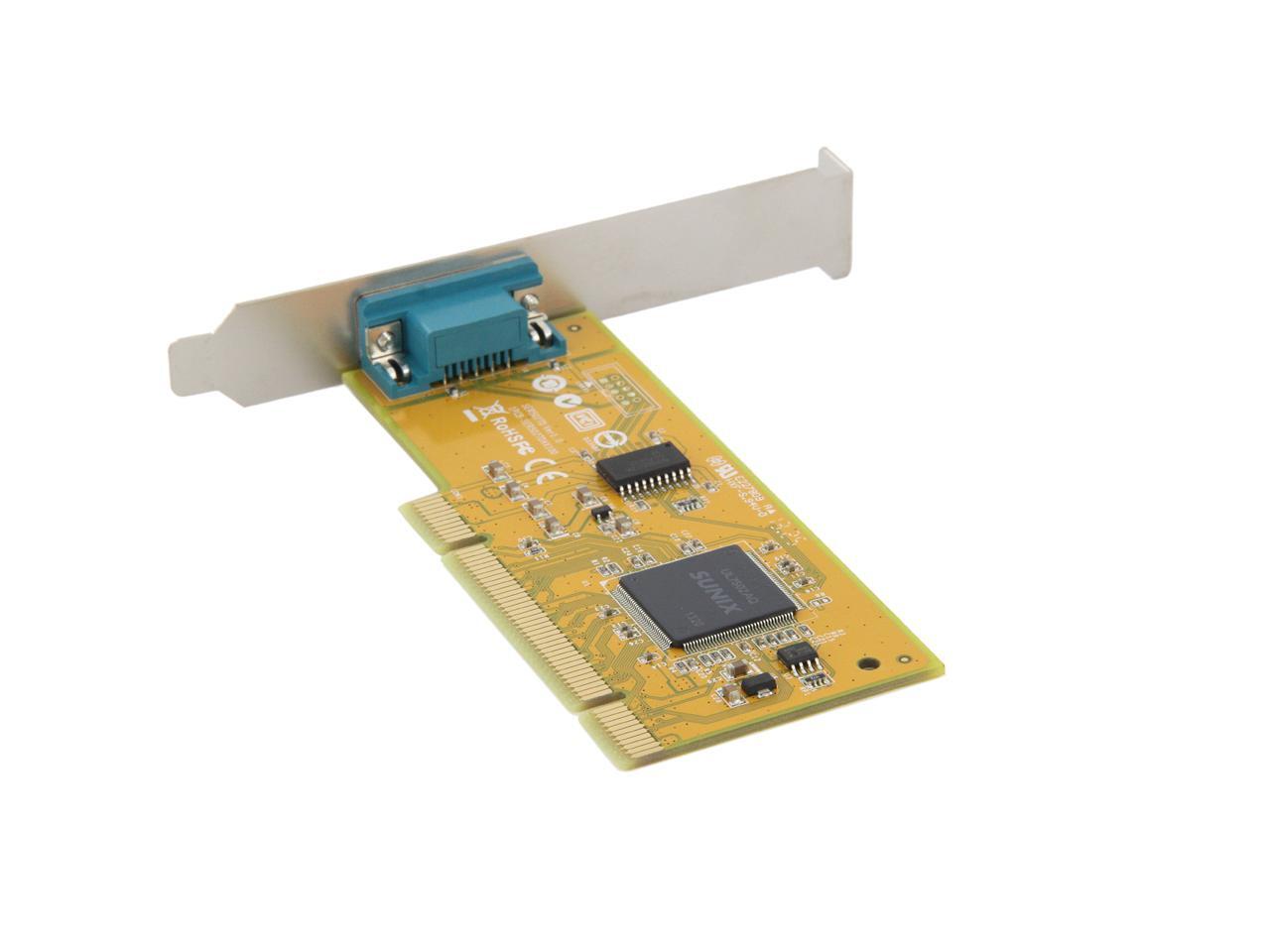

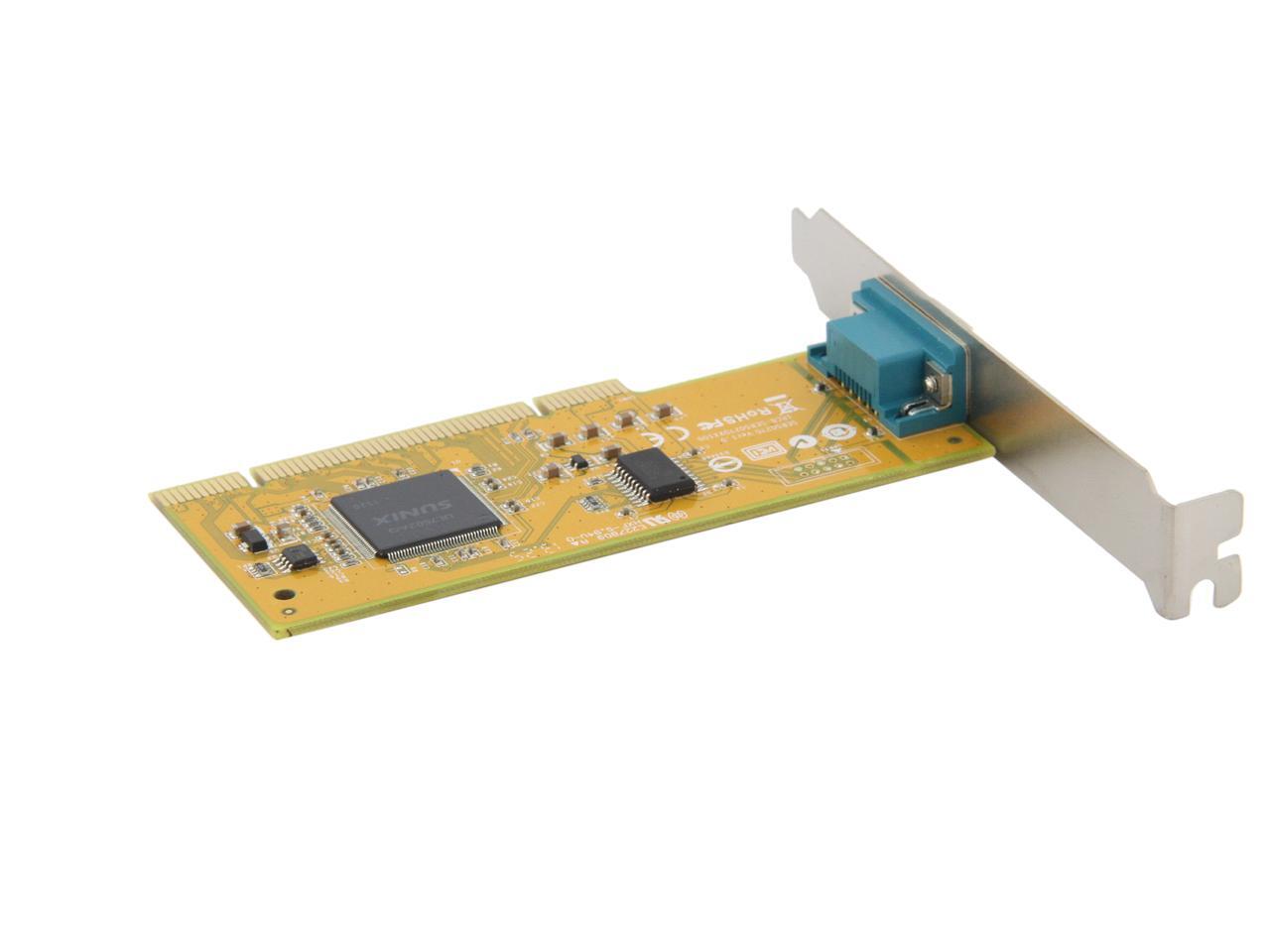

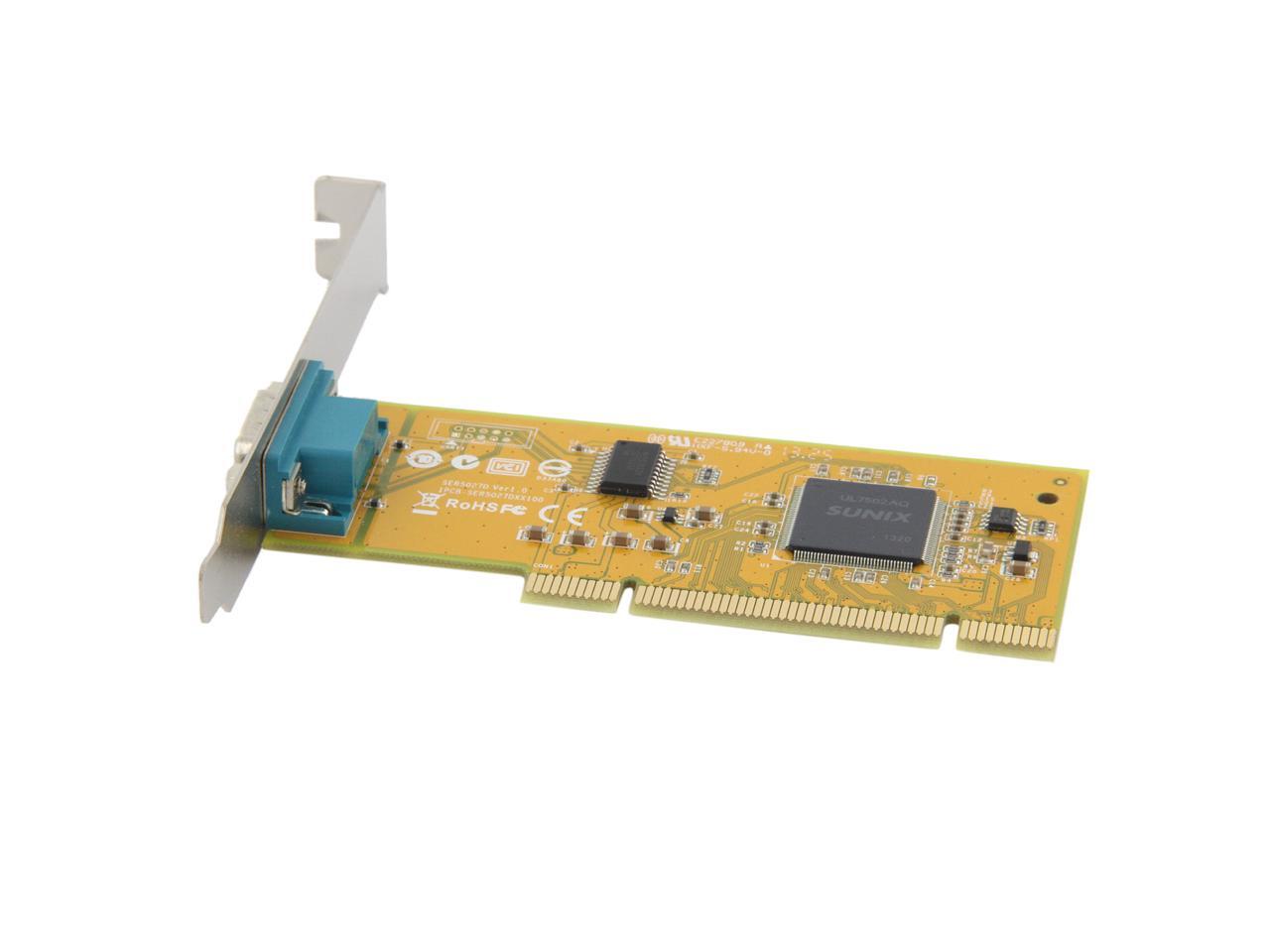

SUNIX 1-port RS-232 Universal PCI Serial Remap Board Model SER5027D+L

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the SUNIX SER5027D+L

Model
Brand	SUNIX
Model	SER5027D+L

Details
Type	PCI to Serial Port Card
Specifications	Serial Communication -Interface: RS-232 -Controller: SUNIX UL7512EQ (16C650 UART Compatible) -BUS: Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 -No. of Port: 1port -IRQ & IO: Assigned by System -FIFO: 32byte Hardware -Signal: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI -Baud rate: 50bps ~115.2Kbps -Stop bit: 1, 1.5, 2 -Parity: even, odd, none, mark, space -Flow Control: None, Xon/Xoff, RTS/CTS -Protection: +/-2KV ESD protection for each signal Human Body Model (HBM) -PCB Connector: DB9 Male Driver Support -Windows Client: XP/Vista/7/8/8.1 (X86/X64) -Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64) -Windows Embedded: Windows CE 4.2/5.0/6.0 XP Embedded / POSReady 2009 / POSReady 7 / Embedded System -Linux: Linux 2.4.x / 2.6.x -DOS: DOS FreeBSD: FreeBSD 5.3~5.5 / 6.0~6.4 QNX: QNX 6.3.2 / 6.4.0 IBM OS/2: WARP 3 / WARP 4 SCO UnixWare: UnixWare 7.1.3 /7.1.4 / Open Server 5.0.7 / 6.0 *Sun Microsystems: Solaris 10 Regulatory Approvals -Hardware CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS -Software Microsoft WHQL Windows: Windows Client: XP/Vista/7/8/8.1 (X86/X64) Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)

Features
Features	Expands 1 independent RS-232 serial port with communication speeds up to 115.2Kbps. High speed SUNIX UL7512EQ 16C650 compatible UART controller on-board. Compliance with PCI 33MHz Ver 2.2 & 2.1 specification. Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power. On-chip hardware auto flow control to guarantee no data loss. Built-in +/- 2KV ESD protection for all serial signals. Supports legacy ISA address 2E8, 3E8, 2F8, 3F8 mapping under DOS and Win9x/NT OS. Plug-n-Play, I/O address and IRQ assigned by BIOS. Certified by CE, FCC, RoHS, and Microsoft WQHL approval. Support Microsoft Windows, Linux, and DOS.

Dimensions & Weight
Dimensions	PCB Dimension: 120 x 52 mm Bracket: Standard 121 mm
