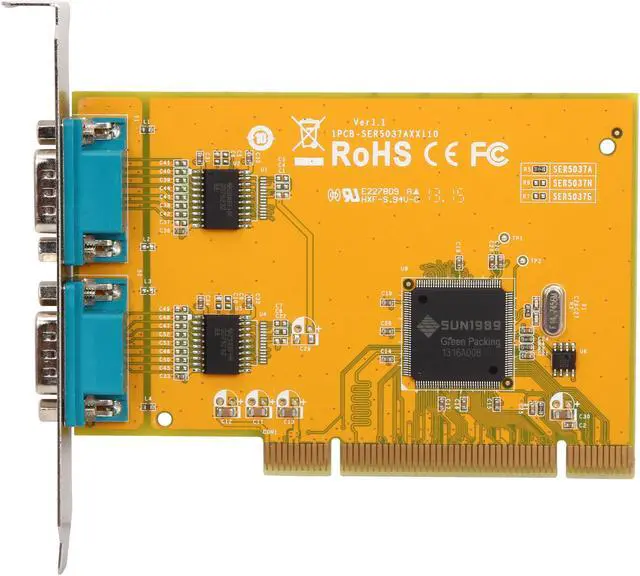

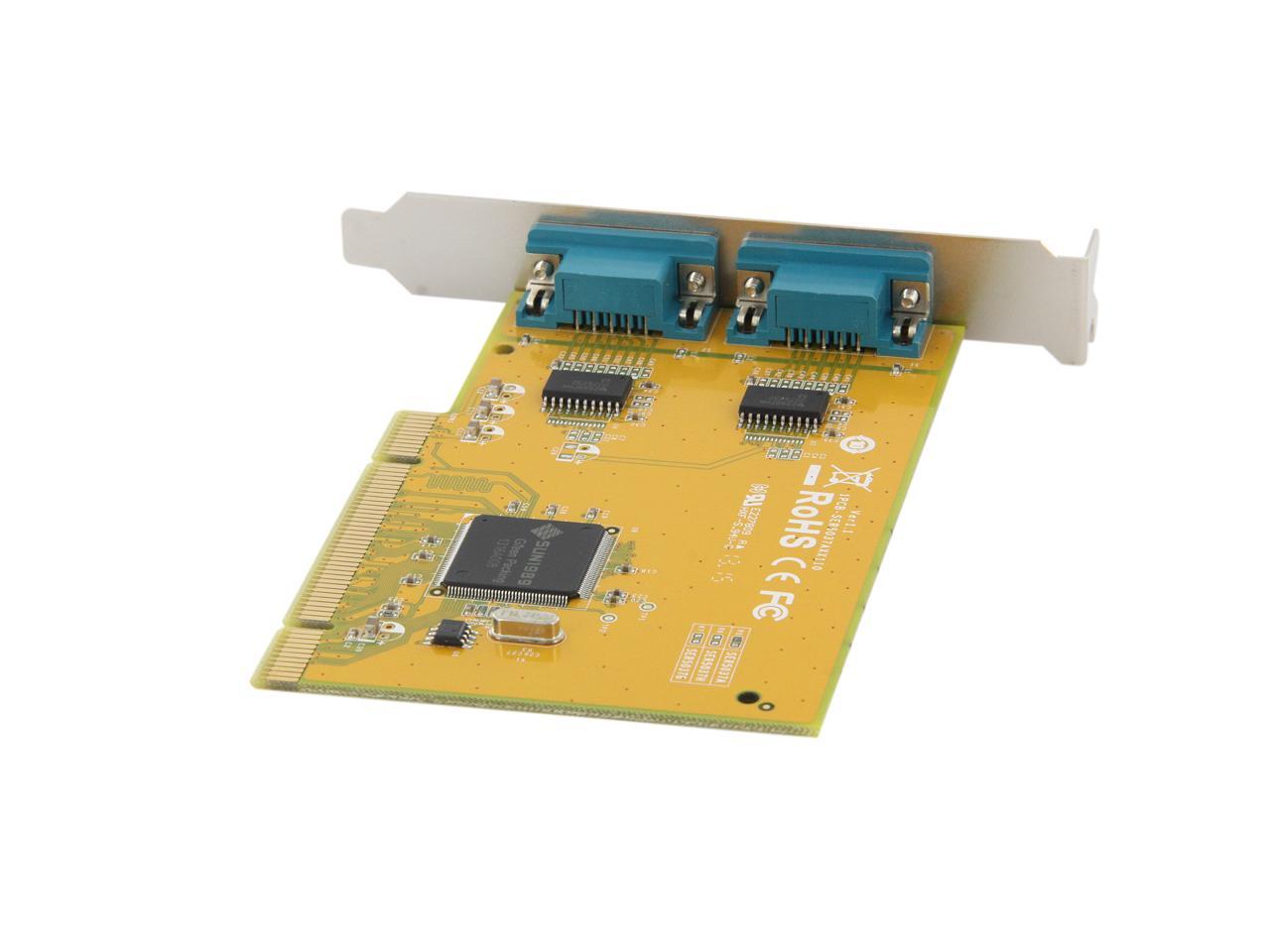

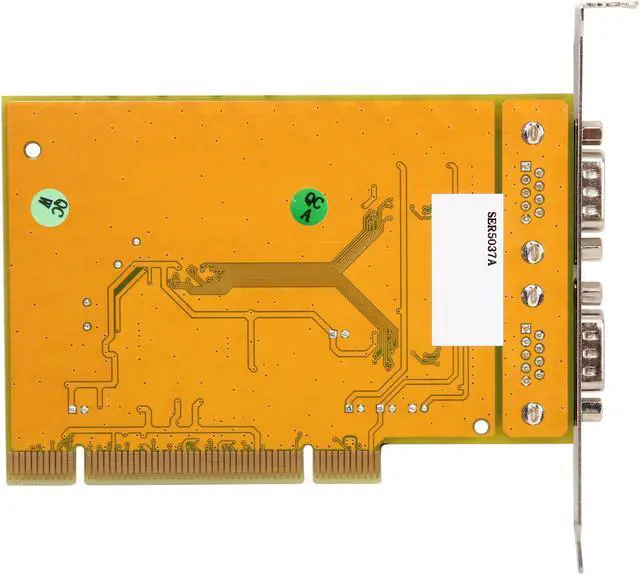

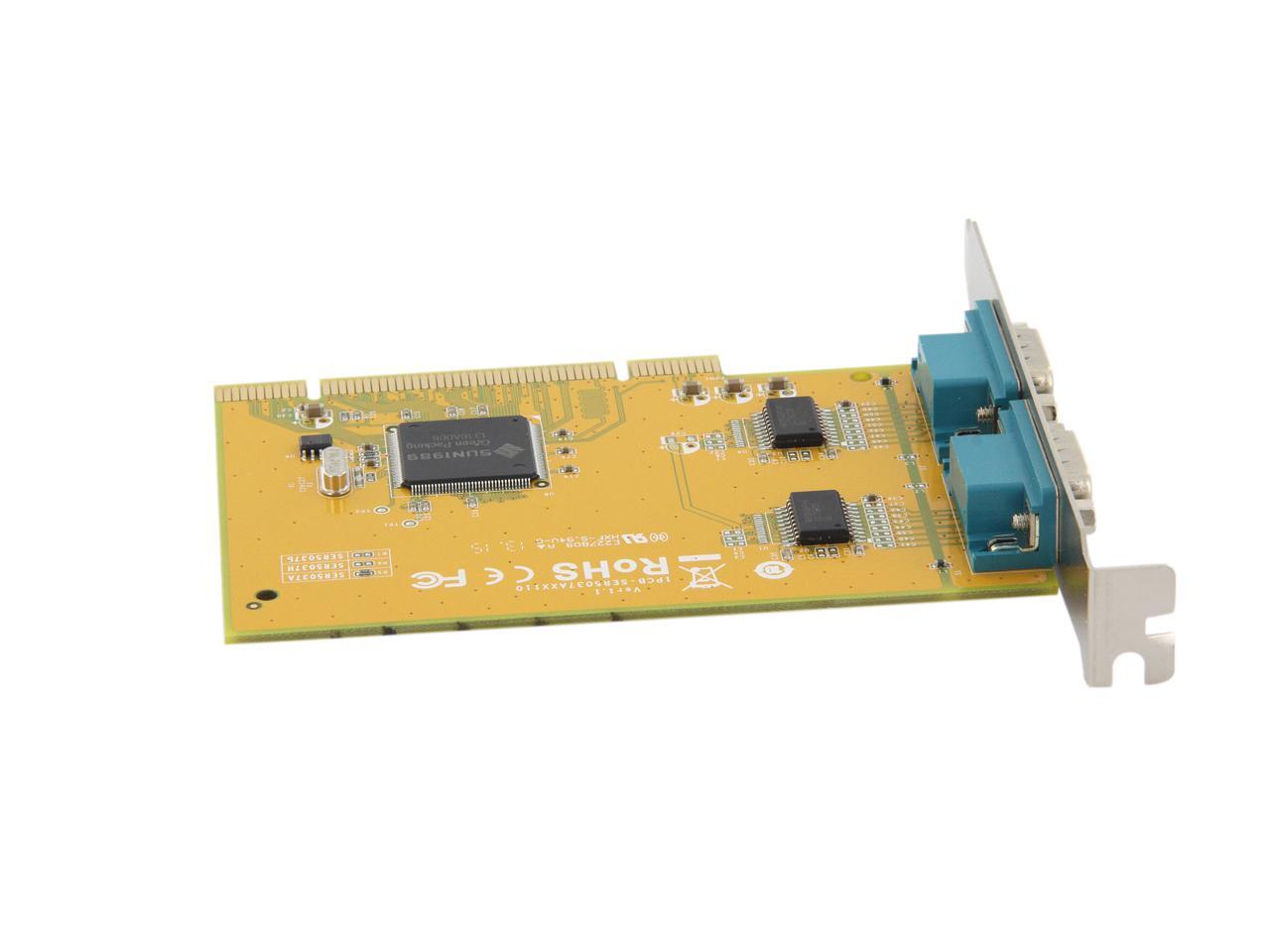

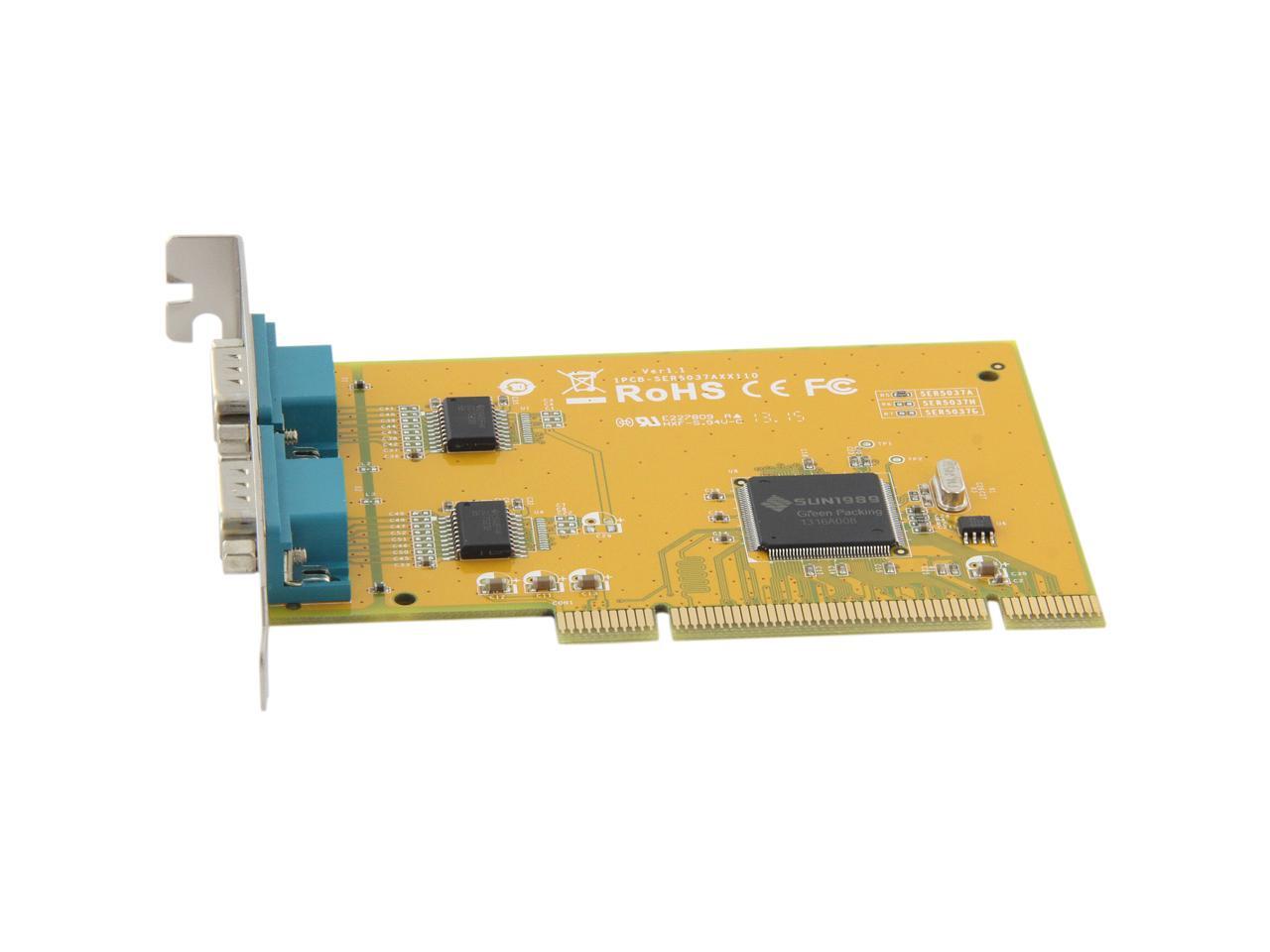

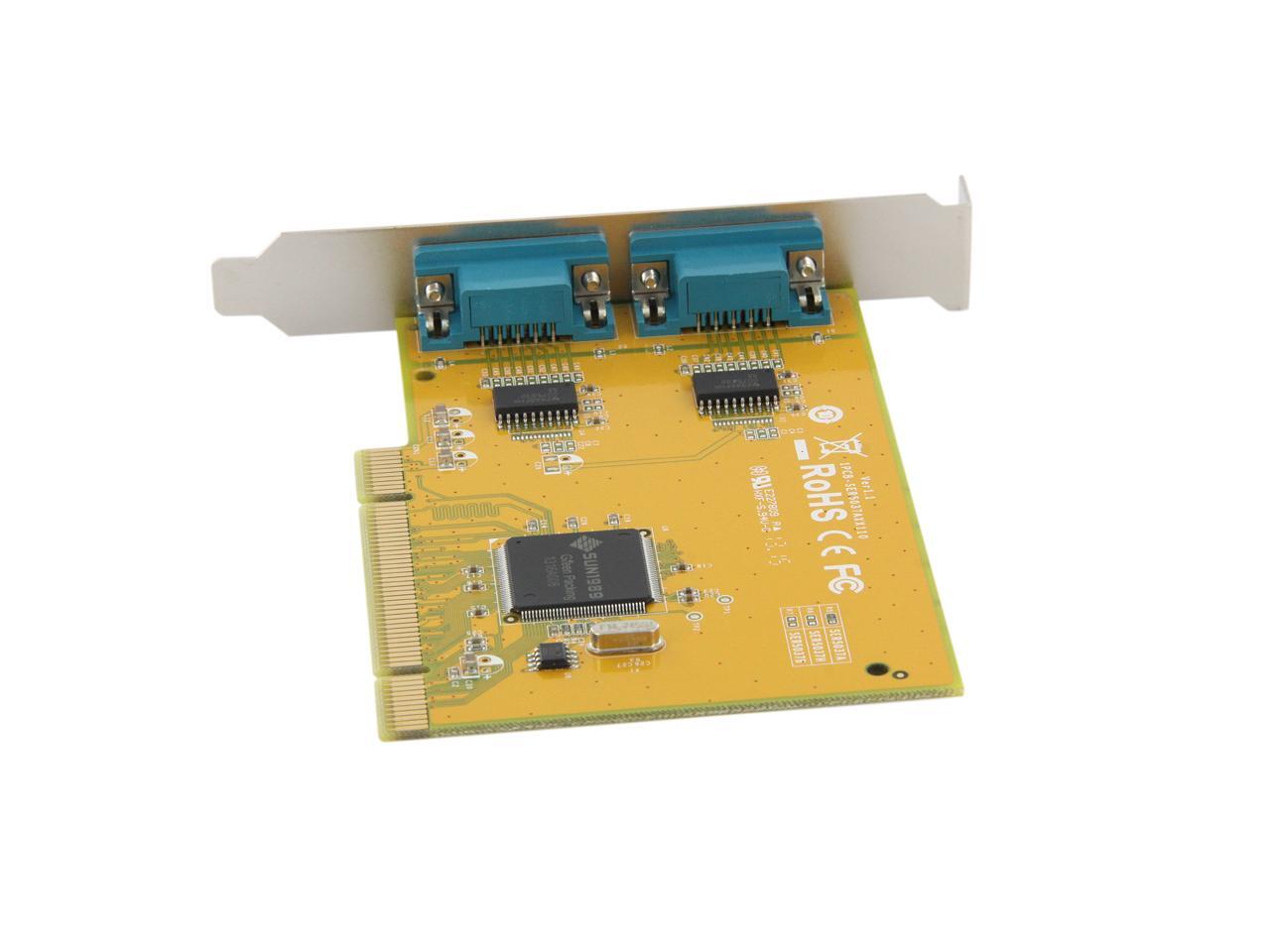

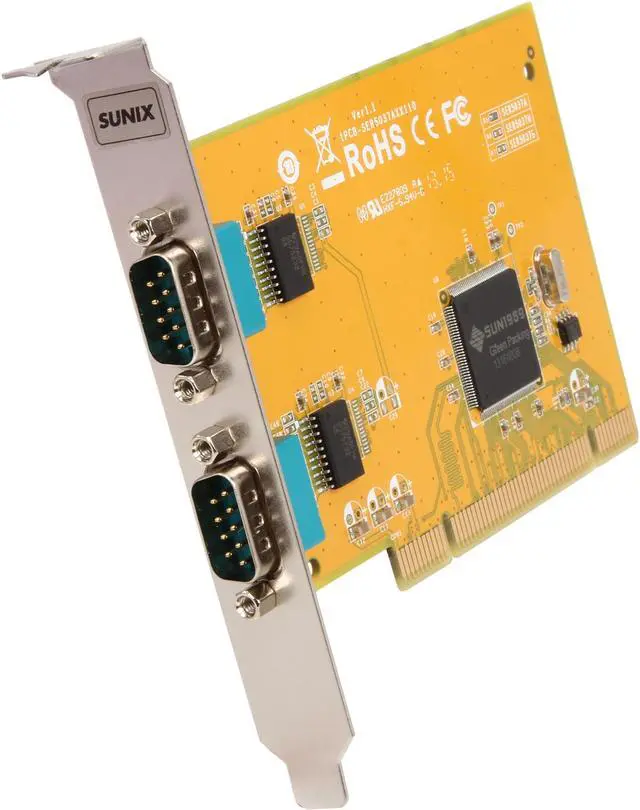

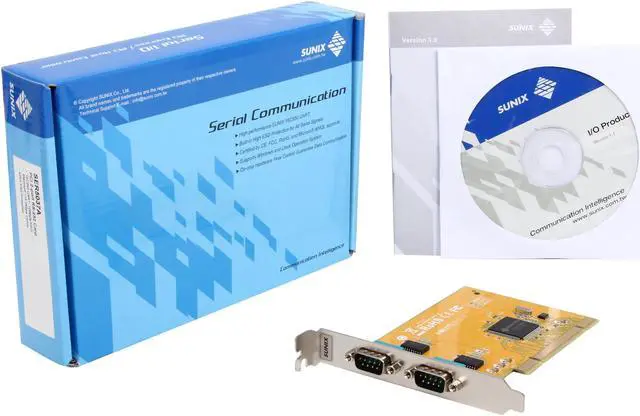

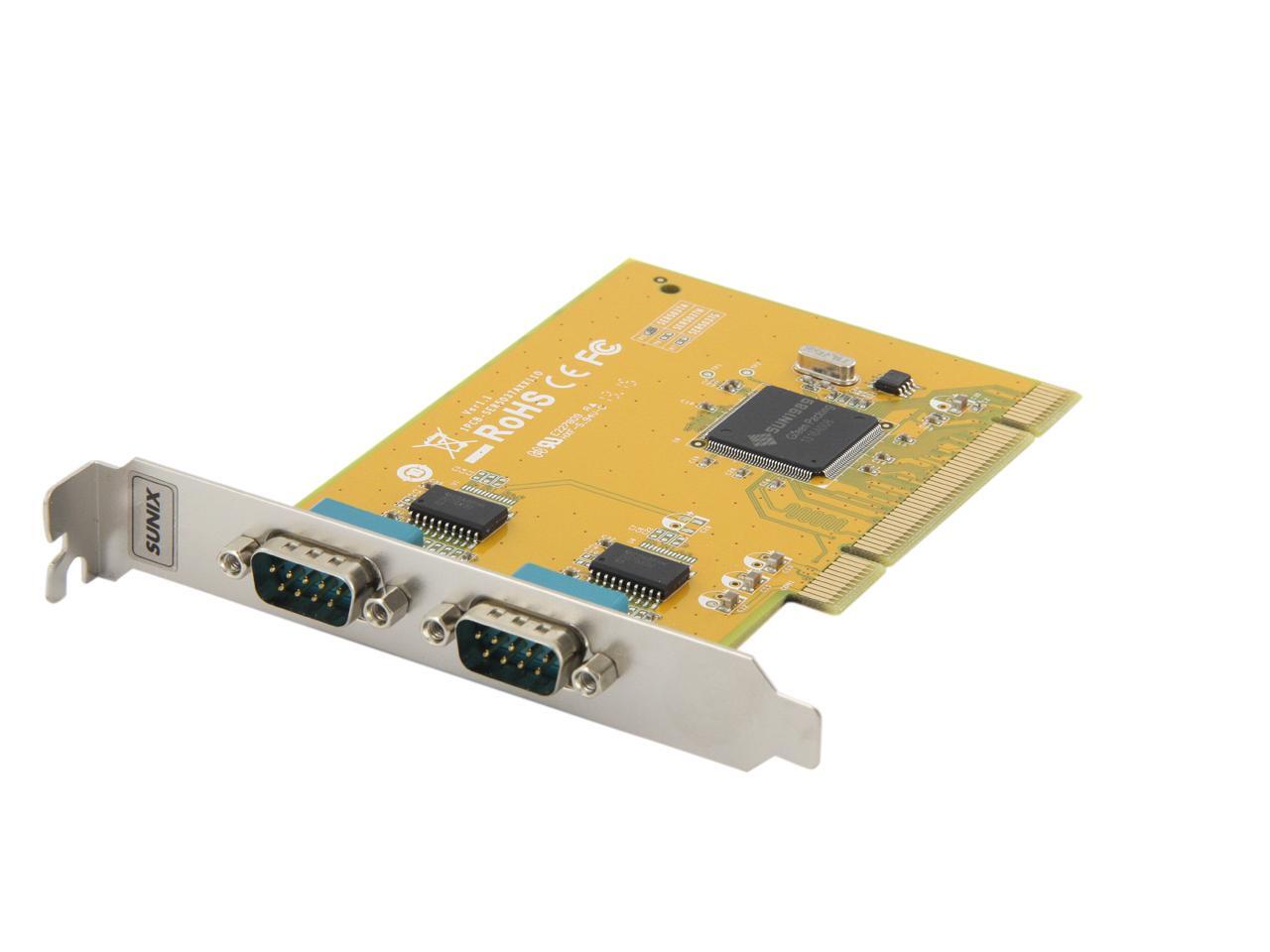

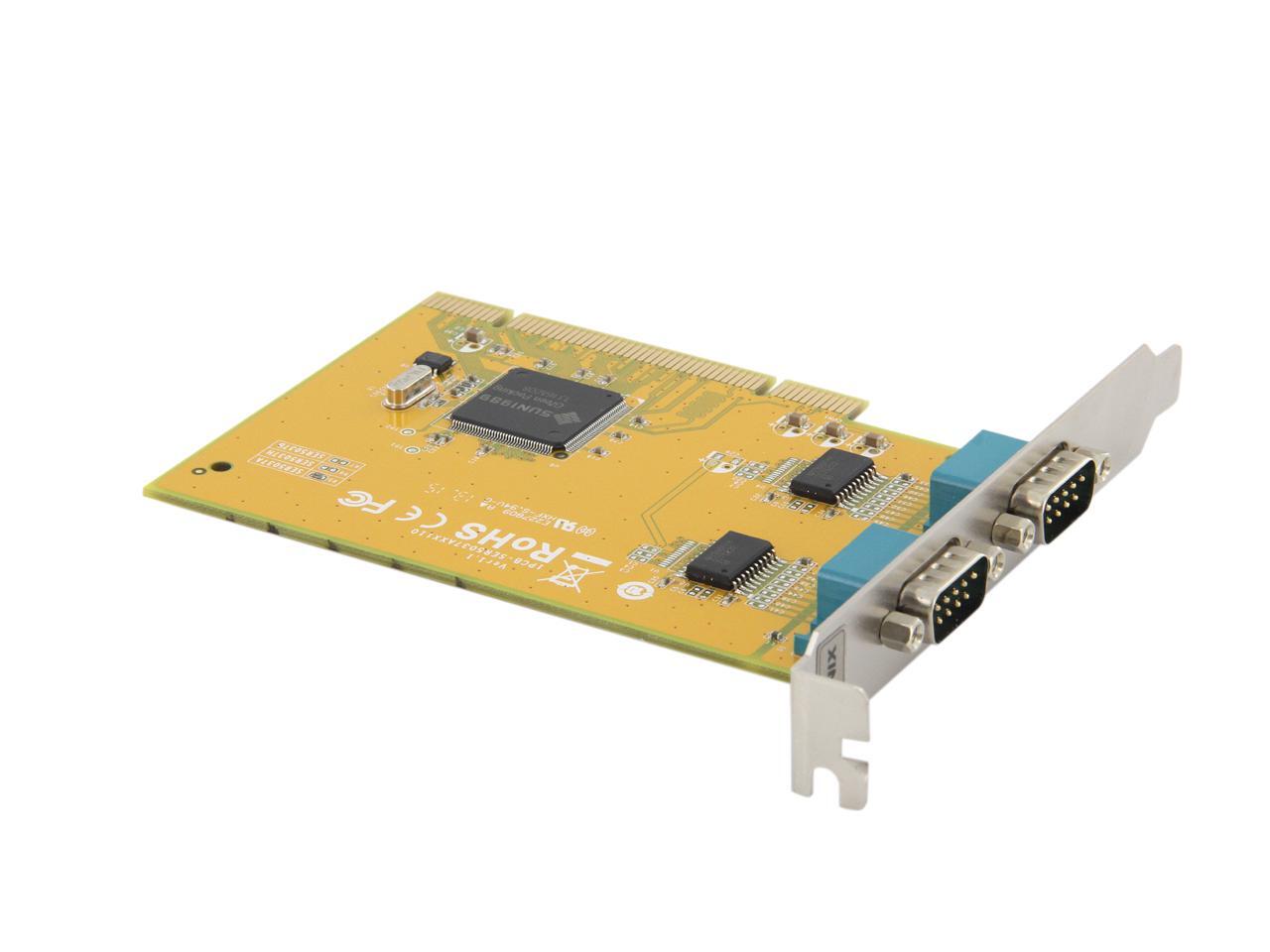

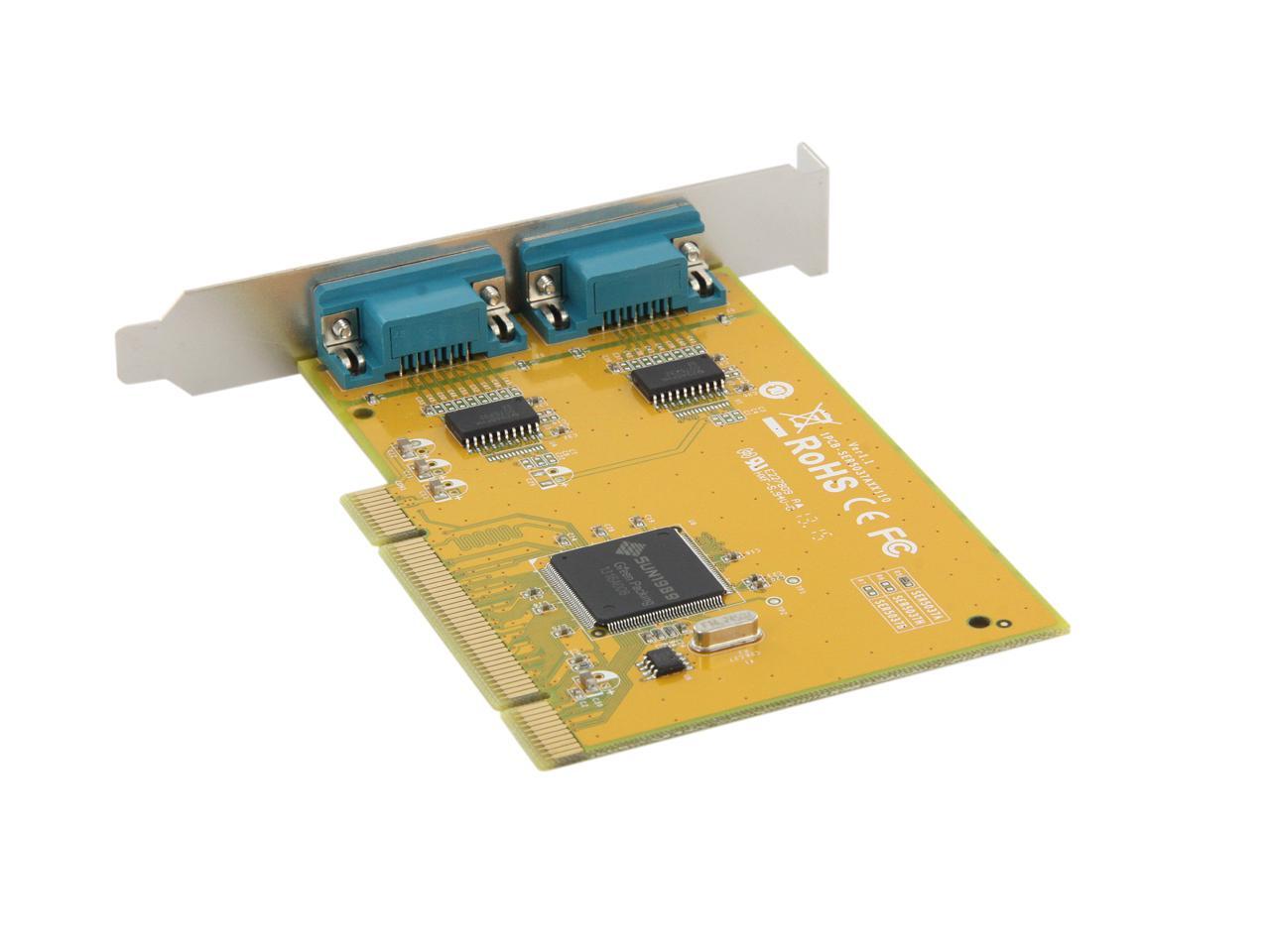

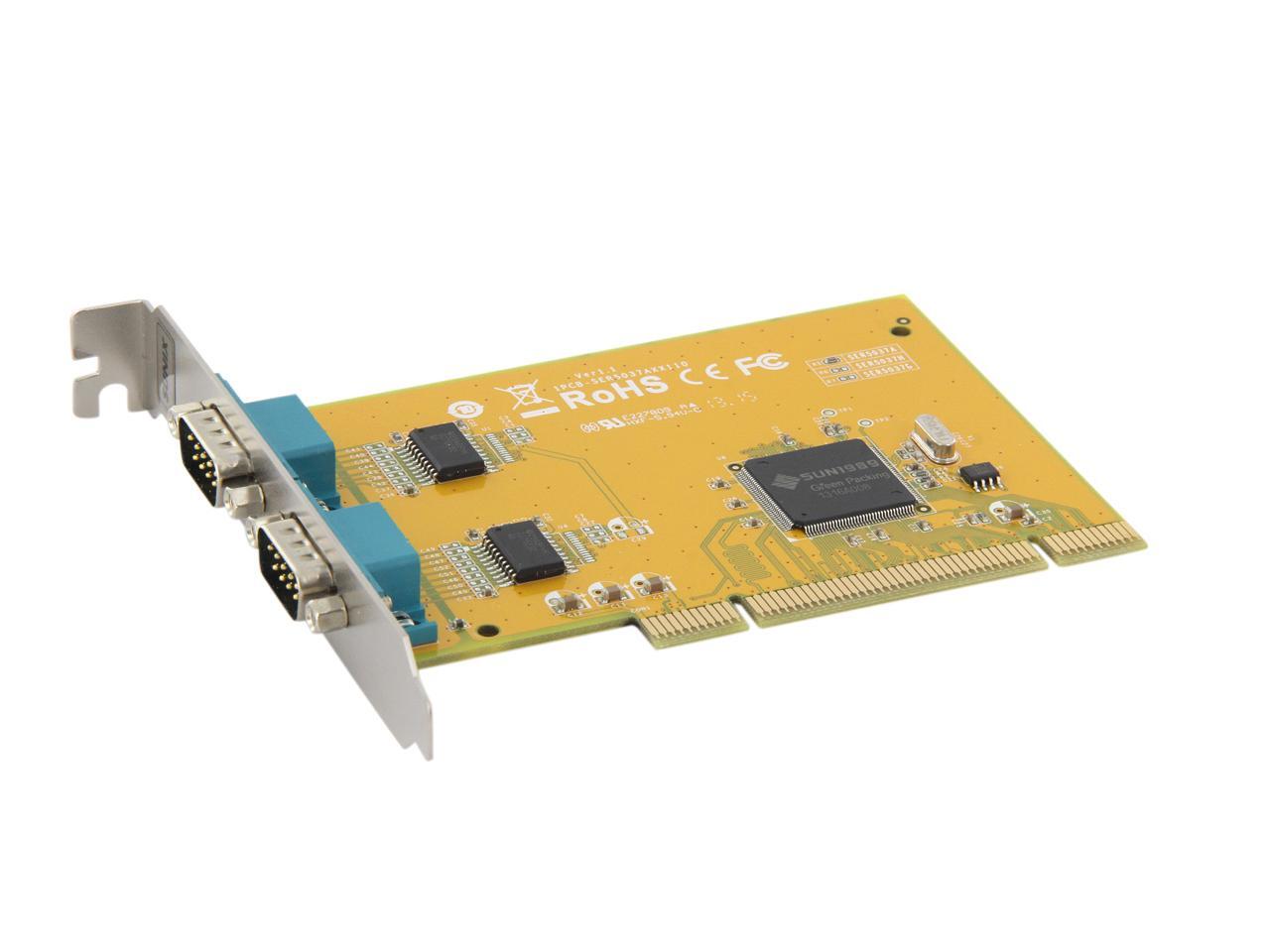

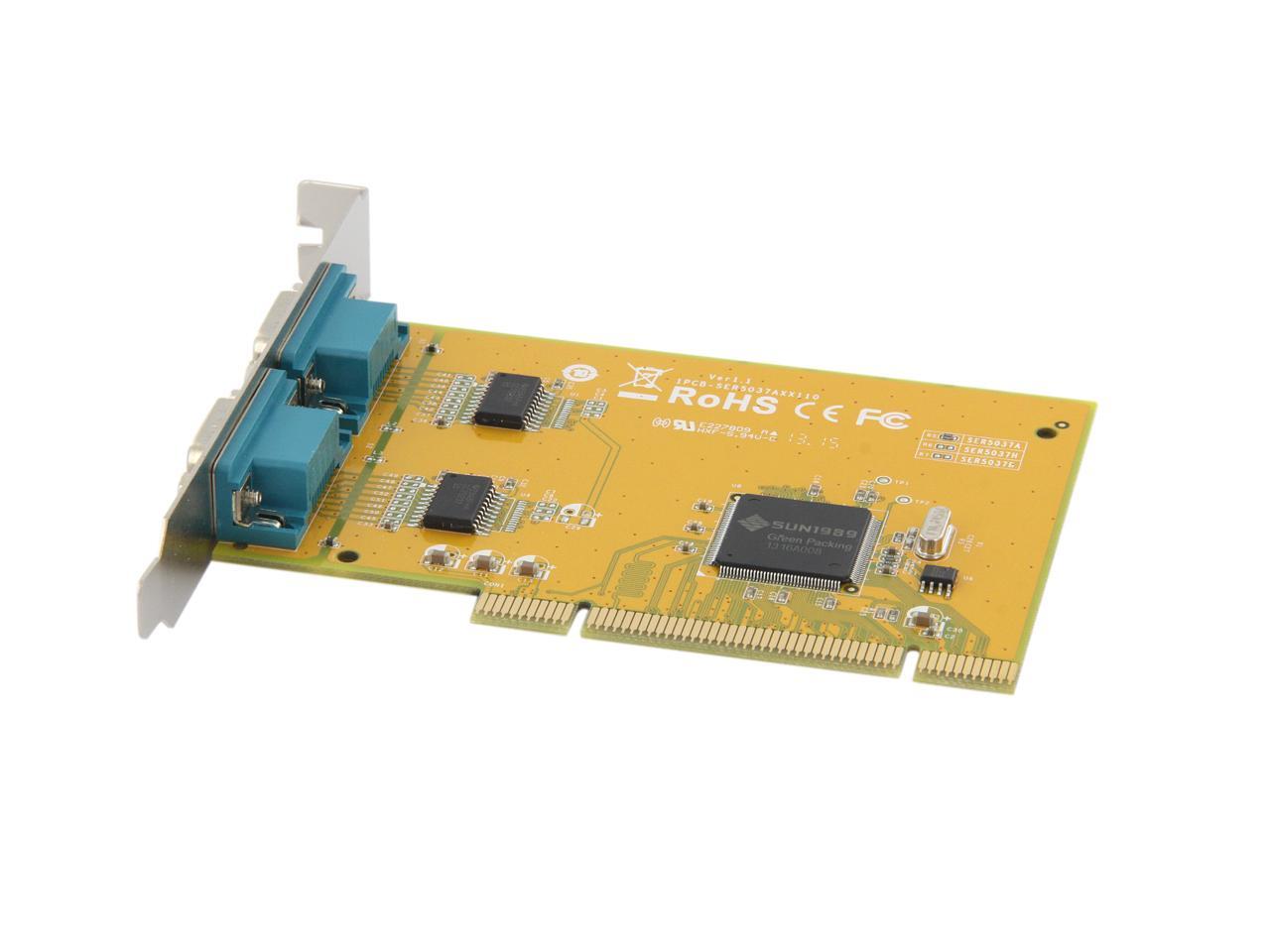

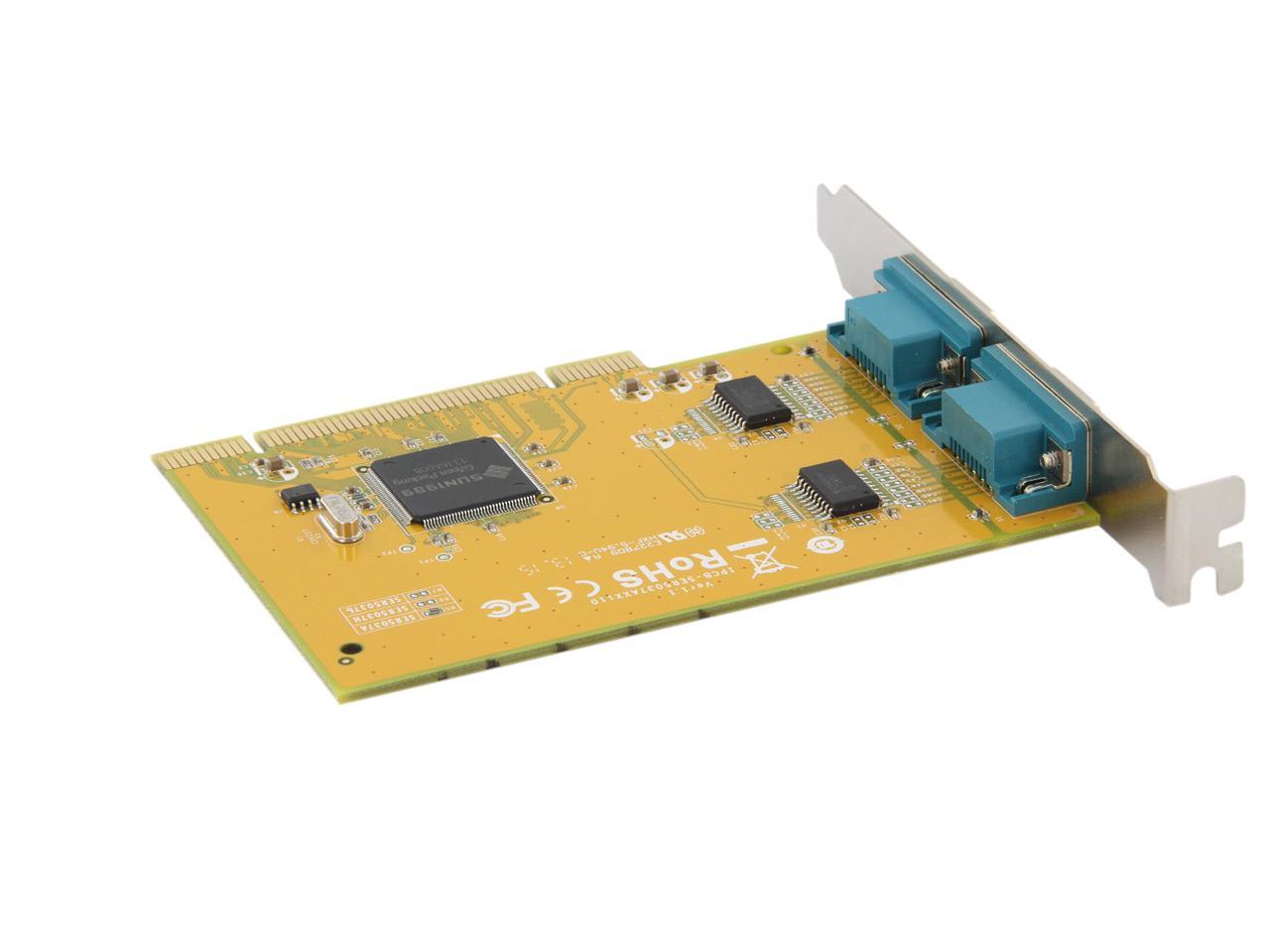

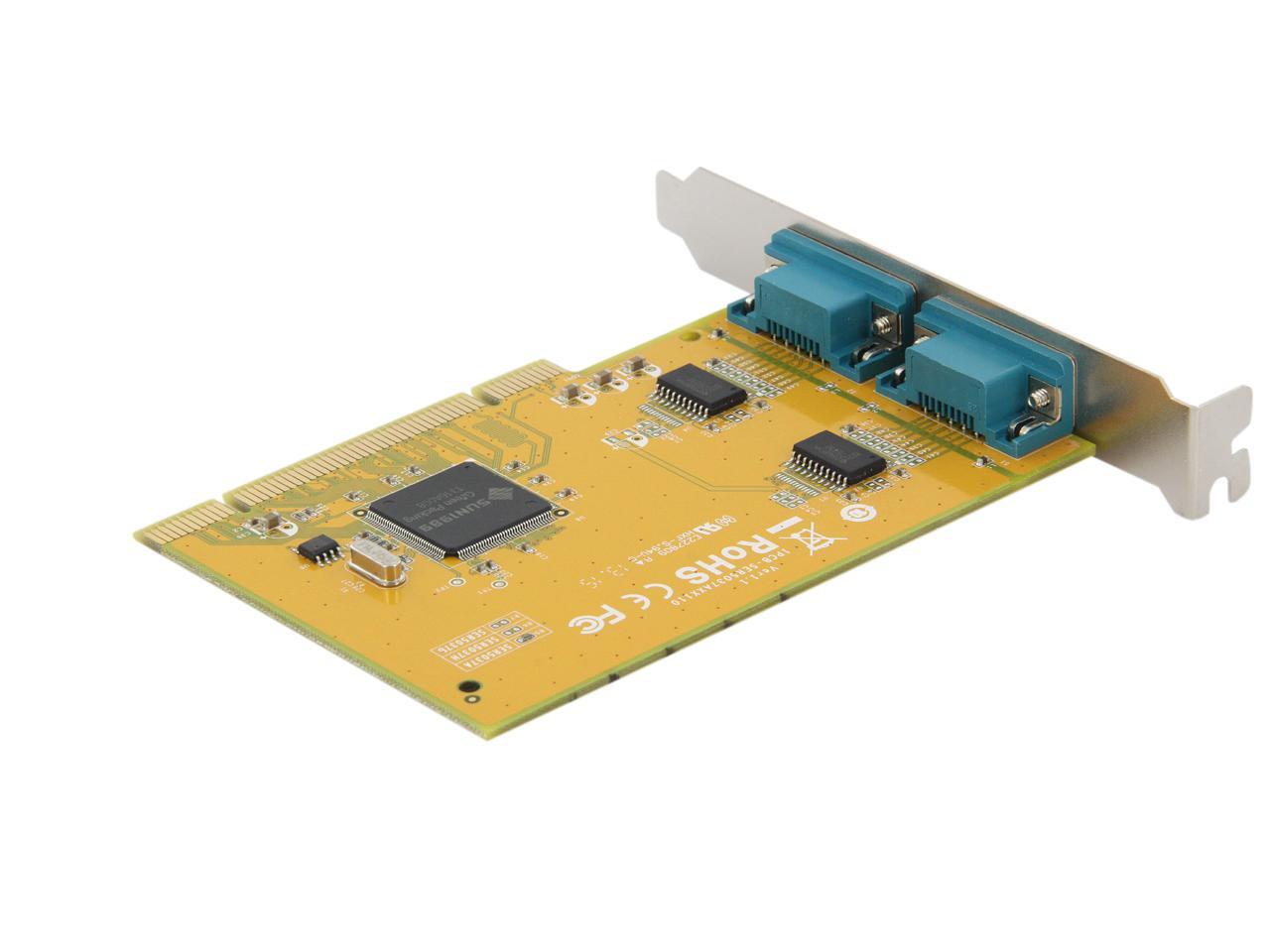

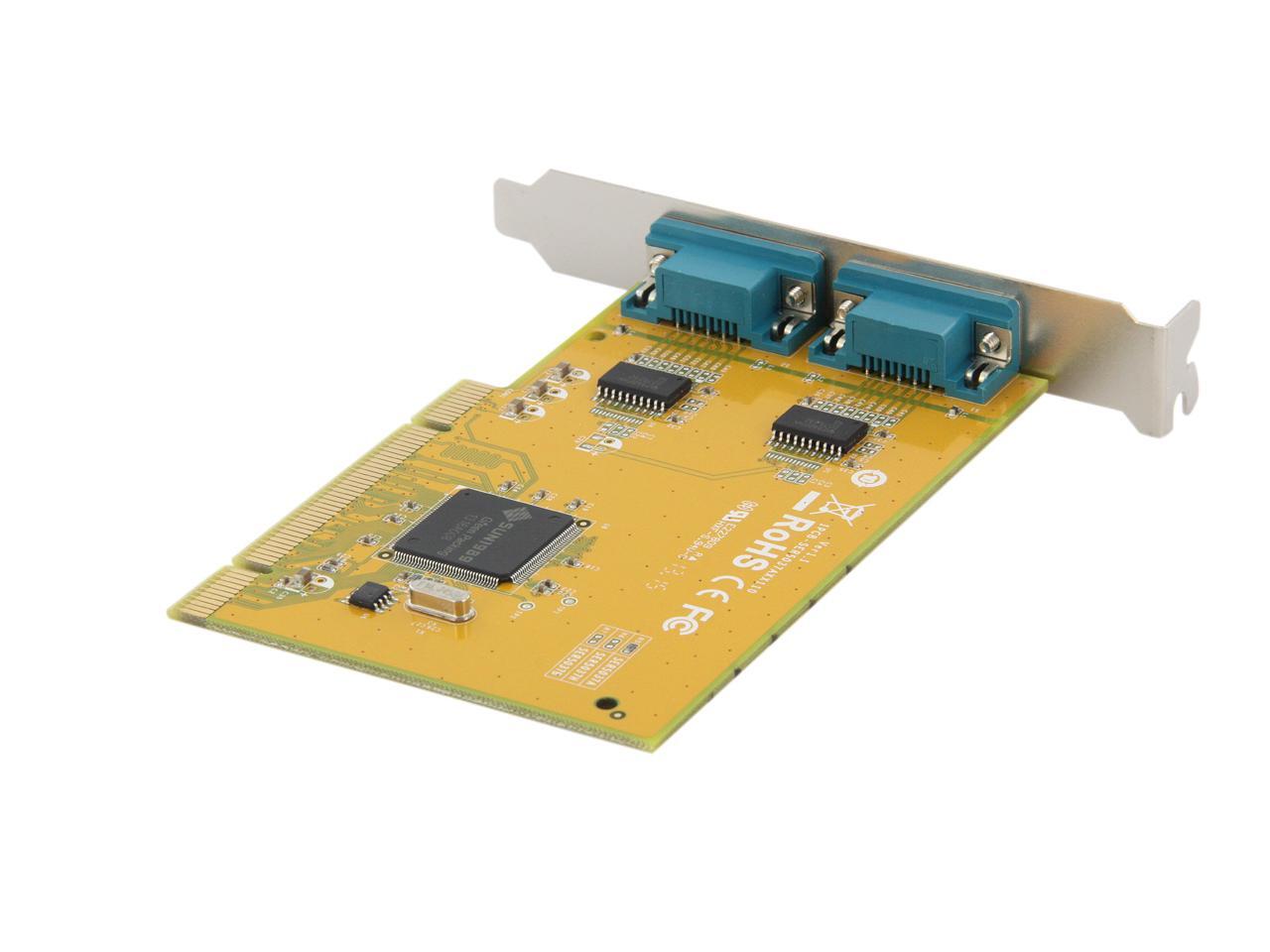

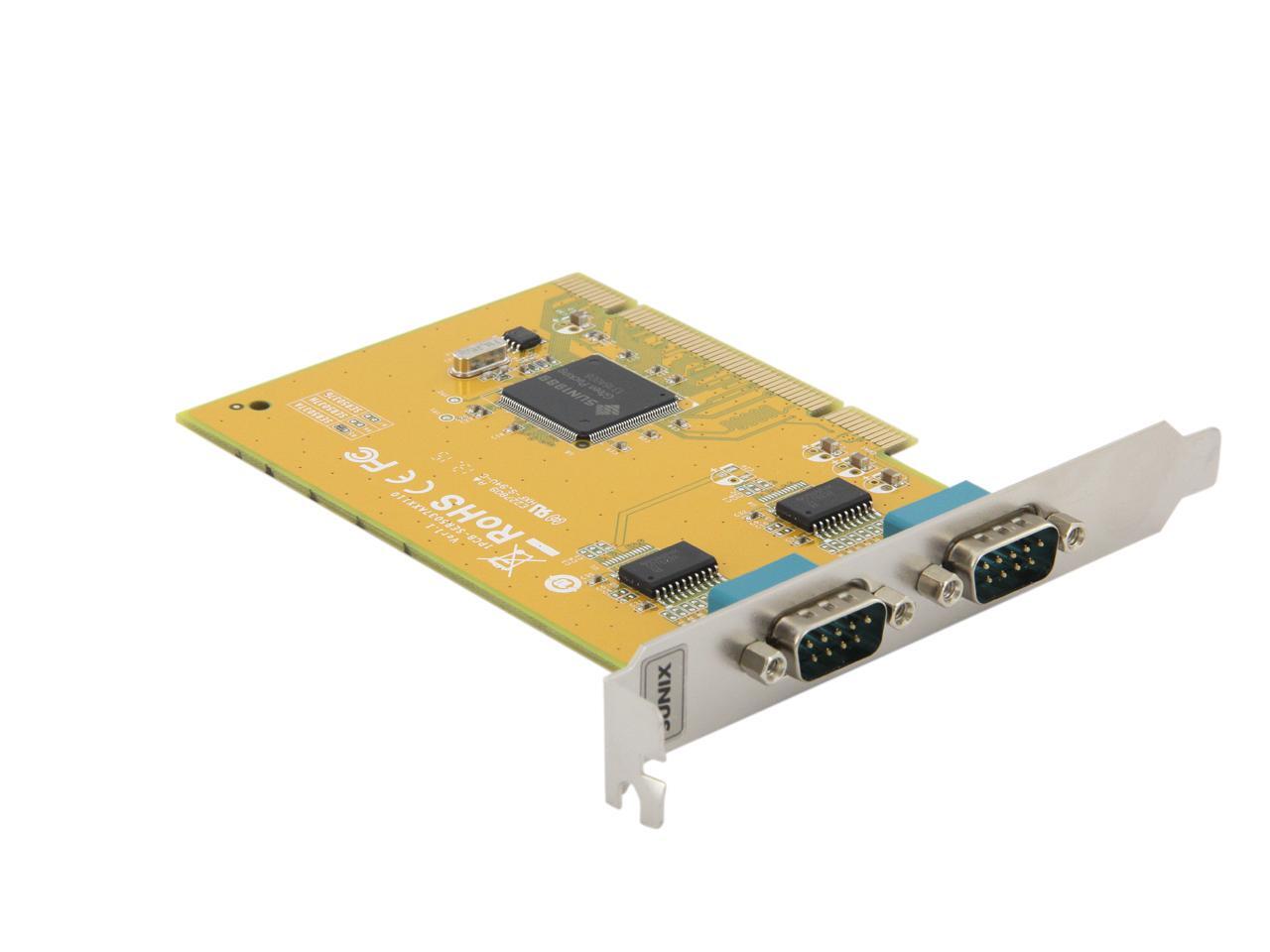

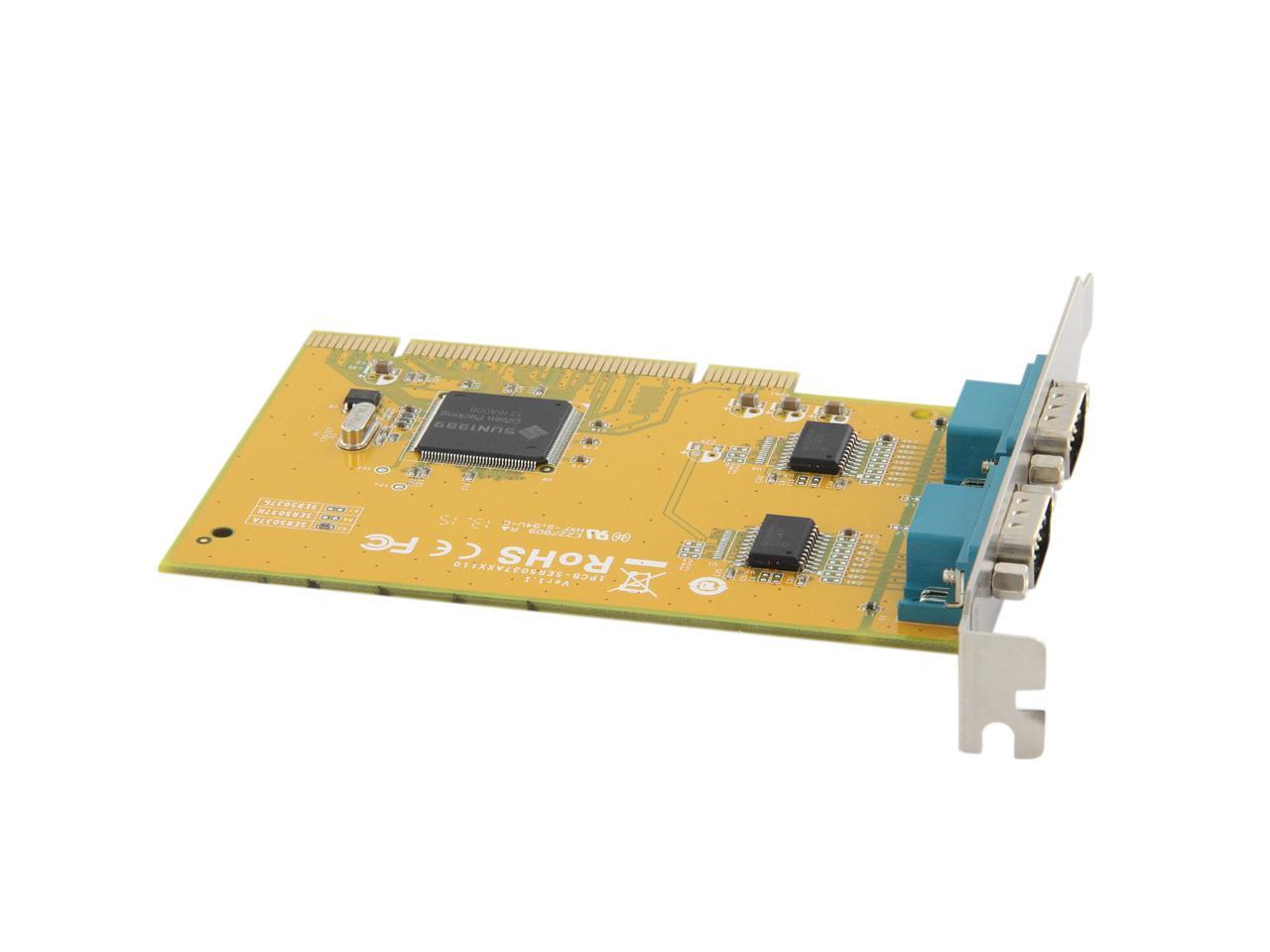

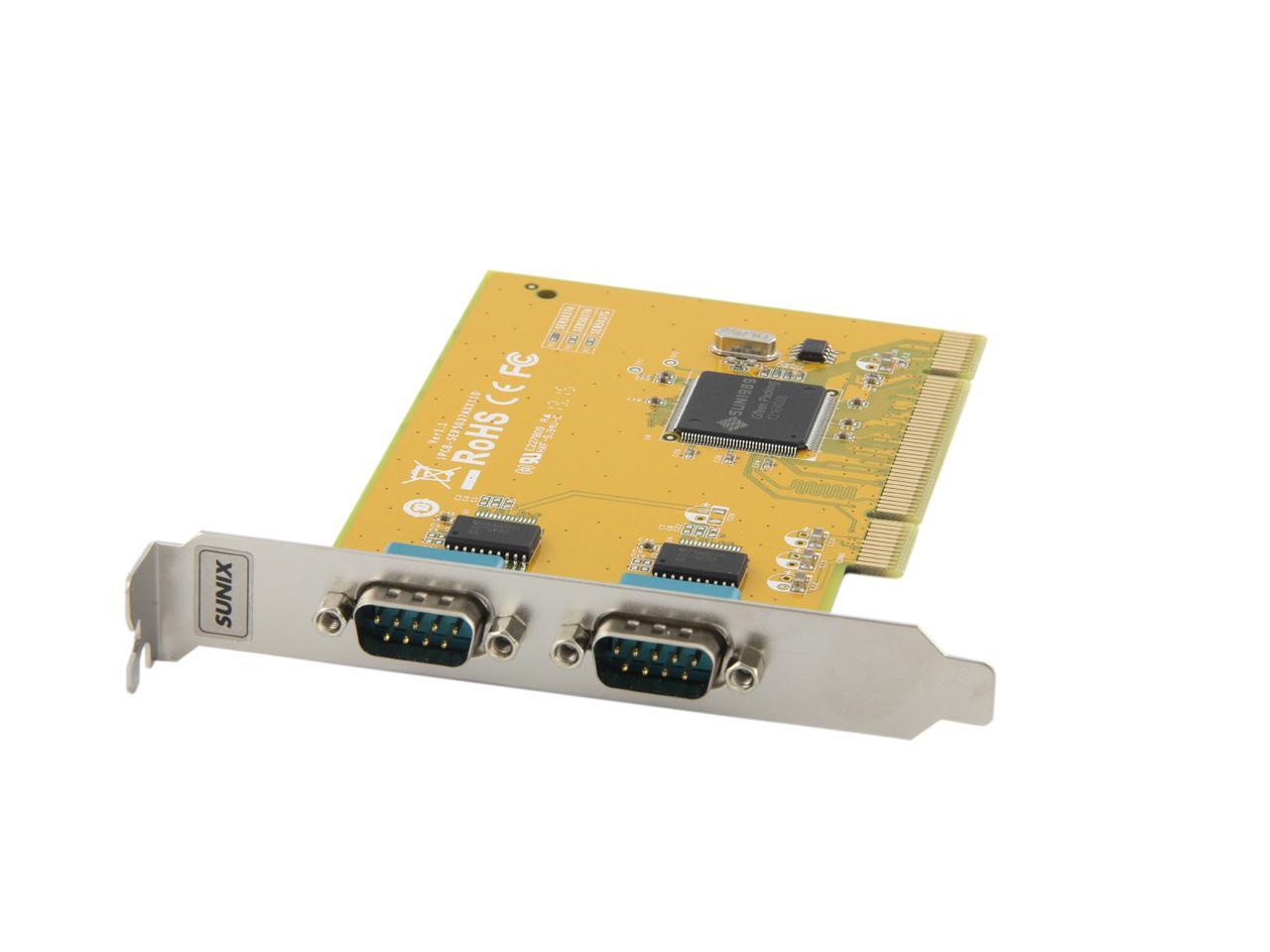

SUNIX 2-port RS-232 Universal PCI Serial Board Model SER5037A

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the SUNIX SER5037A

Model
Brand SUNIX
Model SER5037A
Details
Type PCI to Serial Port Card
Specifications Serial Communication
-Interface: RS-232
-Controller: SUNIX SUN1989 (16C950 UART Compatible)
-Bus: Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
-No. of Port: 2-port
-IRQ & IO: Assigned by System
-FIFO: 128 byte (Hardware)
-Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
-Baud rate: 50 bps to 115.2 Kbps
-Data bit: 5,6,7,8
-Stop bit: 1,1.5,2
-Parity: None, Even, Odd, Space, Mark
-Flow Control: None, Xon/Xoff, RTS/CTS
-Protection: +/-2KV ESD protection for each signal Human Body Model (HBM)

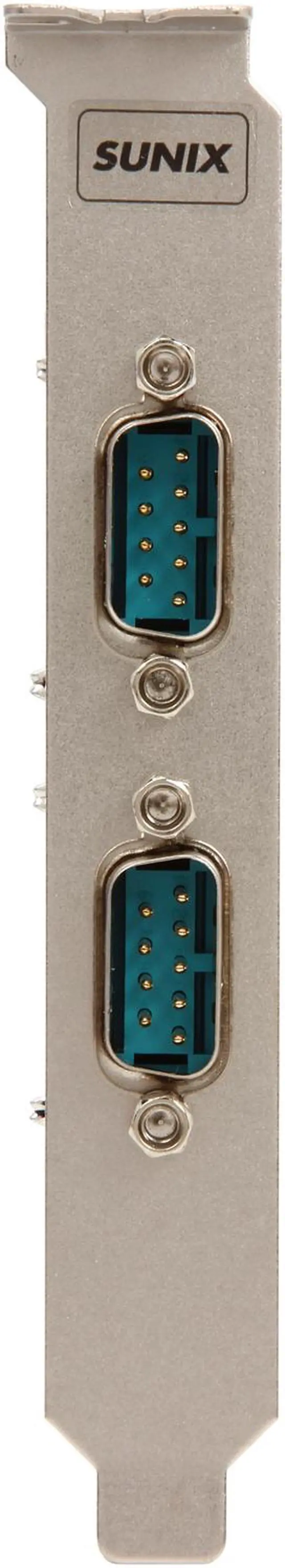

-PCB connector: DB9 Male

Driver Support
-Windows Client: XP/Vista/7/8/8.1 (X86/X64)
-Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
-Windows Embedded:
Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System
-Linux: Linux 2.4.x / 2.6.x / 3.x
-DOS: DOS
-FreeBSD: FreeBSD 5.3~5.5 / 6.0~6.4
-QNX: QNX 6.3.2/6.4.0
* IBM OS/2: WARP 3/WARP 4
* SCO UnixWare: UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems: Solaris 10

Regulatory Approvals
-Hardware
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
-Software
Microsoft WHQL Windows:
Windows Client: XP/Vista/7/8/8.1 (X86/X64)
Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)
Features
Features Expands 2 independent RS-232 serial port with communication speeds up to 115.2Kbps.

High reliability SUN1989 16C950 compatible UART controller on-board.

Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.

Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.

On-chip hardware auto flow control to guarantee no data loss.

Built-in +/- 2KV ESD protection for all serial signals.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.
Dimensions & Weight
Dimensions PCB Dimension: 120 x 82 mm
Bracket: Standard 121 mm
Additional Information
First Listed on Newegg February 24, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
