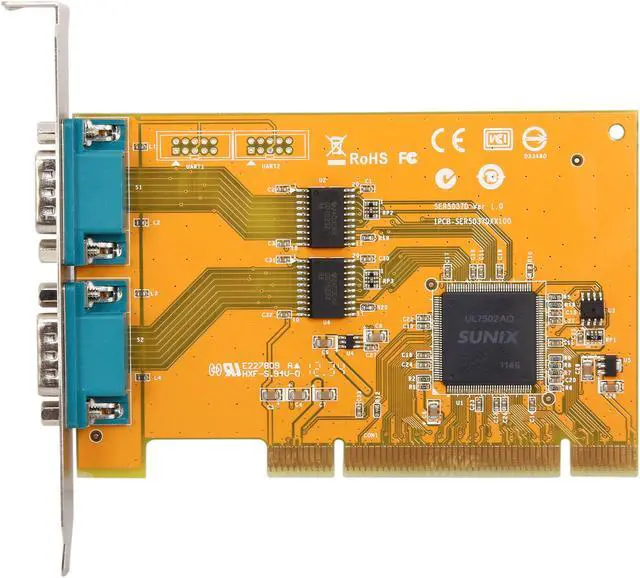

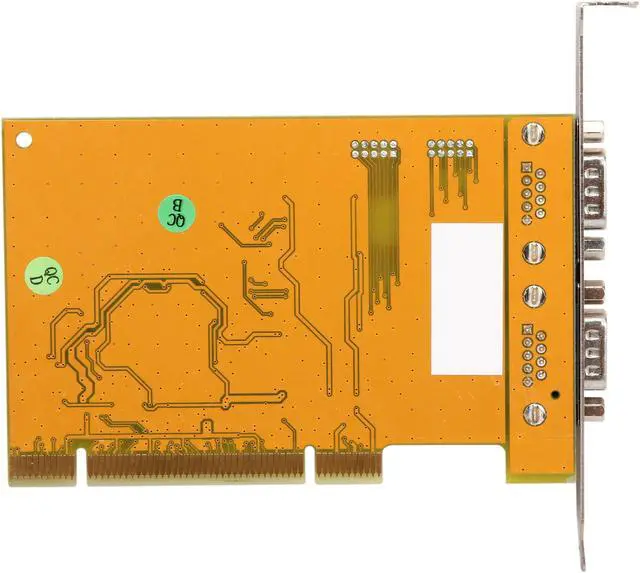

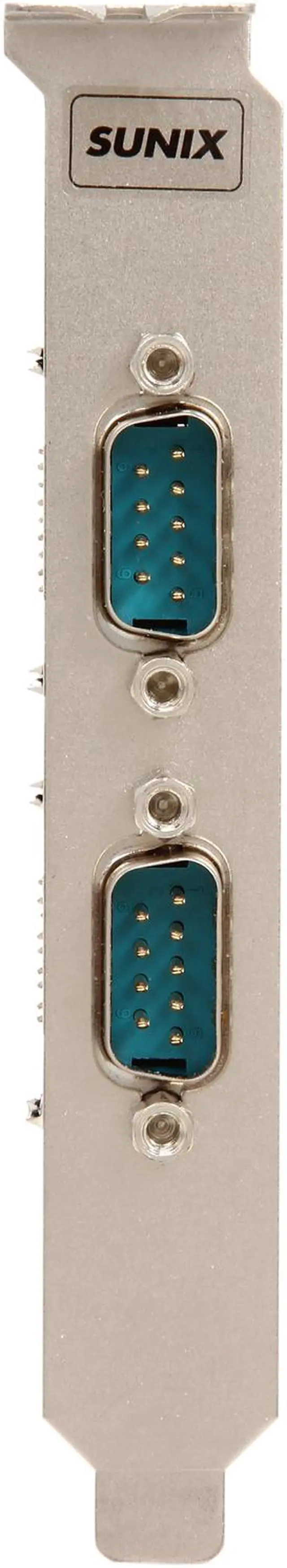

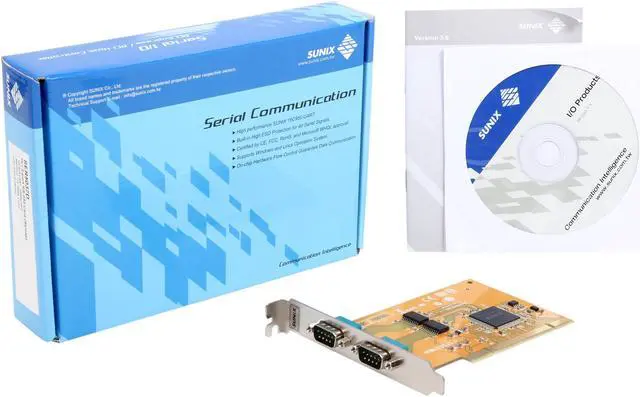

SUNIX 2-port RS-232 Universal PCI Serial Remap Board Model SER5037D

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the SUNIX SER5037D

Model
Brand SUNIX
Model SER5037D
Details
Type PCI to Serial Port Card
Specifications Serial Communication
-Interface: RS-232
-Controller: SUNIX UL7512EQ (16C650 UART Compatible)
-BUS: Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
-No. of Port : 2port
-IRQ & IO: Assigned by System
-FIFO: 32byte Hardware
-Signal: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
-Baud rate: 50bps ~115.2Kbps
-Stop bit: 1, 1.5, 2
-Parity: even, odd, none, mark, space
-Flow Control: None, Xon/Xoff, RTS/CTS
-Protection: +/-2KV ESD protection for each signal Human Body Model (HBM)
-PCB Connector: DB9 Male

Driver Support
-Windows Client: 9x/NT/XP/Vista/7/8/8.1 (X86/X64)
-Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
-Windows Embedded: XP Embedded / POSReady 2009 / POSReady 7 /Embedded System 2009
-Linux: Linux 2.4.x / 2.6.x
-DOS: DOS
* FreeBSD: FreeBSD 5.3~5.5 / 6.0~6.4
* QNX: QNX 6.3.2 / 6.4.0
* IBM OS/2: WARP 3 / WARP 4
* SCO UnixWare: UnixWare 7.1.3 /7.1.4 / Open Server 5.0.7 / 6.0
* Sun Microsystems: Solaris 10

Regulatory Approvals
-Hardware:
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
-Software
Microsoft WHQL Windows:
Windows Client: XP/Vista/7/8/8.1 (X86/X64)
Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)
Features
Features Expands 2 independent RS-232 serial port with communication speeds up to 115.2Kbps.

High speed SUNIX UL7512EQ 16C650 compatible UART controller on-board.

Compliance with PCI 33MHz Ver 2.2 & 2.1 specification.

Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.

On-chip hardware auto flow control to guarantee no data loss.

Built-in +/- 2KV ESD protection for all serial signals.

Supports legacy ISA address 2E8, 3E8, 2F8, 3F8 mapping under DOS and Win9x/NT OS.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, RoHS, and Microsoft WQHL approval.

Support Microsoft Windows, Linux, and DOS.
Dimensions & Weight
Dimensions PCB Dimension: 120 x 78 mm
Bracket: Standard 121 mm
Additional Information
First Listed on Newegg February 24, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
