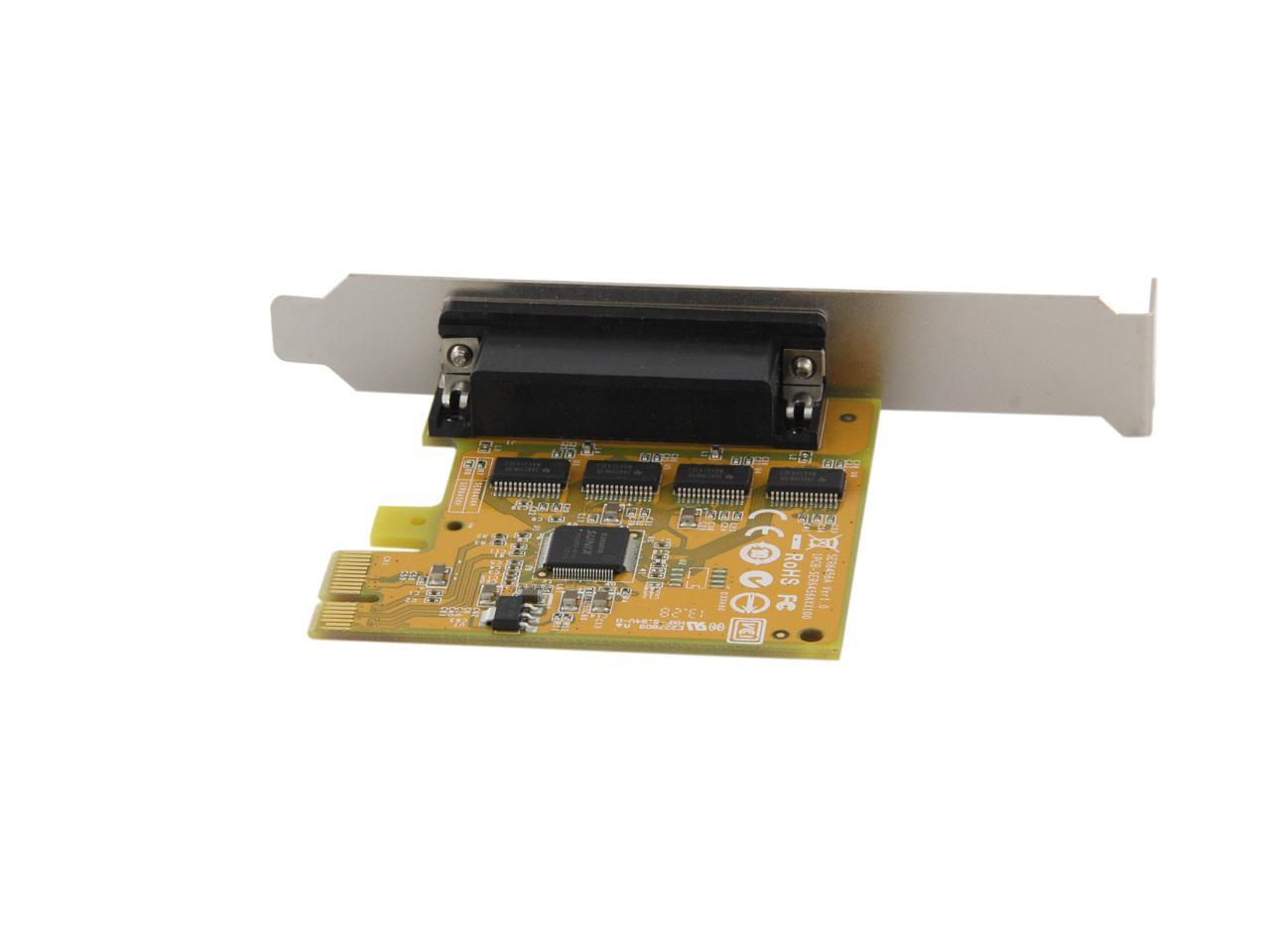

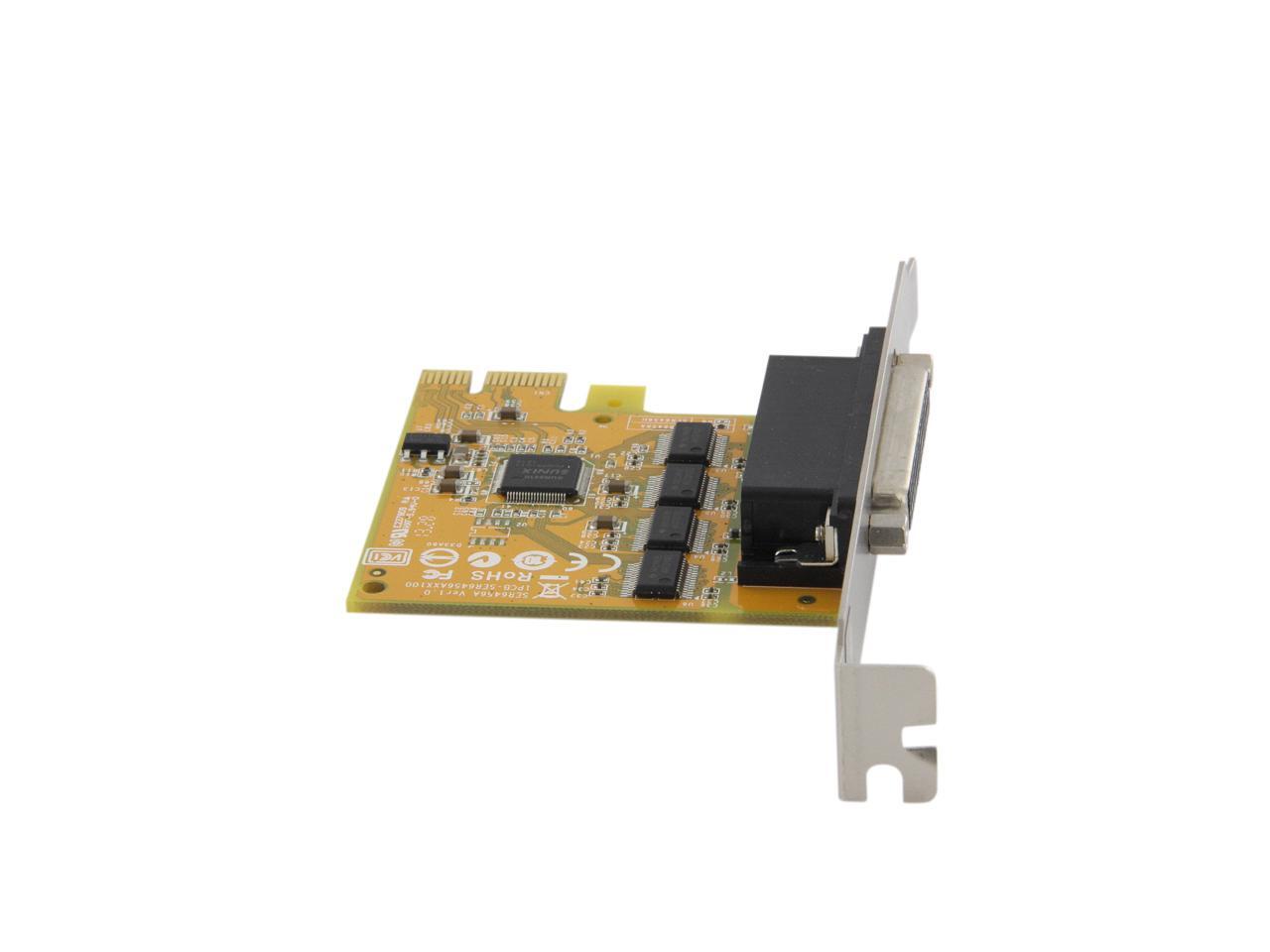

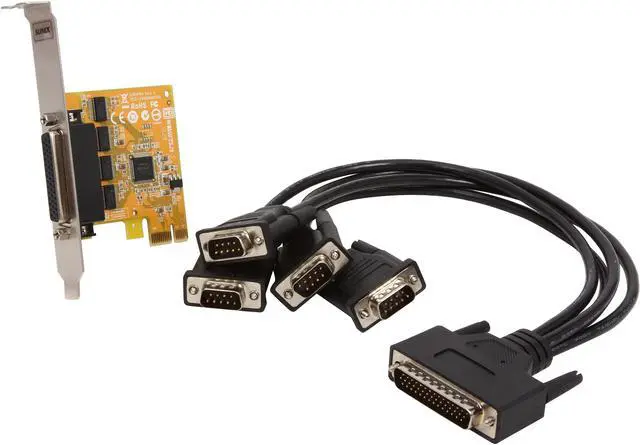

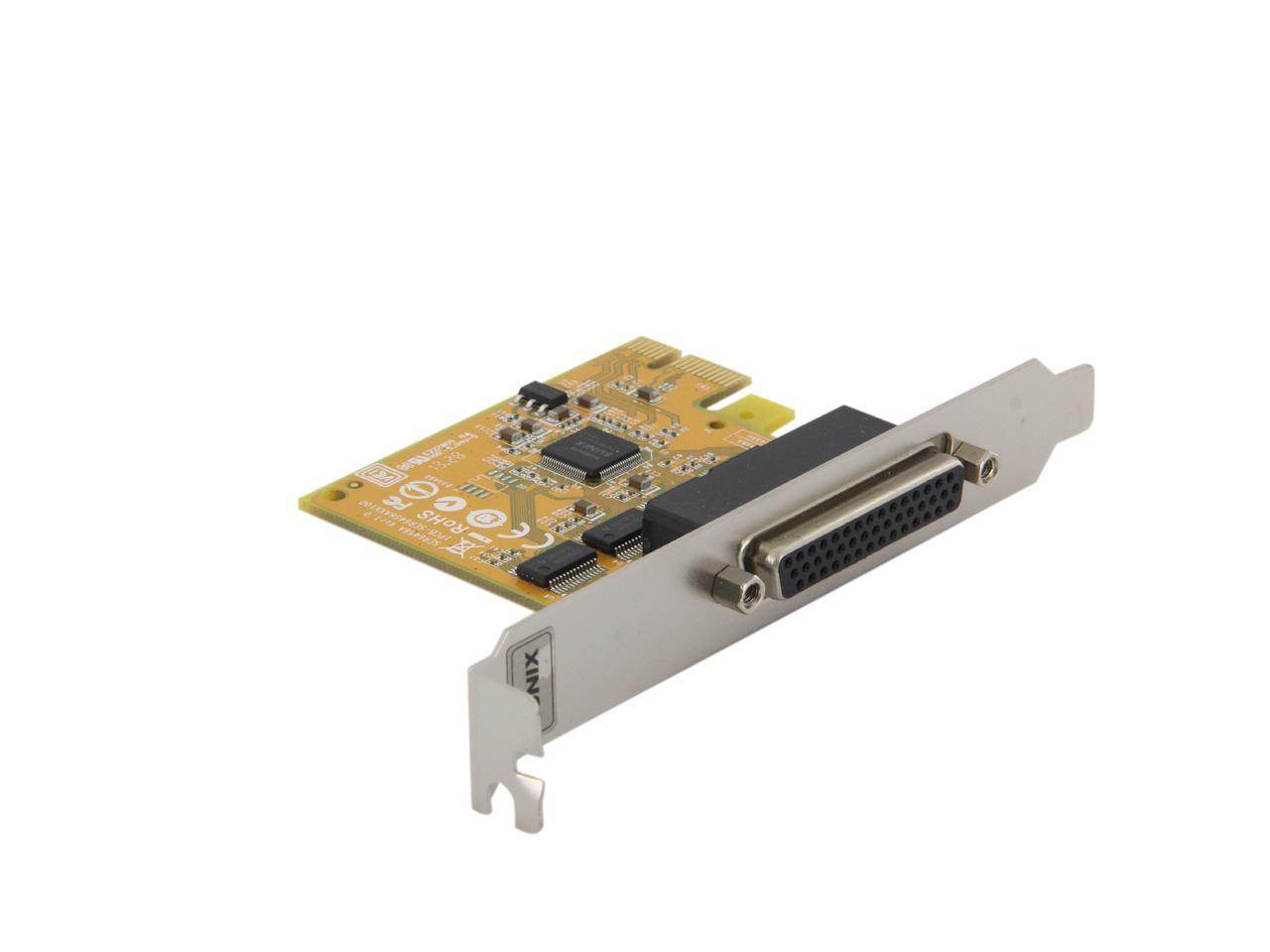

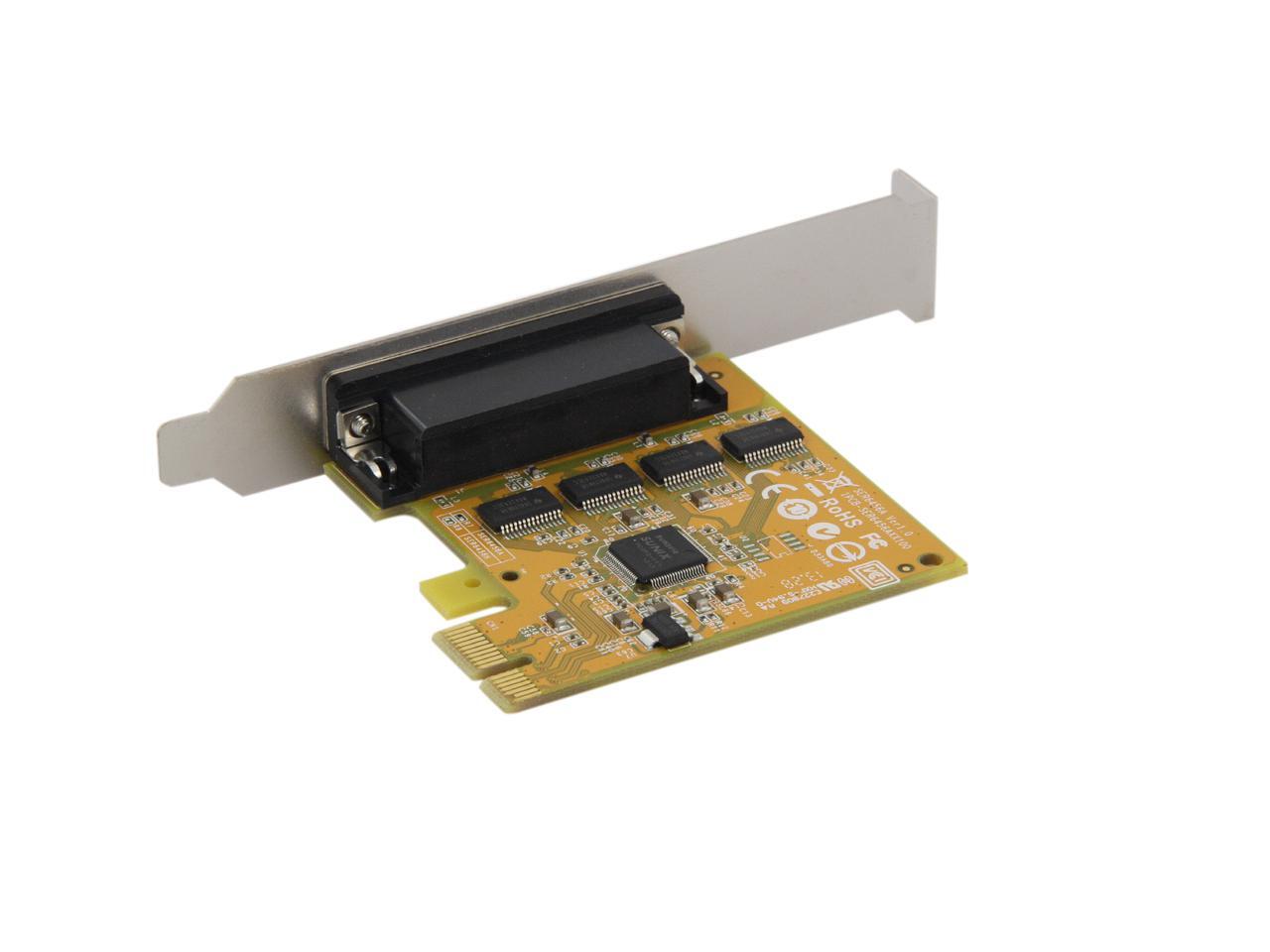

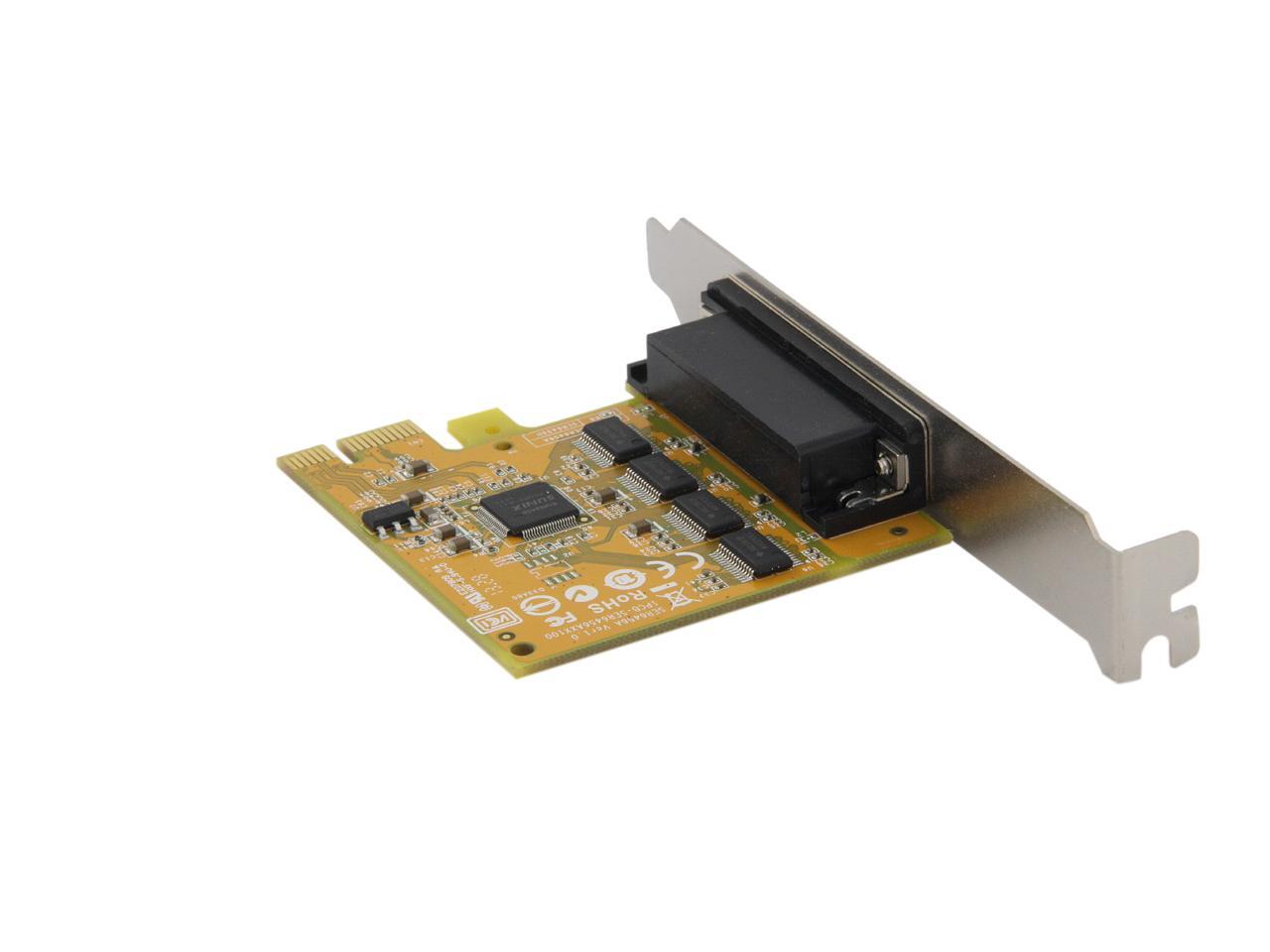

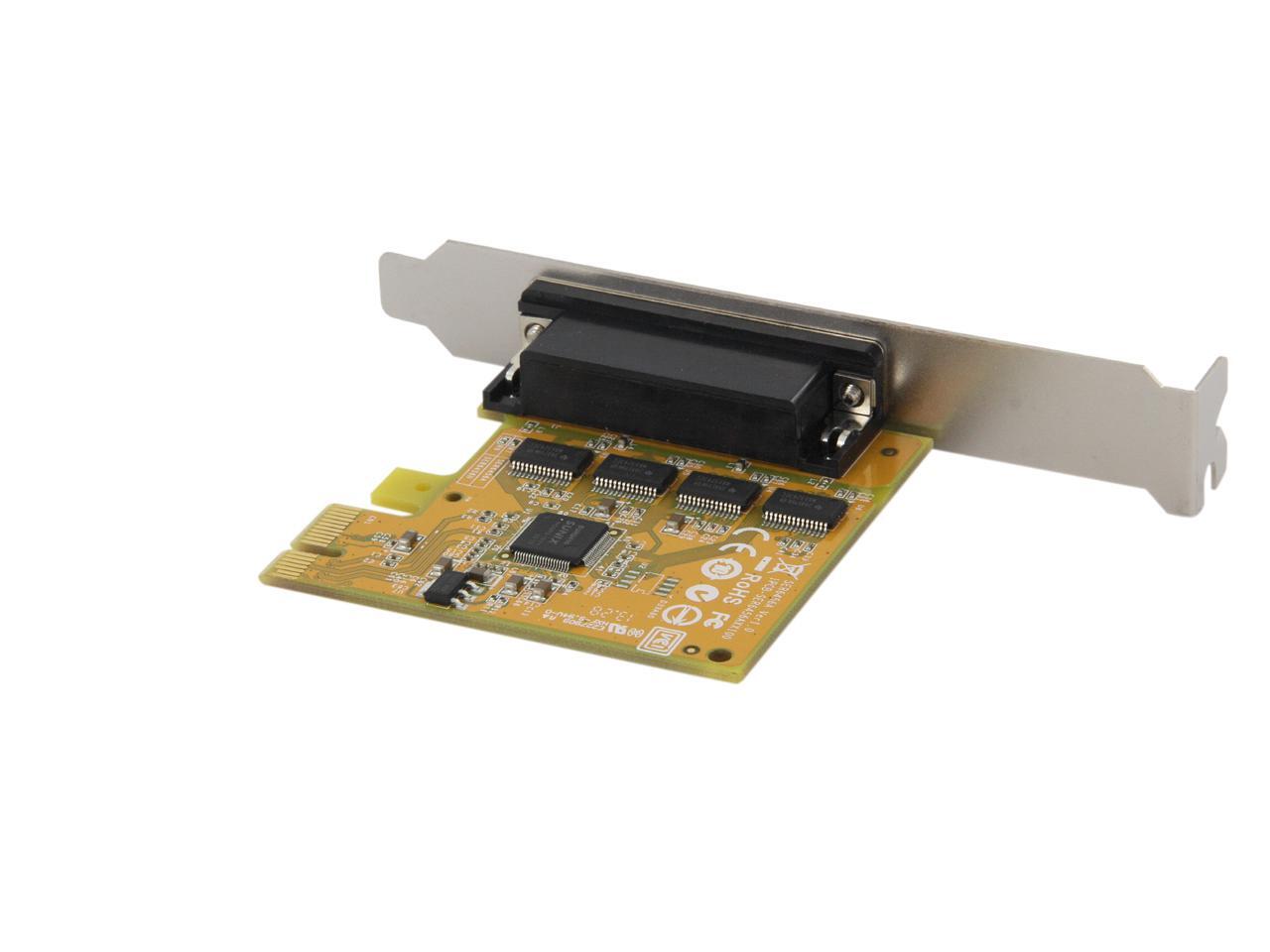

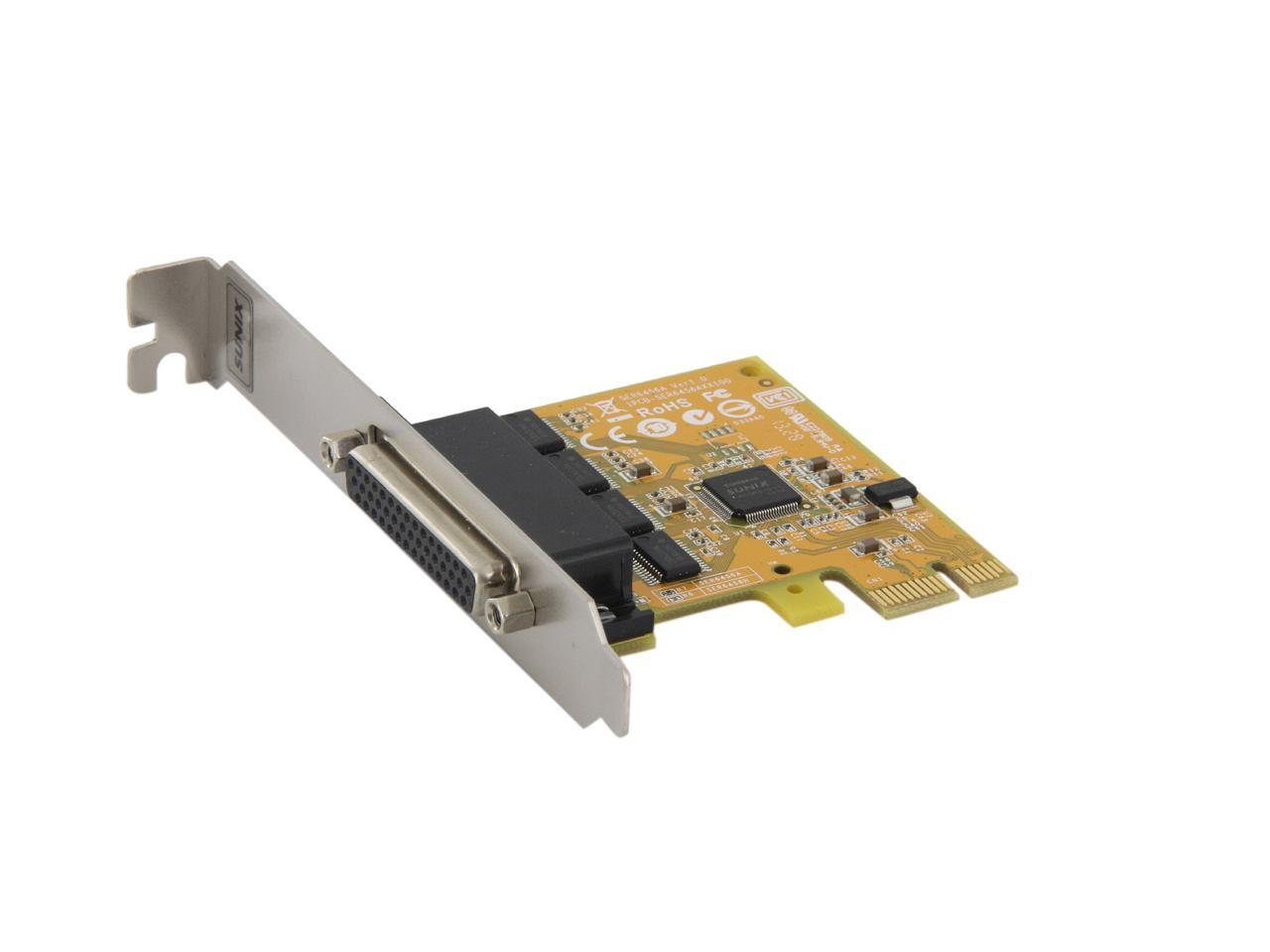

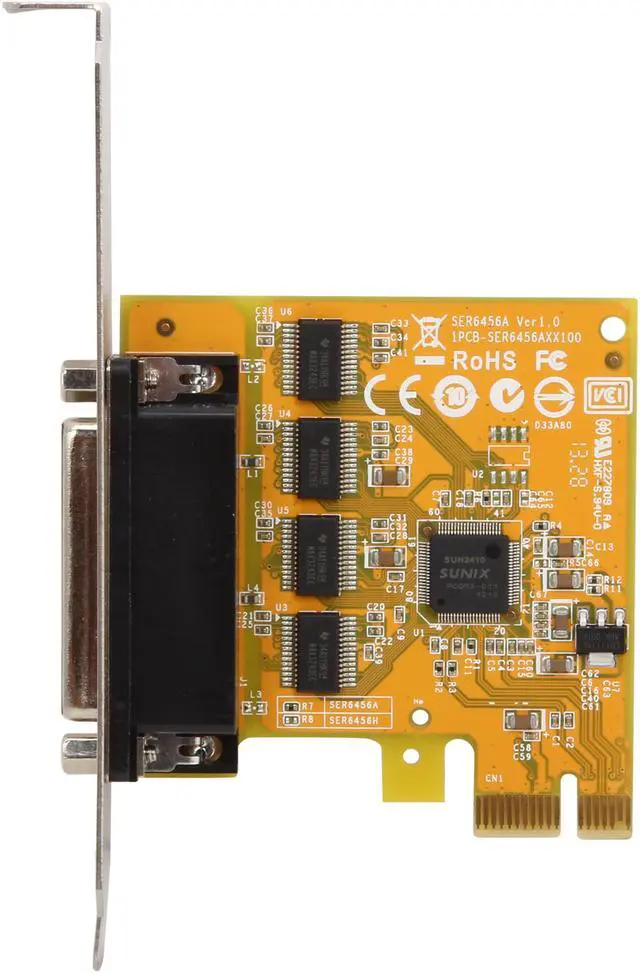

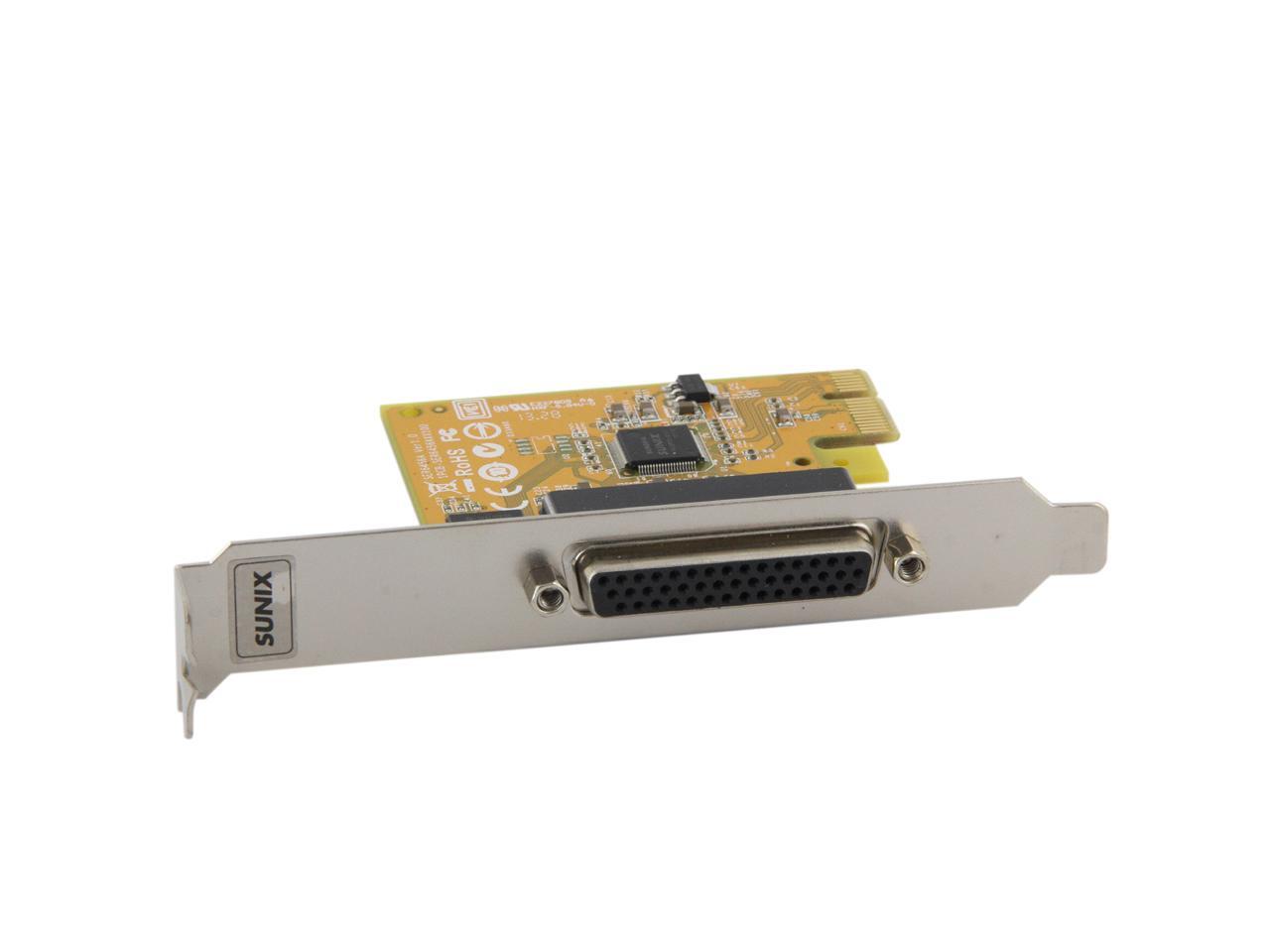

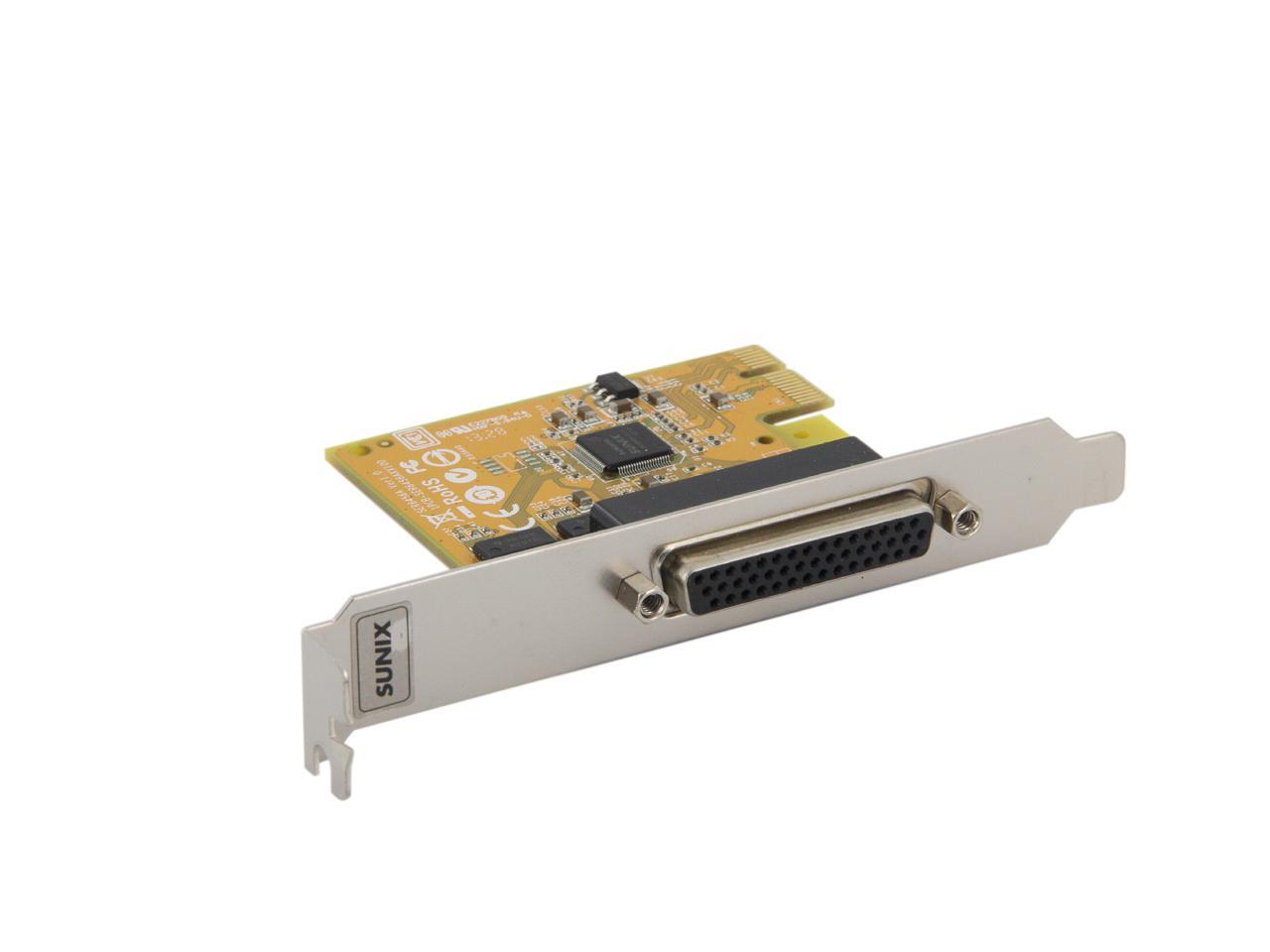

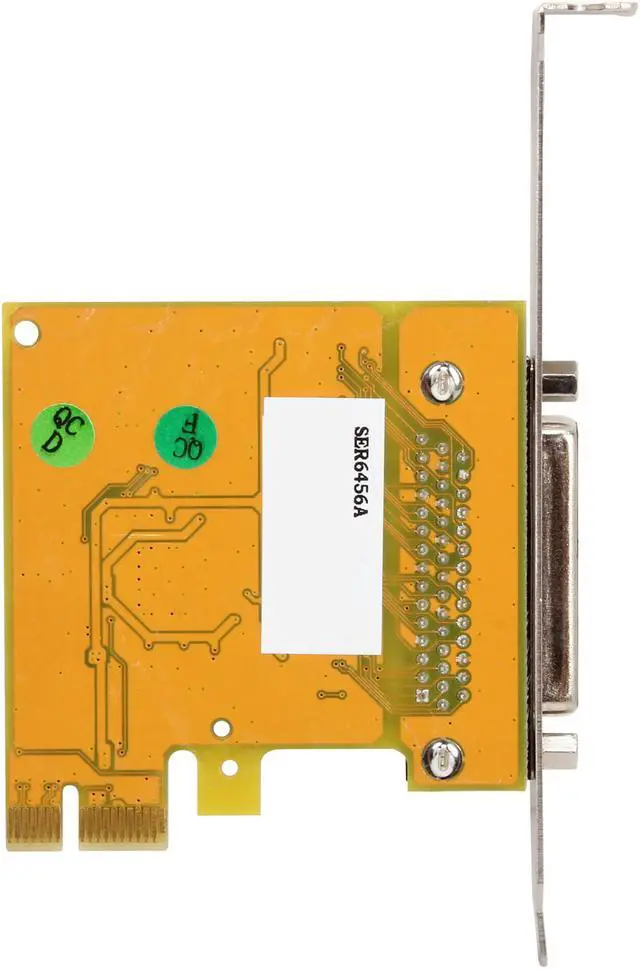

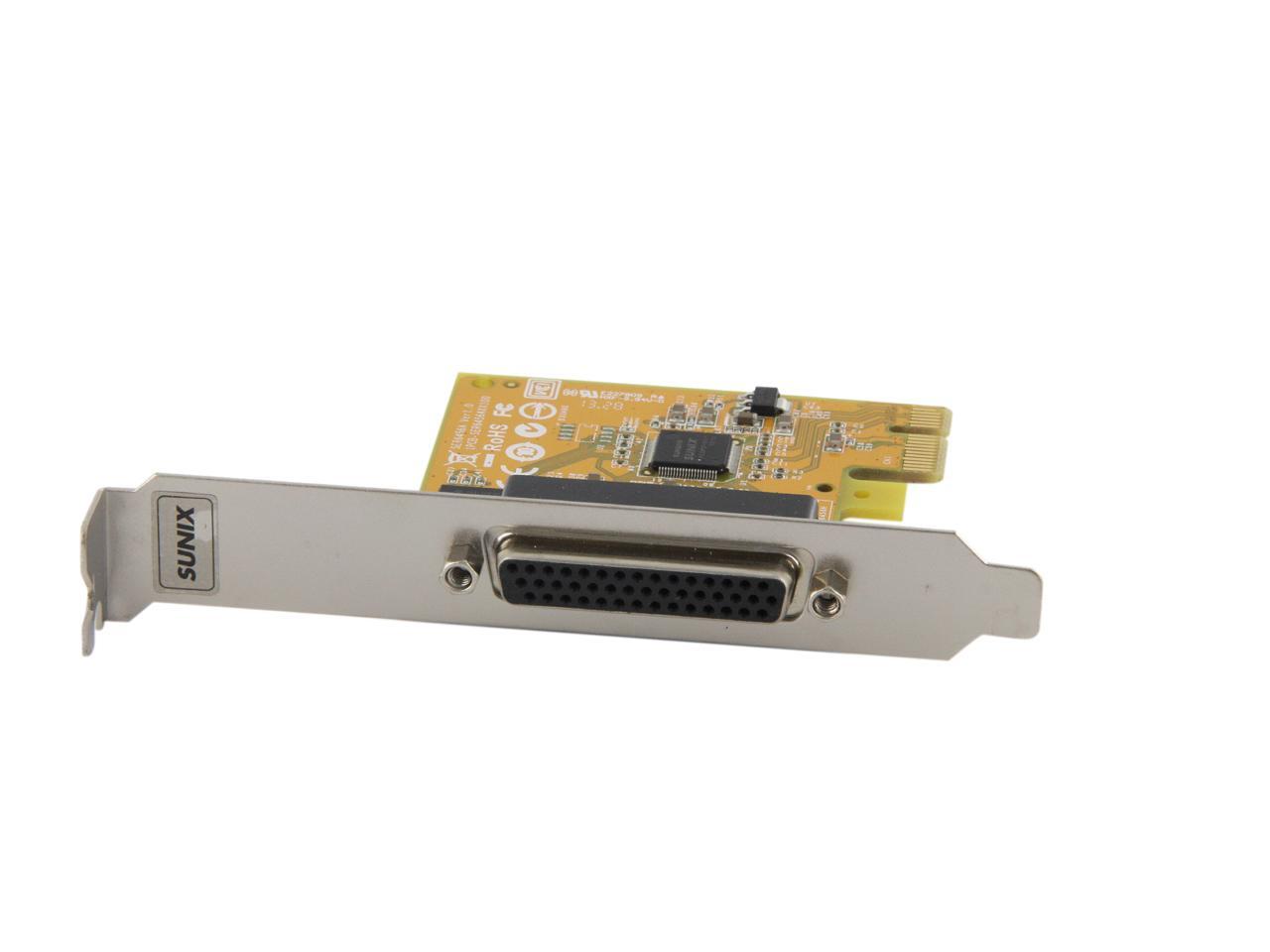

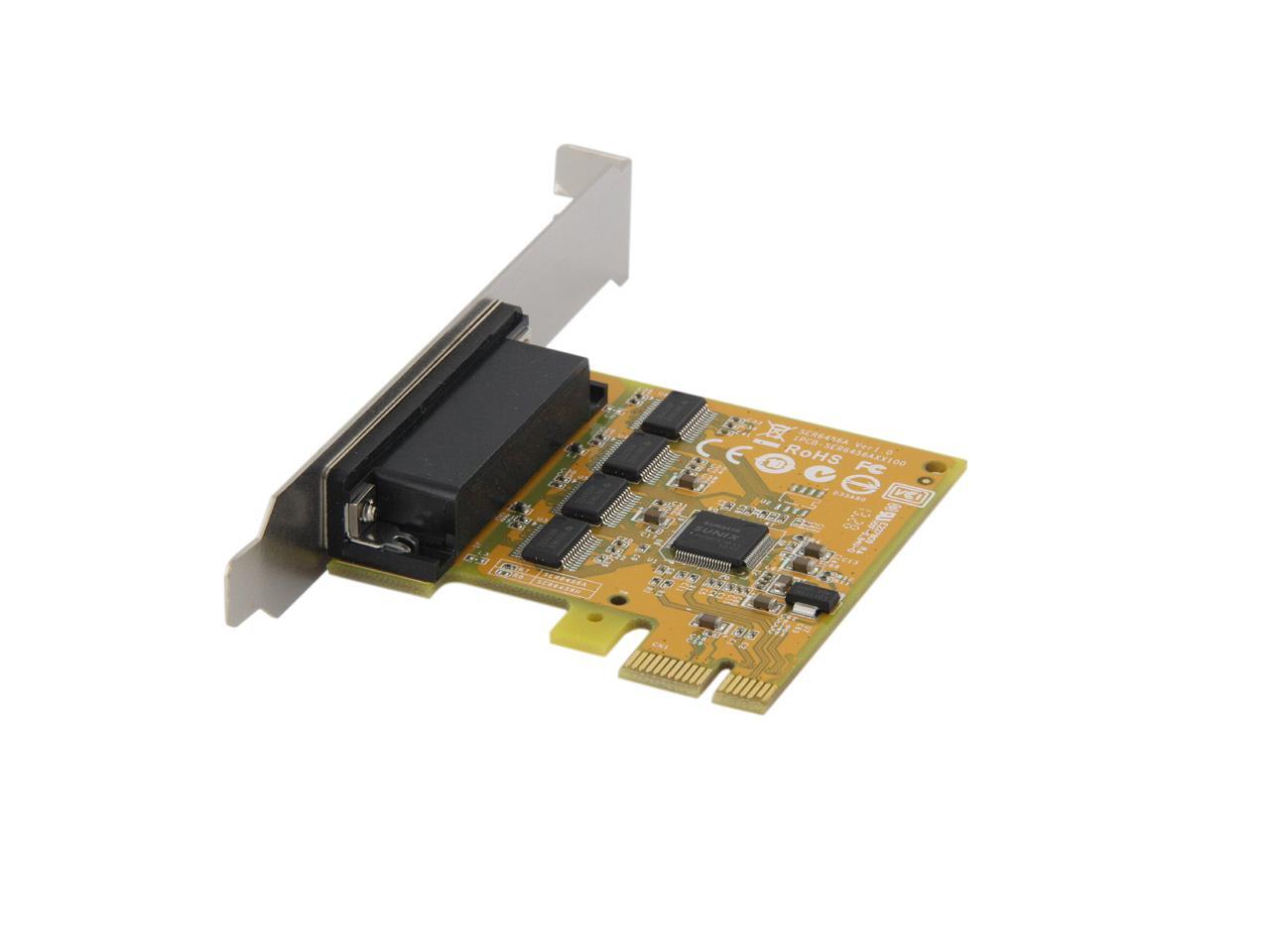

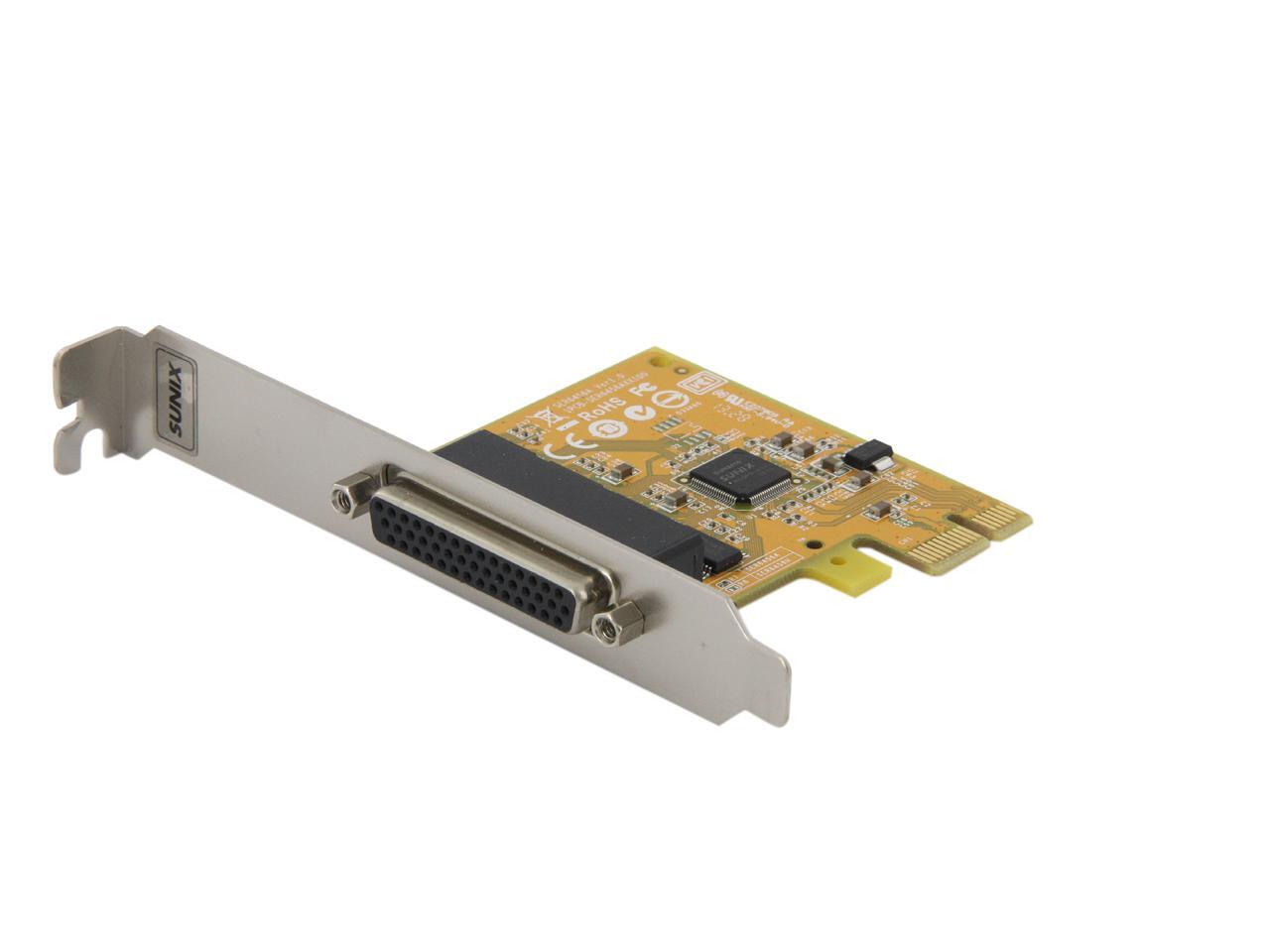

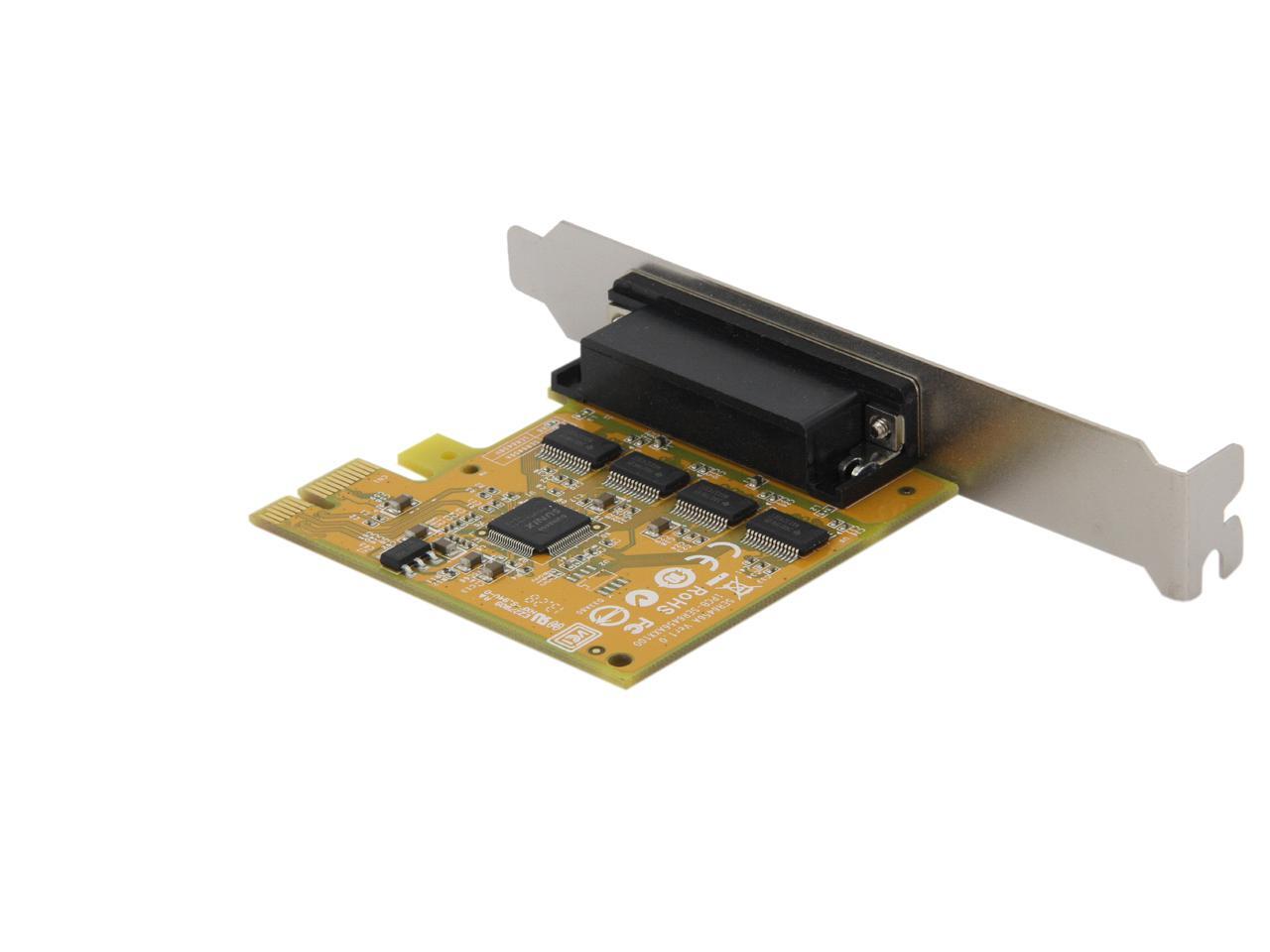

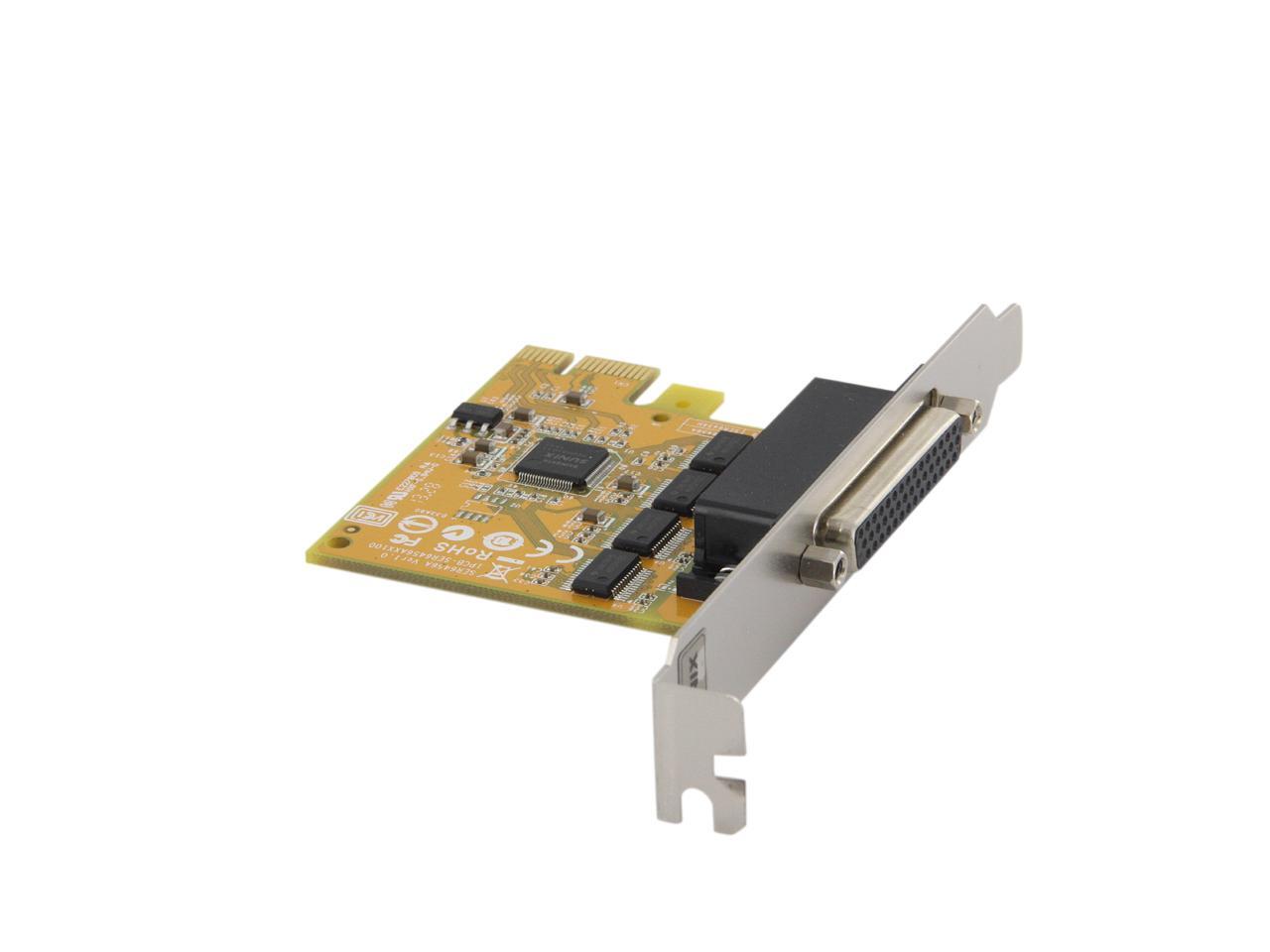

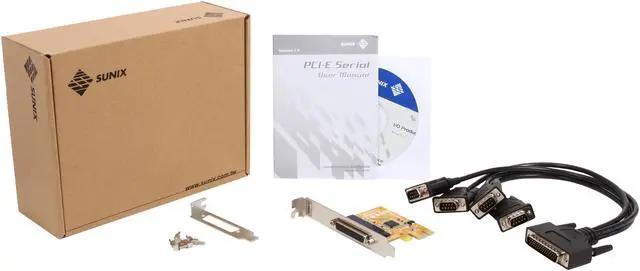

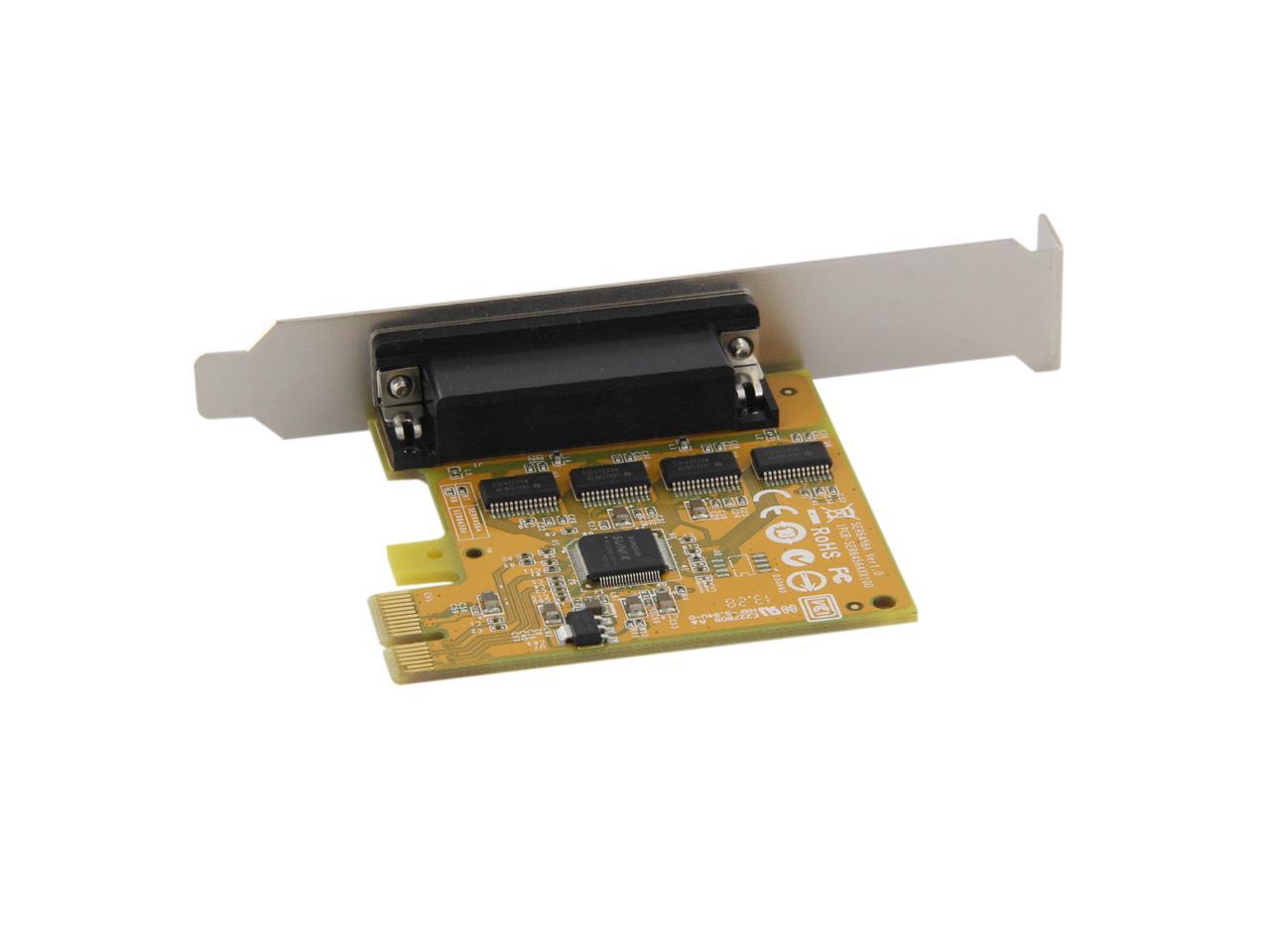

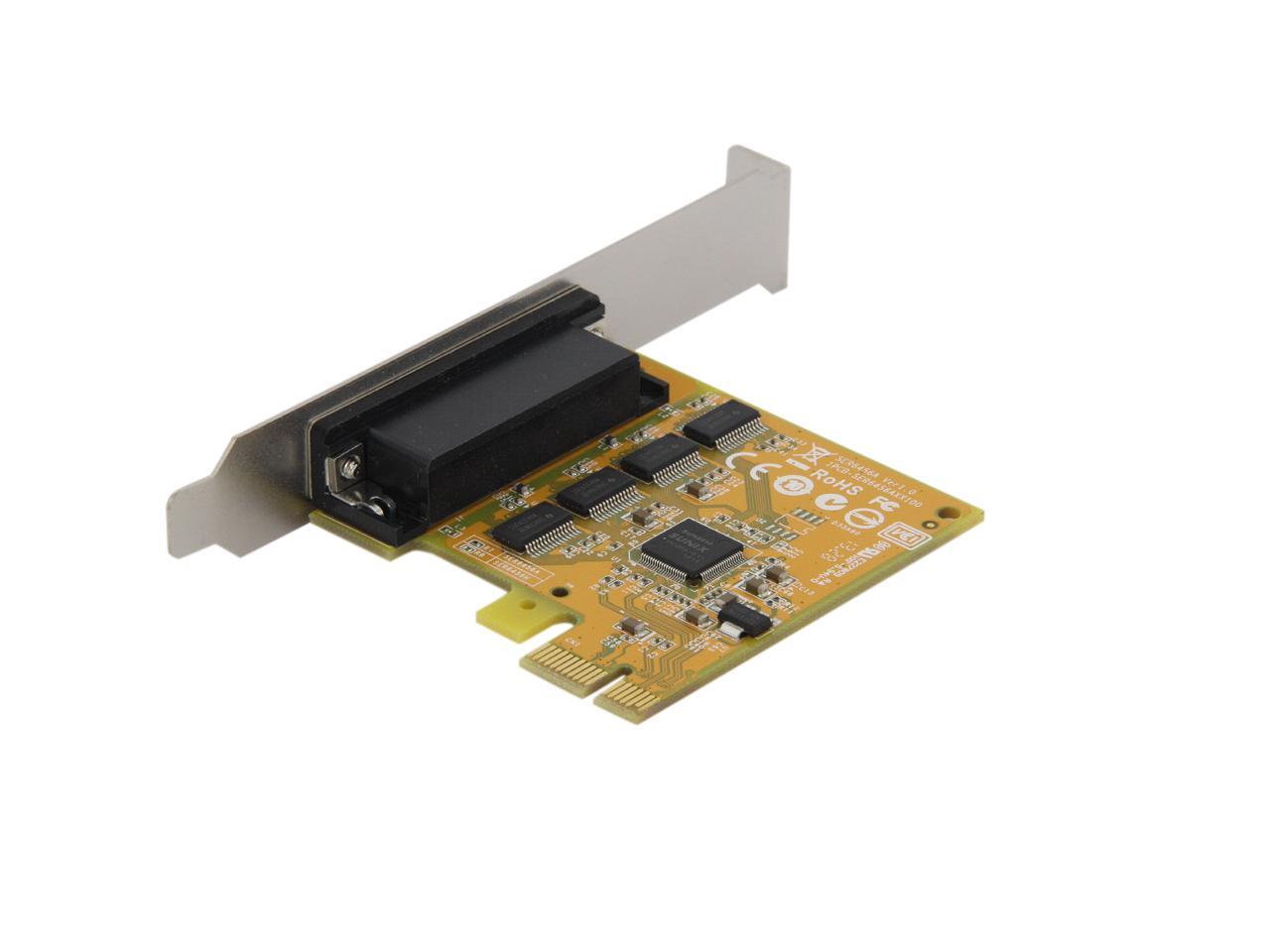

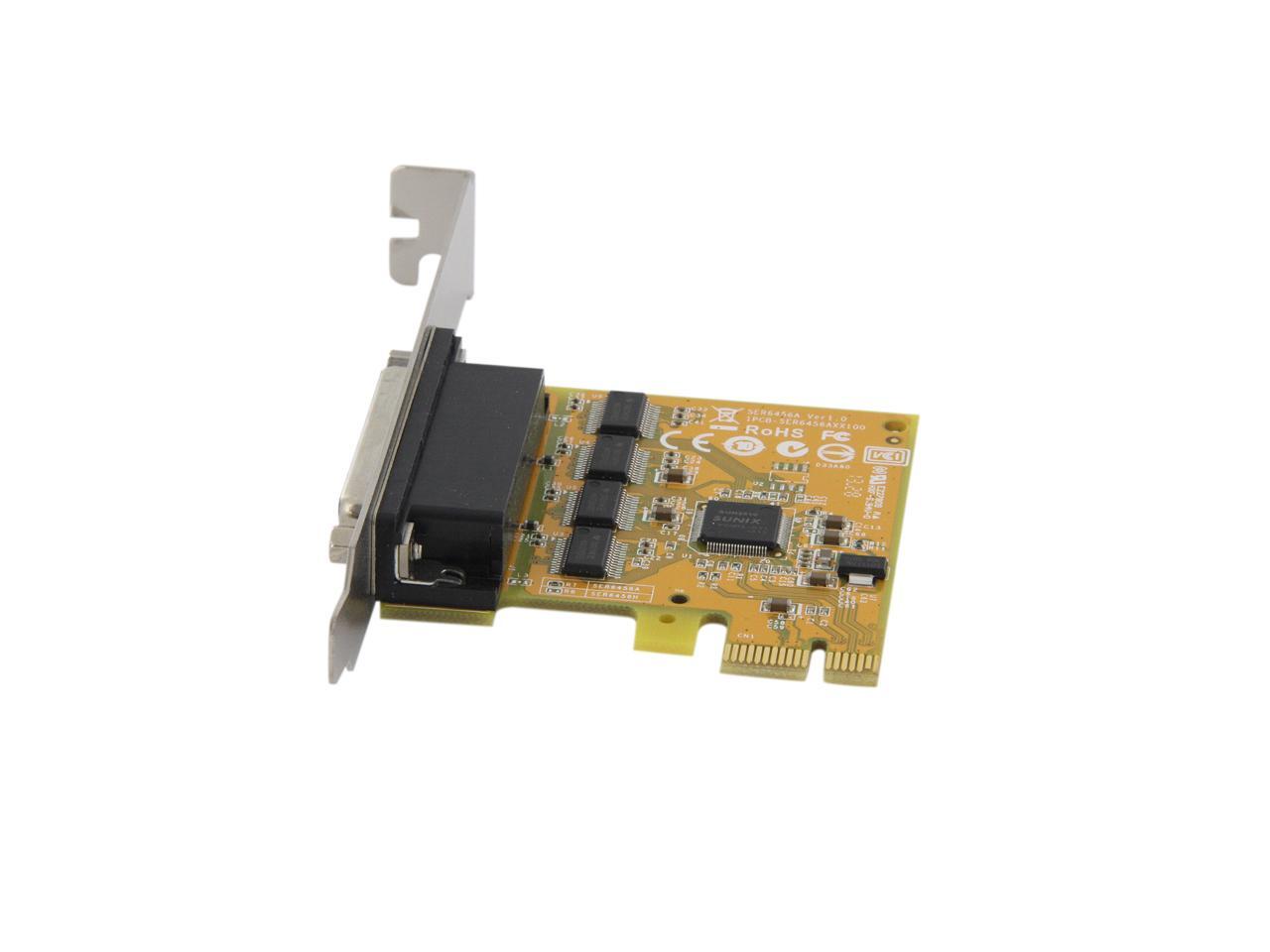

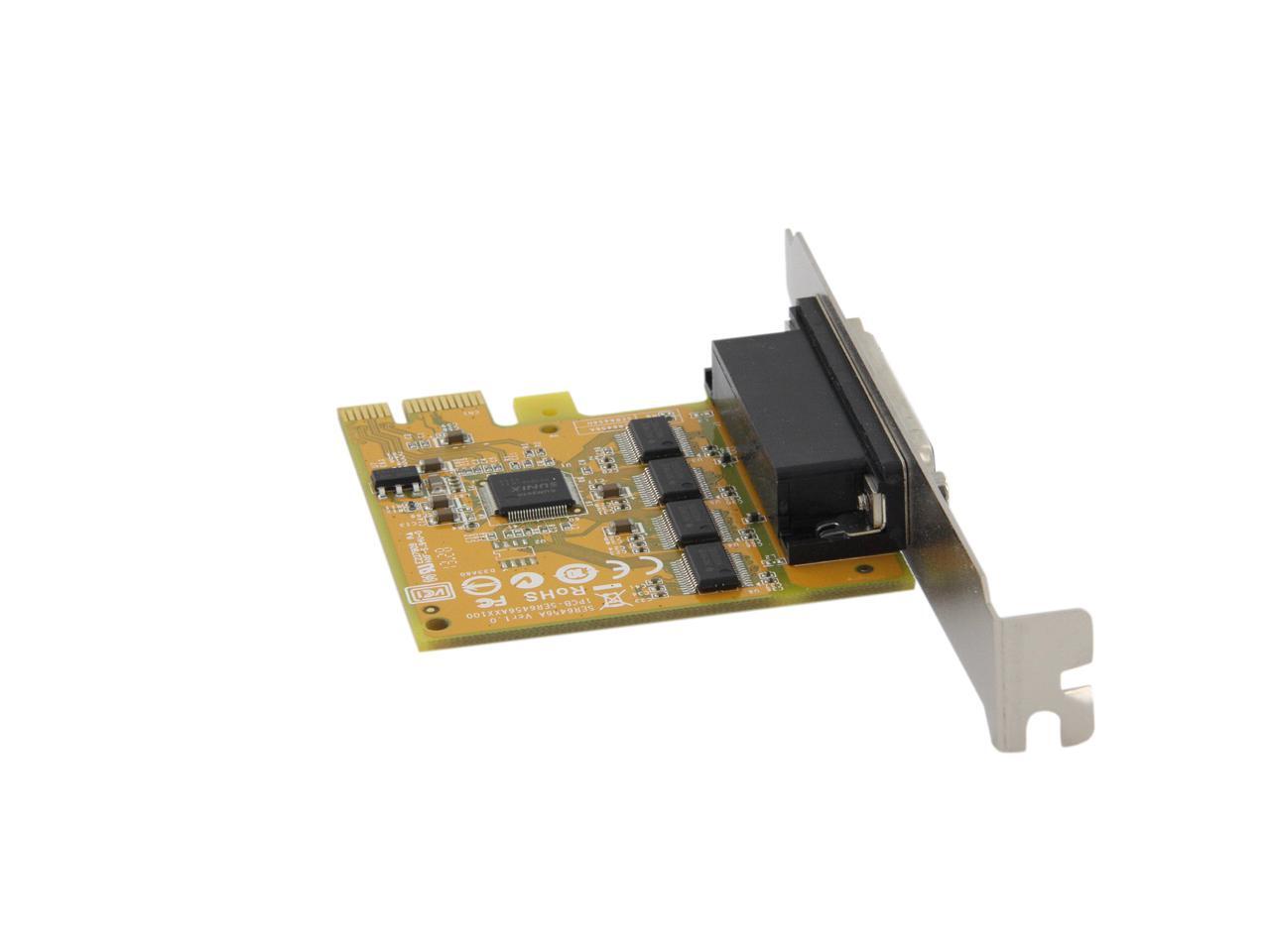

SUNIX 4-port RS-232 PCI Express Board Model SER6456A+L

Be the first to review this product...
Specs
Reviews

Learn more about the SUNIX SER6456A+L

Model
Brand SUNIX
Model SER6456A+L
Details
Type PCI Express to Serial Port Card
Specifications General
-Interface: RS-232
-Controller: SUNIX SUN2410 (16C950 UART Compatible)
-BUS: PCI Express Spec 2.0, Single-Lane (x1)
-IRQ & IO: Assigned by System

Serial Communication
-Interface: RS-232
-No. of Port: 4-port
-FIFO: 128byte Hardware
-Signal: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
-Baud rate: 50bps ~ 115.2Kbps
-Stop bit: 1, 1.5, 2
-Parity: even, odd, none, mark, space
-Flow Control: None, Xon/Xoff, RTS/CTS
-Protection:
+/-15KV ESD protection for each signal Human Body Model (HBM)
+/-15KV IEC1000-4-2 Air Gap Discharge
+/-8KV IEC1000-4-2 Contact Discharge

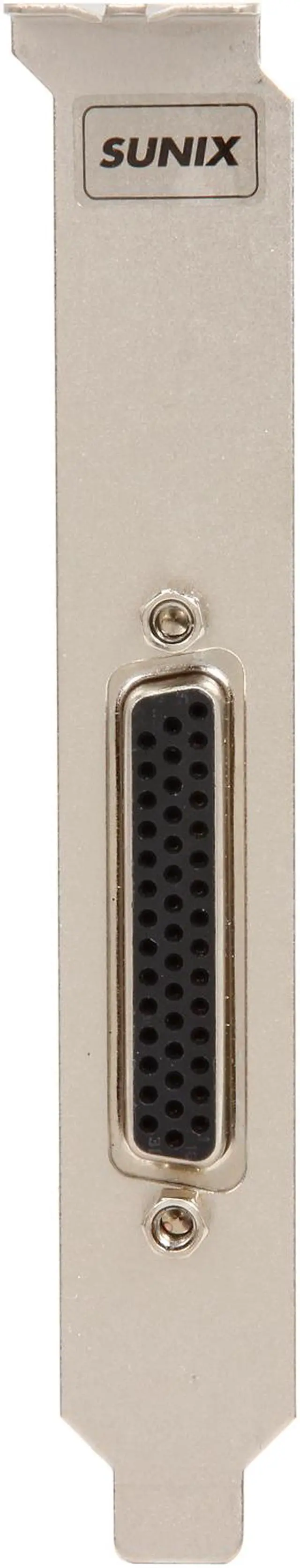

-PCB Connector: DB44 Female

Driver Support
-Windows Client: XP/Vista/7/ 8 / 8.1 (X86/X64)
-Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)
Windows Embedded
Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReday 7 / Embedded System
-Linux: Linux 2.4.x/2.6.x/3.x
-DOS: DOS
-FreeBSD: FreeBSD 5.3~5.5 / 6.0~6.4
-QNX: QNX 6.3.2/6.4.0

Regulatory Approvals
-Hardware:
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
-Software
Microsoft WHQL Windows
Windows Client: XP / Vista / 7 / 8 / 8.1 (X86/X64)
Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
Features
Features Expands 4 independent RS-232 serial ports with communication speeds up to 115.2Kbps.

With high reliable SUNIX SUN2410 native PCI Express 16C950 UART controller.

Designed to meet PCI Express Base Specification Revision 2.0.

Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.

On-chip hardware auto flow control to guarantee no data loss.

Built-in +/- 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.
Dimensions & Weight
Dimensions PCB Dimension: 65 x 69 mm
Bracket: Standard 121 mm
Additional Information
First Listed on Newegg February 27, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
