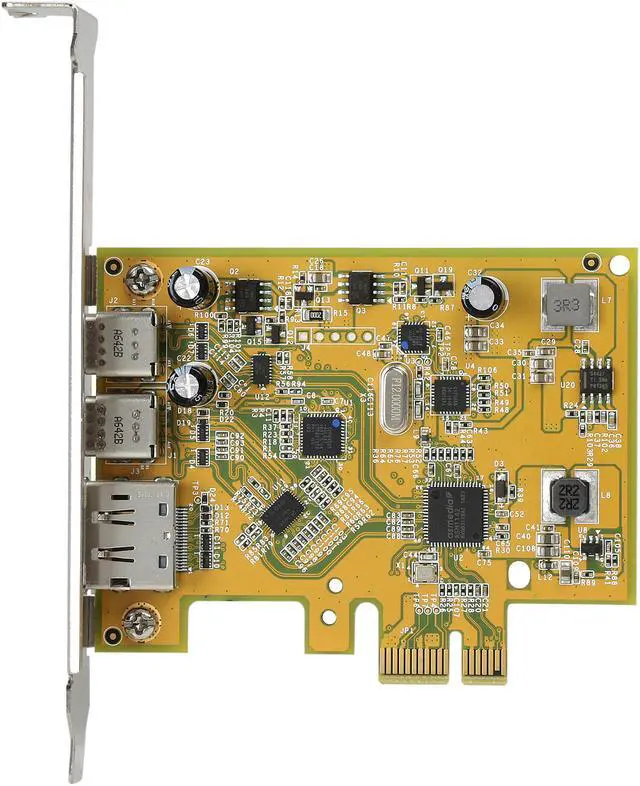

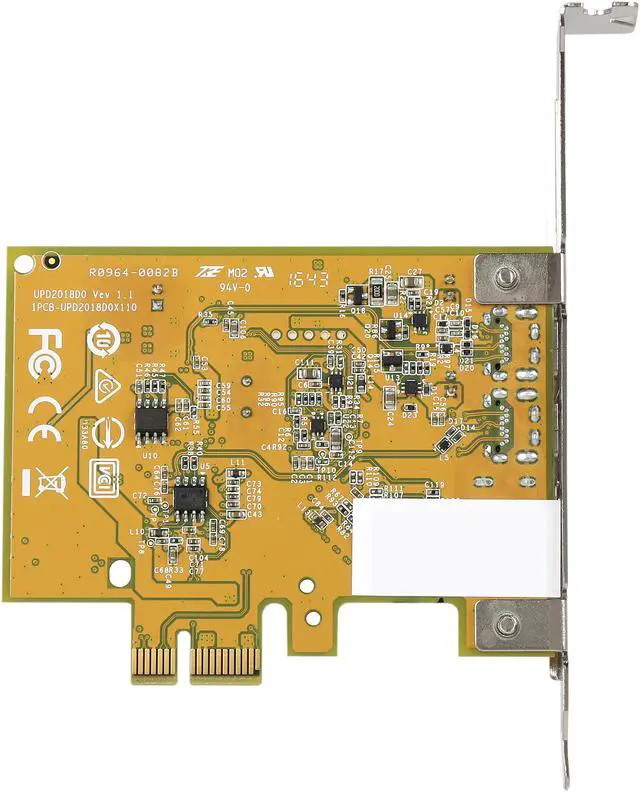

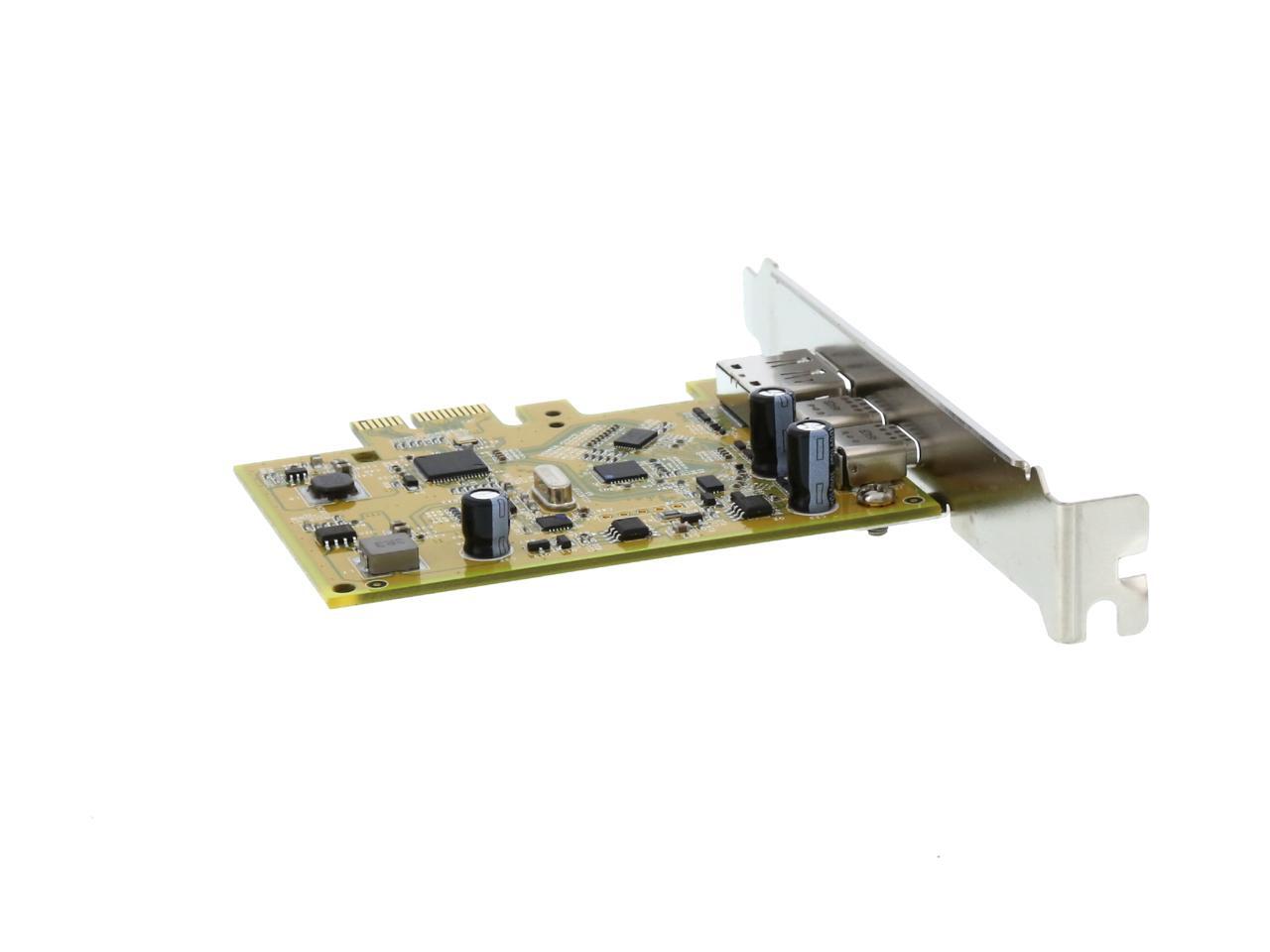

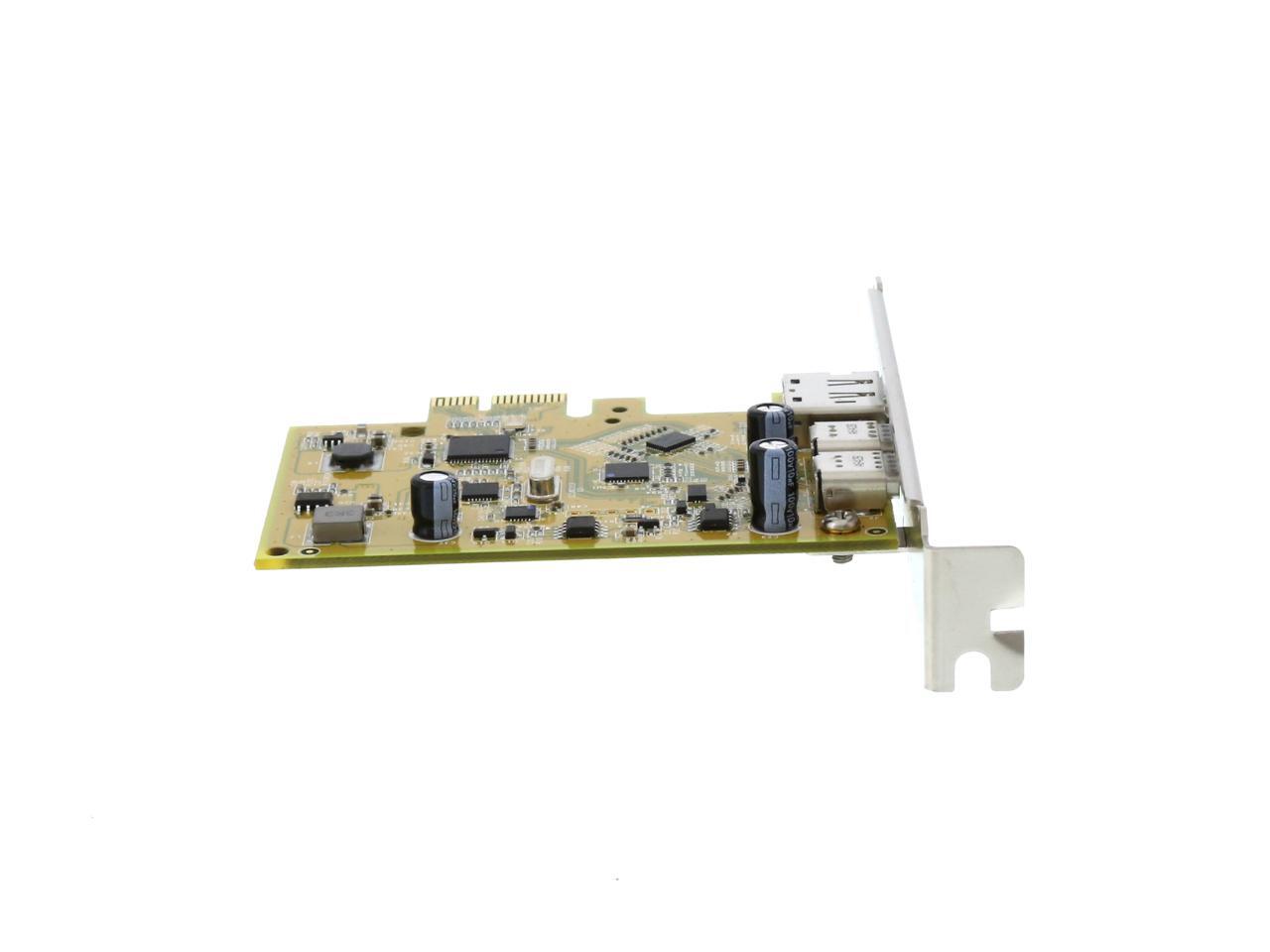

SUNIX USB 3.1 10G & DisplayPort Alt-Mode PCI Express Host Card with Dual USB Type-C Receptacles (Gen2) Model UPD2018

Be the first to review this product...
  • USB 3.1 10G & DisplayPort Alt-Mode PCI Express Host Card
  • BUS: PCI Express Spec 3.0, Single-Lane (x1)
  • Controller: PCI Express USB 3.1 Host controller, Asmedia ASM1142
  • USB Standard: eXtensible Host Controller Interface (xHCI) Rev1.1
  • IRQ & IO: Assigned by System
  • Super Speed+ (10Gbps), Super Speed (5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps) Data Transfer Rate
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the SUNIX UPD2018

Model
Brand SUNIX
Model UPD2018
Details
Type USB 3.1 10G & DisplayPort Alt-Mode PCI Express Host Card

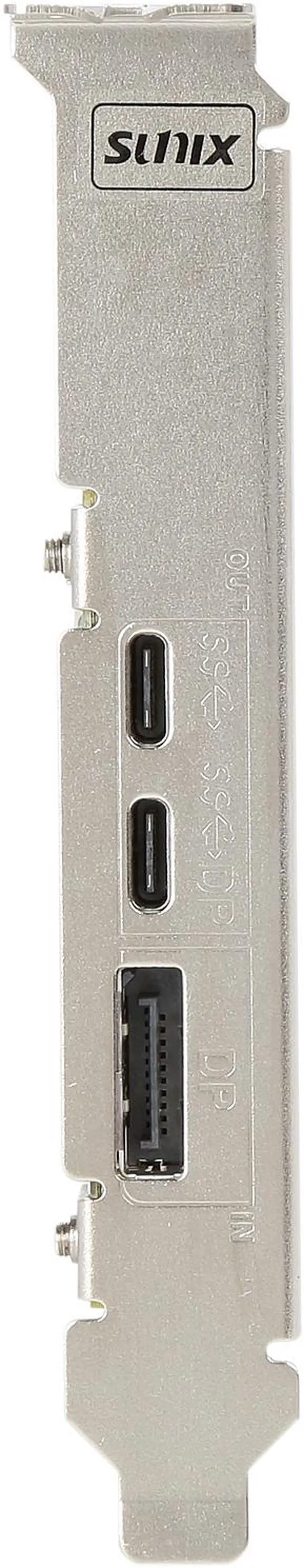

External Ports USB Type-C port
Internal Ports Standard DisplayPort Female, DisplayPort Ver1.2/1.1
Standard BUS: PCI Express Spec 3.0, Single-Lane (x1)
Controller: PCI Express USB 3.1 Host controller, Asmedia ASM1142
USB Standard: eXtensible Host Controller Interface (xHCI) Rev1.1
IRQ & IO: Assigned by System
Data Transfer Rate Super Speed+ (10Gbps), Super Speed (5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps)
Operating Systems Supported Windows 7 (X86/X64), Windows 8.x / 10 (X86/X64) (Windows in-box driver)
Compatibility USB Communication Protection: +/-15KV IEC61000-4-2 Air Gap Discharge, +/-8KV IEC61000-4-2 Contact Discharge
Audio: Yes (audio pass-through)

Power:
Source: PCI Express Bus Power
Output Capacity: USB Type-C Port: Power Delivery +5VDC / 1.5A / each port, Note: Total power output capacity will be limited by system power supply.
Over Current Protection: USB Type-C Port: +5VDC / 1.5A / each port / Power Switch
Power Consumption: 3.0W @ 3.3V (board only without power output to USB device)
Specifications EMC:
EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
AS/NZS: C-Tick: CISPR22
JAPAN: VCCI

Green:
RoHS, CRoHS, WEEE
Features
Features PCI Express Base Specification Revision 3.0 single-lane (x1).

Expands dual external USB 3.1 Super-Speed plus Type-C port (DFP) on the system.

Compliant with Universal Serial Bus 3.1 specification Gen2.

Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.

Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices

Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps.

USB port supplies +5VDC / 1.5A power output to USB device with over current protection.

Compliant with DisplayPort 1.2 spec with HDTV 4K (2160p) resolution and stereoscopic 3D.

Compliant with VESA DisplayPort Alternate Mode for USB Type-C Standard Rev1.0.

Hot-swapping feature allows connect/disconnect device without powering down the system.

Driver supports for Microsoft Windows 7, 8.x, and 10 operation systems.

Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
Packaging

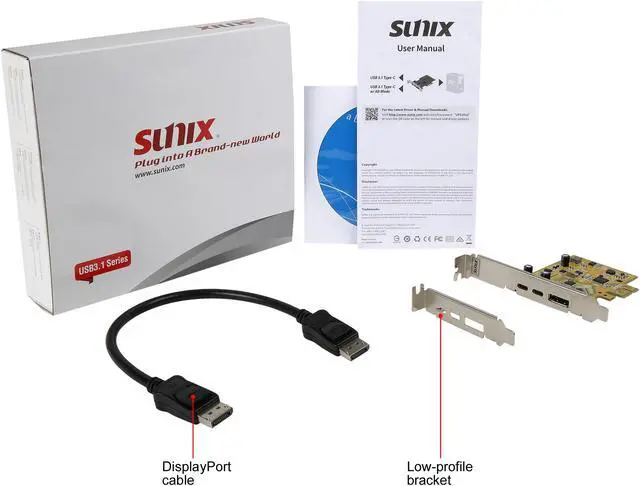

Package Contents One PCI Express card
DisplayPort to DisplayPort Cable
User Manual
Additional Information
First Listed on Newegg January 16, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
