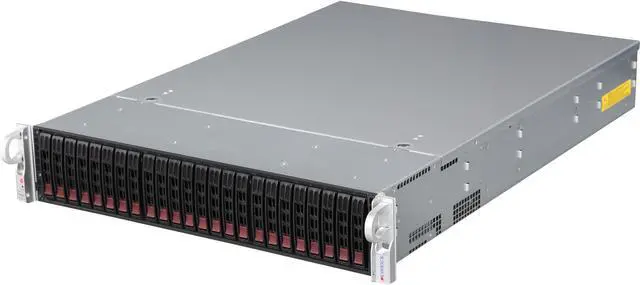

SUPERMICRO 2028R-E1CR24N 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
- Dual LGA 2011
- Dual Intel Xeon processor E5-2600 v3
- 24 x 288Pin Memory Slots
- 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro 2028R-E1CR24N
| Brand | SUPERMICRO |
|---|---|
| Model | 2028R-E1CR24N |
| CPU Type | Dual Intel Xeon processor E5-2600 v3 |
|---|---|
| CPU Socket | Dual LGA 2011 |
| North Bridge | Intel C612 |
|---|
| Memory Slots | 24 x 288Pin |
|---|---|
| Max Memory Supported | Up to 1.5TB ECC LRDIMM, 768GB ECC RDIMM |
| Memory Type Supported | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| ECC Supported | Yes |
| Serial ATA | SATA3 (6Gbps) |
|---|---|
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Aspeed AST2400 |
|---|
| PCI Express | 2x PCI-E 3.0 x16 slots 4x PCI-E 3.0 x8 slots |
|---|
| First LAN | Intel X540 |
|---|---|
| Max. LAN Speed | Quad 10 Gigabit |
| Hot-Swap Bays | 24x 2.5" Hot-swap SAS3/SATA3 HDD bays |
|---|
| VGA | 1 |
|---|---|
| Rear USB | 3x USB 3.0 ports (2 rear + 1 Type A) |
| RJ45 | 4x RJ45 10GBase-T ports 1x RJ45 Dedicated IPMI LAN port |
| Max. Power | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
|---|
| Features | Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s Up to 1.5TB ECC DDR4 2133MHz;24x DIMM sockets 2 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (Slot 3 & 4 occupied by controller and JBOD expansion port) Quad LAN w/ Intel X540 10GBase-T 24x 2.5" Hot-swap SAS3/SATA3 drive bays Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60 Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN 3x 8cm hot-swap redundant PWM fans 920W Redundant Power Supplies Platinum Level (94%) |
|---|
| Form Factor | 2U Rackmount |
|---|
| Dimensions | 3.50" x 17.2" x 24.80" (H x W x D) |
|---|---|
| Weight | 54.00 lbs. |
| First Listed on Newegg | March 16, 2015 |
|---|
