| Brand | SUPERMICRO |
|---|---|
| Model | 5015P-8 |
| Form Factor | 1U Rackmount |
| CPU Type | Intel Pentium D / Pentium EE / Celeron |
|---|---|
| CPU Socket | LGA 775 |
| FSB | 1066/800/533 MHz |
| North Bridge | Intel E7230 |
|---|---|
| South Bridge | ICH7R |
| Memory Slots | 4 x 240Pin |
|---|---|
| Max Memory Supported | 8GB |
| Memory Type Supported | DDRII 667/533 |
| ATA | 1x ATA 33/66/100 |
|---|---|
| SCSI | AIC-7902 Dual-Channel Ultra320 SCSI |
| SCSI Type | 80PIN |
| SCSI RAID | Host RAID 0, 1, 10 |
| GPU/VPU | ATI Rage XL |
|---|---|
| Video Memory | Dedicated 8MB |
| PCI-X | 1 x 64-bit PCI-X 100MHz slot (ZCR Support) |
|---|
| First LAN | Intel 82573V |
|---|---|
| Second LAN | Intel 82573V |
| Max. LAN Speed | 1 Gigabit |
| Slim Bays | TEAC 3.5" 1.44MB Slim Floppy Drive Panasonic Slim 8x DVD-ROM drive |
|---|---|
| Hot-Swap Bays | 4 x 1" Hot-Swap Ultra320/160 SCSI drive bays |
| COM | 1 |
|---|---|
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 400W AC power supply with PFC |
|---|
| Features | 5 x 4cm 12,000 RPM Nidec dual blade fans 1 x SCA814S 1U SCSI Backplane w/ SAF-TE Zero Channel RAID Support 1 x Universal (SXB-E) slot 1 x 1U IPMI Slot |
|---|
| Dimensions | 1.7" x 16.7" x 27.0" |
|---|---|
| Weight | 46 lbs. (Gross Weight) |

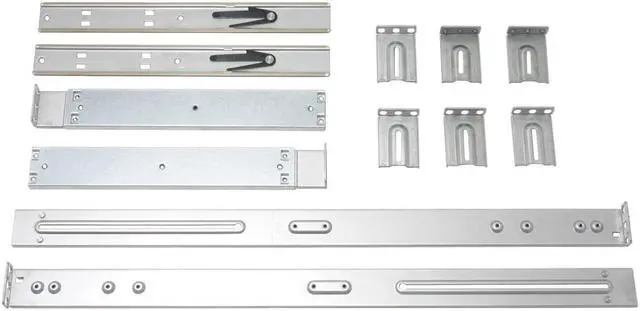

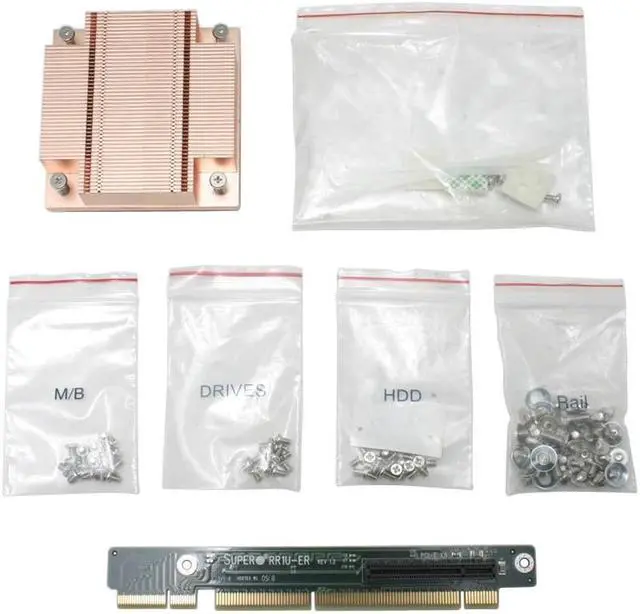

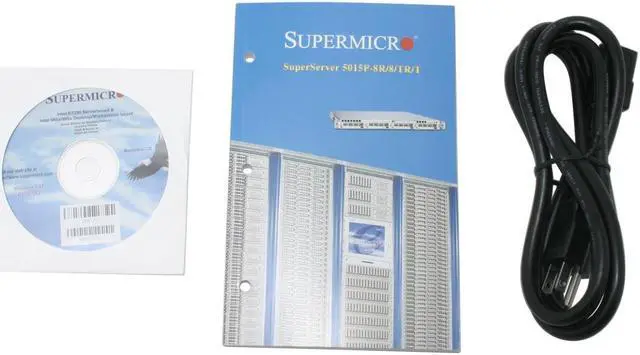

| Package Contents | 5015P-8 User Manual Software Disk Power Cord Screws Rails Other Accessories |
|---|
| First Listed on Newegg | December 02, 2005 |
|---|
