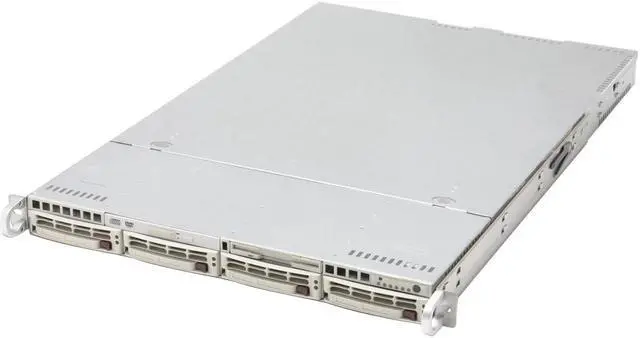

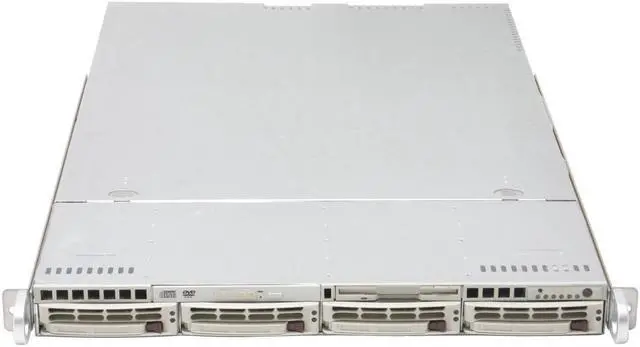

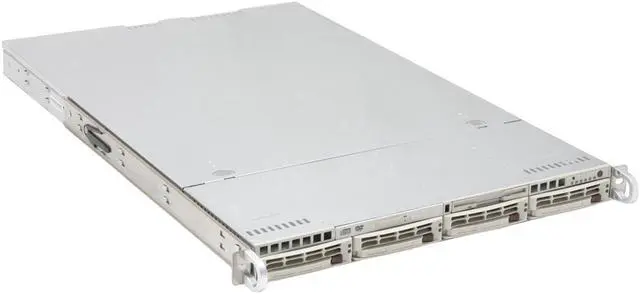

SUPERMICRO 5015P-TR 1U Rackmount Barebone Server LGA 775 Intel E7230 DDRII 667/533

Be the first to review this product...
  • LGA 775
  • Intel Pentium D / Pentium EE / Celeron
  • 4 x 240Pin Memory Slots
  • 400W AC power supply with PFC
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro 5015P-TR

General
Brand SUPERMICRO
Series SuperServer
Model 5015P-TR
Form Factor 1U Rackmount
CPU Supported
CPU Type Intel Pentium D / Pentium EE / Celeron
CPU Socket LGA 775
FSB 1066/800 MHz
Chipset
North Bridge Intel E7230
South Bridge ICH7R
Memory Supported
Memory Slots 4 x 240Pin
Max Memory Supported 8GB
Memory Type Supported DDRII 667/533
Storage Supported
ATA 1x ATA 33/66/100
Serial ATA 4 x SATA 300
SATA RAID RAID 0, 1, 5, 10
Graphics
GPU/VPU ATI Rage XL
Video Memory Dedicated 8MB
Expansion Slots
PCI-X 1x 100 MHz
Communications
First LAN Intel 82573V Gigabit Ethernet
Second LAN Intel 82573V Gigabit Ethernet
Max. LAN Speed 1 Gigabit
Expansion Bays
Slim Bays TEAC 1.44MB Slim Floppy Drive
Panasonic Slim 8x DVD-ROM drive
Hot-Swap Bays 4 x 1" Hot-Swap SATA drive bays

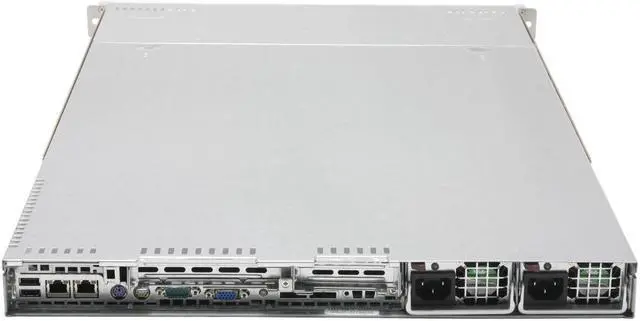

Panel Ports
COM 1
PS/2 2
VGA 1
Rear USB 2
RJ45 2
Power Supply
Max. Power 400W AC power supply with PFC
Features
Features
1 x Universal (SXB-E) slot
1 x 1U IPMI Slot
3x 4cm 12,000 RPM Nidec dual blade fans
1x SAS Hard Drive Backplane
Redundant 400W Hot-swap Power Supply with I2C for Remote Management
Dimensions & Weight
Dimensions 1.7" x 16.7" x 27.0"
Weight 46 lbs.(Gross Weight)
Packaging

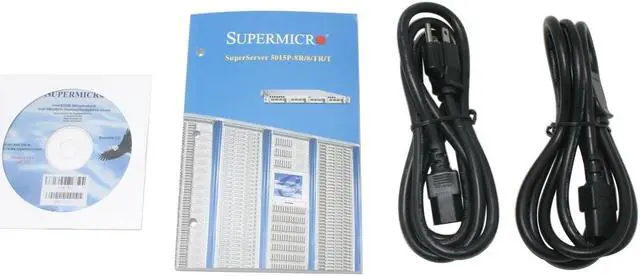

Package Contents 5015P-TR
User Manual
Software Disk
2 x Power Cord

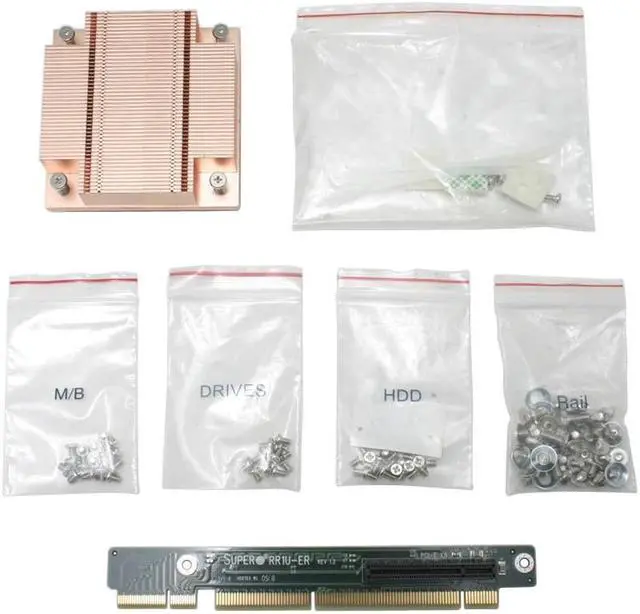

Screws

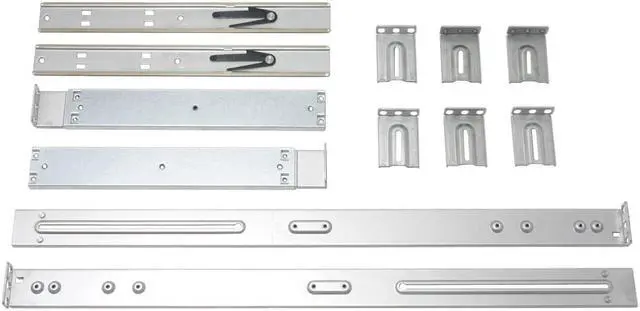

Rails
Other Accessories
Additional Information
First Listed on Newegg December 02, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
