SUPERMICRO 6025B-3V 2U Rackmount Barebone Server Dual LGA 771 Intel 5000P DDRII 667/533

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Dual LGA 771
  • Dual Intel Xeon
  • 8 x 240Pin Memory Slots
  • 560W High-efficiency Power Supply

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

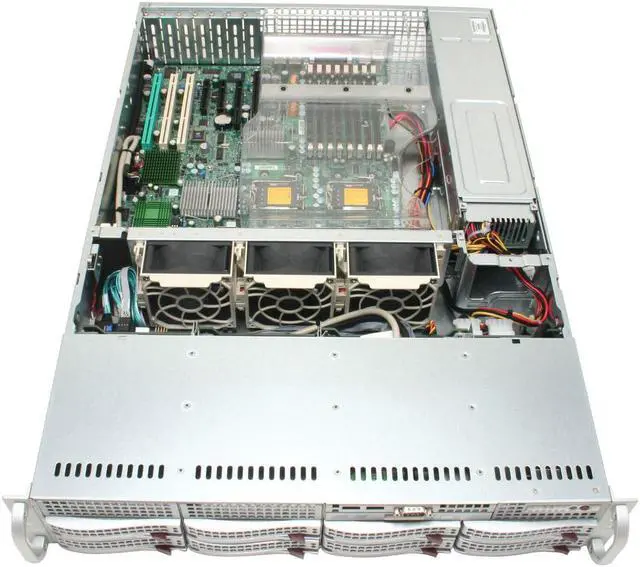

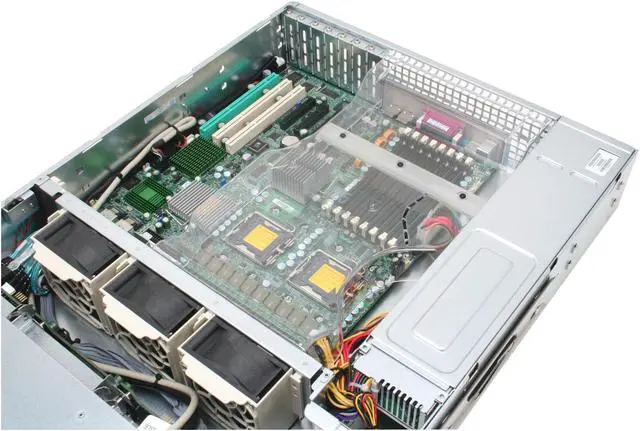

Supermicro lets you take advantage of the increasing capacities of 3.5" form factor drives with the 6025B-3V 2U barebone server system. It is based on the new Super X7DB3 motherboard and will accept up to 2 Intel Xeon processors with 2 or 4 cores each. To support all the processing power you can install up to 32GB of fully buffered ECC memory.

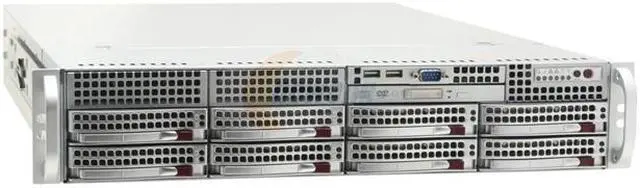

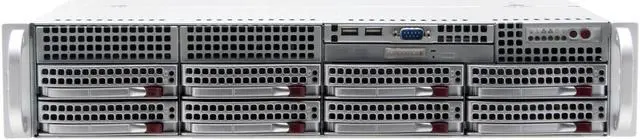

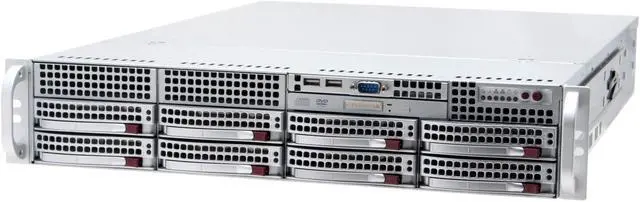

The front of the chassis has 8 hot swappable 3.5" drive bays. The motherboard has 6xSATA ports and supports RAID 0, 1, 5, 10. An EIDE port lets you plug in 2 other drives. All these fit into a 2U chassis. The whole thing is powered by an 80PLUS Certified 560W power supply so the system will get all the power that it needs.

  • newegg Supports Dual Intel Xeon Processors Dual onboard 771-pin LGA sockets support two Intel Xeon Processors including the Quad-Core Intel Xeon Processor 5400/5300 series and Dual-Core Xeon Processor 5200/5100 series.
  • newegg FB-DIMM DDR2 Memory Support Eight DIMM sockets support FB-DIMM DDR2 667 and 533 SDRAM in capacities of up to 32GB.
  • newegg Dual-port Gigabit Ethernet Dual Gigabit Ethernet LAN ports with the Intel 82563EB Dual-port Gigabit Ethernet Controller deliver ultra-fast network connections.
  • newegg Hot-swappable SATA Drive Bays The SuperMicro 6025B-3V features 8 3.5" hot-swappable SATA drive bays for easy installation and replacement.
  • newegg 560W Highly-Efficient Power Supply The 560W highly-efficient redundant power supply provides power for all components installed and ensures system reliability.

Learn more about the Supermicro 6025B-3V

Model

|
Brand
SUPERMICRO
Model
6025B-3V

CPU Supported

|
CPU Type
Dual Intel Xeon
CPU Socket
Dual LGA 771
FSB
1333/1066 MHz

Chipset

|
North Bridge
Intel 5000P
South Bridge
Intel ESB2

Memory Supported

|
Memory Slots
8 x 240Pin
Max Memory Supported
32GB
Memory Type Supported
DDRII 667/533
ECC Supported
Yes
Registered
FB-DIMM

Storage Supported

|
ATA
1x ATA 33/66/100
Serial ATA
6 x SATA 300
SATA RAID
RAID 0/1/5/10

Graphics

|
GPU/VPU
ATI ES1000
Video Memory
16MB

Expansion Slots

|
PCI Express
2 (x8) PCI-e slots
1 (x4) PCI-e (using x8) slot
PCI-X
2 x 64-bit 133MHz PCI-X (3.3V) slots
1 x 64-bit 100MHz PCI-X (3.3V) slot

Communications

|
First LAN
Intel 82563EB
Second LAN
Intel 82563EB
Max. LAN Speed
10/100/1000Mbps

Expansion Bays

|
Slim Bays
Slim DVD-ROM Drive
Hot-Swap Bays
8

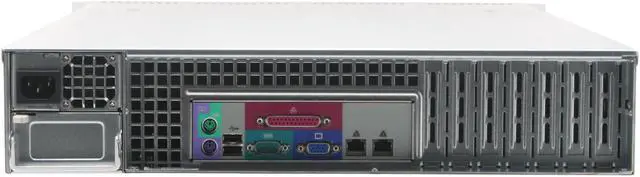

Panel Ports

|
Front USB
2
COM
1
LPT
1
PS/2
2
VGA
1
Rear USB
2
RJ45
2

Power Supply

|
Max. Power
560W High-efficiency Power Supply

Features

|
Features
SAS:
Adaptec AIC-9410 Serial-Attached SCSI (SAS) Controller
SAS Dual-Channel (internal)
Each SAS channel supports up to 4 SAS / SATA drives for a total of up to 8 SAS or SATA hard drives
Host RAID 0, 1, & 10 support
Support for Zero-Channel RAID

Details

|
Form Factor
2U Rackmount

Dimensions & Weight

|
Dimensions
25.6" x 16.8" x 3.5"
Weight
53 lbs. (Gross Weight)

Packaging

|

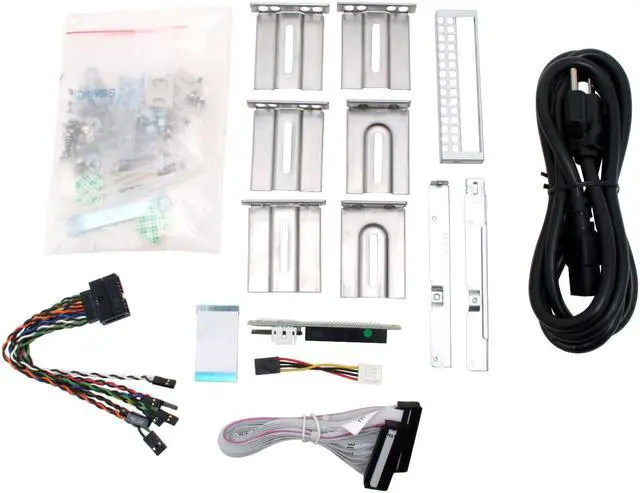

Package Contents
6025B-3VB
Software Disk
Power Cord
Screws

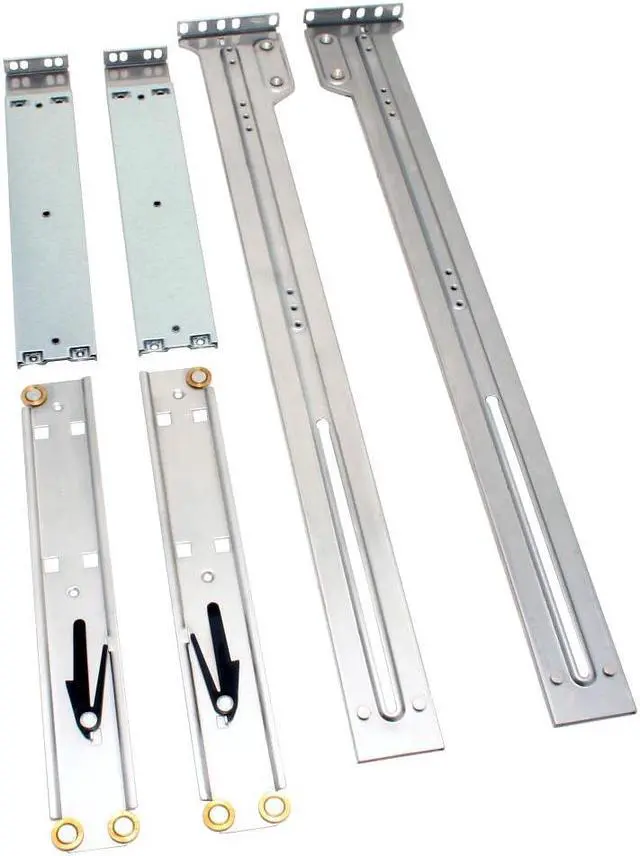

Rails
Other Accessories
Warranty, Returns, And Additional Information
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 week to 1 month
Verified Owner
3/ 5

Pros: Solid chassis, fairly straight forward to setup. Most things you wokd expect in a server chassis. Minimal effort to get it going. Compact size.

Cons: At this point an older product. Not compatible with the new 2TB SATA internal hard drives. High fan noise.

Other Thoughts: Consider stocking spares for this chassis while available. Our servers are typically in service for 5-9 years.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
awesome server package

Pros: This is the near ideal server - 8 SAS/SATA drives in 2U. Supermicro makes great servers independent of prices using the absolute latest high-end chip sets. The internal physical layout of all their servers is first class. I liked this one so much that I bought 5 of them to replace my small stack of servers. With quad core Xeons I will be able to have a small 32-way cluster on 4 machines plus use the drive space for light duty file servers. Great machine for server consolidation with the quad cores and 8 drives plus it can hold 16GB using cost-effective 2GB sticks of FB-DIMM memory.

Cons: The fans are noisy but typical of a high power constrained volume passively cooled server which should be kept in a machine room. newegg should carry the redundant power supply version of this server.

5 out of 5 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Built Strong and Performs Well

Pros: This 2U machine packs allot of hardware power and capability into a small space. Performance has been outstanding for a machine of this price range. It is built like a tank and of very high quality. All mounting hardware and rails are included. Can be upgraded to real RAID 5 capabilities using the SuperMicro zero channel RAID card.

Cons: Due to the chipset used, if you are using 32 bit OS, your effective usable memory is limited to 3GB. To use more memory, you must use a 64 bit OS.

Other Thoughts: Wish NewEgg would carry the Zero Channel RAID card for this machine - it is used by many other SuperMicro servers, so it's not limited to just this unit.

2 out of 2 people found this review helpful. Did you?
