Does the RAID card support RAIDS 0, 1, 5, and 10?

There are two modes on the raid controller the Adaptec mode supports all the raid modes, but the other controller mode does not support raid 5.. Also you have to pick thru supermicro's ftp site to get the correct drivers. It can sometimes be difficult to get windows to install using the raid drivers.. There is a bit of trick to it... Linux works without issue.. We have 12 of these units in service as Hyper-V cluster nodes. We love them.

Owners - is this 1U fan decibels audible after boot? Have some Dell C1100's and after boot they are quiet. Purchase is for a home lab.

Fans are very loud at power on but ramp down to a quieter level once the POST is finished (this option is default but can be changed in BIOS setup). Even after the ramp-down it is still not whisper quiet, though. You probably would not want to sit right next to it and work all day but it's not excessive. The fans will ramp up as needed according to internal temperature so you need to consider the environment.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

More Resources

SuperMicro;AS-1012G-MTF;SuperMicro AS-1012G-MTF Manual

SuperMicro AS-1012G-MTF Manual

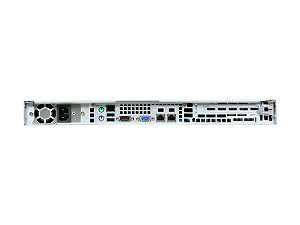

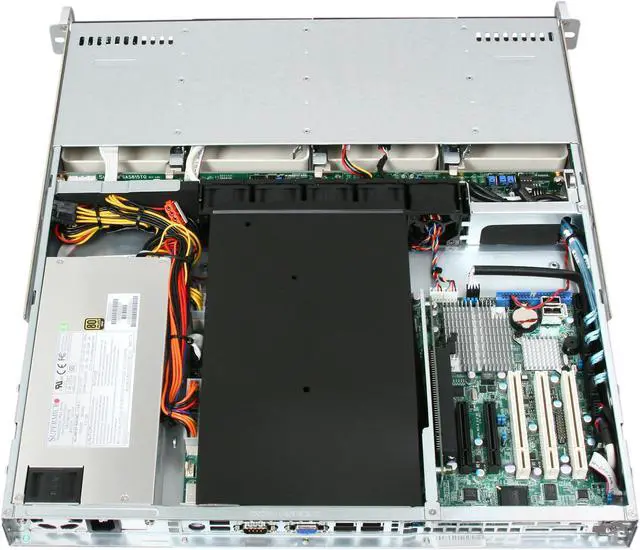

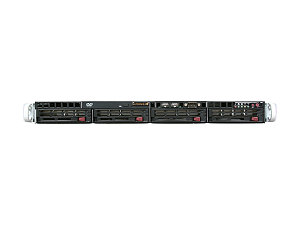

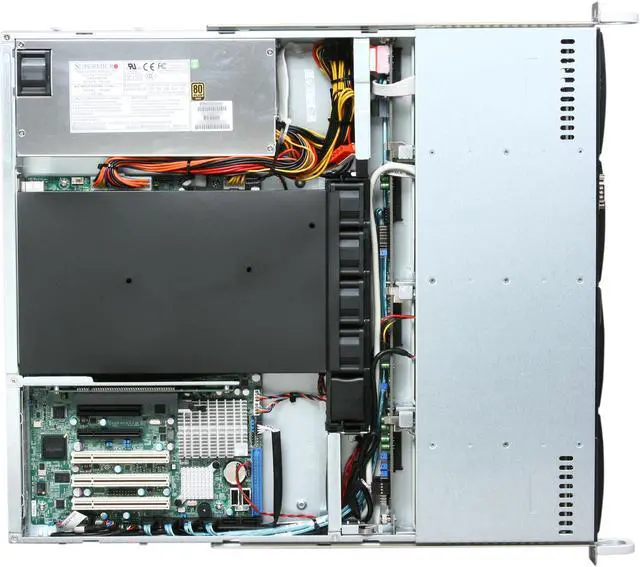

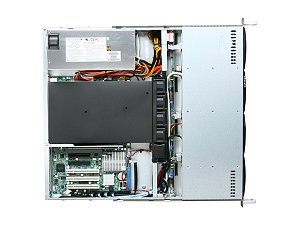

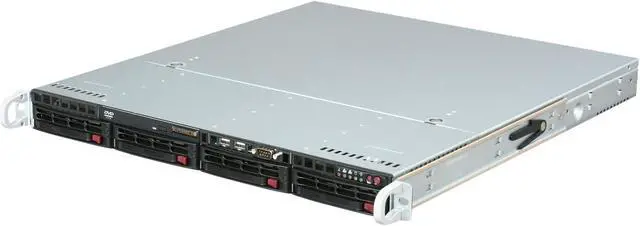

Main image of SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone Socket G34 AMD SR5650 DDR3 1600/1333/1066

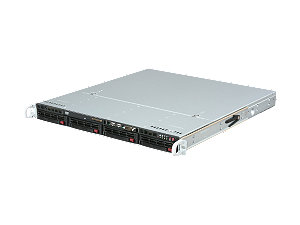

Alt view image 2 of 7 - SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone Socket G34 AMD SR5650 DDR3 1600/1333/1066

Alt view image 3 of 7 - SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone Socket G34 AMD SR5650 DDR3 1600/1333/1066

Alt view image 4 of 7 - SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone Socket G34 AMD SR5650 DDR3 1600/1333/1066

Alt view image 5 of 7 - SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone Socket G34 AMD SR5650 DDR3 1600/1333/1066

Alt view image 6 of 7 - SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone Socket G34 AMD SR5650 DDR3 1600/1333/1066

Alt view image 7 of 7 - SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone Socket G34 AMD SR5650 DDR3 1600/1333/1066

Shop All Supermicro Products

SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone Socket G34 AMD SR5650 DDR3 1600/1333/1066

(8) Write a Review

1 x Socket G34 Support AMD Opteron 6000 series (6300 ready)
8 x 240Pin Memory Slots 9Max 256GB)
Support 4 x SATA 300 HDD
350W High-efficiency Power Supply 80PLUS Gold Certified

Overview

Specs

Reviews (8)

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO AS-1012G-MTF 1U Rackmount Server Barebone

Key Features

1. Single AMD Opteron™ 6000 series (6300P* ready) processors (Socket G34) 16/12/8/4-Core ready; HT3.0 Link support
2. Up to 256GB DDR3 1600MHz ECC Registered DIMM; 8x DIMM sockets
3. 1x PCI-E 2.0 x8 in x16 slot
4. Dual-port GbE LAN Controller, 4x USB 2.0 ports, 1x dedicated LAN for system management (IPMI 2.0)
5. 4x Hot-swap SATA Drive Bays
6. 350W High-efficiency Power Supply Gold Certified

Specifications

Product SKUs
AS-1012G-MTF	A+ Server 1012G-MTF (Black)
Motherboard
Super H8SGL-F
Processor/Chipset
CPU	Single 1944-pin Socket G34 Supports one 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors HT3.0 Link support
Chipset	AMD chipset SR5650/SP5100
Note	Supports 6000 processors with Max ACP 80W (TDP 115W)
System Memory
Memory Capacity	Eight DIMM sockets Support up to 256GB Registered ECC or 64GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 8 DIMMs Quad channel memory bus
Memory Type	DDR3 1600/1333/1066 MHz Registered ECC SDRAM or Unbuffered ECC/non-ECC 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	AMD SP5100 (RAID 0, 1, 10)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Winbond® WPCM450 BMC
Network Controllers	Two Intel® 82574L controller, Dual-Port Gigabit Ethernet 10/100/1000BASE-T support
VGA	Matrox G200 16MB DDR2
Super I/O	Winbond® W83527 chip
Expansion Slots
PCI-E/PCI	1x PCI-E 2.0 x16 slot
Input / Output
SATA	4x SATA2.0 (3Gb/s) Ports
LAN	2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI
USB	8x USB 2.0 ports 2x Rear, 4x header, and 2x TypeA
VGA	1x VGA port
Keyboard/Mouse	PS/2 keyboard and mouse ports
Serial Port / Header	1x Fast UART 16550 serial port 1x internal header
Input / Output
BIOS Type	16Mb SPI Flash ROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3

Gallery

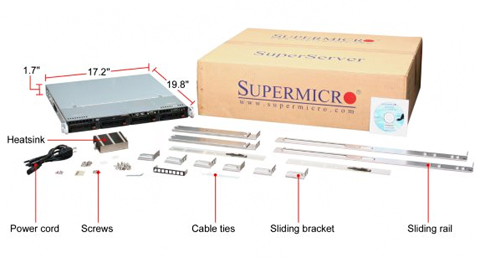

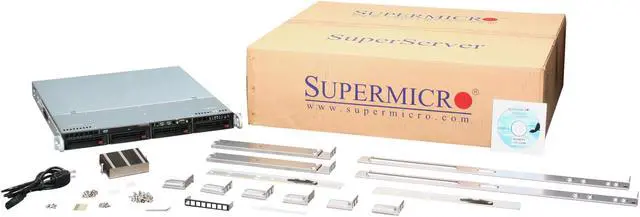

Whats in the Box

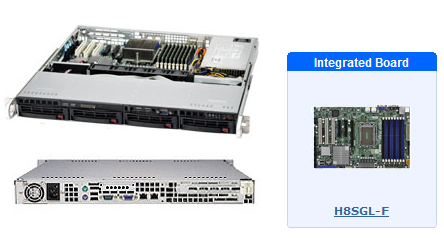

Supermicro lets you take advantage of the increasing capacities of 3.5" form factor drives with the AS-1012G-MTF 1U server barebones system. It is based on the H8SGL-F motherboard and will accept the up-to-date AMD Opteron 6100 series processors for unrivaled computing performance. To support all the processing power you can install up to 128GB registered ECC DDR3 memory in 8 DIMM slots. A 350W 80PLUS Gold Certified power supply unit delivers strong and stable power to all components with excellent power efficiency.

Twelve/Eight-Core ReadyFeaturing G34 sockets and AMD SR5650 chipset, the Supermicro AS-1012G-MTF supports the high performance 8- and 12-Core AMD Opteron 6100 series processors, providing the computing platform capability necessary for your increasing computing demand.
Quad Channel DDR3 Memory SupportEight 240-pin DIMM sockets support both registered ECC (RDIMM) and unbuffered ECC (UDIMM) DDR3 memory at speeds of up to 1333MHz, ensuring ample capacity for any application.
Dual Gigabit LANThe Supermicro AS-1012G-MTF features dual Intel 82574L Gigabit Ethernet LAN controllers to optimize server performance and improve network communication efficiency to meet the networking demands.
Hot-Swappable SAS/SATA Drive BaysThe Supermicro AS-1012G-MTF features four 3.5" hot-swappable SAS/SATA drive bays for easy installation and replacement.
Integrated ManageabilityThe integrated Baseboard Management Controller (BMC) with IPMI (Intelligent Platform Management Interface) v2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state. IPMI comes with virtual media over LAN and KVM over LAN support to provide a complete remote management upgrade solution.
350W 80 PLUS Gold Certified Power SupplyThe 350 highly-efficient gold level PFC power supply provides power for all components installed and ensures system reliability.

General
Brand	SUPERMICRO
Series	A+
Model	AS-1012G-MTF
Form Factor	1U Rackmount

CPU Supported
CPU Type	AMD Opteron 6000 series (6300 ready)
CPU Socket	Socket G34
Installed CPU	No CPU Installed
Max Processors	1

Chipset
North Bridge	AMD SR5650
South Bridge	AMD SP5100

Memory Supported
Memory Slots	8 x 240Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	256GB
Memory Type Supported	DDR3 1600/1333/1066
ECC Supported	Yes
Registered	Yes

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	4 x SATA 300
SATA RAID	RAID 0/1/10

Graphics
GPU/VPU	Matrox G200
Video Memory	16MB DDR2

Expansion Slots
PCI Express	1x PCI Express 2.0 x16

Communications
First LAN	Intel 82574L
Second LAN	Intel 82574L
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays
Slim Bays	1
Hot-Swap Bays	4 x 3.5" SATA

Panel Ports
Front USB	2
COM	1
PS/2	2
VGA	1
Rear USB	2
RJ45	2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI

Power Supply
Max. Power	350W High-efficiency Power Supply 80PLUS Gold Certified

Features
Features	CPU: Supports one 16/12/8/4-Core ready AMD Opteron 6000 Series (6300 ready) processors *Supports 6000 processors with Max ACP 80W (TDP 115W) Memory Capacity: Support up to 256GB Registered ECC or 64GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 8 DIMMs HT3.0 Link support System Cooling: 4 x 4cm 12,500 RPM PWM fans

Dimensions & Weight
Dimensions	17.2" x 1.7" x 19.8"
Weight	31.0 lbs. (Gross)
