Learn more about the Supermicro AS-1014S-WTRT
GeneralBrand | SUPERMICRO |
---|
Model | AS-1014S-WTRT |
---|
Form Factor | 1U Rackmount |
---|
Workload | General Purpose Server |
---|
CPU SupportedCPU Type | Single AMD EPYC 7003/7002 Series Processor (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer) |
---|
CPU Socket | Socket SP3 |
---|

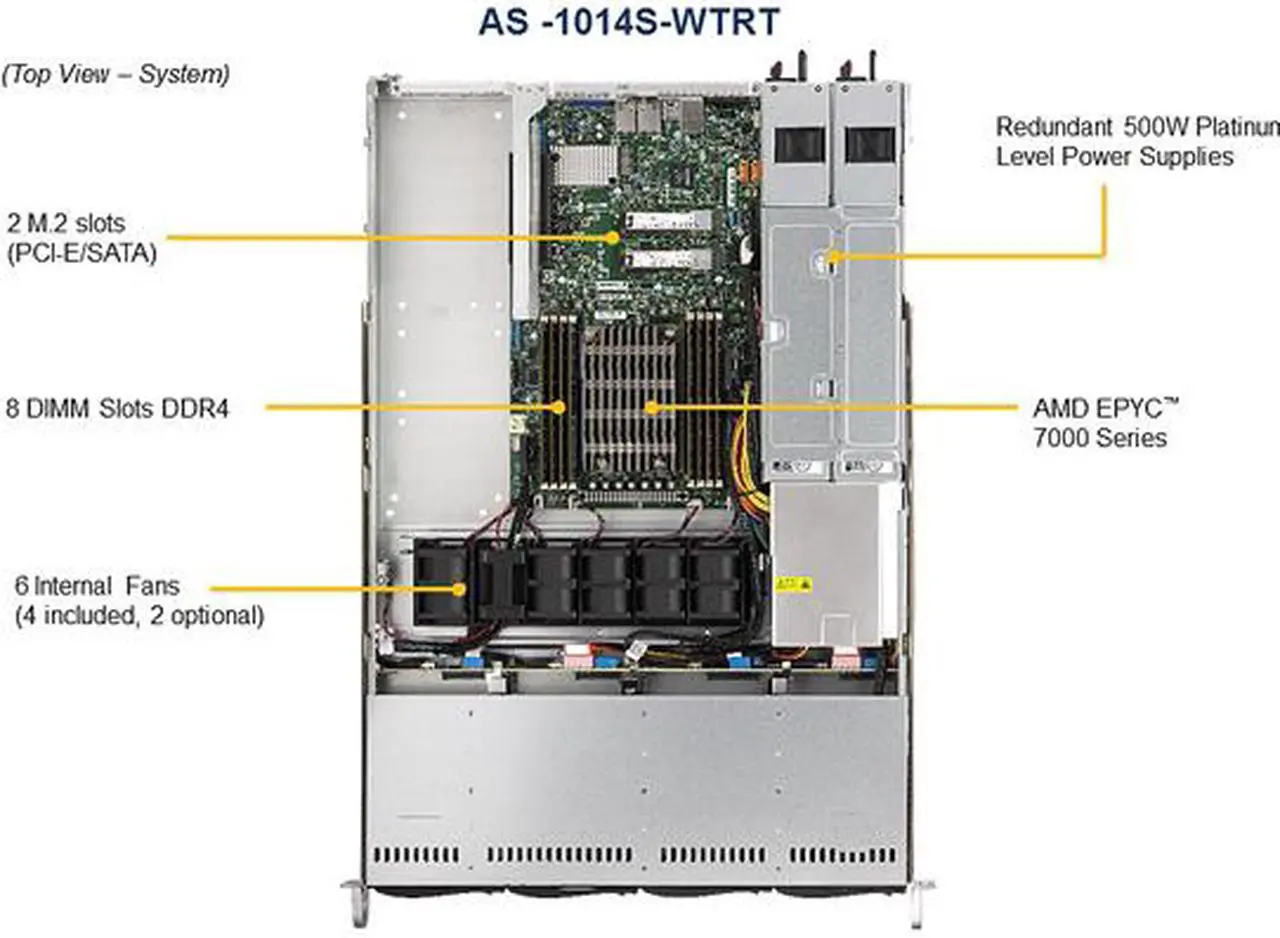

Memory SupportedMemory Slots | 8 x 288Pin |
---|
Installed Memory Size | No Memory Installed |
---|
Max Memory Supported | 2TB |
---|
Memory Type Supported | DDR4 3200 |
---|
ECC Supported | Yes |
---|
Registered | Yes |
---|
Storage SupportedSerial ATA | 4 x SATA 600 |
---|
GraphicsGPU/VPU | Aspeed AST2500 BMC |
---|
Expansion SlotsPCI Express | 2 x PCI-E 4.0 x16 (FHHL) slots 1 x PCI-E 4.0* x16 (LP) slot 2 x PCI-E?/?SATA 3.0 x2 NVMe M.2 slots *?Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed. |
---|

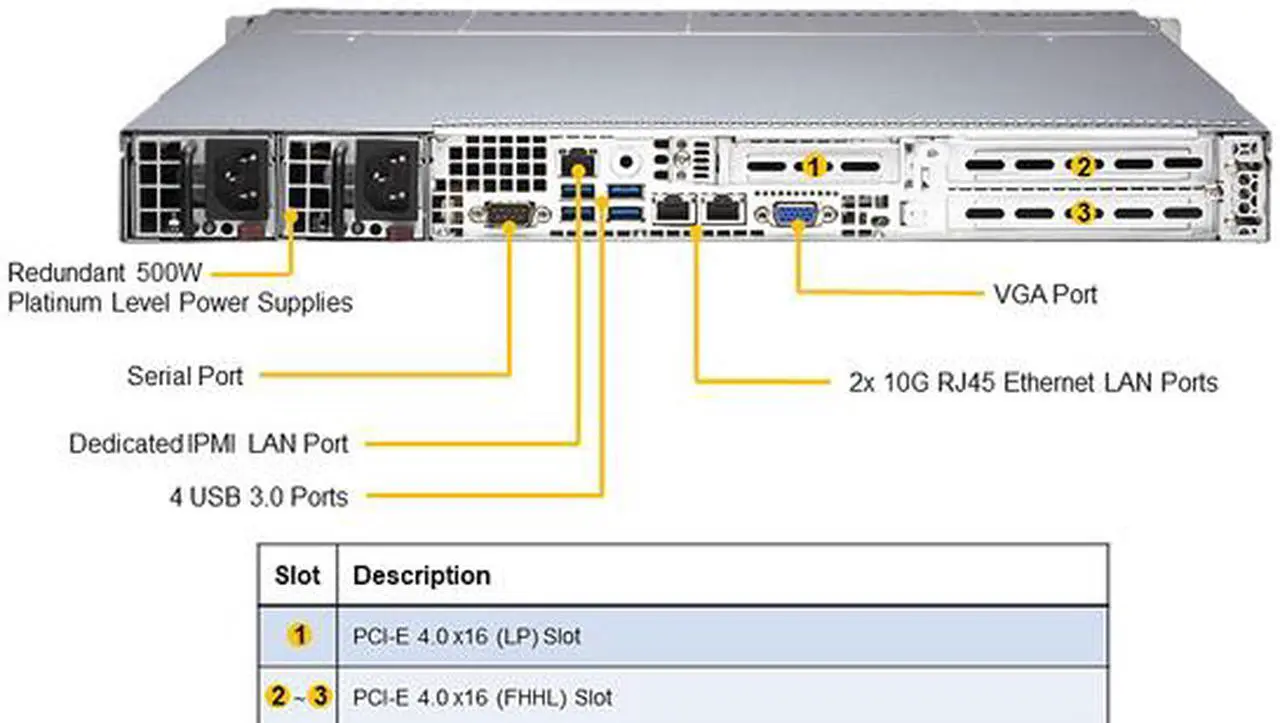

CommunicationsFirst LAN | 2 x RJ45 10GBase-T ports |
---|
Second LAN | 1 x RJ45 Dedicated IPMI LAN port |
---|
Max. LAN Speed | 10 Gigabit |
---|

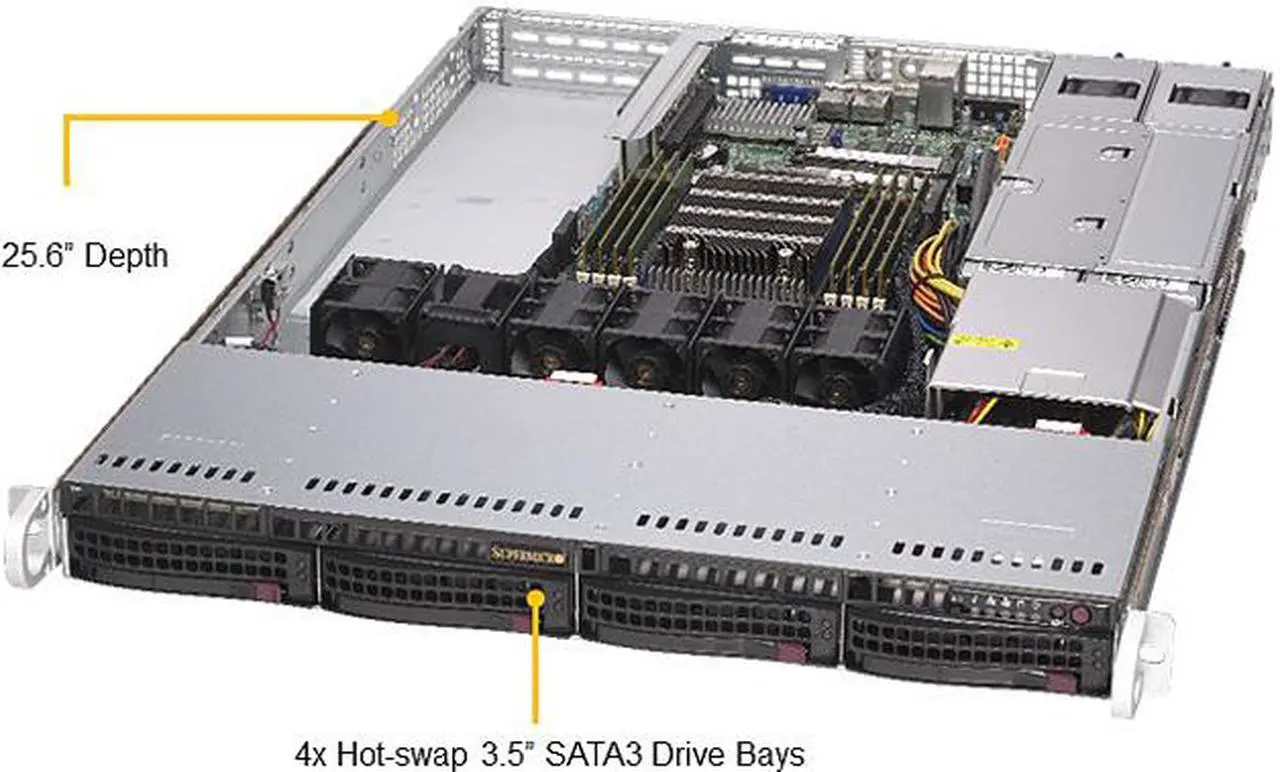

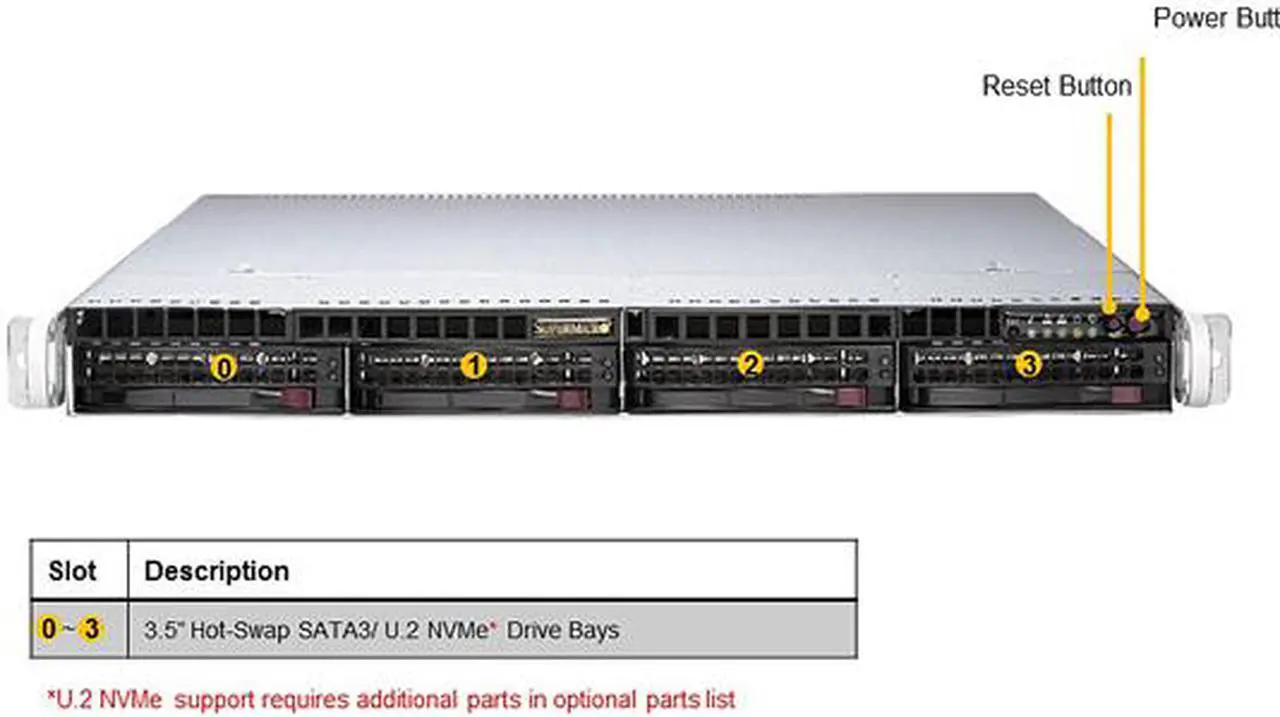

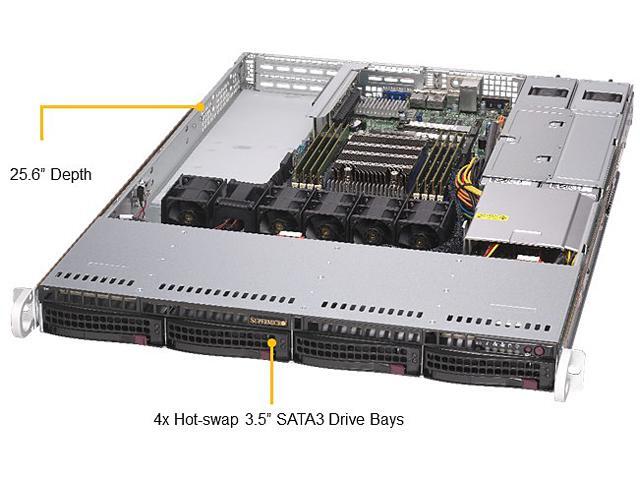

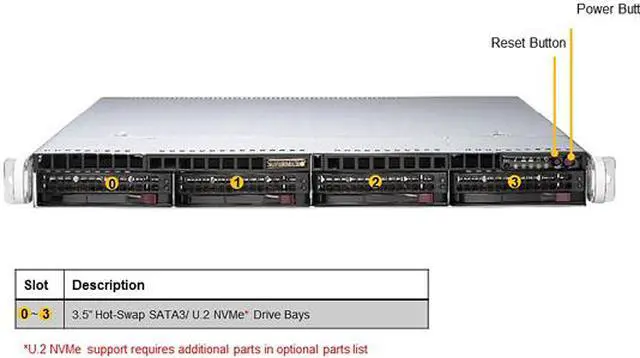

Expansion BaysHot-Swap Bays | 4 x 3.5" Hot-swap SATA3 drive bays Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices |
---|
Panel PortsVGA | 1 |
---|
Rear USB | 4 x USB 3.0 1 x USB 3.0 Type A |
---|
RJ45 | 1 |
---|
Other Ports | 2 x SuperDOM (Disk on Module) ports |
---|
Power SupplyMax. Power | 500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load) |
---|
Dimensions & WeightDimensions | 1.70" x 17.20" x 23.60" |
---|
Weight | 22.00 lbs. |
---|
Additional InformationDate First Available | February 01, 2021 |
---|
