SUPERMICRO AS-2022G-URF4+ 2U Rackmount Server Barebone Dual Socket G34 AMD SR5690 DDR3 1600/1333/1066

(2) Write a Review
  • Dual Socket G34
  • Support Dual AMD Opteron 6000 Series (6300 ready)
  • 24 x 240Pin Memory Slots (Max 768GB)
  • 920W high-efficiency (94%+) AC-DC Redundant 80Plus Platinum power supplies with PMBus and I2
This item is covered under the Manufacturer Only Return Policy.
Overview
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
AS-2022G-URF4+

SUPERMICRO AS-2022G-URF4+ 2U Rackmount Server Barebone



Key Features

AS-2022G-URF4+
  • 1. Dual AMD Opteron™ 6000 series (6300P* ready) processors (Socket G34) 16/12/8/4-Core ready; HT3.0 Link support
  • 2. Up to 768GB DDR3 Registered ECC 1600/1333/1066 in 24 DIMMs
  • 3. 1x UIO, 3x PCI-E 2.0 x8
  • 4. 2x Intel 82576 (Dual-port Gb LAN) (4 ports)
  • 5. 8x Hot-swap SAS/SATA Drive Bays
  • 6. 920W Platinum Level (94%+) High-efficiency Power Supply
  • 7. Integrated IPMI 2.0 with Dedicated LAN


Specifications

Product SKUs
AS-2022G-URF4+ A+ Server 2022G-URF4+ (Black)
Motherboard
uper H8DGU-LN4F+
Processor/Chipset
CPU
  • Dual 1944-pin Socket G34
  • Supports up to two 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors
  • HT3.0 Link support
Chipset AMD chipset SR5690 / SP5100
Note
  • Supports 6000 processors with Max ACP 80W (TDP 115W)
System Memory
Memory Capacity
  • 24 DIMM sockets
  • Support up to 768GB Registered ECC or 128GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 24 DIMMs
  • Quad channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
  • DDR3 1600/1333/1066 MHz Registered ECC Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
  • AMD SP5100 (RAID 0, 1, 10)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • Winbond® WPCM450 BMC
Network Controllers
  • 2x Intel® 82576 controller, Quad-Port Gigabit Ethernet
  • 10/100/1000BASE-T support
VGA Matrox G200eW 16MB DDR2
Super I/O
  • Winbond 83527HG chip
  • Winbond WPCM450 (BMC)
Expansion Slots
PCI-Express
  • 3x PCI-E x8 (Gen 2.0); 1x UIO
Input / Output
SATA
  • 6x SATA2.0 (3Gb/s) Ports
LAN
  • 4x RJ45 ports and 1x RJ45 Dedicated LAN supports IPMI
USB
  • 5x USB 2.0 ports
  • 2x Rear, 2x header, 1x Type A
VGA 1x VGA port
Keyboard/Mouse PS/2 keyboard and mouse ports
Serial Ports
  • 1 Fast UART 16550 serial port
  • 1 serial port header
Others 1 UID
System BIOS
BIOS Type 16Mb Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.2
  • ACPI 2.0
  • BIOS Rescue Hot Keys
  • USB Keyboard Support
  • Hardware BIOS Virus Protection
  • SMBIOS 2.3

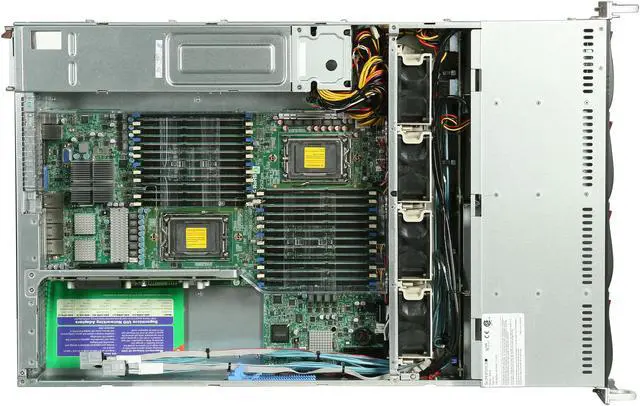

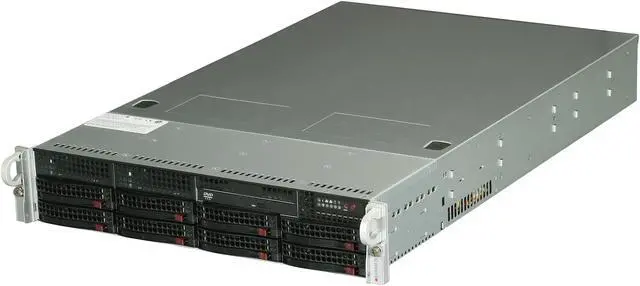

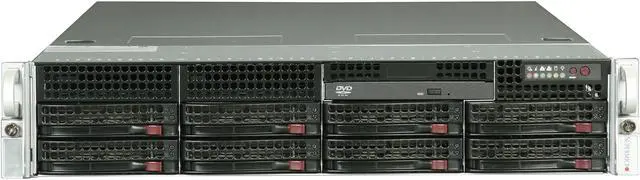

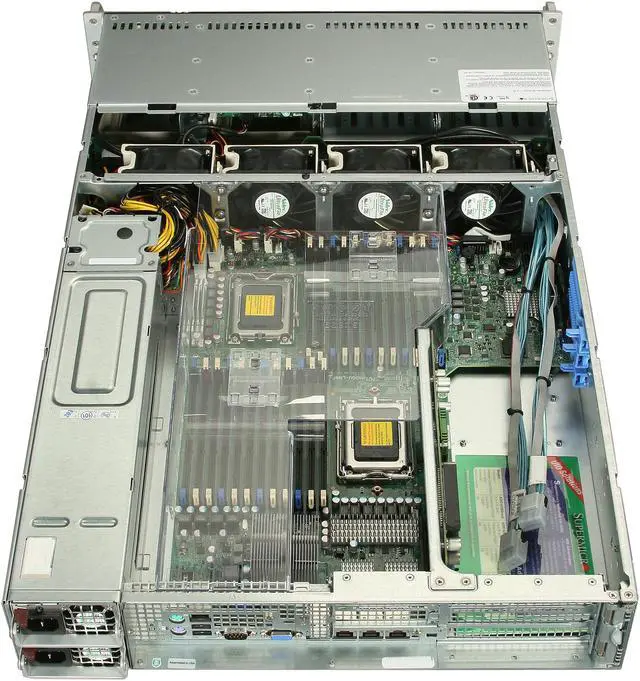

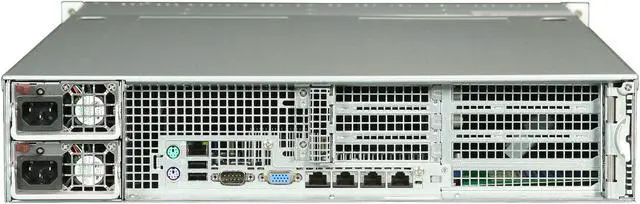

Gallery

AS-2022G-URF4+ AS-2022G-URF4+ AS-2022G-URF4+

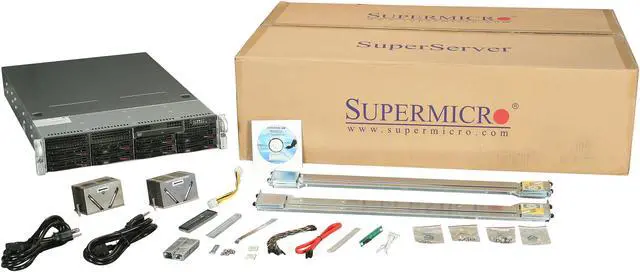

Whats in the Box

AS-2022G-URF4+


Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
