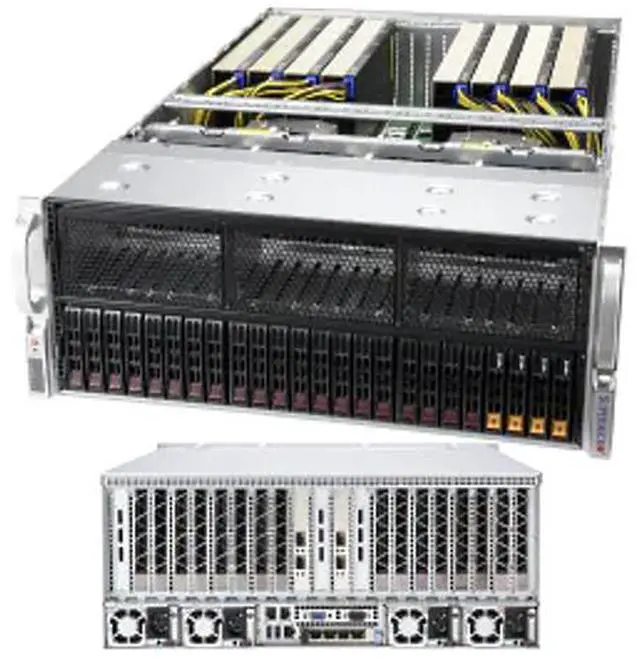

SUPERMICRO AS-4124GS-TNR 4U Rackmount Server System, Complete System Only ! For Customized Please Contact with Newegg B2B.
- Complete System Only ! For Customized Please Contact with Newegg B2B
- Key Applications
- - AI / Deep Learning
- - High Performance Computing (HPC)
- - Cloud Gaming
- - Molecular Dynamics Simulation
- Key Features
- Supports up to 8 double-width GPUs Direct connect for maximum performance
- Dual AMD EPYC 7003/7002 Series Processors (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer)
- 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
- 9 PCI-E 4.0 x16 (Option: 10 PCI-E 4.0 x16 slots without NVMe devices)
- 5.Up to 24 Hot-swap 2.5" drive bays. With included hardware:
- - 2x 2.5" SATA in RAID 1 via onboard
- - Marvell 9230
- - 4x 2.5" NVMe (depends on PCI-E quantity based on #4)
- - RAID controller option available for 24 HDDs
- 2 GbE LAN ports (rear)
- 8 Hot-swap 11.5K RPM cooling fans
- 2000W (2+2) Redundant Power Supplies Titanium Level (96%+) (full redundancy based on configuration and application load)
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro AS-4124GS-TNR
| Brand | SUPERMICRO |
|---|---|
| Model | AS-4124GS-TNR |
| Form Factor | 4U Rackmount |
| CPU Type | AMD EPYC 7002 Series |
|---|---|
| CPU Socket | Socket SP3 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| CPU Features | Dual AMD EPYC 7003/7002 Series Processors (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer)* Supports CPU TDP up to 280W** * Supports 2 CPUs only - single socket not supported ** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
| Memory Slots | 32 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 8TB |
| Memory Type Supported | DDR4 3200 |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 24 x SATA 600 |
| GPU/VPU | Supported GPUs 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length) NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct Supports both active and passive cooled GPUs CPU-GPU Interconnect: PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root GPU-GPU Interconnect: NVIDIA NVLink Bridge (Optional), AMD Infinity Fabric (optional) |
|---|
| PCI Express | 9 PCI-E 4.0 x16 (FHFL) slots or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices |
|---|
| Max. LAN Speed | 10 Gigabit |
|---|
| Hot-Swap Bays | 24 |
|---|
| COM | 1 x COM port (header) |
|---|---|
| VGA | 1 x VGA Connector |
| Rear USB | 2 x USB 3.0 ports (rear) |
| RJ45 | 2 x RJ45 GbE LAN ports (rear) 1 x RJ45 Dedicated IPMI LAN port |
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
|---|---|
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 7.00" x 17.20" x 29.00" |
|---|---|
| Weight | 65.50 lbs. |
| First Listed on Newegg | June 15, 2022 |
|---|
