Supermicro High Performance Workstation – Built For Your Imagination
Based on AMD Ryzen Threadripper PRO 5975WX 32-Cores/64-Threads processor and up to 2TB registered ECC DDR4-3200 memory supported, the workstation is designed for professional content creators who need the high-core count for multi-threaded workloads and high-frequency for lightly threaded tasks. This unique full spectrum compute capability means reduced render times, more creative iterations, rapid simulation solving, quick assembly rebuilds and smooth interactivity with 3D assets. Designed to let artists, architects, animators, and engineers multitask and get more done in less time. It is time to let Supermicro AMD Threadripper PRO based Workstation be the productivity boosting engine at the heart of your next professional workstation.
Imagine What You Can Do
AMD Ryzen™ Threadripper™ PRO 5000 WX-Series processors built on battle-tested performance and capability to enable artists, architects, and engineers with the ability to get more done in less time.
- Leadership full spectrum performance across the entire product stack
- Enhanced max boost frequencies vs. the previous generation
- 128 PCIe® 4.0 lanes support advanced workstation configurations
- AMD PRO Technologies
Six PCIe x16 PCIe 4.0 Slots
Supporting up to 6 single-width, 3 double-width or 2 triple-width PCIe 4.0 or PCIe 3.0 add-on cards, the Supermicro workstation is highly flexible and expandable to your needs.
10G LAN Onboard!
In addition to the Intel® 1Gb LAN port, well-known for its reliable and high TCP and UDP throughput, the second and new Marvell AQC113C 10Gb port delivers 10 times faster connectivity ensuring low CPU overhead, and more CPU power brought to use.
Ultra-fast 4x PCIe 4.0 M.2
The workstation equips with the latest NVME storage options, four M.2 on PCI-E 4.0 for flash boot up and storage. Supporting RAID 0, 1, 5, and 10 without additional hardware, it provides you even more performance and flexibility within your system.
Server Level Remote Management with IPMI
Supermicro workstation comes with onboard baseboard management controller (BMC), which provides IPMI (Intelligent Platform Management Interface) that enables IT administrators out-of-band management, which includes monitoring the health of the system through temperature/voltage readings, updating BIOS and firmware remotely, and debugging OS through KVM consoles.

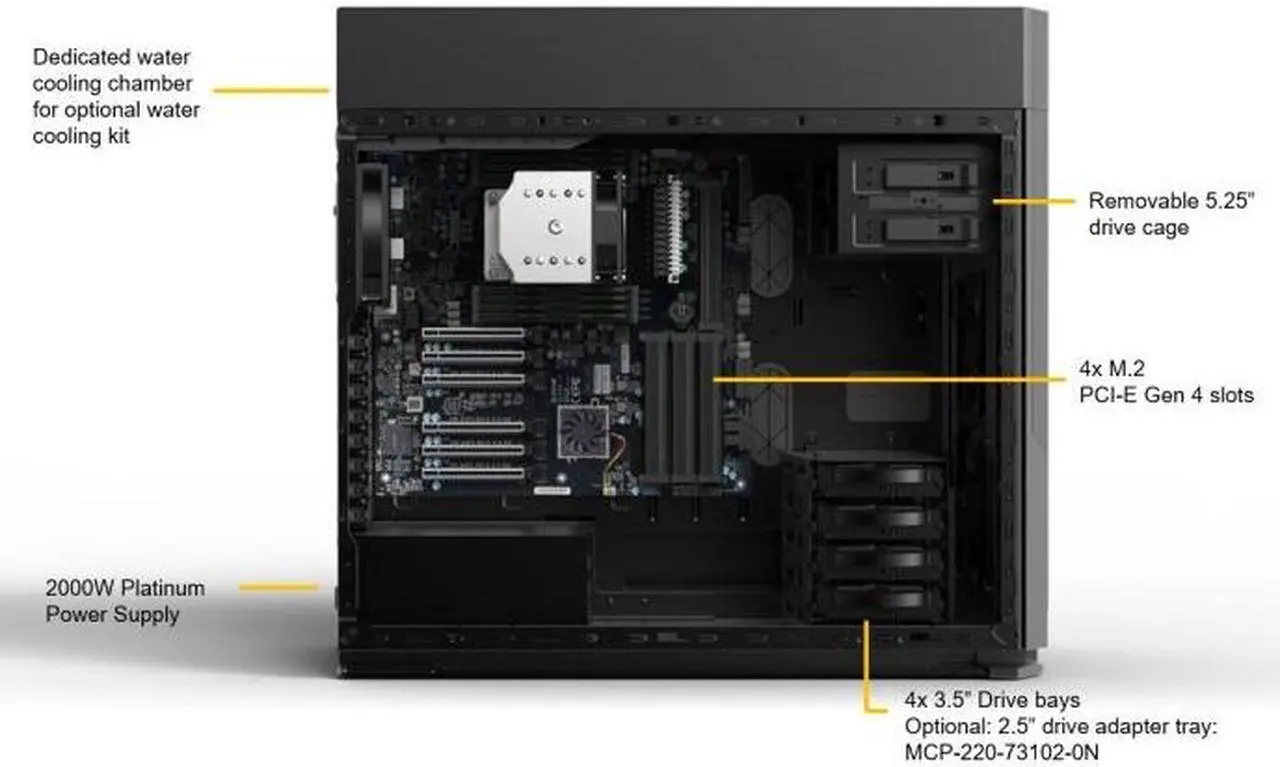

High-Performance Liquid cooling (Optional)
Dedicated chamber for optional AIO liquid cooling up to a 360mm radiator. The liquid cooling thermal solution is quieter and has higher performance than traditional air cooling.
| CPU | AMD Ryzen Threadripper PRO, 5975WX 32C/64T 3.5GHz |
| Motherboard | Supermicro M12SWA-TF AMD sWRX8 High Performance Workstation motherboard |
| Chassis | Supermicro GS7 chassis with 2000W 80PLUS Platinum high efficiency power supply |
| Heatsink | High performance CPU heatsink for AMD Threadripper Pro |
| Keyboard/Mouse | Sold Separately |
| Limited Warranty | 3 Years labor and 1 Year Parts. |
