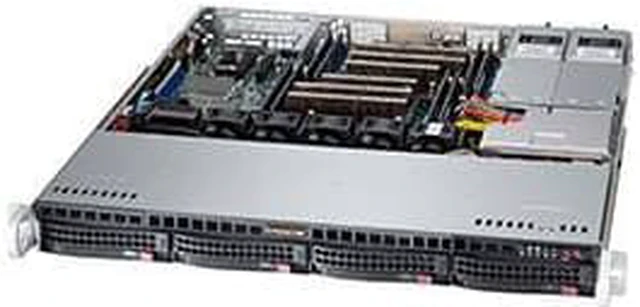

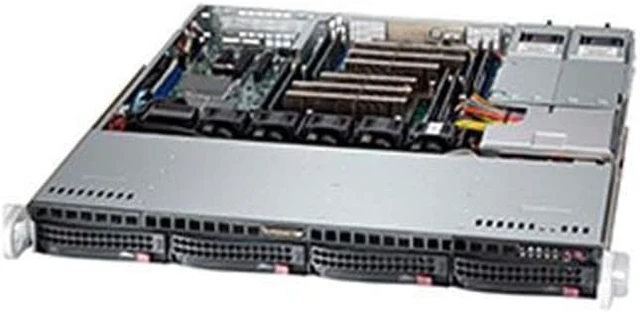

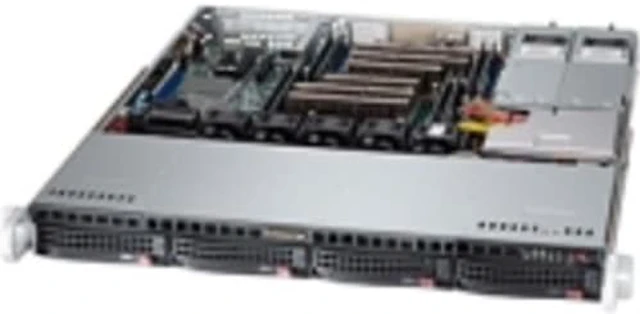

Supermicro SuperChassis CSE-813MFTQ-R400CB 400W 1U Rackmount Server Chassis (Black)

Case Type: 1U
Rackmount Color: Black
M/B Type: ATX ( 12.0 x 10.0 inch), Micro
ATX ( 9.6 x 9.6 inch)
Processor Support: Dual, Single Intel/AMD
Processors Drive Bays: 4x 3.5 ' Hot-swap SAS2 (6Gb/s) / SATA
Drive Bays Expansion Slots: 1x Full-height AOC
Expansion Slot Backplane: 1x SAS/SATA Backplane
Cooling System: 4x 40mm 4-pin PWM
Fans Front Panel:
Buttons: Power On/Off,
System Reset LEDs: Power, Hard Drive Activity, 2x Network Activity,
System Overheat Power Supply: 400W (1+1) Redundant Super
Compact Short-depth AC-DC Gold-level Power Supply w/ PMBus and I2C
Dimensions (WxDxH): 17.20 x 19.85 x 1.70 inch / 437.0 x 503.0 x 43.0 mm
Gross Weight: 33.5 lbs / 15.2 kg Chassis Only. Does not include CPU, MB, HDD, memory or other parts.
Package Contents: Super
Chassis 813MFTQ-R400CB 1 x Backplane 1 x 8-pin to 8-pin Ribbon SGPIO Cable (With Tube, 40cm) 1 x Set of 4 x SATA 56/ 45.5 /35/23CM Round Cables 1 x Power Distributor 1 x Round 16-pin to 16-pin Ribbon FP Cable 1 x Black DVD Dummy Cover 1 x Front Control Board Dual Color 1 x Fan Tray 4 x Black Fen 5.5 Hot-swap 3.5 HDD Trays 1 x 1U I/O Shield for X9 Socket R Server MB with Gasket 2 x Dummy Fan (40x28mm) 1 x Set Outer Rail (Quick-release Type) 1 x Set Inner Rail (Front, Short, Quick-release Type) 1 x Set Inner Rail (Extension, Quick) 1 x STD Rear Window 1 x Black FDD or USB Tray Dummy Cover 1 x Optional 1U Riser Card Bracekt
Product Type: Server Case
Motherboard Supported: ATX
Motherboard Supported: µATX
Product Type: Server Case
Manufacturer Part Number: CSE-813MFTQ-R400CB
Motherboard Supported: ATX
Motherboard Supported: µATX
Color: Black
Form Factor: Rack-mountable
Color: Black
Form Factor: Rack-mountable
Manufacturer: Supermicro Computer, Inc
Product Model: 813MFTQ-R400CB
Product Name: Super
Chassis 813MFTQ-R400CB
Product Line: Super
Chassis
Brand Name: Supermicro
Brand Name: Supermicro
Height: 1.7
Width: 17.2
Depth: 19.9 Number of External 3.5
Bays: 4
Compatible Rack Unit: 1U Number of
Power Supplies Supported: 2 Number of
Power Supplies Installed: 2
Power Supply Wattage: 400 W Number of Total
Expansion Bays: 4
Product Family: Super
Chassis Number of
Fans Supported: 6 Number of
Fans Installed: 4 Number of External 3.5
Bays: 4
Compatible Rack Unit: 1U Number of
Power Supplies Supported: 2 Number of
Power Supplies Installed: 2
Power Supply Wattage: 400 W Number of Total
Expansion Bays: 4 Number of Total
Expansion Slots: 1 Installed
Fan Size: 1.57
Power Supply Installed: Yes
