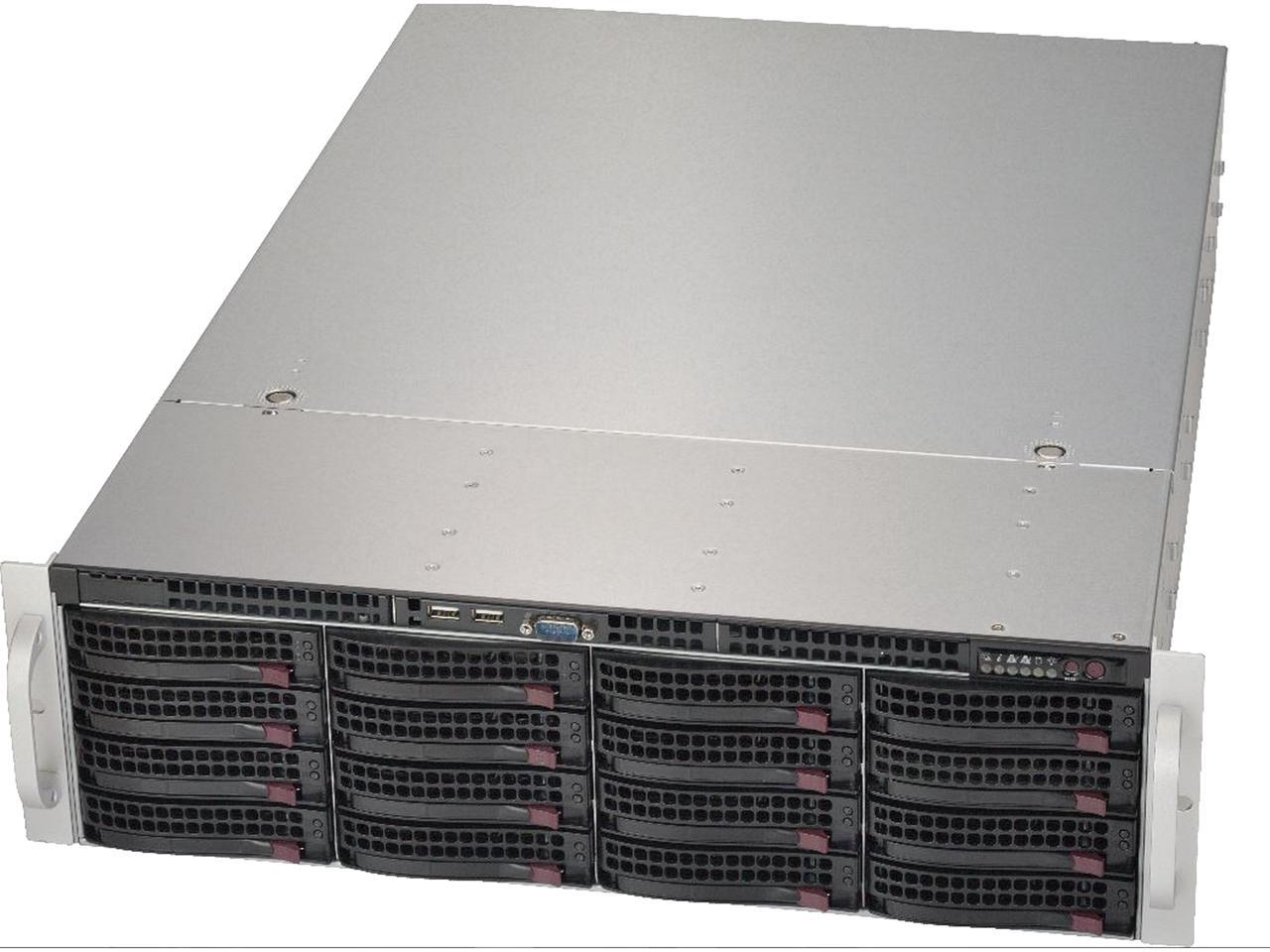

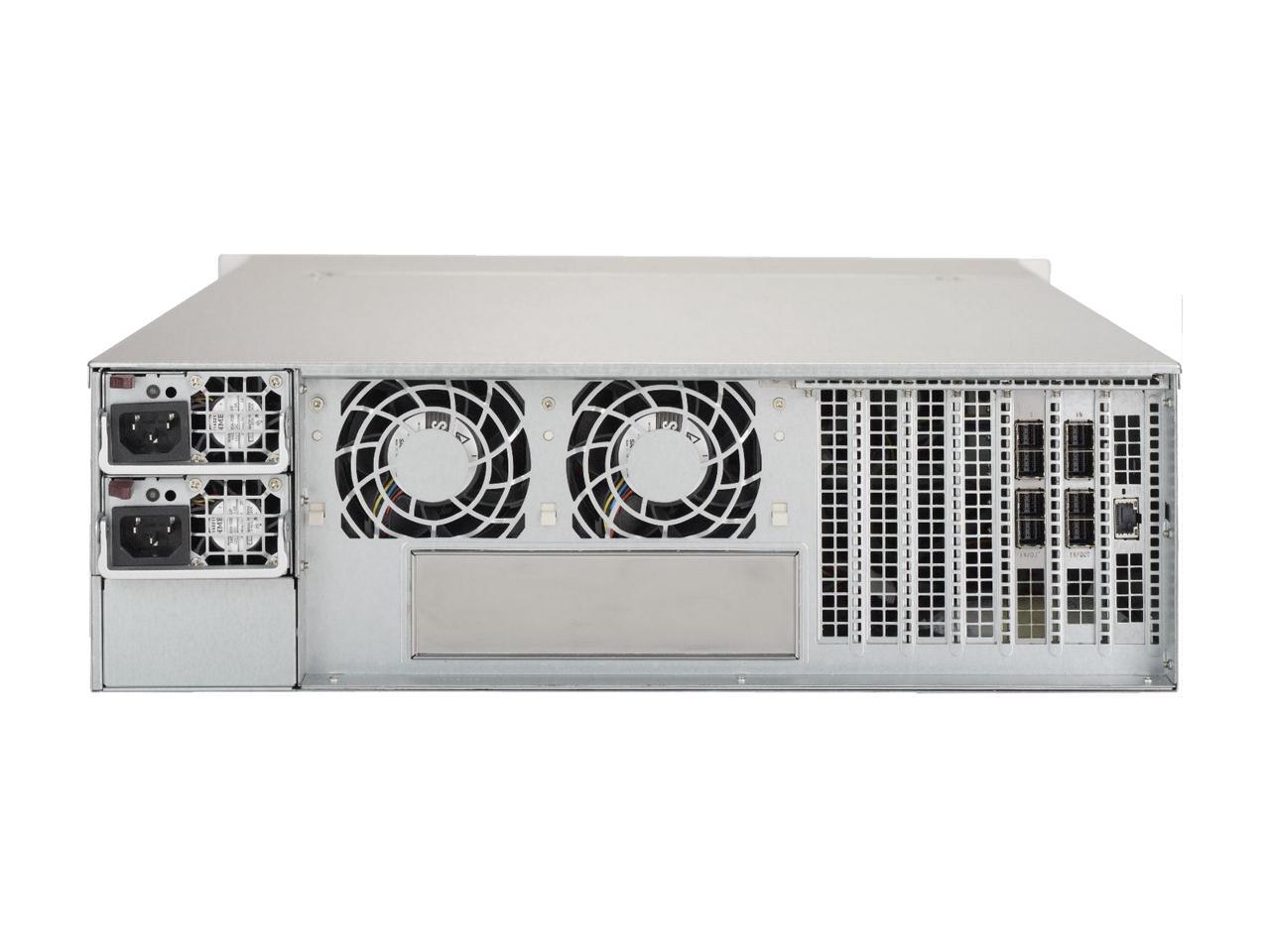

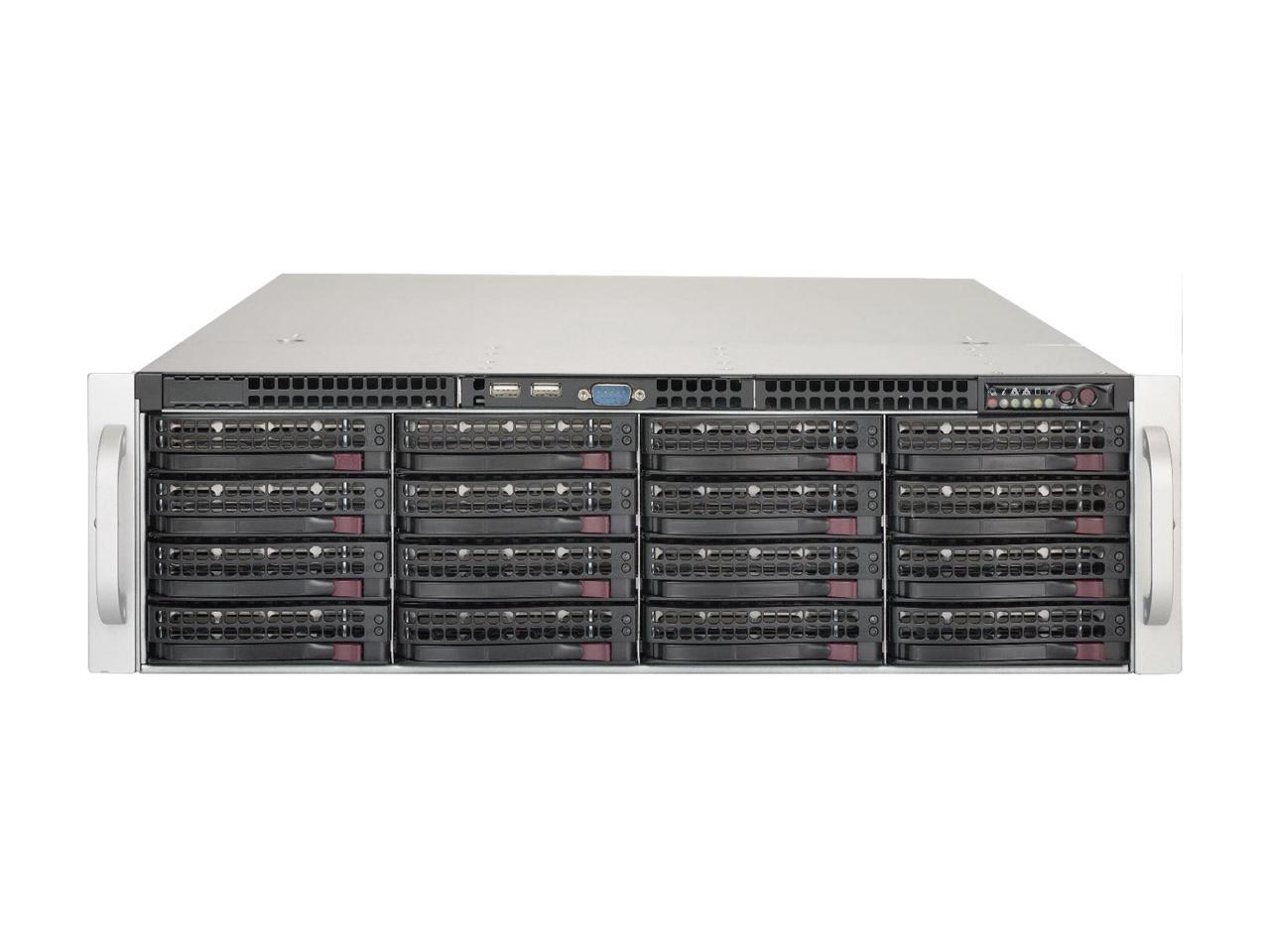

Supermicro CSE-836BE2C-R1K03JBOD SuperChassis
- 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Number of Hard Drives Supported: 16Non-RAID Mode: JBODNumber of Total Expansion Bays: 16Number of 3.5" Bays: 16Drive Interface: 12Gb/s SASHost Interface: 12Gb/s SASColor: BlackCooling Fan: YesForm Factor: Rack-mountableRack Height: 3UHeight: 5.20" (132 mm)Width: 17.20" (437 mm)Depth: 25.47" (647 mm)Weight (Approximate): 24.95 kg
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
