Supermicro 2U Gold Series SuperStorage Server (ASG-2015S-E1CR24H-G1)
- Single AMD EPYC 9124 (16C/3GHz)
- 256GB DDR5-5600 (at 4800)
- 2x 20TB 3.5" SATA
- 1x 960GB M.2 NVMe SSD
- 1 dual 10GbE RJ45
- 2x 1600W Titanium Level
- SAS Controller – HW RAID via Broadcom 3908
+
+
Learn more about the Supermicro ASG-2015S-E1CR24H-G1
| Brand | SUPERMICRO |
|---|---|
| Series | Gold Series |
| Model | ASG-2015S-E1CR24H-G1 |
| Workload | General Purpose Server |
|---|---|
| Type | Rack |
| Rack Height | 2U |
| LEDs | Network activity Power status SSD activity System information (overheat/UID) |
| Hot-swap Fans | 4 Heavy Duty 8cm Fan(s) |
| CPU Type | AMD EPYC 9004 Series |
|---|---|
| CPU Speed | 9124 (3.00 GHz) |
| Number of CPU Cores | 16-Core Processor |
| Cache Memory | 64 MB |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 256GB |
|---|---|
| Memory Type | DDR5 5600 |
| Max Memory Capacity | 4.5TB |
| Memory Features | Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor) Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) |
| Number of Memory Slots | 12 |
| SSD (Installed) | 2 x 20TB 3.5" SATA 1 x 960GB M.2 NVMe SSD |
|---|
| Ethernet Controller | 1 Dual 10GbE RJ45 |
|---|

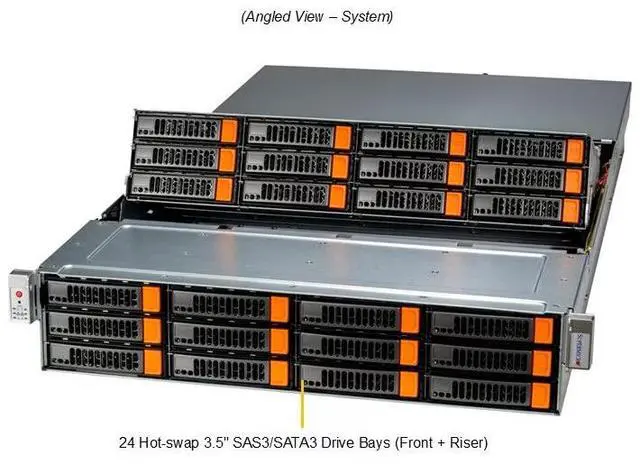

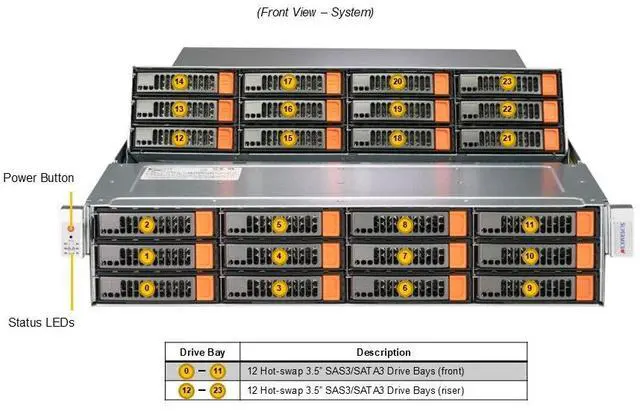

| Expansion Bays | 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays 2 M.2 NVMe slots (M-key 2280/22110) |
|---|
| Power Characteristics | 2 x 1600W Titanium Level |
|---|
| Temperature | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
|---|---|
| Humidity | Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Dimensions | 3.5" x 17.2" x 34" |
|---|---|
| Weight | 52 lbs. |
| First Listed on Newegg | July 29, 2025 |
|---|
