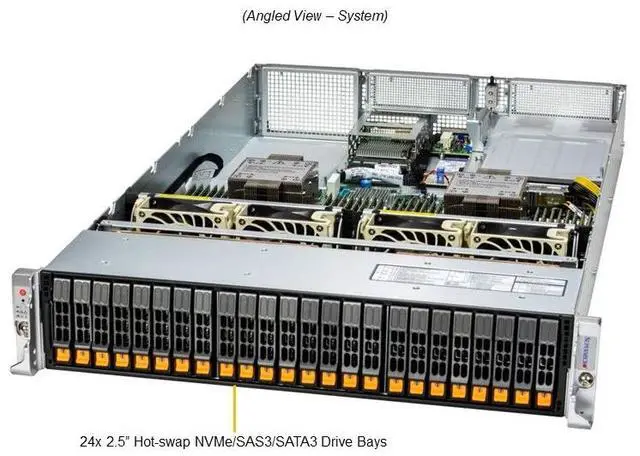

Supermicro 2U Gold Series Hyper Server (SYS-221H-TN24R-G1)

Be the first to review this product...
  • Dual Intel Xeon 6548Y+ (32C/2.5GHz)
  • 256GB DDR5-5600
  • 1x 3.8TB E1.S NVMe SSD
  • 1x 480GB M.2 NVMe SSD
  • 1 dual 25GbE SFP28
  • 2x 2000W Titanium Level
Please note that this product is non-returnable and non-refundable.
+
+
Specs
Reviews
See all Q & A

Learn more about the Supermicro SYS-221H-TN24R-G1

Model
Brand SUPERMICRO
Series Gold Series
Model SYS-221H-TN24R-G1
Details
Workload General Purpose Server
Type Rack
Rack Height 2U
LEDs HDD activity
LAN1 activity
Power
System information
Hot-swap Fans 4x 8cm heavy duty fans with optimal fan speed control
Processor
CPU Type Intel Xeon
CPU Speed 6548Y+ (2.50 GHz)
Number of CPU Cores 32-Core Processor
Cache Memory 60 MB
# of Processors Installed 2
MAX Processors 2
Memory
Installed Memory Size 256GB
Memory Type DDR5 5600
Max Memory Capacity 8TB
Memory Features Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Number of Memory Slots 32
Storage
SSD (Installed) 1 x 3.8TB E1.S NVMe SSD
1 x 480GB M.2 NVMe SSD
Networking
Ethernet Controller 1 Dual 25GbE SFP28
Expansion & Ports

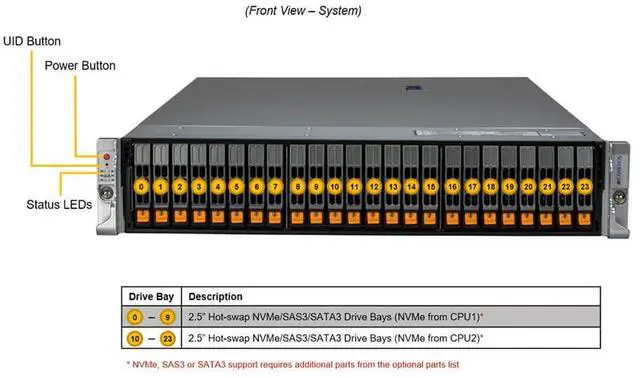

Expansion Bays 24 front hot-swap E1.S NVMe drive bays
2 M.2 NVMe/SATA slots (M-key 2280/22110)
Power
Power Characteristics 2 x 2000W Titanium Level
Environmental
Temperature Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
Humidity Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Dimensions & Weight
Dimensions 3.5" x 17.2" x 29.9"
Weight 40 lbs.
Additional Information
First Listed on Newegg July 29, 2025
