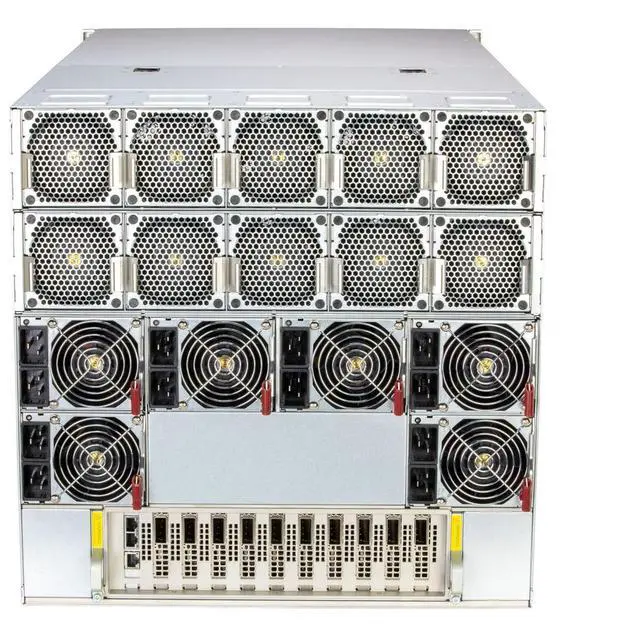

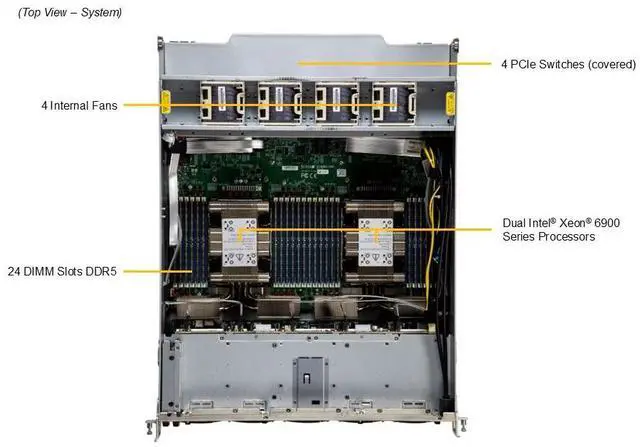

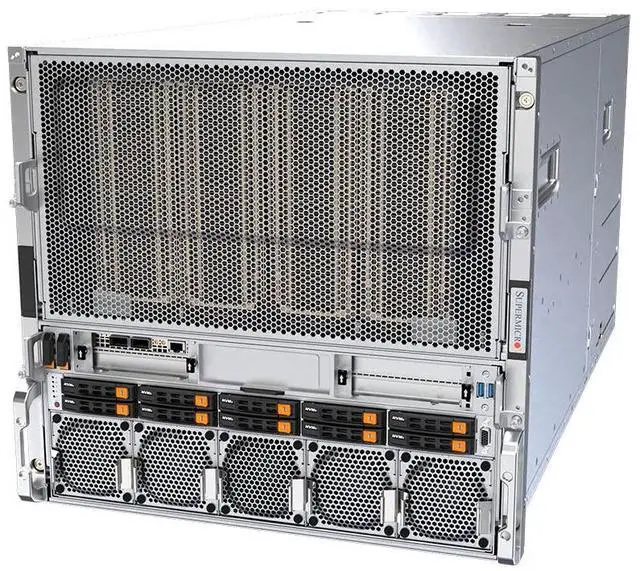

Supermicro 10U B200 Gold Series GPU Server (SYS-A22GA-NBRT-G1)

Be the first to review this product...
  • Dual Intel Xeon 6960P (72C/2.7GHz)
  • NVIDIA HGX B200 8-GPU
  • 2.3TB DDR5-6400
  • 4x 1.9TB U.2 NVMe SSD
  • 2x 1.92TB M.2 NVMe SSD
  • 8x Single 400G NDR/ETH OSFP
  • 1x NVIDIA BlueField-3 DPU 200Gb/s
  • 6x 5250W Redundant (3+3) Titanium Level
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-A22GA-NBRT-G1

Model
Brand SUPERMICRO
Series Gold Series
Model SYS-A22GA-NBRT-G1
Details
Workload General Purpose Server
Type Rack
Rack Height 10U
LEDs HDD activity
Network activity LEDs
System information (overheat/UID)
UID
Hot-swap Fans 15 counter-rotating 80x80x80mm Fan(s)
4 counter-rotating 60x60x56mm Fan(s)
Processor
CPU Type Intel Xeon
CPU Speed 6960P (2.70 GHz)
CPU Socket LGA 7529
Number of CPU Cores 72-Core Processor
Cache Memory 432 MB
# of Processors Installed 2
MAX Processors 2
Memory
Installed Memory Size 2.3TB
Memory Type DDR5-6400
Max Memory Capacity 6TB
Memory Features Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Number of Memory Slots 24
Storage
SSD (Installed) 2 x 1.9TB M.2 PM9A3 NVMe Solid State Drive (Gen 4)
4 x 1.9TB 2.5" PM9A3 NVMe PCIe 4.0 Solid State Drive (1 x DWPD)
Graphic Controller
Servers_Graphic Installed 1
Graphic Type NVIDIA HGX GPU Baseboard 8 B200
Video Memory 180GB
Networking
Ethernet Controller 8 x Supermicro 400-Gigabit MCX75310AAS-NEAT (1 x OSFP) Ethernet Network Adapter
1 x BlueField-3 BF3220 DPU 200GbE Dual Port Crypto Enable
1 x 2 RJ45 10Gbase-T Ports
Expansion & Ports
Expansion Bays 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
Power
Power Characteristics 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies
Environmental
Temperature Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions & Weight
Dimensions 17.2" x 17.6" x 33.2"
Weight 293 lbs.
