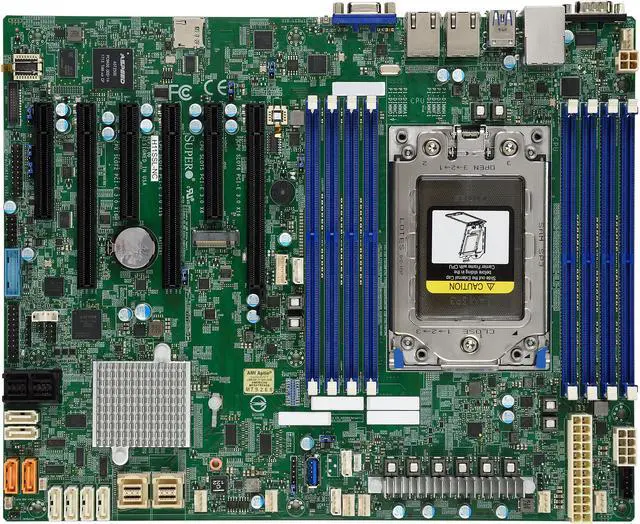

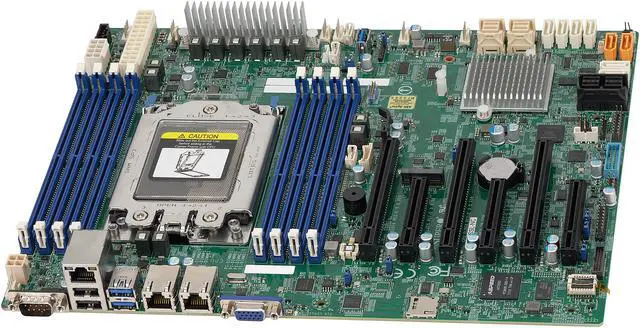

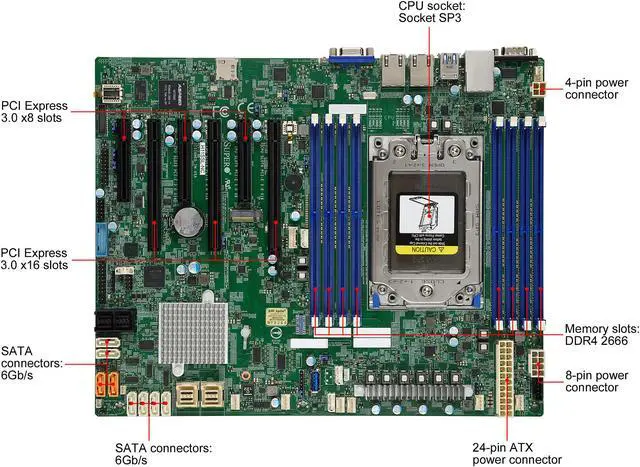

SuperMicro H11SSL-NC ATX Server Motherboard EPYC 7000-series

(1) Write a Review

Single AMD EPYC 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs, 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
Expansion slots:
3 PCI-E 3.0 x16
3 PCI-E 3.0 x8
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
8 SATA 3.0 + Broadcom 3008 for 8 SAS3 ports + 2 NVMe, 1 M.2
Dual Gigabit Ethernet LAN Ports
ASPEED AST2500 BMC graphics
Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
Up to 4 USB 2.0 ports (2 rear + 2 via header)
7 PWM 4-pin Fans with tachometer status monitoring

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Key Features 1. Single AMD EPYC™ 7000-Series Processor 2. 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 3.
Expansion slots: 3 PCI-E 3.0 x16 3 PCI-E 3.0 x8 4. 8 SATA 3.0 + Broadcom 3008 for 8 SAS3 ports + 2 NVMe, 1 M. 2 5. Dual Gigabit Ethernet LAN Ports 6. ASPEED AST2500 BMC graphics 7. Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) Up to 4 USB 2.0 ports (2 rear + 2 via header) 8. 7 PWM 4-pin Fans with tachometer status monitoring

Model
Brand	SUPERMICRO
Model	H11SSL-NC

Supported CPU
CPU Socket Type	Socket SP3
CPU Type	Single AMD EPYC 7001 series Processor

Memory
Number of DDR4 Slots	8 x 288-pin
DDR4 Standard	DDR4 2666
Maximum Memory Supported	Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
Channel Supported	Eight Channel
ECC Supported	Yes
Registered	Yes

Expansion Slots
PCI Express 3.0 x16	3 PCI-E 3.0 x8 3 PCI-E 3.0 x16

Storage Devices
SATA	8 x SATA 6.0Gb/s
SAS	8 x SAS3 (12 Gbps)
M.2	Interface: PCI-E 3.0 x4 Form factor: 2280, 22110 Key: M-key

Onboard LAN
LAN Chipset	Intel I210
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel I210
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	1Gbps

Rear Panel Ports
COM	1
RJ45	2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
