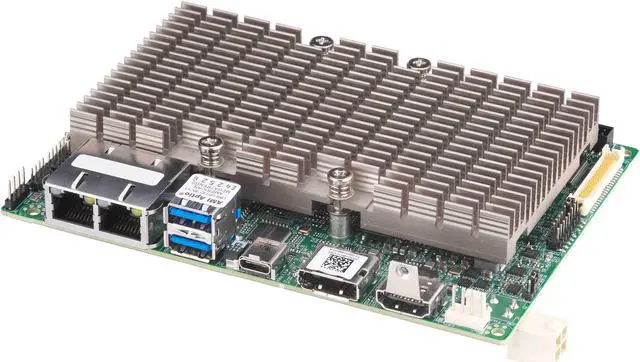

SUPERMICRO MBD-X11SSN-L-O 7th Generation Intel Core i3-7100U Processor Motherboard / CPU Combo
- DDR4 2133
- Intel HD Graphics 620
Learn more about the Supermicro MBD-X11SSN-L-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SSN-L-O |
| Combo Type | Motherboard / CPU Combo |
| CPU | 7th Generation Intel Core i3-7100U Processor |
|---|
| Number of Memory Slots | 2x260pin |
|---|---|
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 32GB |
| Mini Card Slots | 1 x Full size Mini-PCI-E with mSATA (1 x USB 2.0, 1 x PCI-E Gen3, 1 x SATA Gen3) |
|---|---|
| Other Slots | M.2 Interface: SATA and PCI-E 3.0 x2 and USB 2.0 Form Factor: 2242, 2280, 3042 Key: B-Key |
| SATA | 1 x SATA 6.0Gb/s |
|---|
| Onboard Video Chipset | Intel HD Graphics 620 |
|---|
| Audio Chipset | ALC 888S HD Audio |
|---|
| LAN Chipset | Intel I219-LM |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel Ethernet Controller I210IT |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| Video Ports | 1 x DP (DisplayPort) port, 1 x 48-bit LVDS port |
|---|---|
| HDMI | 1 x HDMI |
| RJ45 | 2 x RJ45 |
| USB 3.0 | 2 x USB 3.0 1 x USB 3.1 TYPE C |
| Onboard USB | 4 x USB 2.0 ports 1 x USB 3.0 OTG Header |
|---|
| Features | 7th Generation Intel Core i3-7100U Processor Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots Dual GbE LAN w/ Intel i219LM + i210IT 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus Support 12V DC power input (R/A Type Connector) Support HDMI 2.0 |
|---|
| Dimensions (W x L) | 5.7" x 4.0" |
|---|
| First Listed on Newegg | September 06, 2018 |
|---|
