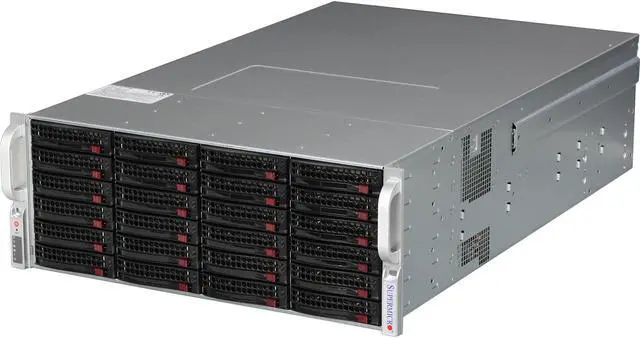

SUPERMICRO SSG-5048R-E1CR36L 4U Rackmount Server Barebone LGA 2011 Intel C612 DDR4 2133/1866/1600/1333

Be the first to review this product...
  • LGA 2011
  • Intel Xeon processor E5-2600/1600 v3 family (up to 145W TDP)
  • 8 x 284Pin Memory Slots
  • 1280W
This item is covered under the Manufacturer Only Return Policy.
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SSG-5048R-E1CR36L

General
Brand SUPERMICRO
Model SSG-5048R-E1CR36L
Form Factor 4U Rackmount
CPU Supported
CPU Type Intel Xeon processor E5-2600/1600 v3 family (up to 145W TDP)
CPU Socket LGA 2011
Installed CPU No CPU Installed
Max Processors 1
Chipset
North Bridge Intel C612
Memory Supported
Memory Slots 8 x 284Pin
Installed Memory Size No Memory Installed
Max Memory Supported Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Memory Type Supported DDR4 2133/1866/1600/1333
ECC Supported Yes
Storage Supported
Installed HDD No Storage Installed
SAS 8x SAS3 (12Gbps) ports
Graphics
GPU/VPU ASPEED AST2400 BMC
Expansion Slots
PCI Express 1x PCI-E 3.0 x4 (in x8) slot
1x PCI-E 3.0 x8 (in x16) slot
2x PCI-E 3.0 x8 slots
1x PCI-E 2.0 x2 (in x4) slot
1x PCI-E 2.0 x4 (in x8) slot
Communications
First LAN Intel I350
Second LAN Intel I350
Max. LAN Speed Quad 1 Gigabit
Expansion Bays

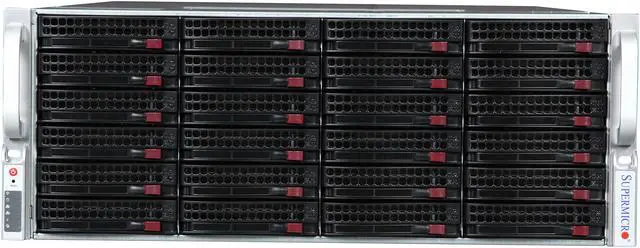

Hot-Swap Bays 36x 3.5" Hot-swap SAS3 HDD bays
Double-sided: 24 front + 12 rear HDD Bays

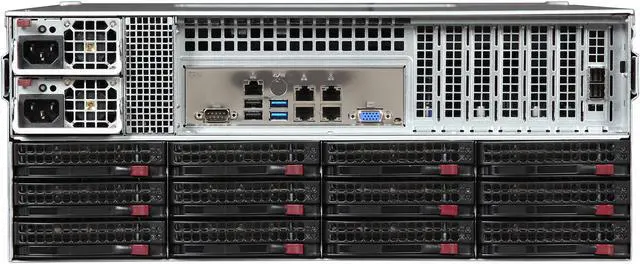

Panel Ports
VGA 1
Rear USB 2x USB 3.0
2x USB 2.0
RJ45 4x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
Other Ports 1x Fast UART 16550 port / 1 Header
Power Supply
Max. Power 1280W
Features
Features 1. Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 512GB ECC DDR4 2133MHz; 8x DIMM sockets
3. 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x2 (in x4), 1 PCI-E 2.0 x4 (in x8)
4. Intel i350-AM4 Quad port GbE LAN
5. 36x 3.5" Hot-swap SAS3 HDD Bays (24 front + 12 rear); Opt. 2x 2.5" Hot-swap HDD bays (rear)
6. SAS3 via LSI 3008 controller; IR mode
7. Dual JBOD expansion ports
8. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
9. 7x 80mm middle cooling fans
10. 1280W Redundant Power Supplies Platinum Level (94%)
Dimensions & Weight
Dimensions 7" (178mm) x 17.2" (437mm) x 27.5" (699mm) (H x W x D)
Weight 65.5 lbs (29.7 kg)
